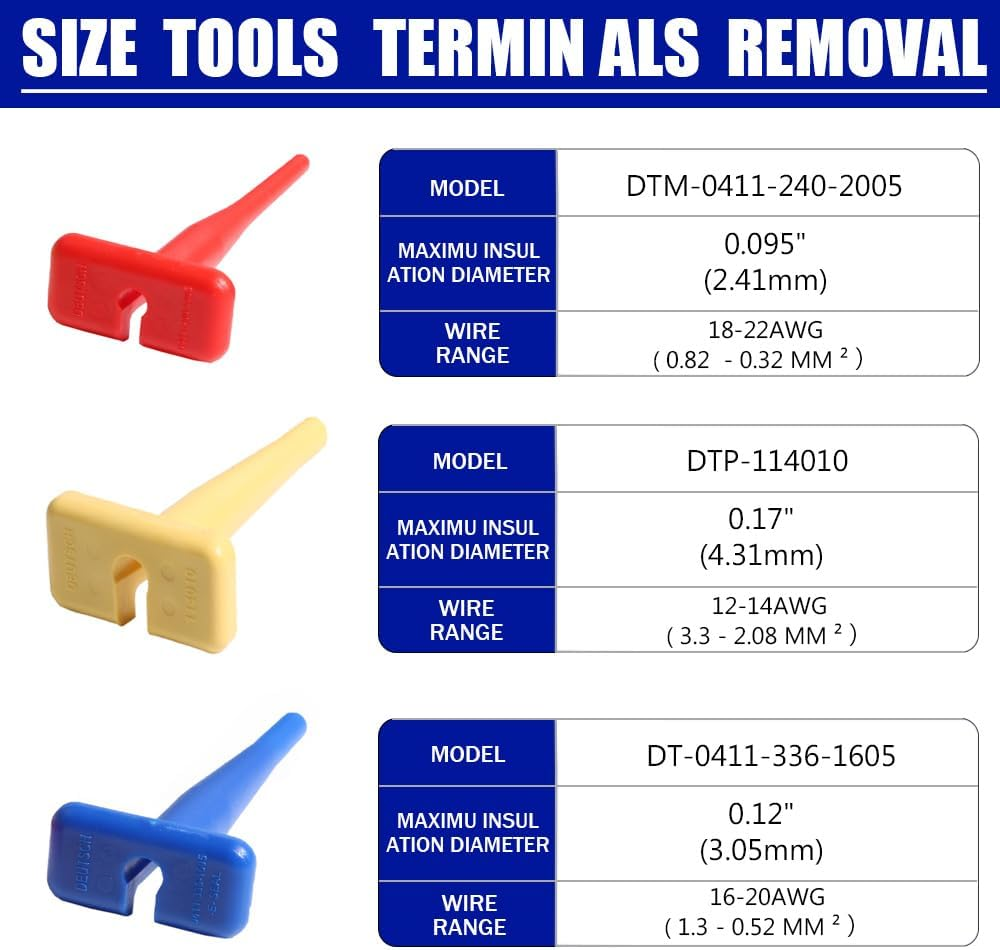

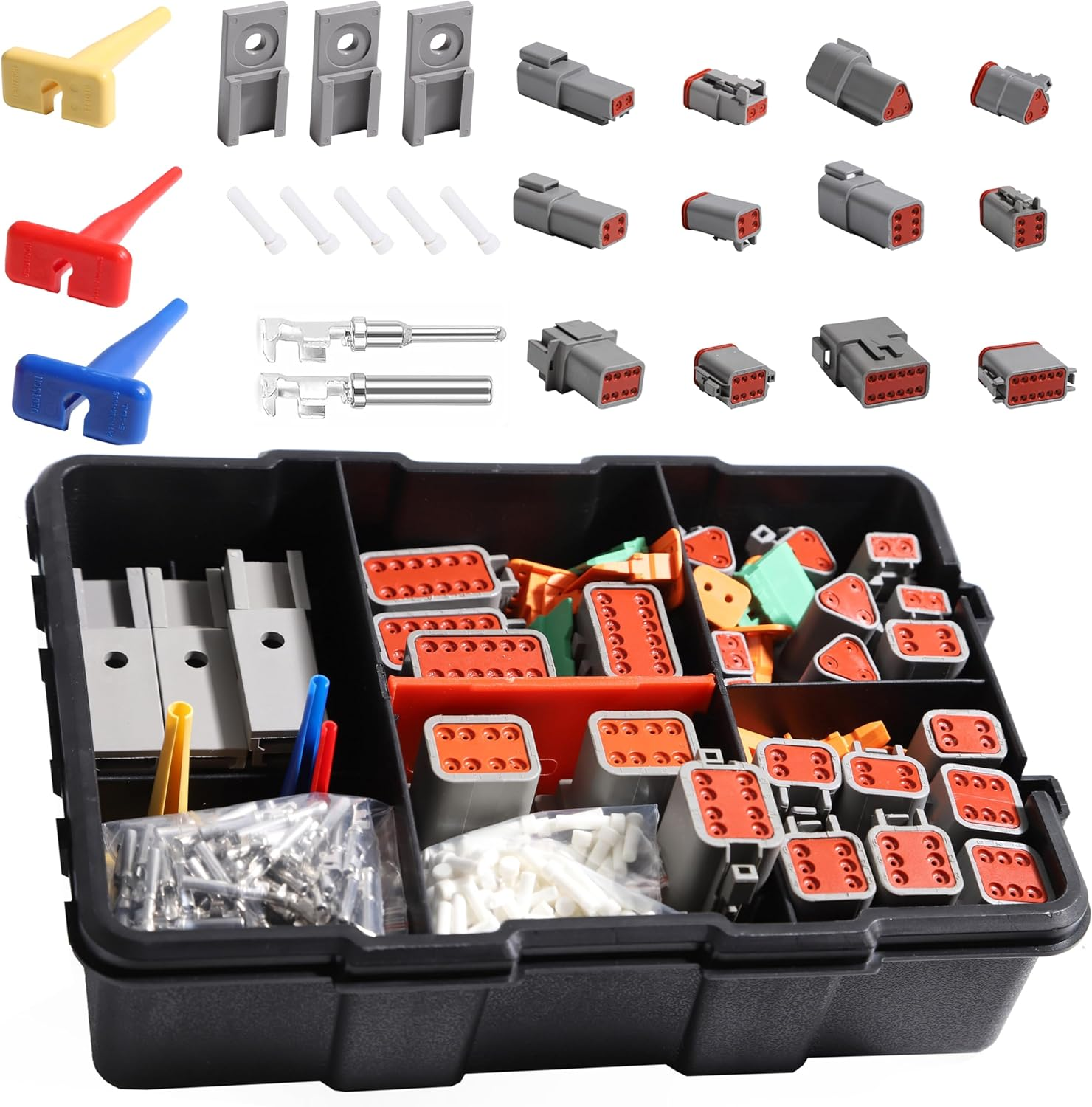

331PCS DT Connector Kit and Deutsch pin removal tool

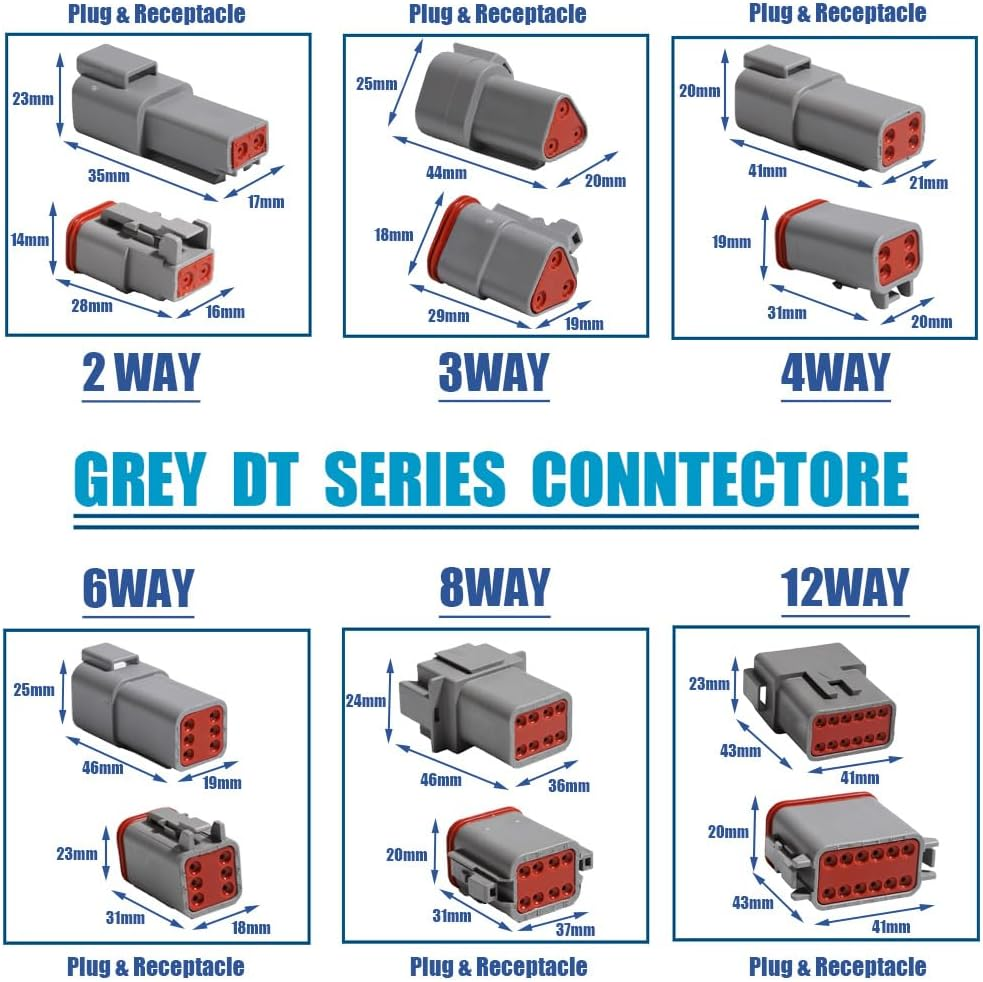

Deutsch connectors :DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 solid contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.

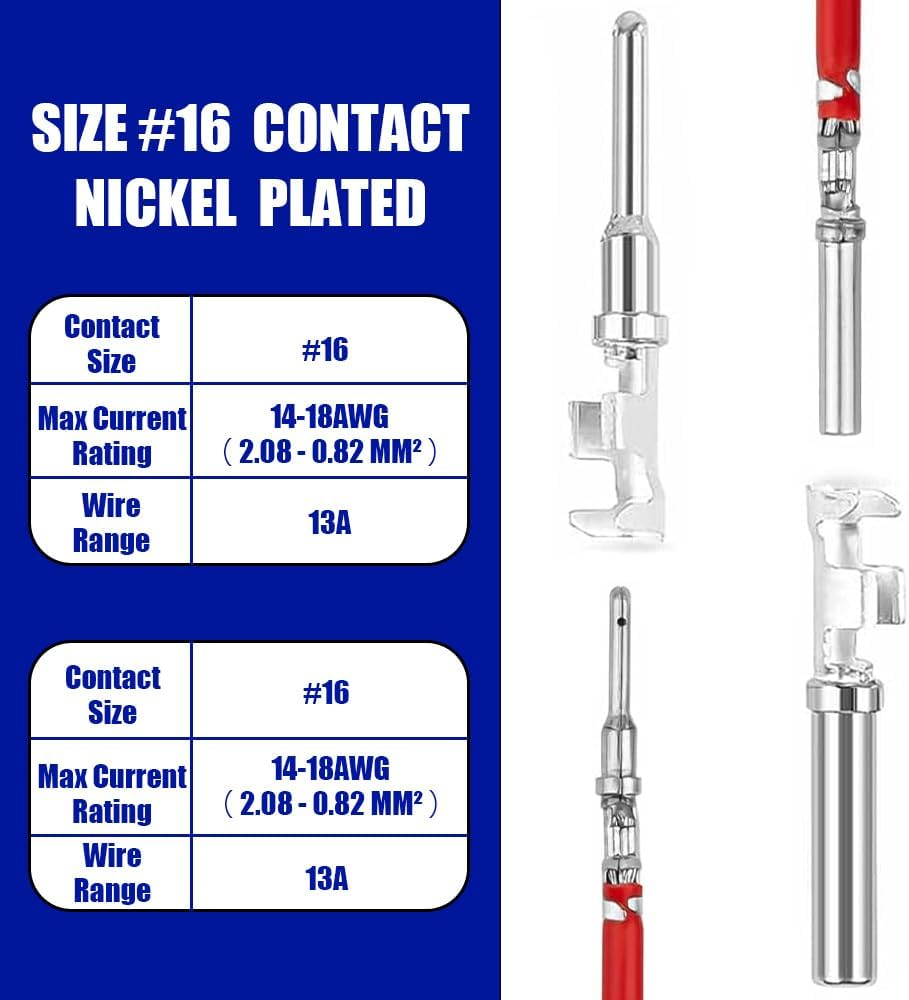

Solid Contacts

The Deutsch solid contact series is designed for use for larger wire size and heavy duty applications. This style of contact is manufactured using a cold heading process and solid copper alloy wire. The resulting contact is a closed entry design.

Mating Pin Diameter: 1.59 mm [ .063 in ]

Terminal Transmits: 0 – 24 A (Low Power)

Wire Size (AWG): 20 – 16

Wire Size (mm²): 0.5 – 1.5

Operating Temperature (Max): 125 °C [ 257 °F ]

Operating Temperature Range: -55 – 125 °C [ -67 – 257 °F ]
