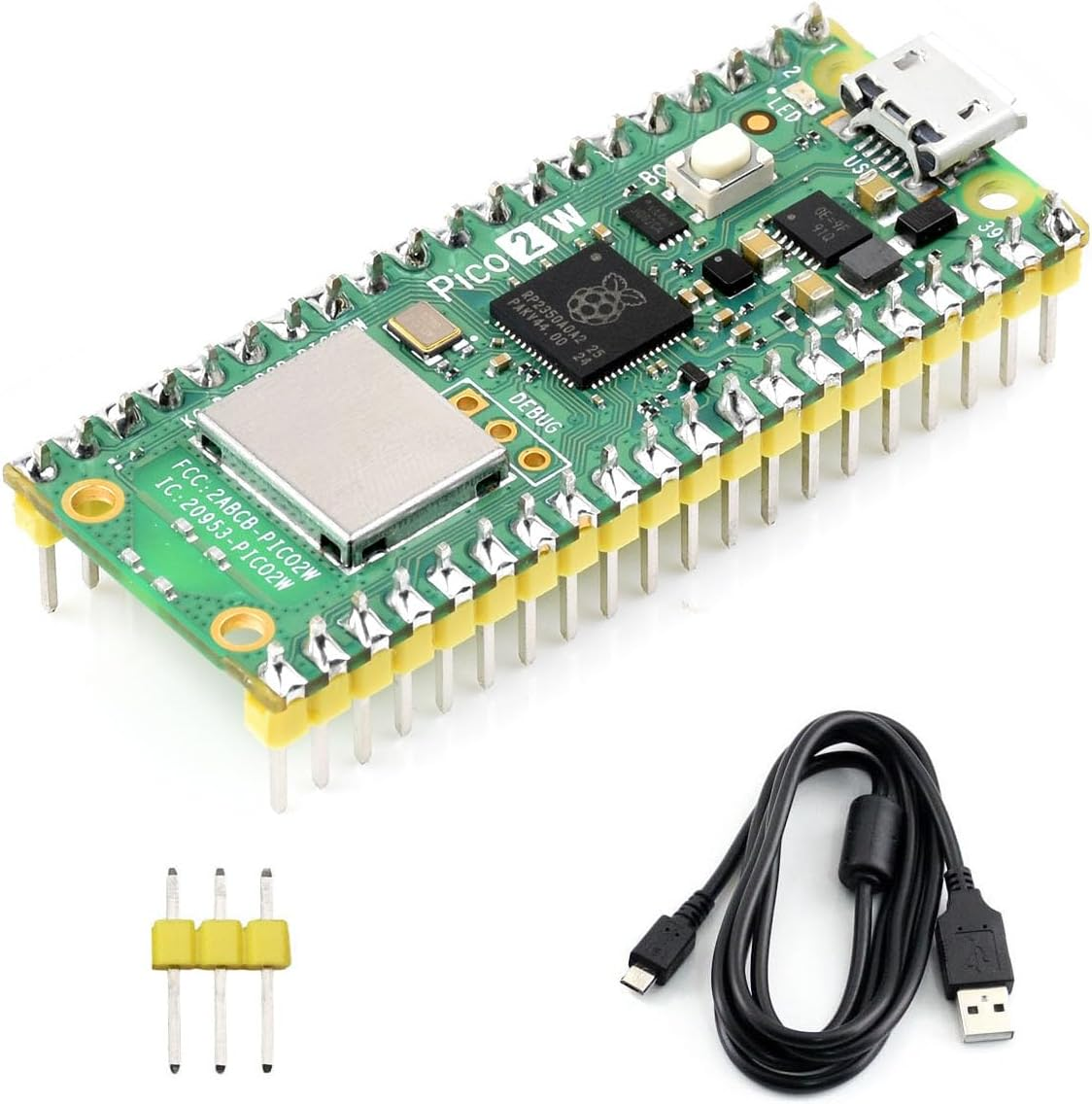

Waveshare Raspberry-Pi-Pico-2-W-M, Compatible with Raspberry Pi Pico 2 Microcontroller Board, Based on Official RP2350 Chip, Dual-Core & Dual-Architecture Design, 3 Items
Waveshare Raspberry-Pi-Pico-2-W-M, Compatible with Raspberry Pi Pico 2 Microcontroller Board, Based on Official RP2350 Chip, Dual-Core & Dual-Architecture Design, 3 Items
Brand: Waveshare
A$31.50
- There are several options for this item, this option is Starter Kit, Please click the image2 to check the package content；Rich WiKi Resources: We provide official Wiki resources, please contact us for more information

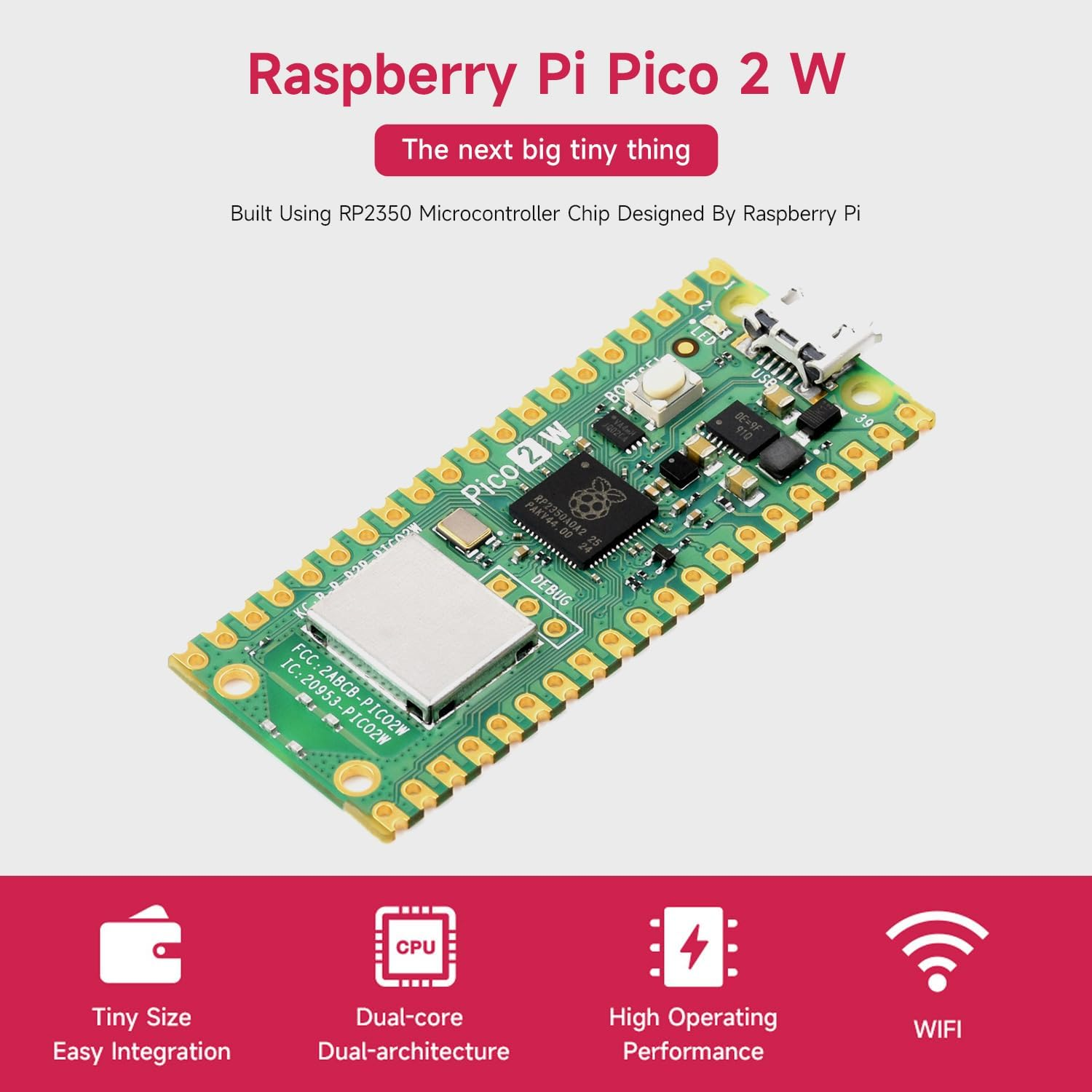

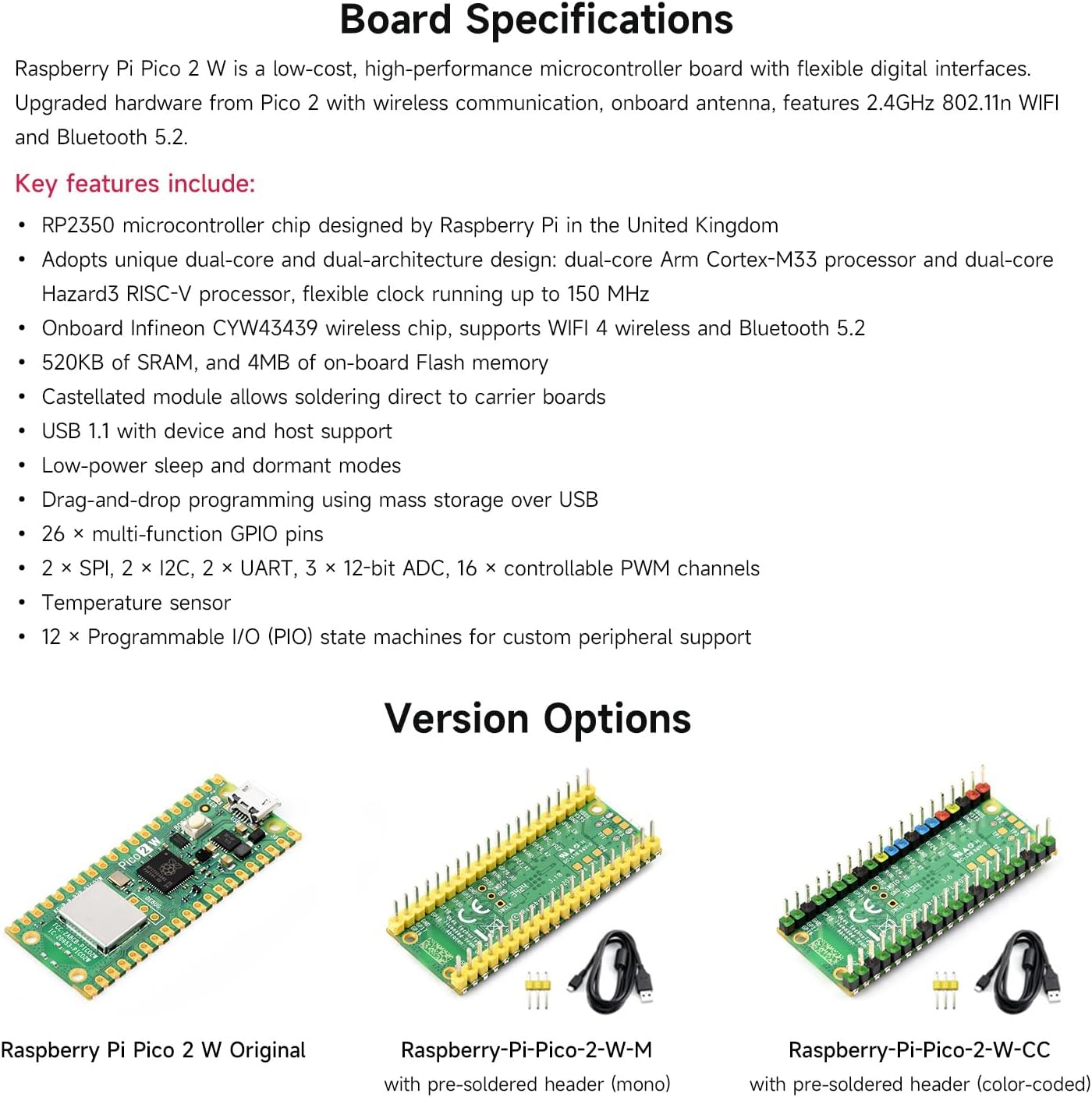

- Raspberry Pi Pico 2 W is a low-cost, high-performance microcontroller board with flexible digital interfaces. Upgraded hardware from Pico 2 with wire-less communication, onboard antenna, features 2.4GHz 802.11n W-F and BLT 5.2
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom. Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
- Onboard Infineon CYW43439 wire-less chip, supports WIFI 4 wire-less and Blue-T 5.2. 520KB of SRAM, and 4MB of on-board Flash memory. Castellated module allows soldering direct to carrier boards

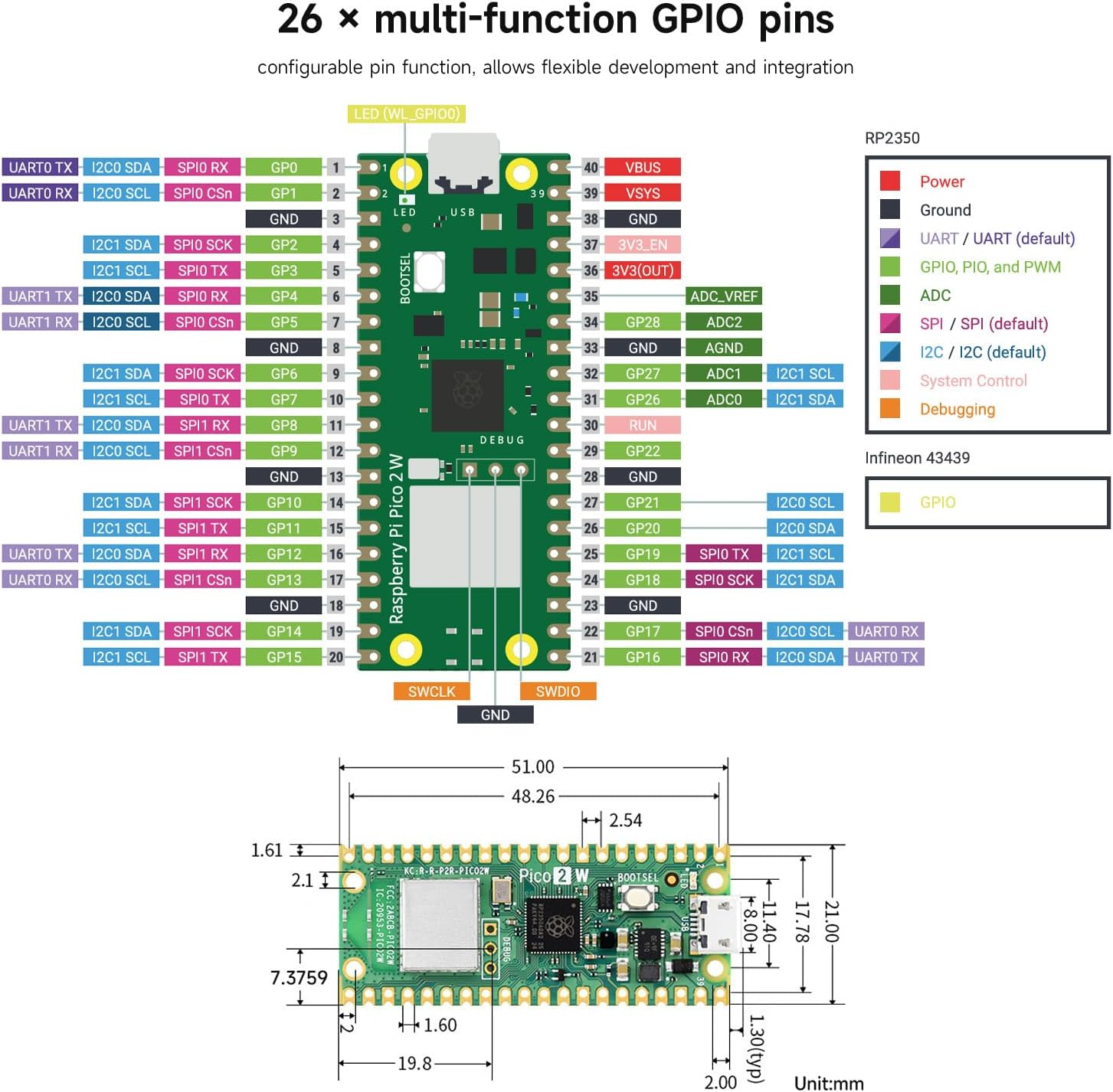

- USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. 26 × multi-function GPIO pins；2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels. Temperature sensor. 12 × Programmable I/O (PIO) state machines for custom peripheral support
Product Description
- Memory Storage Capacity: 4 MB
- Processor Count: 2
- Processor Brand: Raspberry Pi
- Model: Raspberry-Pi-Pico-2-W-M
- Operating System: Linux
- Brand: Waveshare
- Wireless Type: 802.11n
- Ram Memory Technology: DDR
- Model Name: Raspberry-Pi-Pico-2-W-M
- Package Dimensions: 10.8 x 8.1 x 2.5 cm; 60 Grams
- Manufacturer: Waveshare
- Item Model Number: Raspberry-Pi-Pico-2-W-M
- Batteries Included: No
- Batteries Required: No
- Ram Memory Installed Size: 5.2E+2 KB
- Connector Type: Bluetooth, USB, Wi-Fi
- Item Weight: 60 g
- Processor Speed: 1.5E+2 MHz
- Part Number: Raspberry-Pi-Pico-2-W-M
- Total USB ports: 1
- Mounting Hardware: Starter Kit, 3 Items
- Compatible Devices: Raspberry Pi Pico 2
- Processor Type: Core M Family
