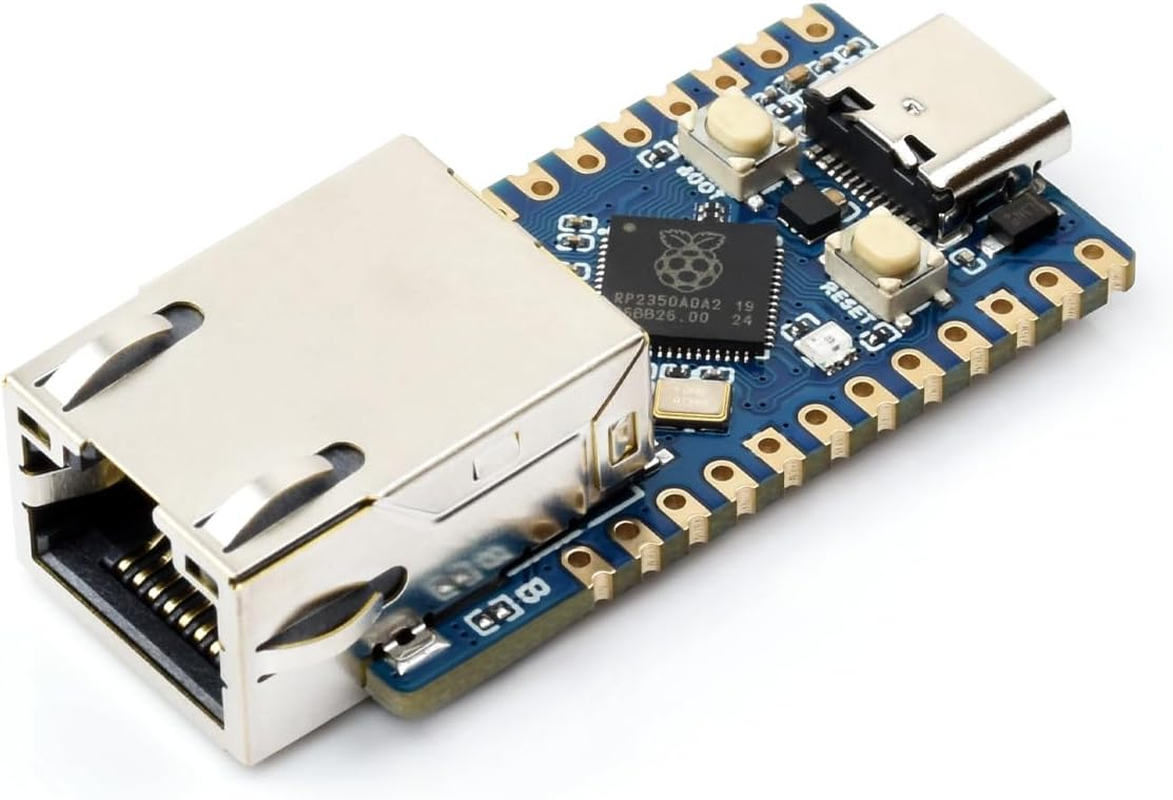

Waveshare RP2350-ETH Mini Development Board, RP2350 Ethernet Port Module, Raspberry Pi Microcontroller Development Board, Based on Official P2350 Dual-Core & Dual-Architecture Microcontroller
Waveshare RP2350-ETH Mini Development Board, RP2350 Ethernet Port Module, Raspberry Pi Microcontroller Development Board, Based on Official P2350 Dual-Core & Dual-Architecture Microcontroller
Brand: Waveshare
A$32.05
Availability:
-
This item is currently not available
Shop with confidence

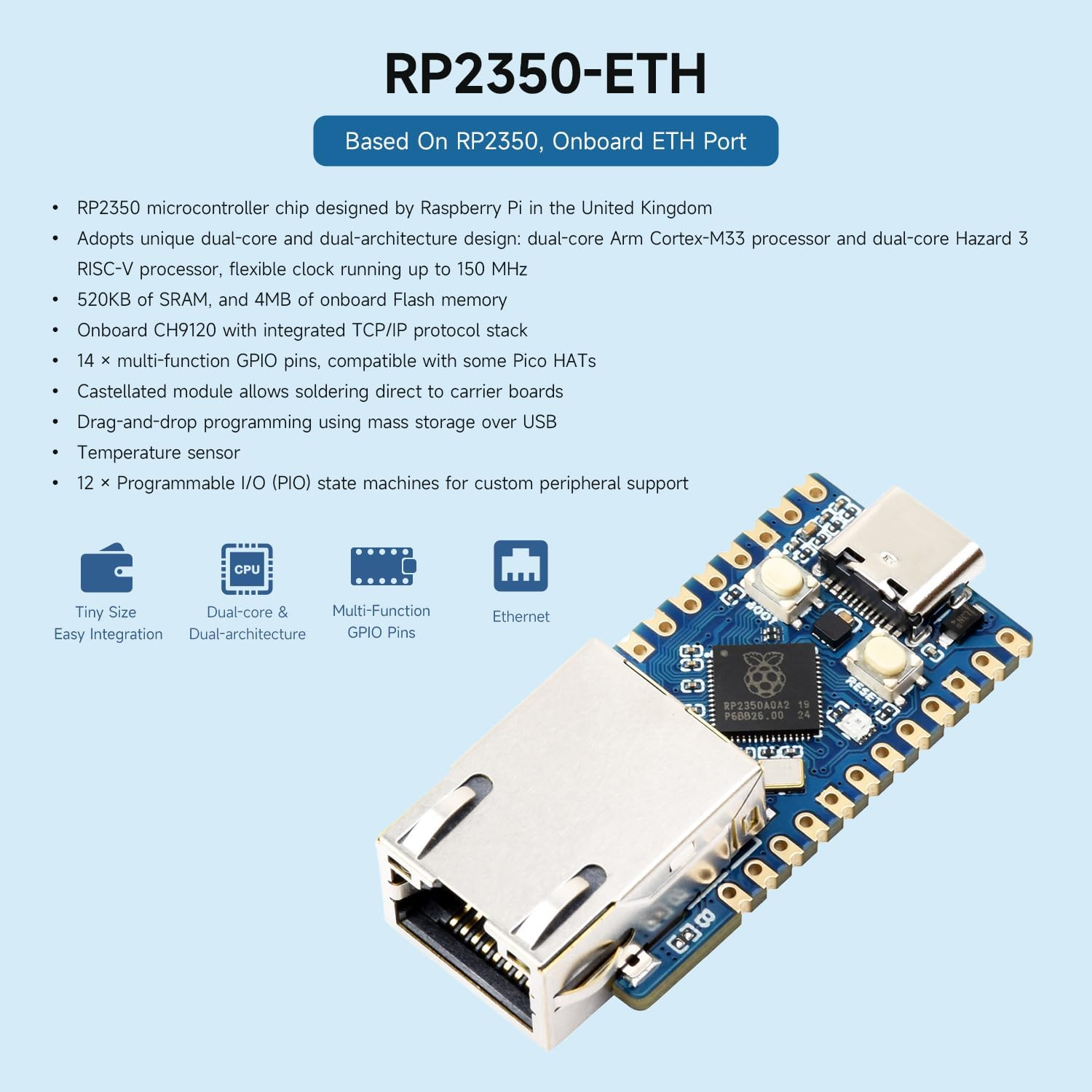

- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom. Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz

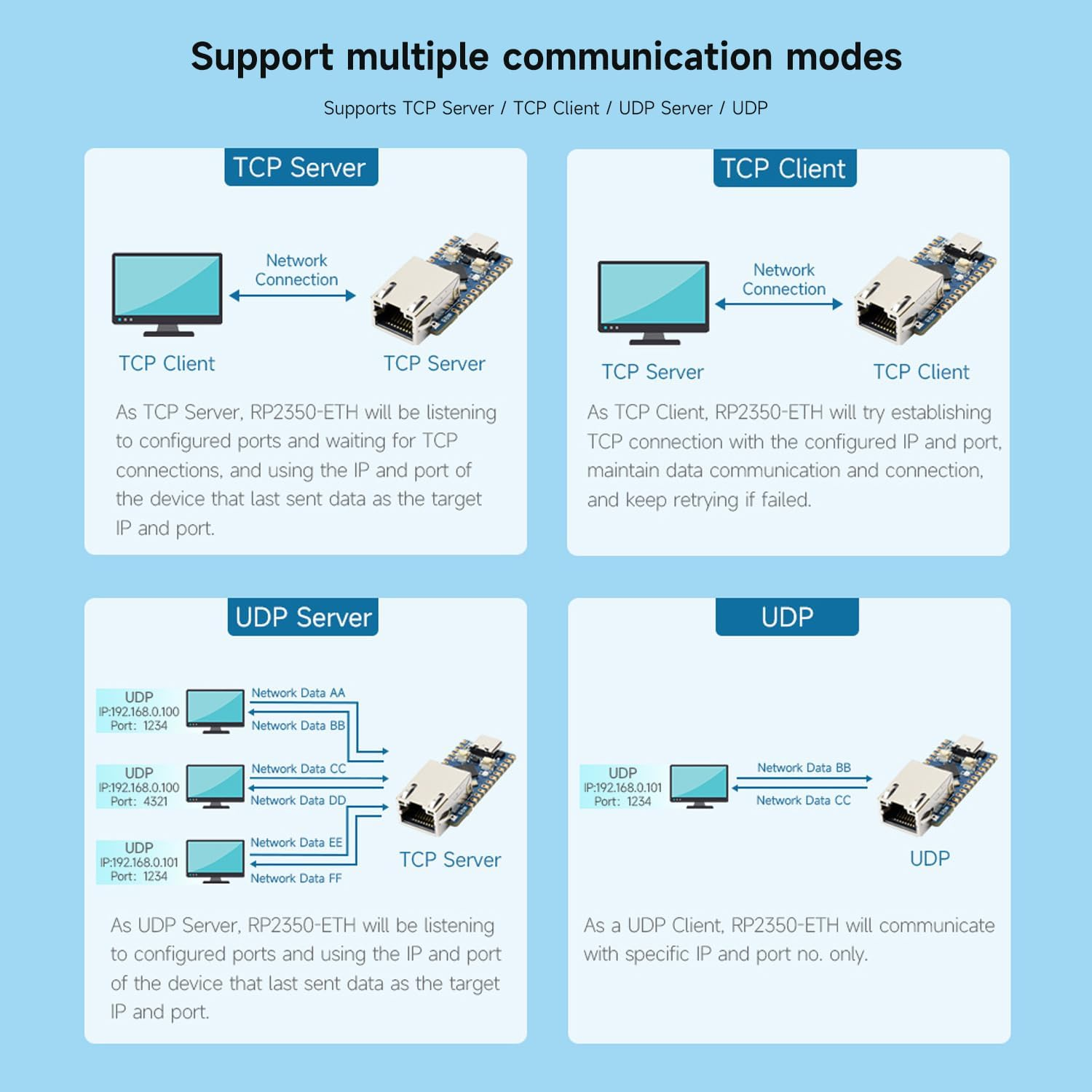

- 520KB of Static Ram, and 4MB of onboard Flash memory. Onboard CH9120 with integrated TCP/IP protocol stack

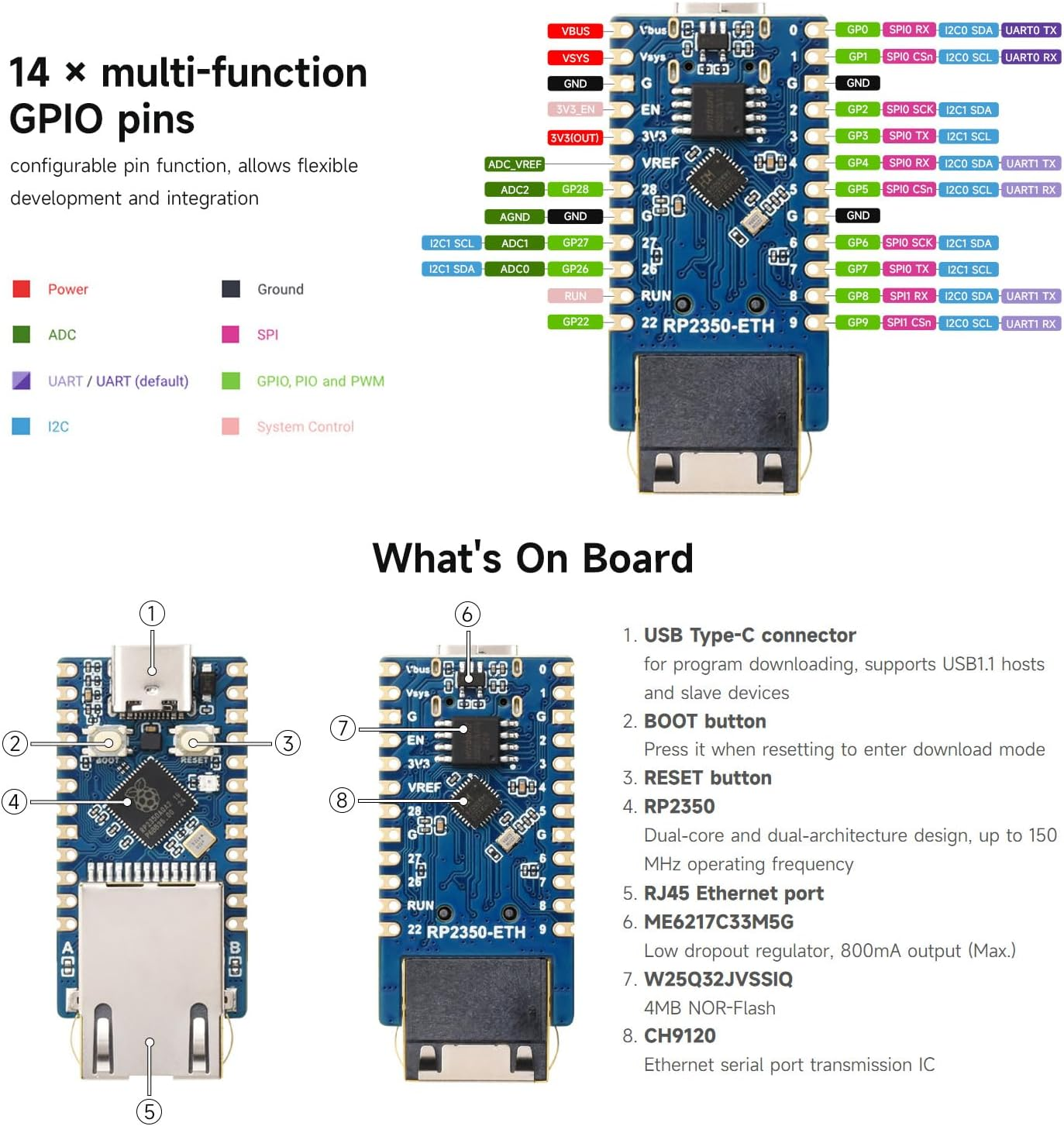

- 14 × multi-function GPIO pins, compatible with some Pico HATs. Castellated module allows soldering direct to carrier boards
- Drag-and-drop programming using mass storage over USB. Temperature sensor；12 × Programmable I/O (PIO) state machines for custom peripheral support
- Rich WiKi Resources: We provide official Wiki resources, please contact us for more information
Product Description
- Item Model Number: RP2350-ETH
- Part Number: RP2350-ETH
- Graphics Card Interface: Integrated
- Model Name: RP2350-ETH
- Batteries Included: No
- Batteries Required: No
- Brand: Waveshare
- Item Weight: 45 g
- Number of Ports: 1
- Compatible processor types: RP2350
- RAM memory maximum size: 0.5 MB
- Chipset Type: RP2350
- Model: RP2350-ETH
- Package Dimensions: 6.86 x 5.08 x 2.54 cm; 45 Grams
- Manufacturer: Waveshare
