EITAI ETCR1000C Non-Contact Phase Sequence Tester, AC 70V-1000V, Φ0.6Inch/16Mm, Manufacturer Direct Sales, Phase Rotation Meter

EITAI ETCR1000C Non-Contact Phase Sequence Tester, AC 70V-1000V, Φ0.6Inch/16Mm, Manufacturer Direct Sales, Phase Rotation Meter

Brand: EITAI
3.7
A$72.45
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • With English customer service and technical support, we offer a smooth and secure user experience.
  • 【Main function】Three phase sequence detection (positive phase, reverse phase and default phase), live wire inspection, simple circuit testing, live wire identification, phase deficiency judgment, broken wire location search, circuit breakpoint detection, and line inspection, etc.

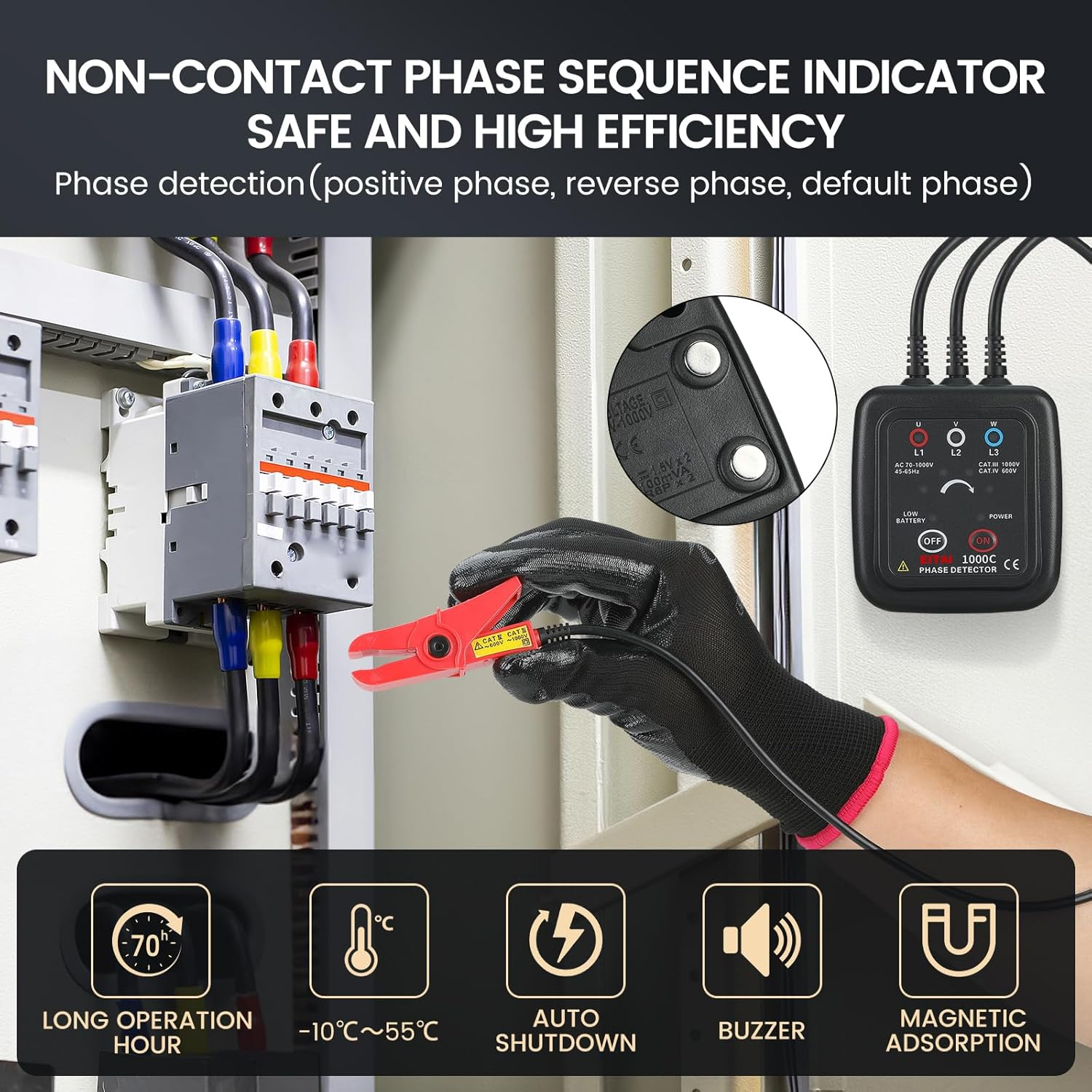

  • 【Safety Use】EITAI ETCR1000C Non-Contact Phase Sequence Tester utilizes a clamp-on non-contact inductive measurement method, eliminating the need to strip the insulation from electrical cables. You can safely inspect phase sequence without touching high-voltage exposed wires by simply clamping the super-inductive high-insulation clamps onto the insulation sheath of live wires.
  • 【Easy Operation】The phase rotation meter equipped with a magnet on the phase detector meter’s bottom plate, it can be easily attached to the metal case of the equipment during testing for convenient operation. Real-time data is presented via both voice and display for clear and immediate understanding.
  • 【Tech Spec】Measuring voltage: AC70V-1000V. Safety regulations: EN 61010-1:2001 EN 61010-031:2002, pollution level 2, CAT3 (600V), transient overvoltage 6000V.

Product Description

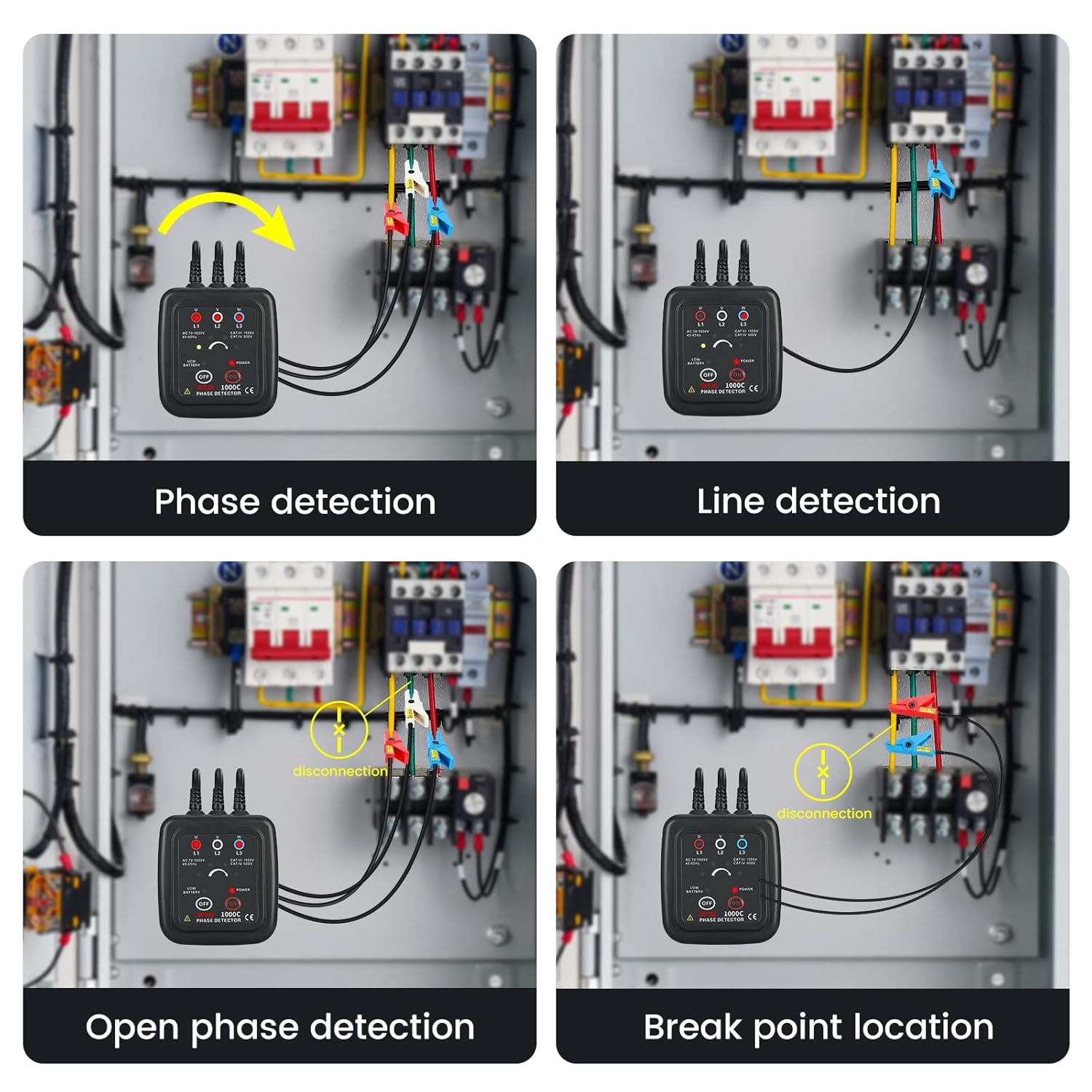

Functions Phase detection (positive phase, reverse phase, default phase), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance.
Power Supply DC 3V2*AA Alkaline dry battery , Continuously working for 70 hours

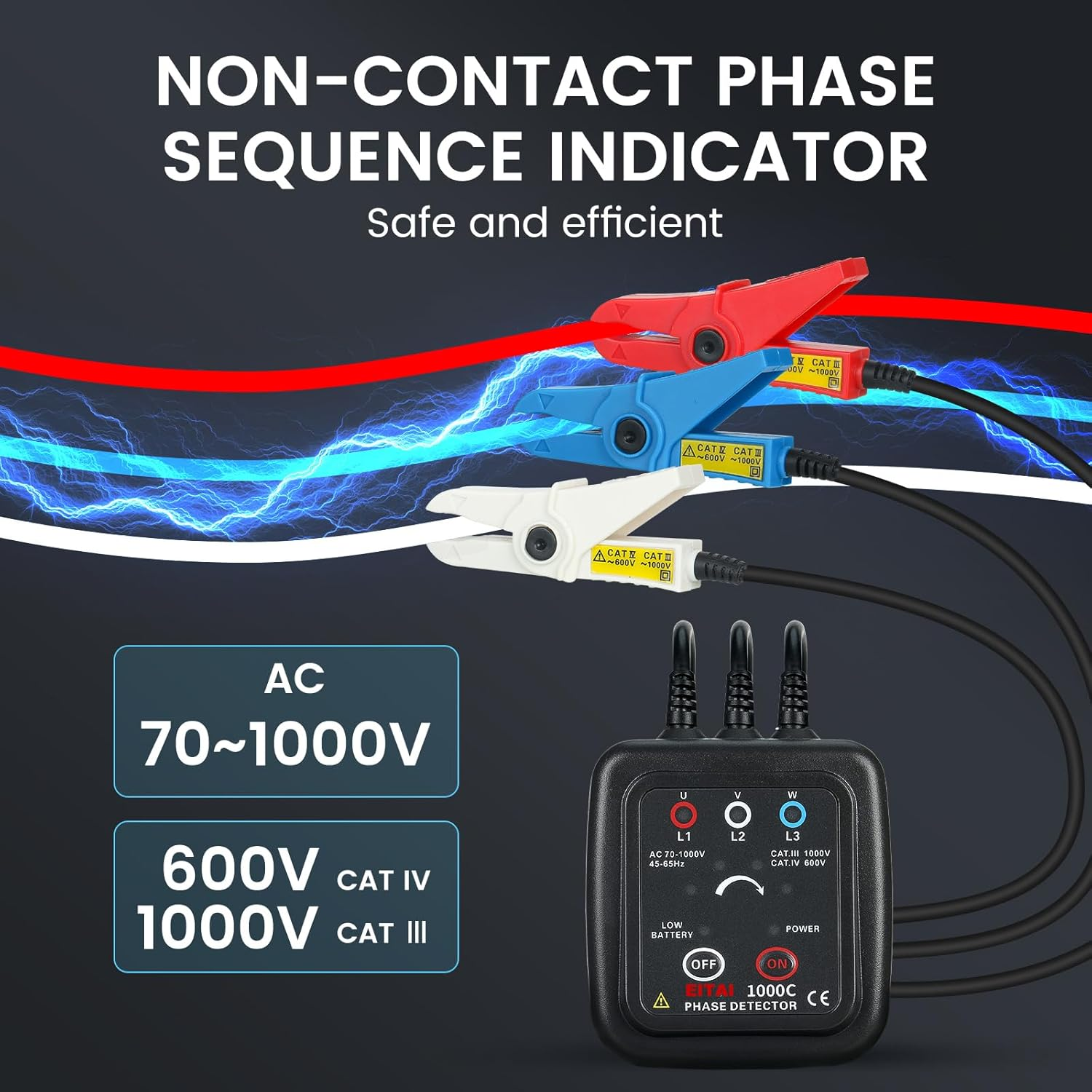

AC Voltage Range AC 70-1000V, 40/65Hz (Sine Continuous Input)

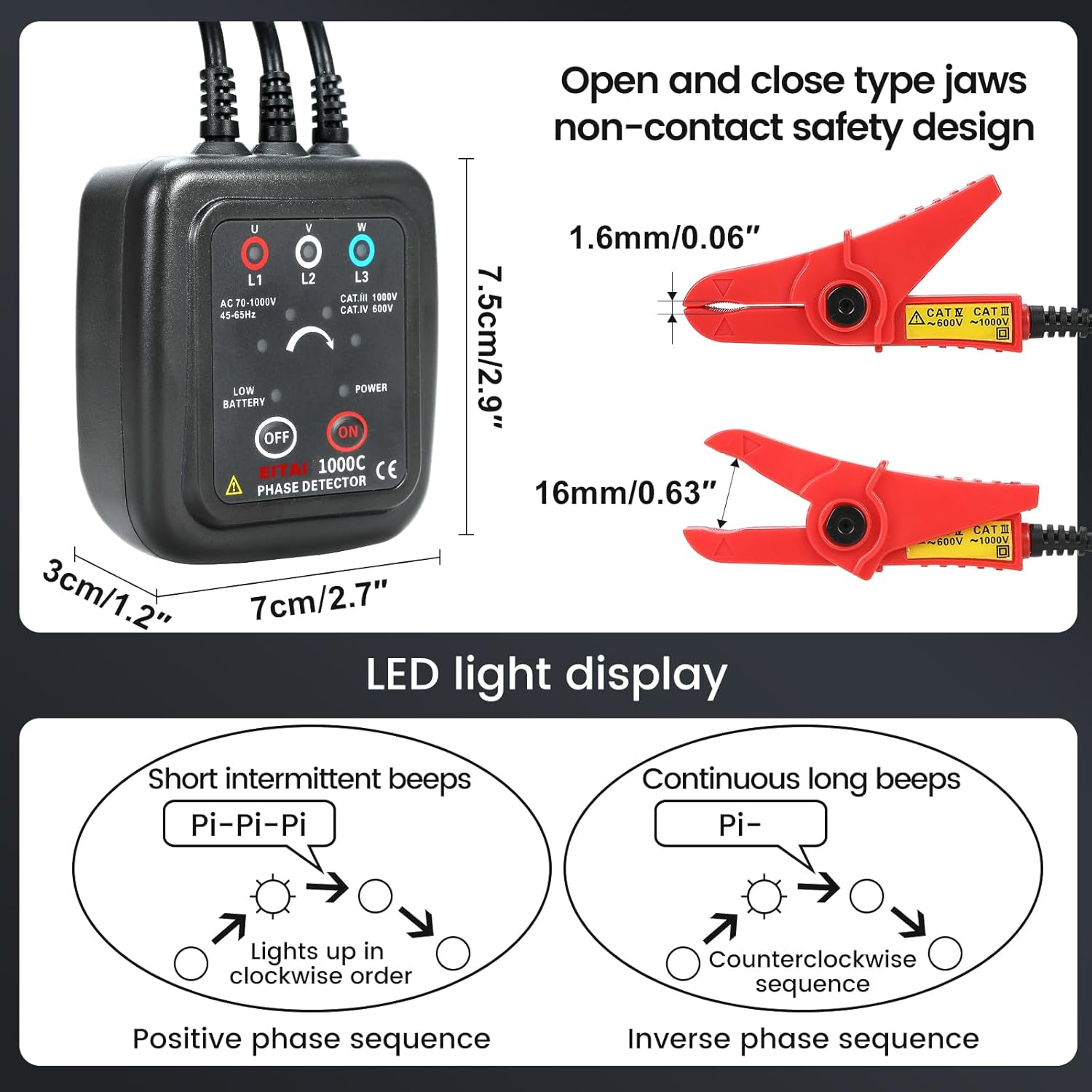

Clamp Wire Size External Diameterφ0.06"-0.6" (φ1.6mm-16mm)
Meter Dimension 2.8"*2.9"*1.2" (70mm*75mm*30mm)
Clamp Wire Length 23.6" (0.6m)
Weight Include Accessories 0.73lb (330g)
Working Temperature & Humidity -10℃-55℃; below 80%rh
Storage Temperature & Humidity -20℃-60℃; below 90%rh
Dielectric Strength 5.4kVrms
Maximum Rated Power 300mVA
Safety Provisions EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT 3 (600V), Transient over-voltage 6000V
  • Item Model Number: ETCR1000C
  • Country of origin: China
  • Package Dimensions: 14 x 11.8 x 10.2 cm; 280 Grams
  • Manufacturer: EITAI
