1. [Dual Power Switching] This dual power manual transfer switch allows for manual switching between dual power circuits, providing a and convenient solution for managing your power sources.

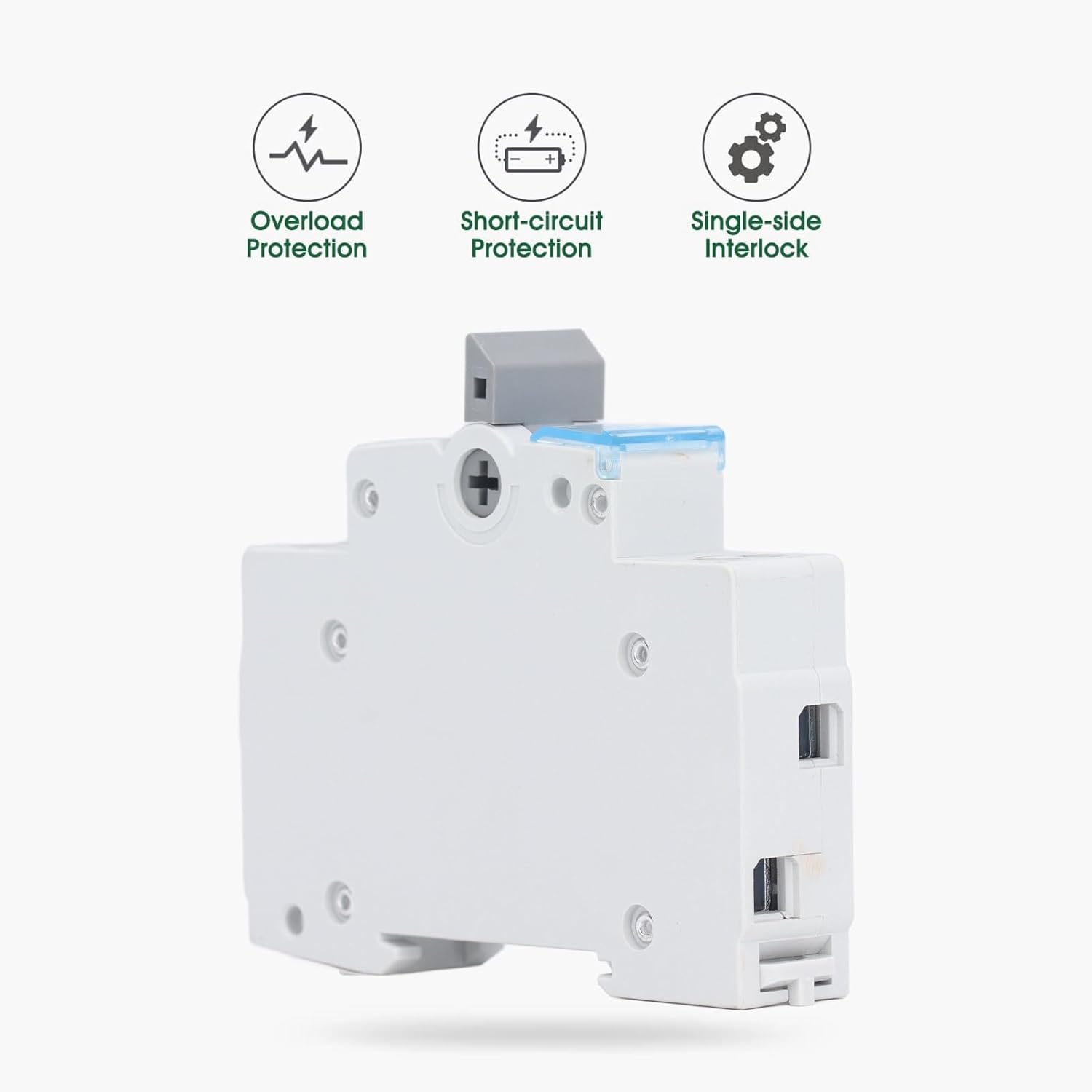

2. [Safety Features] With built in overload and short circuit protection, this transfer switch ensures the safety of your electrical system by preventing damage caused by excessive currents or electrical faults.
3. [ Construction] Featuring silver alloy , PC flame retardant housing, this manual transfer switch ensures performance and durability.
4. [Visual Indicator Window] Equipped with three color indicator window, this switch provides clear visual feedback on the status of the connected power supply. The red color indicates a tripped circuit, yellow indicates overload protection, and green indicates normal operation.

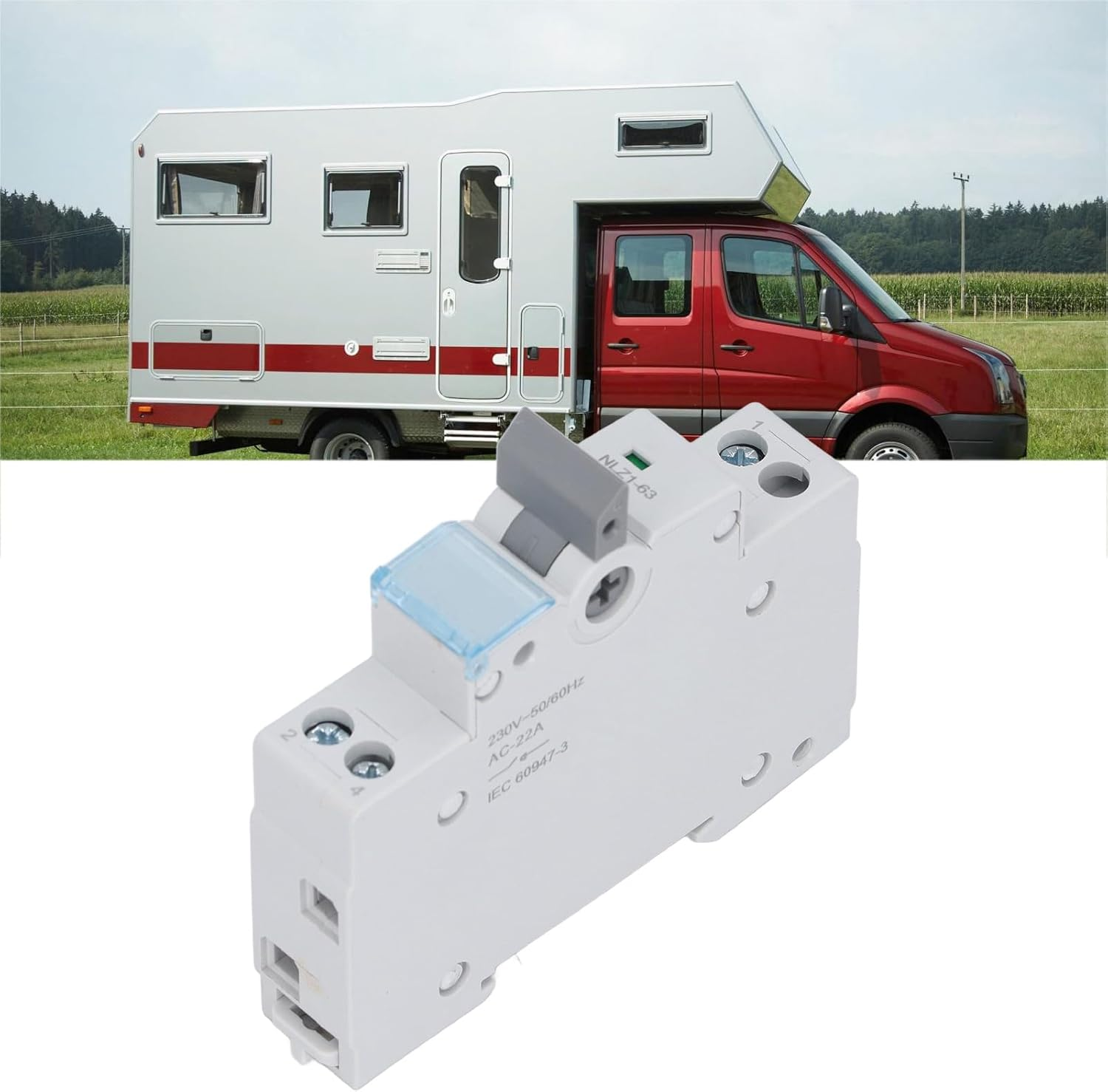

5. [Versatile Application] Suitable for a wide range of applications, including RVs, residential homes, generators, or any other dual power system, this switch offers versatility and flexibility in managing your power sources effectively.
Spec:
Item Type: Dual Power Manual Transfer Switch
Material: PC Flame Retardant, Silver
Model: NLZ1 63
Rated Voltage: 230VAC
Current: 63A
Rated Frequency: 50 60HZ
Poles: 1P
Short Circuit Making Capacity: 3000A
Short Time Withstand Current: 1500A/1s
Electrical Life: >1500 Times
Mechanical Life: >8500 Times
Grade: IP20
Operating Temperature: -5℃ to 40℃
Terminal Cable Size: 16mm²
Mounting: 35mm DIN Rail
Three Color Window: Red (Tripped), Yellow (Overload Protection), Green (Normal Operation)
How to Use:
Use according to the introduction of images.
PackageList:
1 x Dual Power Manual Transfer Switch
