Unipoint Alternator UHA001 Replacement for Nissan Patrol GU Y61 3.0L Diesel, Navara D22 3.0L Diesel 2000 on ZD30DDTI ZD30T CRD Zd30Deuro4 23100-DB000 23100-DB00A 120Amp HXA099U HXA070

Unipoint Alternator UHA001 Replacement for Nissan Patrol GU Y61 3.0L Diesel, Navara D22 3.0L Diesel 2000 on ZD30DDTI ZD30T CRD Zd30Deuro4 23100-DB000 23100-DB00A 120Amp HXA099U HXA070

Brand: UNIPOINT
5.0
A$174.85
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Buy with confidence. This alternator offers three B+ terminal options to cover a variety of applications.
  • Made in Taiwan alternator. The patented invention lets you configure your alternator for multiple Ni55an part numbers.
  • Replaces GPC-Repco HXA099U HXA070 HXA088 HXA098 HXA099.

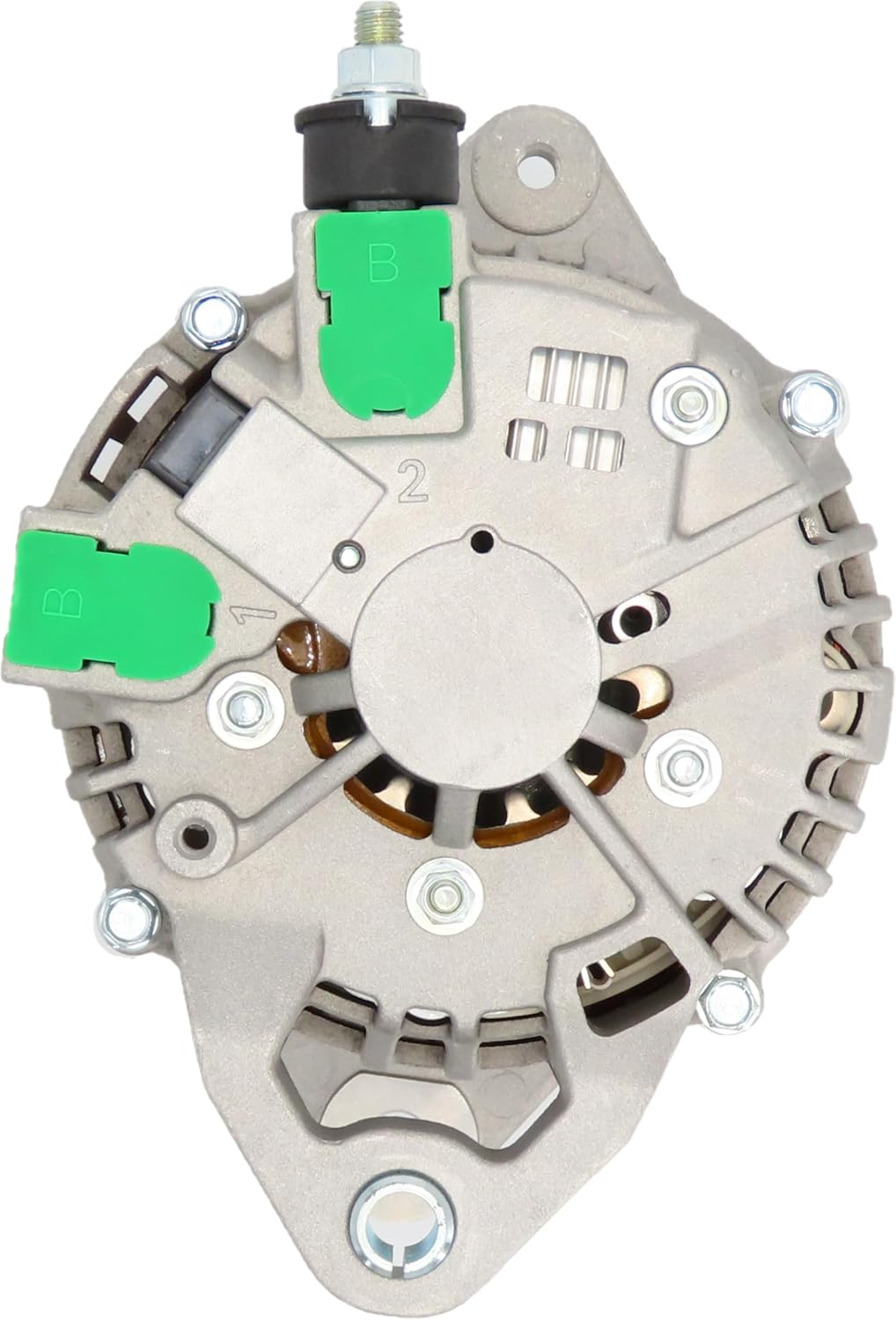

  • Simple, Patented, B+ Terminal Combination Design: 1. Match alternator to 1 of 3 shown configurations 2. Remove cover (if needed) and choose/attach correct B+ terminal in the shown configuration 3. Replace cover (if needed)
  • Replacement For Hitachi Alternator LR170-761 LR190-745 LR190-752 LR190-770 LR1110-701 LR1130-702
  • Replacement For Nissan 23100-2W201 23100-5S900 23100-60U00 23100-60U01 23100-60U02 23100-DB000 23100-DB00A 23100-VC100 23100-VC101 23100VK010 23100-VS40C
  • Replacement For NISSAN Navara D22 Patrol GU Patrol Y61 GU
  • Engines ZD30DDTI ZD30T CRD ZD30DEuro4 4 cyl 3.0L

Product Description

UHA001

Voltage 12V
Output 120A
Adjusting Hole Diameter M8 x 1.25
Alternator Mount Twin Leg
Mount CNT to CNT 169mm
Mount Leg Thickness 81mm
Pivot Hole Diameter 10
Pulley Outside Diameter 60mm
Pulley Section 7Groove
Regulator Type Internal
Manufacturer Part Number 23100-2W201 23100-5S900 23100-60U00 23100-60U01 23100-60U02 23100-DB000 23100-DB00A 23100-VC100 23100-VC101 23100VK010 23100-VS40C
OEM Part Number LR170-761 LR190-745 LR190-752 LR190-770 LR1110-701 LR1130-702

Replacement For NISSAN:

NAVARA D22 2.5L YD25DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man 2D Cab Chassis/Pick-Up 4WD (01/07 - 02/15)

NAVARA D22 3.0L ZD30DDT DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man 2D Cab Chassis/Pick-Up 4WD (11/01 - 12/06)

NAVARA D22 3.0L ZD30DDT DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man 4D Cab Chassis/Pick-Up 4WD (11/01 - 12/06)

PATROL Y61 GU 3.0L ZD30DDTi dCi DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man Cab Chassis/Pick-Up 4WD (10/07 ON)

PATROL Y61 GU Series 2 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 4sp Auto 4D Wagon 4WD (04/00 - 10/01)

PATROL Y61 GU Series 2 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man 4D Wagon 4WD (04/00 - 10/01)

PATROL Y61 GU Series 3 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 4sp Auto 4D Wagon 4WD (10/01 - 09/04)

PATROL Y61 GU Series 3 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man 4D Wagon 4WD (10/01 - 09/04)

PATROL Y61 GU Series 4 & 5 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 4sp Auto 4D Wagon 4WD (10/04 - 08/07)

PATROL Y61 GU Series 4 & 5 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man 4D Wagon 4WD (10/04 - 08/07)

PATROL Y61 GU Series 6 3.0L ZD30DDTi dCi DOHC 16v Turbo Diesel Direct Inj. 4cyl 4sp Auto 4D Wagon 4WD (09/07 - 01/10)

PATROL Y61 GU Series 6 3.0L ZD30DDTi dCi DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man 4D Wagon 4WD (09/07 - 01/10)

PATROL Y61 GU Series 7 3.0L ZD30DDTi dCi DOHC 16v Turbo Diesel Direct Inj. 4cyl 4sp Auto 4D Wagon 4WD (01/10 - 01/12)

PATROL Y61 GU Series 7 3.0L ZD30DDTi dCi DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man 4D Wagon 4WD (01/10 - 01/12)

PATROL Y61 GU Series 8 3.0L ZD30DDTi dCi DOHC 16v Turbo Diesel Direct Inj. 4cyl 4sp Auto 4D Wagon 4WD (02/12 - 01/13)

PATROL Y61 GU Series 8 3.0L ZD30DDTi dCi DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man 4D Wagon 4WD (02/12 - 01/13)

PATROL Y61 GU Series 9 3.0L ZD30DDTi dCi DOHC 16v Turbo Diesel Direct Inj. 4cyl 4sp Auto 4D Wagon 4WD (02/13 ON)

PATROL Y61 GU Series 9 3.0L ZD30DDTi dCi DOHC 16v Turbo Diesel Direct Inj. 4cyl 5sp Man 4D Wagon 4WD (02/13 ON)

  • Manufacturer reference: UNIPOINT UHA001
  • OEM Part Number: 23100-2W201 23100-5S900 23100-60U00 23100-60U01 23100-60U02 23100-DB000 23100-DB00A 23100-VC100 23100-VC101 23100VK010 23100-VS40C
  • Brand: UNIPOINT
  • Country of origin: Taiwan
  • Manufacturer Part Number: UNIPOINT UHA001
  • Item Weight: 6.03 kg
  • Model: UHA001
  • Package Dimensions: 22.1 x 19.6 x 16.9 cm; 6.03 kg
  • Manufacturer: UNIPOINT
