Specifications:
Multimeter Specification
DC Voltage(V)
20.000mV±(0.1%+20 dig)
200.00mV±(0.1%+6 dig)
2.0000V/20.000V/200.00V±(0.1%+5 dig)
1000.0V±(0.15%+5 dig)
AC Voltage (V)
20.000mV/200.00Mv/2.0000V/20.000V/200.00V±(0.6%+10dig)
750.00V±(0.8%+10dig)
DC Current (A)
200.00uA±(0.6%+10dig)
2000.0uA±(0.5%+10dig)
20.000mA±(0.6%+10dig)
200.00mA±(0.5%+10dig)
2.0000A±(1.0%+10dig)
20.000A±(2.0%+10dig)
AC Current (A)
200.00uA/2.0000mA±(0.8%+10dig)
20.000mA/200.00mA±(0.8%+10dig)
2.0000A±(1.5%+10dig)
10.000A±(2.5%+10dig)
Resistance(Ω)
200.00Ω±(0.8%+10dig)
2.0000kΩ/±(0.3%+5dig)
20.000kΩ/200.00kΩ/2.0000MΩ±(0.3%+5dig)
20.000MΩ±(0.5%+10dig)
100.00MΩ±(5.0%+10dig)
Capacitance(F)
2.000nF±(5.0%+10dig)
20.00nF/200.0nF/2.000μF/20.00μF±(3.0%+10dig)
200.0μF/2.000mF/20.00mF±(3.0%+10dig)
Frequency (Hz)
200.00Hz/2.0000kHz±(0.1%+5dig)
20.000kHz/200.00kHz/2.0000MHz/20.000MHz±(0.1%+5dig)
Duty Cycle
0.1%~99.9%(typical value：Vrms=1V,f=1kHz)±(1.2%+3dig)
0.1%~99.9%(≥1kHz)±(2.5%+3dig)
Diode: 3.0000V±(1.0%+10dig)
On-Off: 1000.0Ω
Display: 20000
Oscilloscope Specification
Analog bandwidth: 1MHz (only ACV scale)
Channel: 1
Time base range: 2.5uS~10S/div
Voltage vertical sensitivity range: 30mV~500V/grid
Vertical amplitude accuracy: ±（5% + 0.2div）
Maximum voltage limit: 1000V DC+AC Peak value
Trigger mode: Auto/Normal/Single
Autoset: Time base/Vertical amplitude/Trigger value
Maximum sample: 5.0Msps
Input impedance≈10MΩ
Time base accuracy±（0.01% + 0.1div）
Current vertical sensitivity range: 100μA~5A/grid
Measurement function: Vmax,Vmin,Vp-p,Vavg,Vrms,Hz
Maximum current limit: 15A DC+AC Peak value
Trigger edge: Rise edge/Fall edge
Other Specification
Low battery indication√
Backlight √
Safety Compliance: CATⅢ1000V

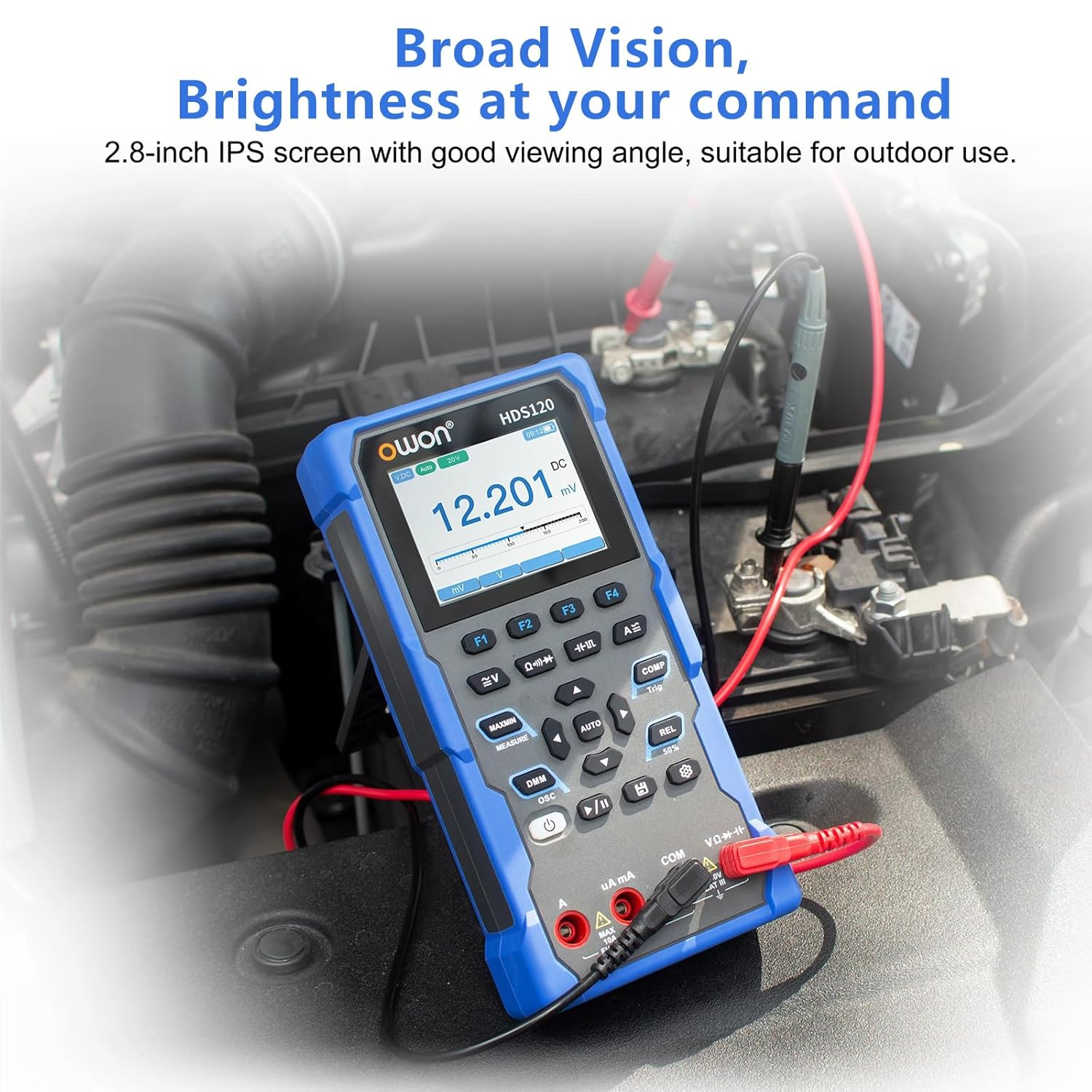

LCD Size: 2.8” LCD

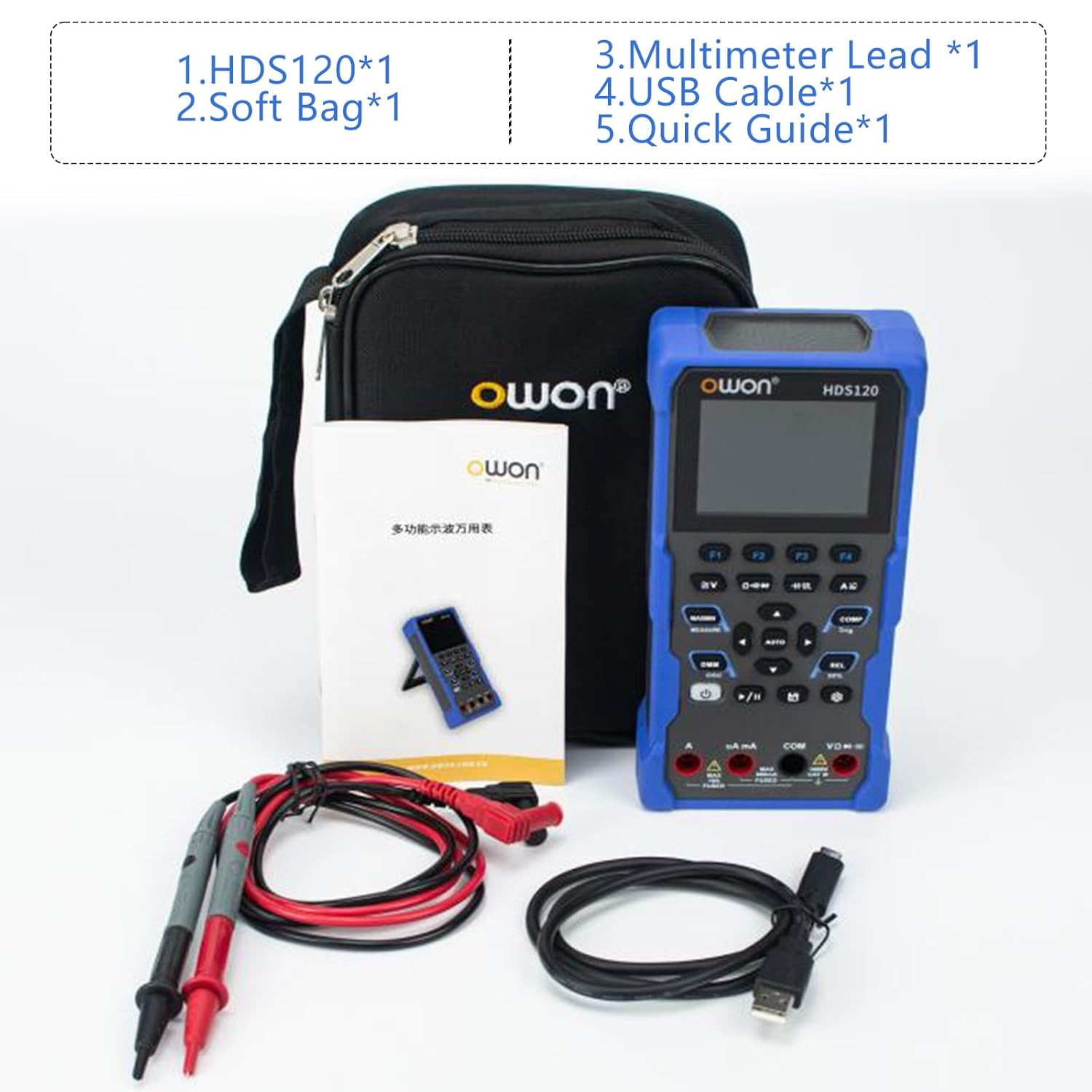

Package included:
1* HDS120 with Bag
1* USB Cable
1 pair test leads
1* English Manual
