EITAI-ETCR1000D Non-Contact Phase Sequence Tester, AC 70V-1000V, Φ1.6Inch/40Mm, Manufacturer Direct Sales, Phase Rotation Meter
EITAI-ETCR1000D Non-Contact Phase Sequence Tester, AC 70V-1000V, Φ1.6Inch/40Mm, Manufacturer Direct Sales, Phase Rotation Meter
Brand: EITAI
A$72.45
- English customer service and technical support, we deliver an excellent and secure user experience.

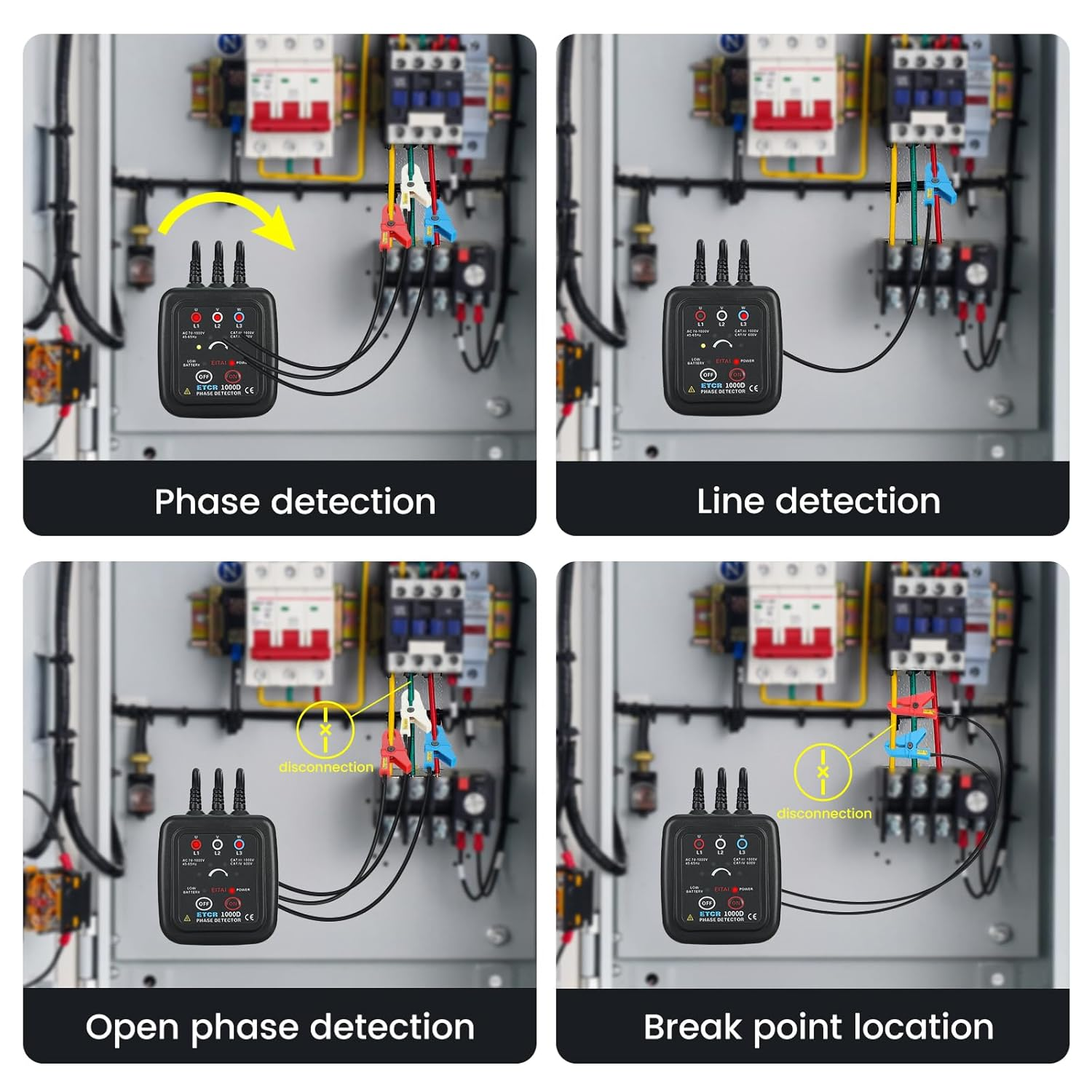

- 【Functional】Three phase sequence detection (positive phase, reverse phase and default phase), live wire inspection, simple circuit testing, live wire identification, phase deficiency judgment, broken wire location search, circuit break point detection, and line inspection, etc.

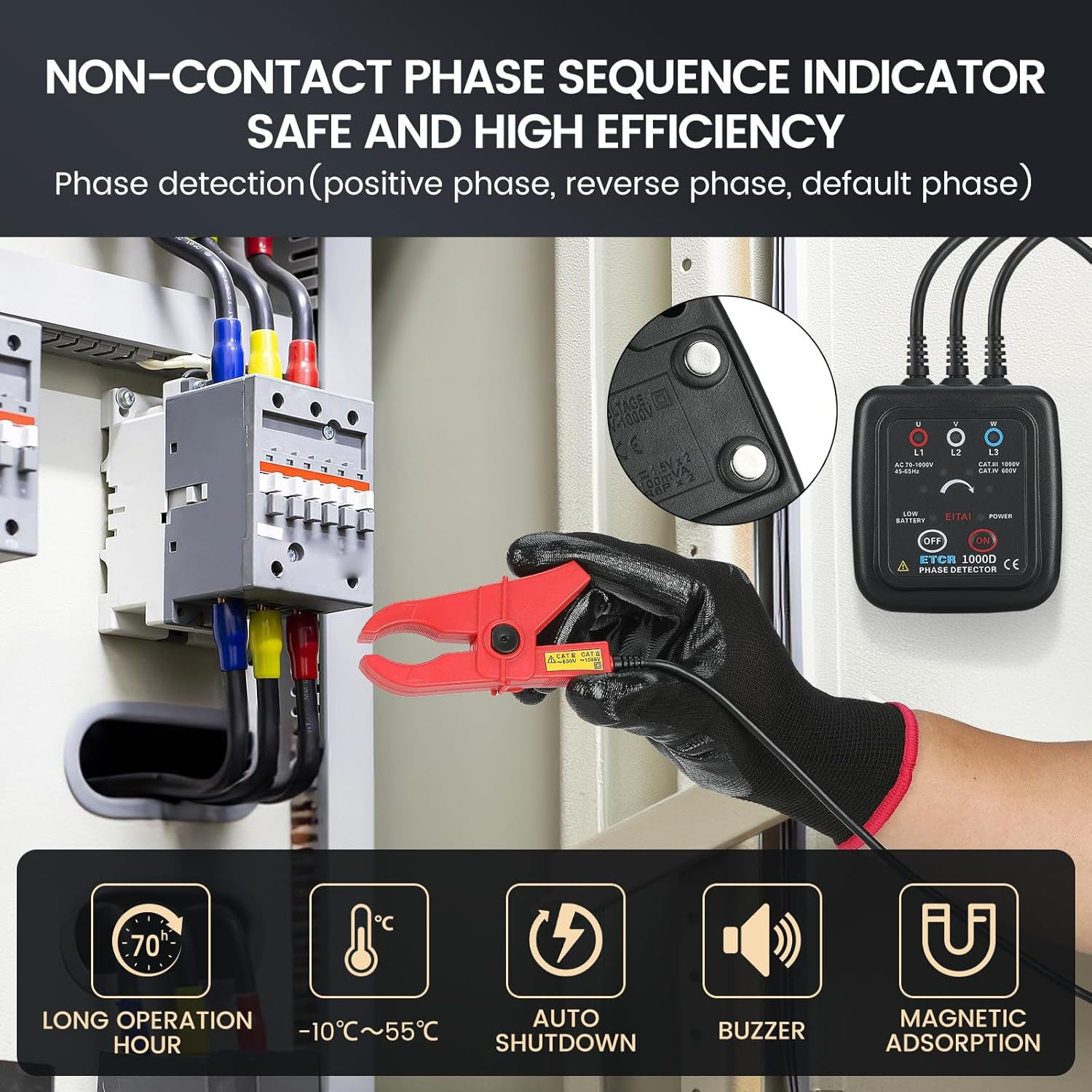

- 【Safety use】EITAI ETCR1000D Non-Contact Phase Sequence Tester utilizes a clamp-on non-contact inductive measurement method, eliminating the need to strip the insulation from electrical cables. You can safely inspect phase sequence without touching high-voltage exposed wires by simply clamping the super-inductive high-insulation clamps onto the insulation sheath of live wires.
- 【Easy operation】The phase rotation meter equipped with a magnet on the phase detector meter’s bottom plate, it can be easily attached to the metal case of the equipment during testing for convenient operation. Real-time data is presented via both voice and display for clear and immediate understanding.

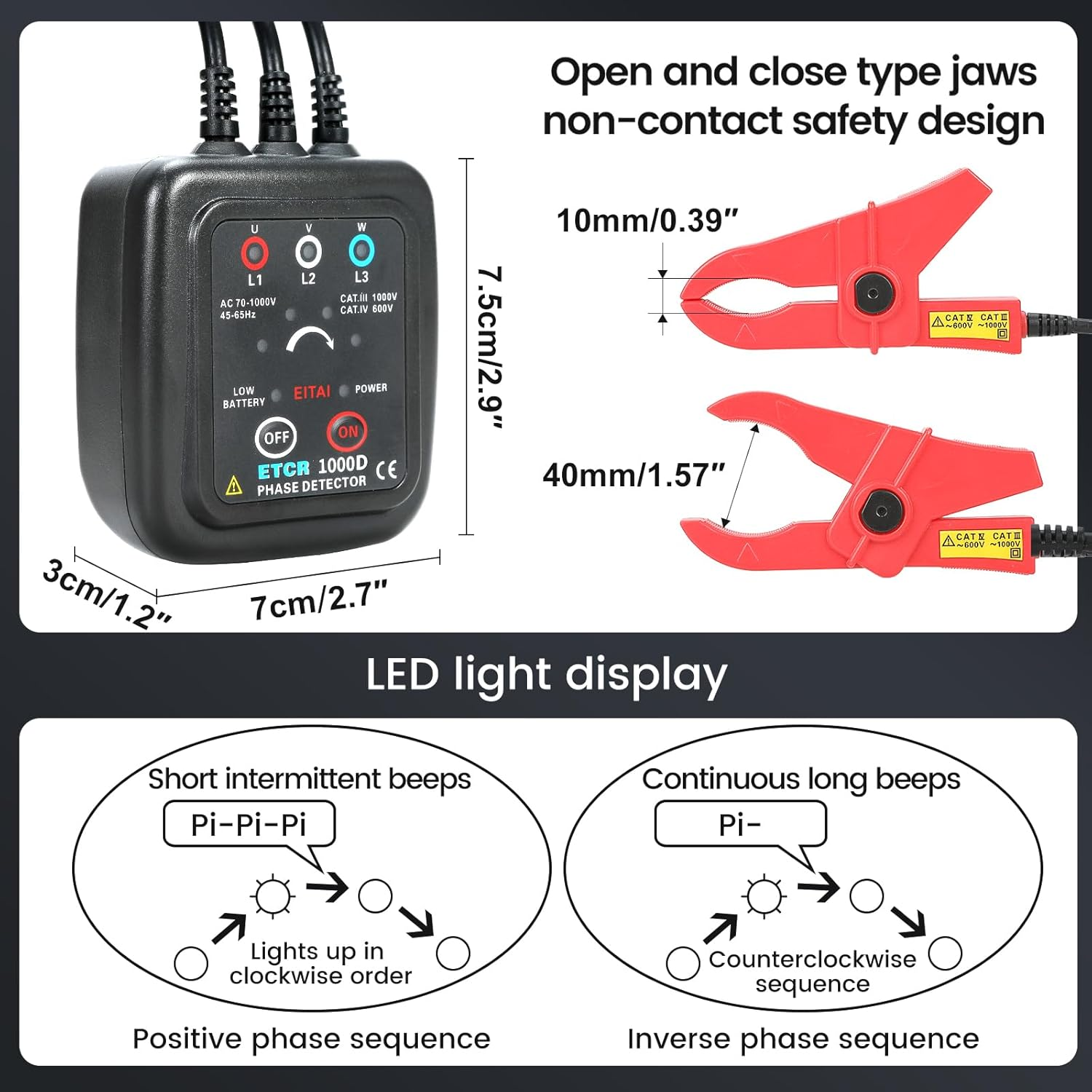

- 【Specification】Large jaws: Φ10mm-40mm; Measuring voltage: AC70V-1000V, 40/65Hz
Product Description
| Functions | Phase detection (positive phase, reverse phase, default phase), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance. |
| Power Supply | DC 3V2*AA Alkaline dry battery , Continuously working for 70 hours |
| AC Voltage Range | AC 70-1000V, 40/65Hz (Sine Continuous Input) |
| Clamp Wire Size | External Diameter φ0.4“-1.6” (φ10mm-40mm) |
| Meter Dimension | 2.8"*2.9"*1.2" (70mm*75mm*30mm) |
| Clamp Wire Length | 23.6" (0.6m) |
| Weight | Include Accessories 0.79lb (360g) |
| Working Temperature & Humidity | -10℃-55℃; below 80%rh |
| Storage Temperature & Humidity | -20℃-60℃; below 90%rh |
| Dielectric Strength | 5.4kVrms |
| Maximum Rated Power | 300mVA |
| Safety Provisions | EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT 3 (600V), Transient over-voltage 6000V |
- Item Model Number: EITAI1000D
- Product dimensions: 7 x 7.5 x 3 cm; 200 Grams
- Country of origin: China
- Manufacturer: EITAI
