How to Use:
Install and use.
For use with PC:
Connecting the 70H 1024600 display to the development accessory using the FPC Cable 15cm/5.9in flex cable (note the direction of the flex cable, 1 to 1, 40 to 40 serial number connection).
Connecting the Display interface to the HD Multimedia Interface interface of the PC.
Connect the Touch interface to the PC's USB interface.
Universal PWM dimming method.
Connect the GND of the microcontroller (such as potentiometer) to the GND pin in the figure below, and connect the voltage output of the microcontroller (DC 0‑3.3V) to the PWM pin in the figure below to control the backlight brightness by changing the voltage.
Note: DC 3.3V is the darkest and 0V is the brightest.
Specification:
Item Type: 7 Inch IPS Display
Material: Glass
Model: 70H 1024600 IPS B
Screen Type: IPS
Screen Size: 7 Inches
Viewing Angle: 170°
Color Range: 45% NTSC
Brightness: 350cd/m²
Backlight Adjustment Mode: PWM Software Dimming
Contrast Ratio: 800:1
Color Depth: 16.7M
Refresh Rate: 60Hz
User Interface: 40PIN 0.5mm/0.02in FPC
Application Scenarios: New Energy, Electronic Sentinel, Smart Home, Internet of Things, Consumer Electronics, etc.
Package List:

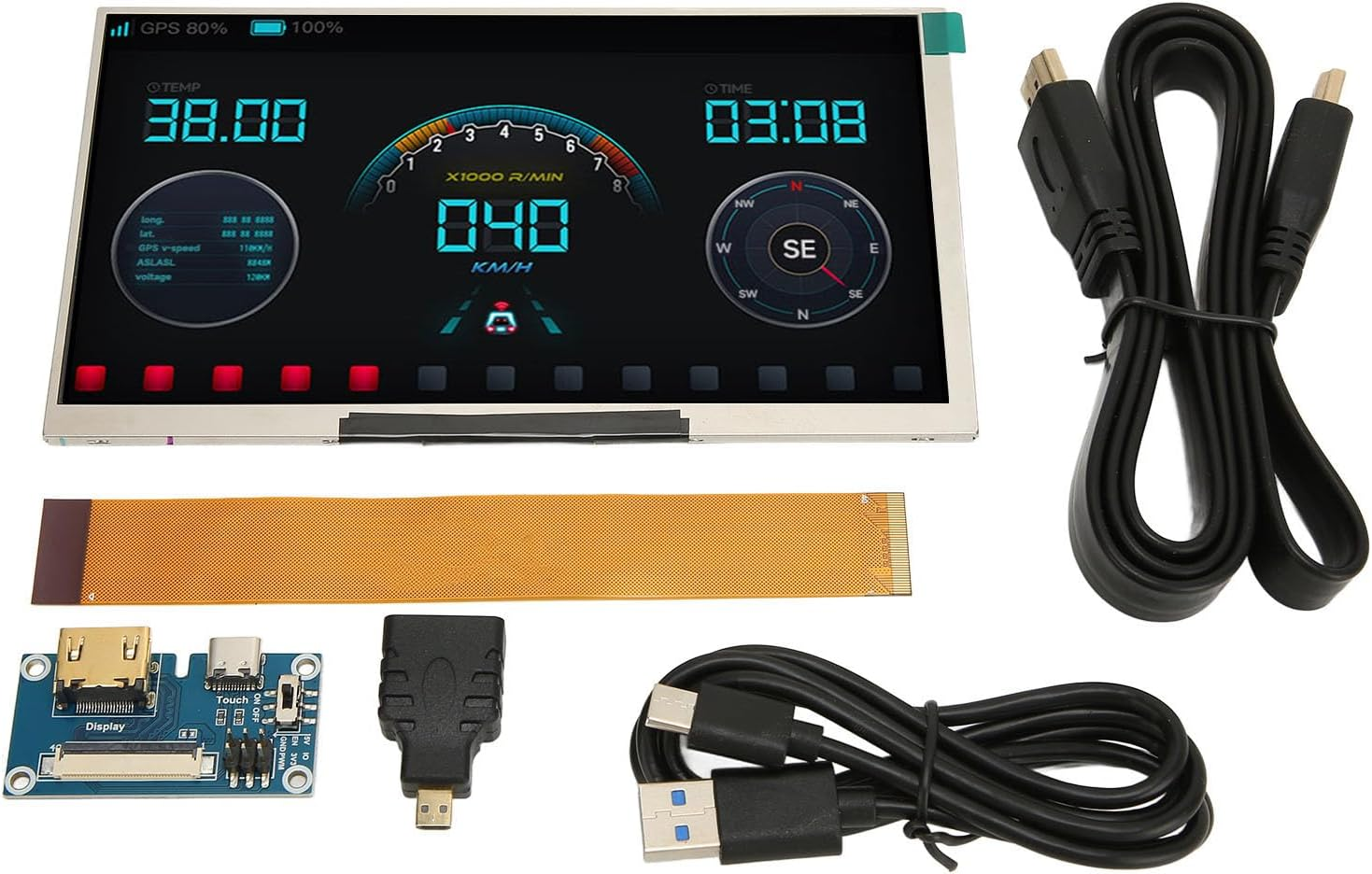

1 x 7 Inch IPS Display
1 x Development Board
1 x Adaptor
1 x Flex Cable
1 x Data Cable
1 x HD Multimedia Interface Cable
Note:
1. Input voltage, output voltage exceeding the maximum value or improper may cause permanent damage to the device.
2. Input current should be more than 500mA, and the output current should be less than 200mA, otherwise it will result to startup failure or abnormal display, and long time in abnormal state may cause permanent damage to the equipment.
