Spec:
Item Type: Seat Swivel Base

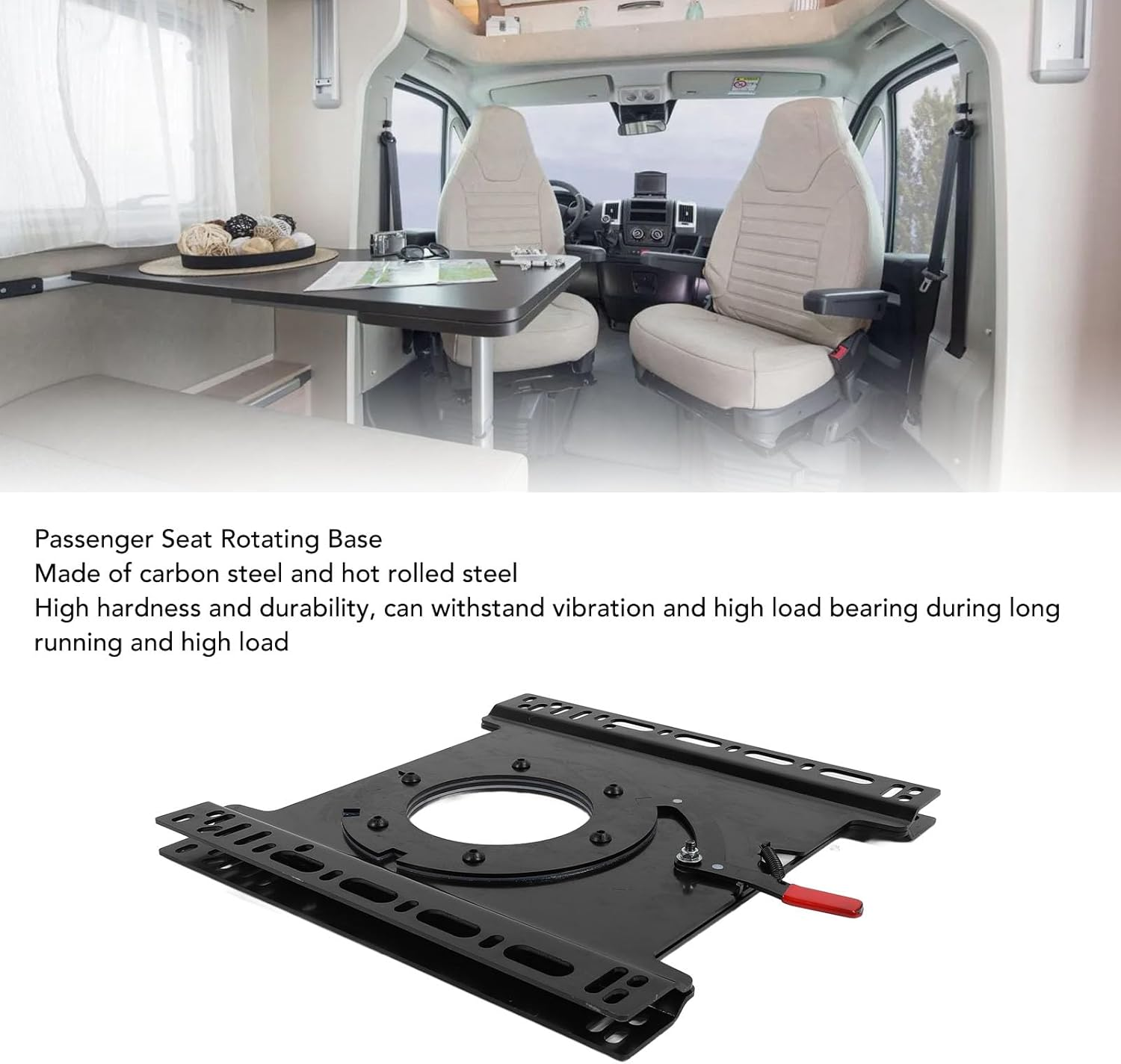

Material: Carbon steel + hot rolled steel

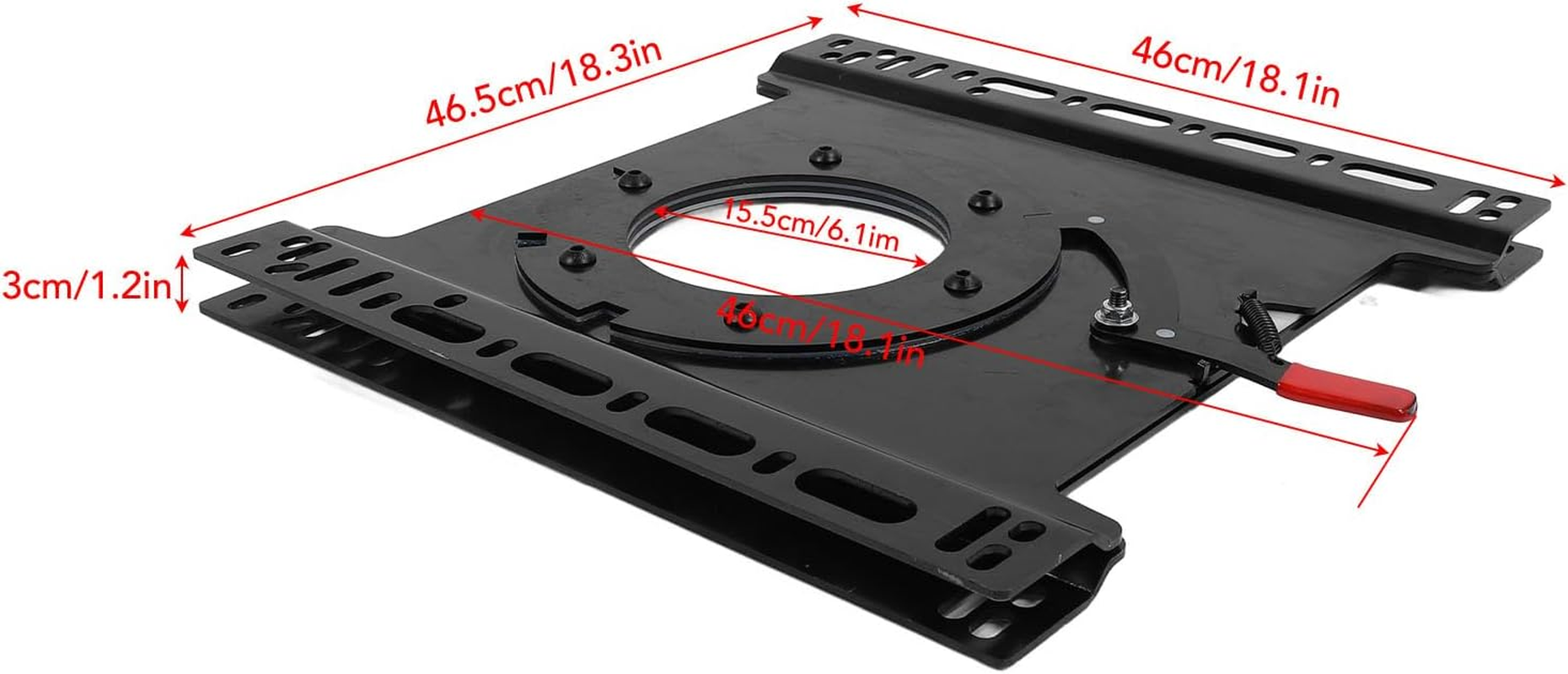

Base dimensions: Approx. 465 x 460 x 30mm / 18.3 x 18.1 x 1.2in
Rotation angle: 0-360 degrees
Rotation direction: either forward or reverse
Application: Used for seat base modification, the original fixed seat of the car can be modified into a rotatable seat, allowing passengers to easily adjust the orientation of the seat, facilitate getting on and off the car, or communicate with other passengers (only applicable to the passenger side)
Installation instructions: If your seat is too large, a transition plate needs to be added to assist installation. If your seat is too small, a new hole needs to be drilled. The installation application of the seat base depends on the size of your seat
Scope of application: The following models can be directly installed without drilling holes
1. 4 red holes for Sprinter 2007-2018
2. 4 yellow holes for Sprinter and Metris 2019-2020
3. 6 purple holes for Sprinter 2002-2006
4. 4 green holes for Transit 150 250 350 2014-2023
5. 6 blue holes for Promaster 2014-2020
And also apply for T5 T6 (If installed on other models, re drilling is required)

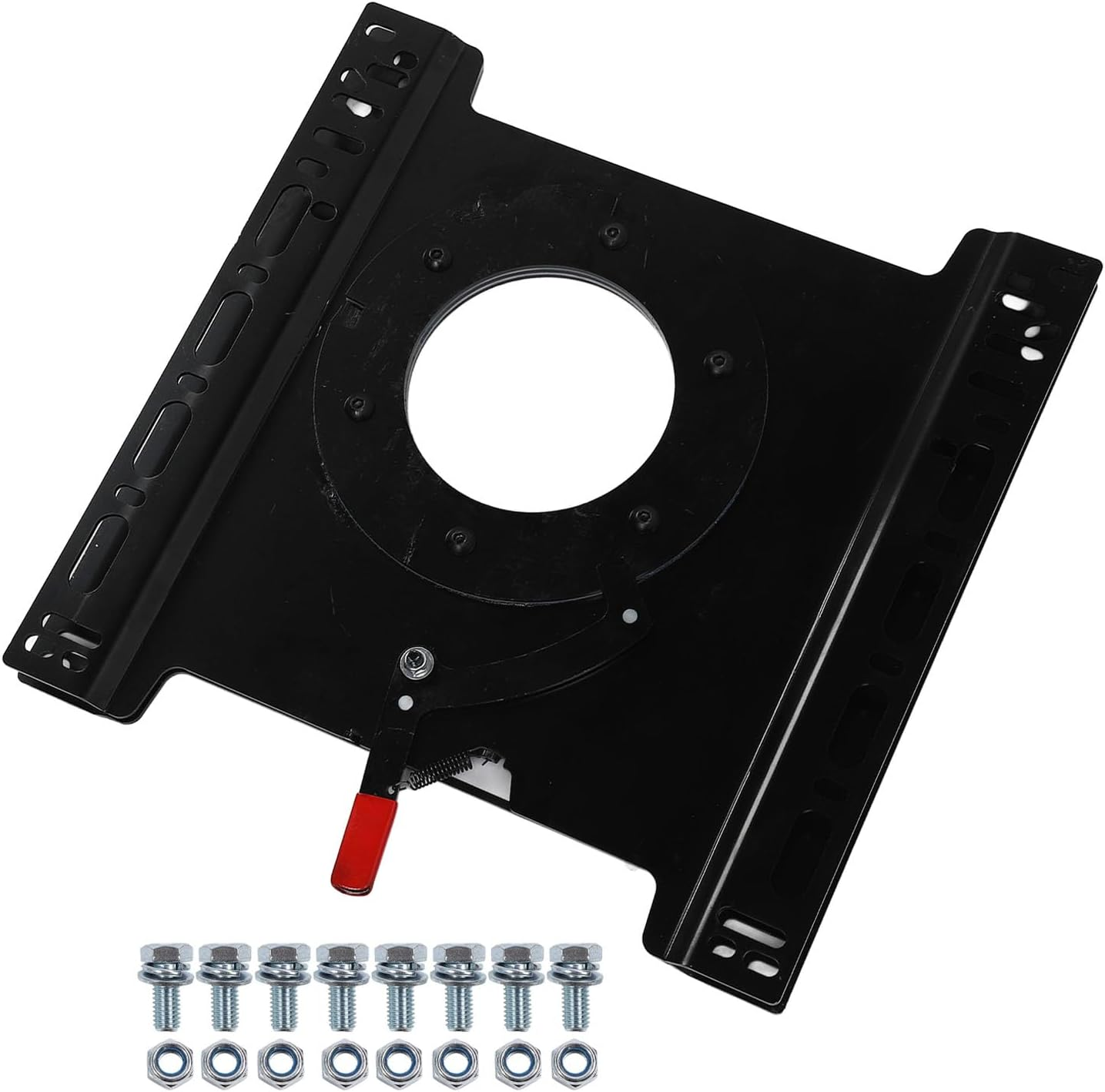

Package List:
1 x Seat Swivel Base
8 x Screws
8 x Nuts
