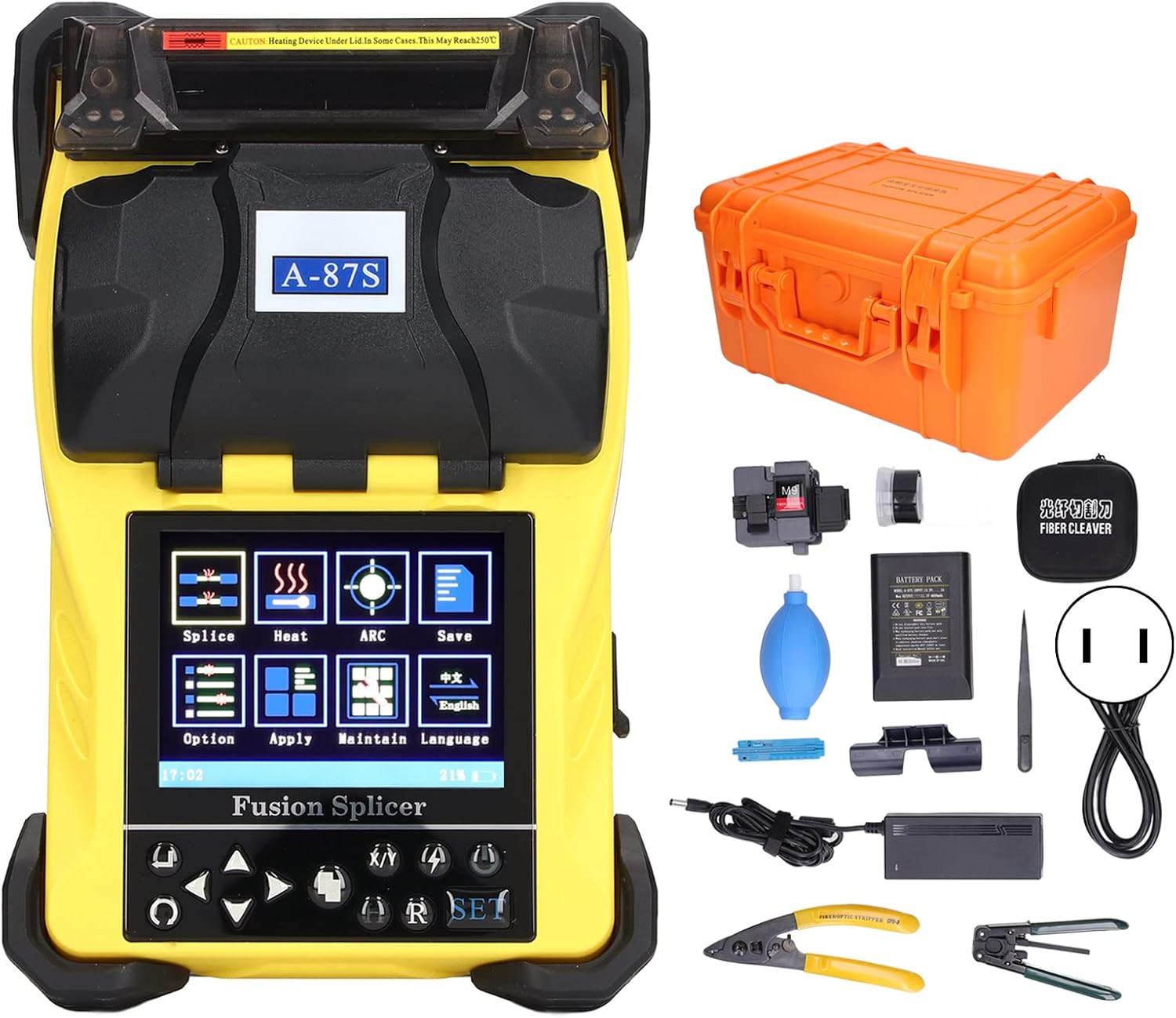

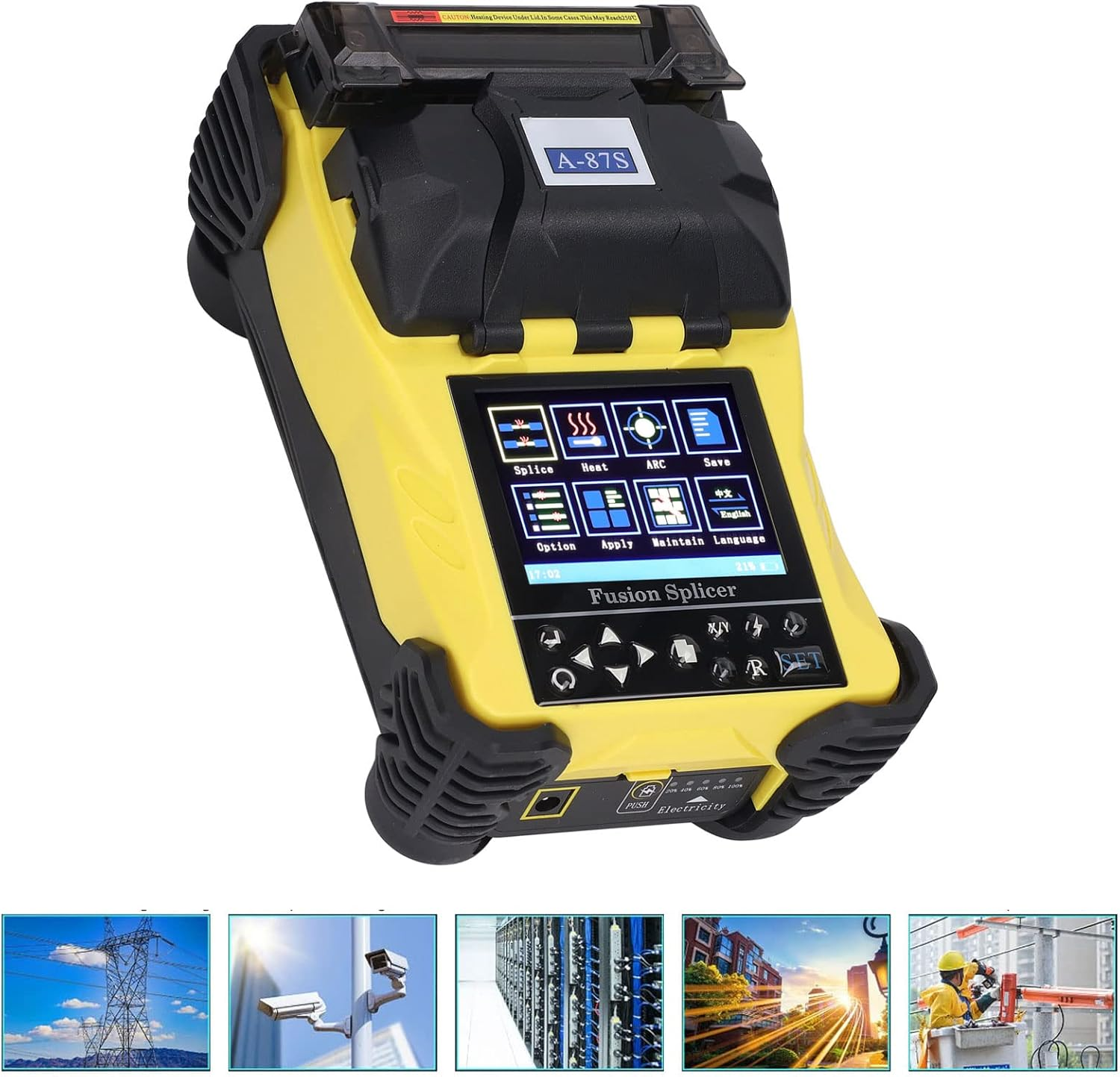

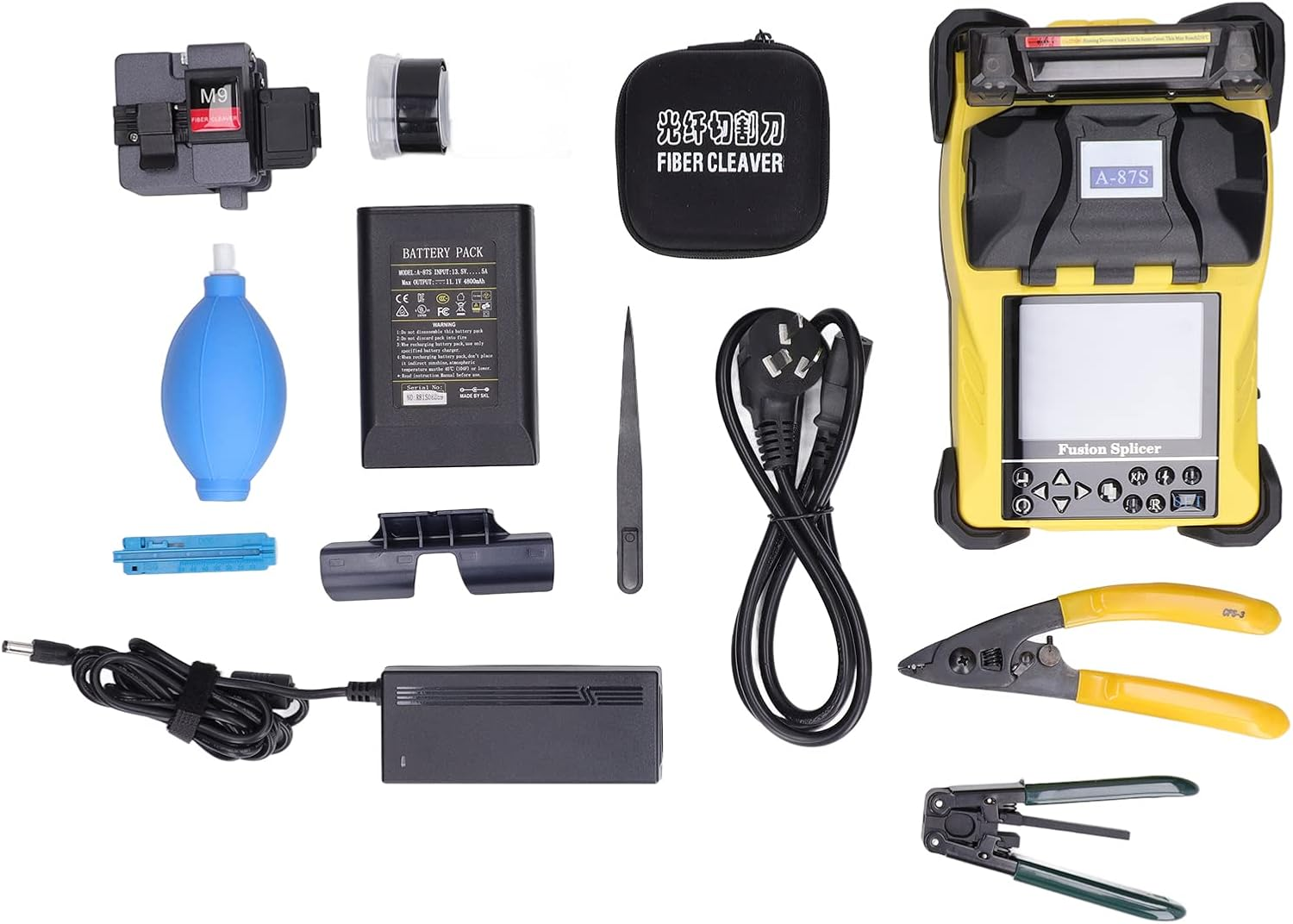

Item Type: Fusion Splicer Set
Material: ABS
Core Tuning Mode: Cladding Alignment
Applicable Fiber: SM(G.652 and G.657), MM(G.651), D5(G.653), NZDS(G.655) and custom fiber types
Fiber Type: 0.25-3.0 mm, Leather Cable
Fiber Clamp: Multi functional clamps for bare fiber, pigtails, patch cords, cortex replacement clamps can be used for SC and other connectors for a variety of FTTX fiber optic cable
Fiber Diameter:
Cladding Diameter: 80-150um
Coating Layer Diameter: 100-1000 um
Cutting Length:
Coating Layer 250um or Less: Approx. 8-16mm / 0.3-0.6in
Coating Layer 250-1000μm: Approx. 16mm / 0.6in
Fusing Mode: 17 groups use mode
Fusing Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(DS/NZDS)
Return Loss: Better than 60dB
Typical Splice Time: 9 seconds
Typical Heating Time: 26 seconds (heating time can be set, heating temperature can be adjusted)
Fiber Alignment: Fine Alignment, Core Alignment, Cladding Alignment
Magnification: 400 times (X-axes or Y-axes)
Heat Shrink Sleeves: 60mm, 40mm and a range of micro shrink sleeves
Display: 3.5inch TFT color LCD display
External Interface: USB interface for easy data download software update
Heating Mode: 9 groups of usage modes
Splice Loss Storage: Built in memory to save the latest splice results of 5000
Working Environment Temperature: -10-+50℃
Humidity: Working Altitude: 0-5000m
Maximum Wind Speed: 15m/s
Lighting: Convenient to place the fiber at night
Battery: 1 x (4800mAh) (shipped with matching battery)
