Single Phase Din Rail Power Meter XTM18S 1P 5(30) a Digital 1 Phase 2 Conductor Din Electronic Kwh Meter 35Mm Standard Installation Automatic Detection
Single Phase Din Rail Power Meter XTM18S 1P 5(30) a Digital 1 Phase 2 Conductor Din Electronic Kwh Meter 35Mm Standard Installation Automatic Detection
Brand: ViaGasaFamido
A$26.05
Availability:
-
This item is currently not available
Shop with confidence
- 35 mm standard DIN rail installation, conforms to standard DIN EN50022

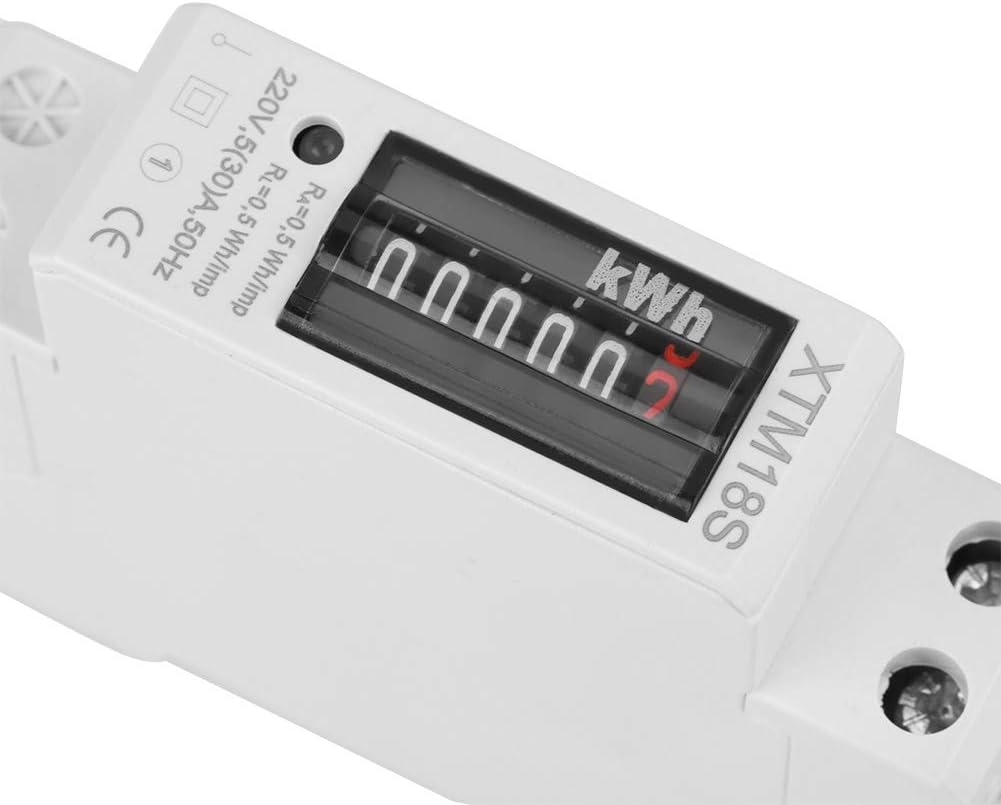

- Standard configuration 5+1 digit display (9999.1kWh) for stepper motor type impulse register.
- Single pole width, conforms to standard DIN43880
- Standard configuration pulse output passive (polarity), can select passive pulse output from distance (unolarity). And with all types of AMR systems comfortable, meets the standard IEC 62053-31 and DIN 43864.
- Automatic detection of the load current flow direction. And Instructions(Only red energy impulse signal when working, If no green instructions power supply, it means the direction of the flow of the load current reverse).
Specifications:
Model: XTM18S
Accuracy: Class 1
Voltage:
Current: 5(30)A
Insulation performance: AC voltage 4kv for 1 minute,1.2/50us waveform pulse voltage 6kv

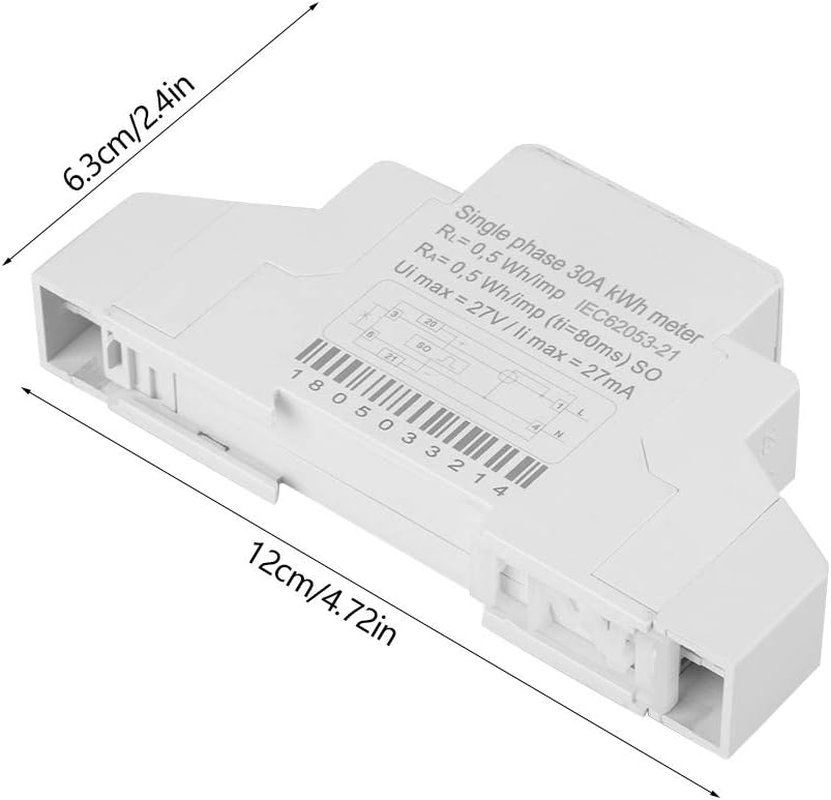

Size: 12 x 6.3cm / 4.72 x 2.4in
Weight: 106g
Outer and mounting dimensions:
Connection Scheme:
Package included:
1 x DIN-Rail Power Meter
1 x Manual
- Item Model Number: ViaGasaFamidomuiwbp863a
- Part Number: ViaGasaFamidomuiwbp863a
- Batteries Required?: No
- Country of origin: China
- Item Weight: 105 g
- Batteries Included?: No
- Package Dimensions: 10 x 7 x 2 cm; 105 Grams
- Manufacturer: ViaGasaFamido
