1. brand new, stabilized 12 DC power filter rectifier for car rearview camera
2. Used to supply the stabilized 12V DC power to the rear camera
3. To solve the issue of the
4. Professional manufacturing, high characteristic and stable performance
5. Easy to install, input connect with reversing light positive and negative, output wire connect with camera positive and negative
Spec:
Description:
Some models of German cars and cars will output voltage interference after the engine is started. The power supply to the reversing light is not pure DC power supply, but a pulse is superimposed on top oscilloscope can be used to test if the conditions will it found a similar squarewave signal. Camera power supply line directly on the reversing light, because the working voltage is very unstable cause the camera does not work properly, the video output is also not normal, so the host can see there is a severe interference, jitter, or not to switch reversing screen.
Features:

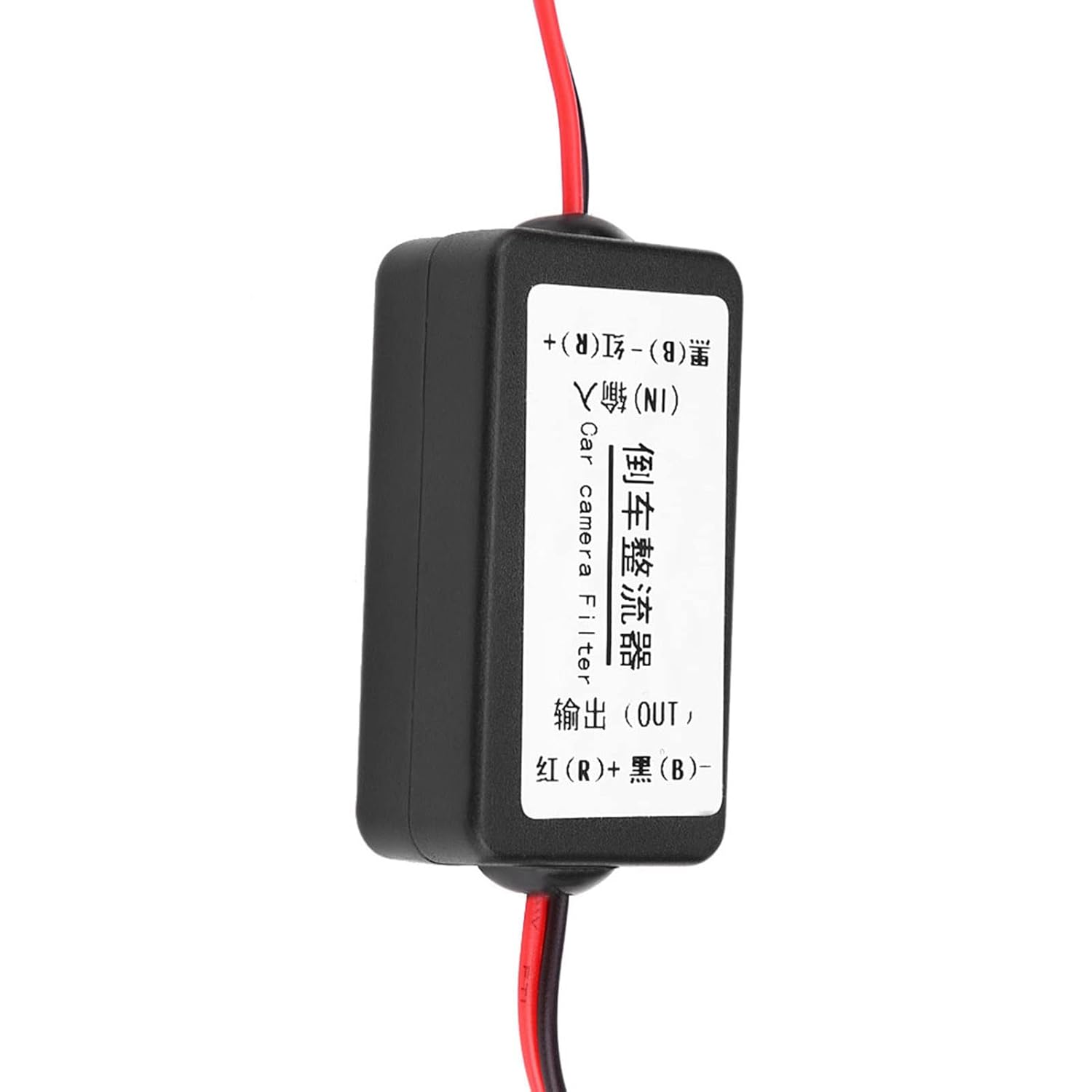

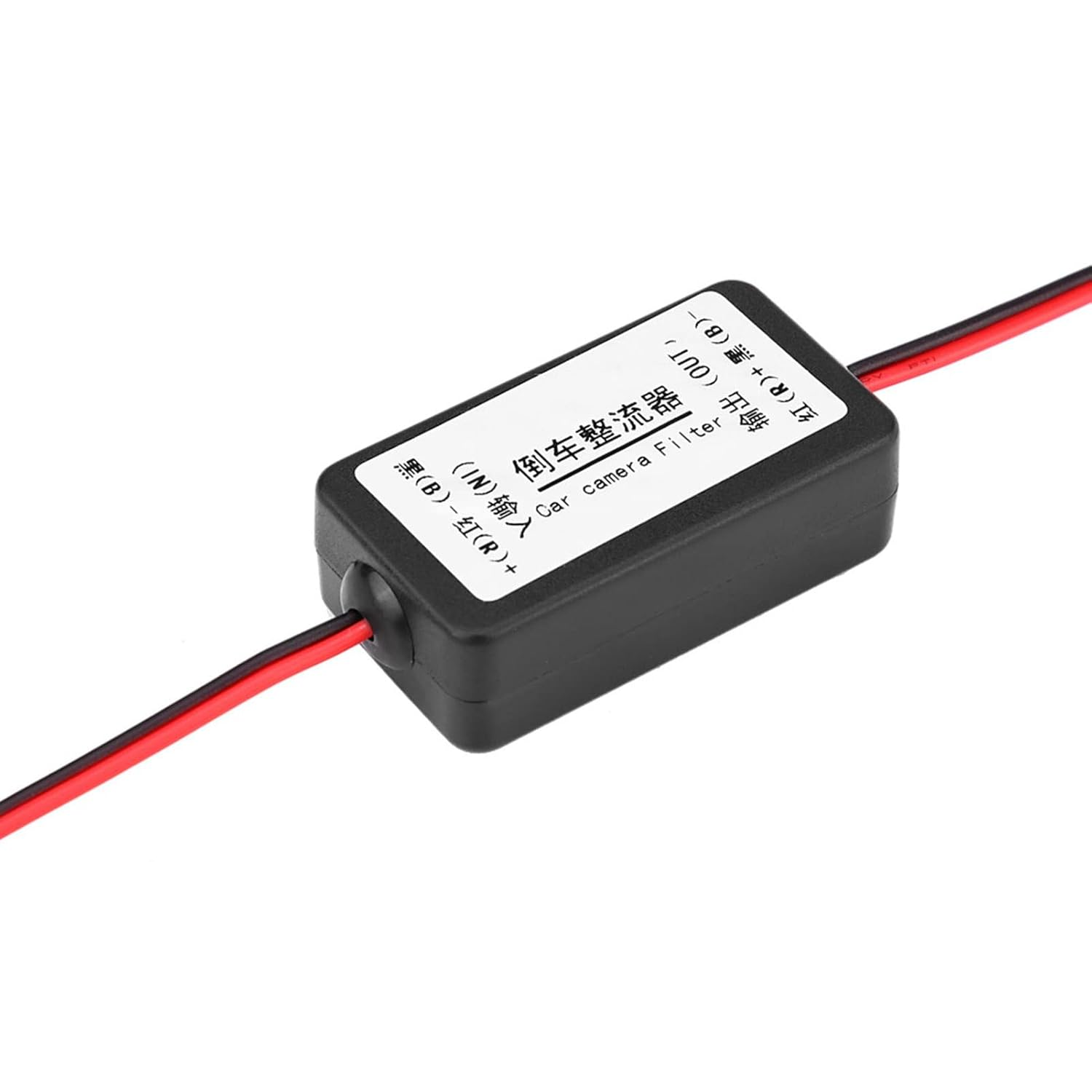

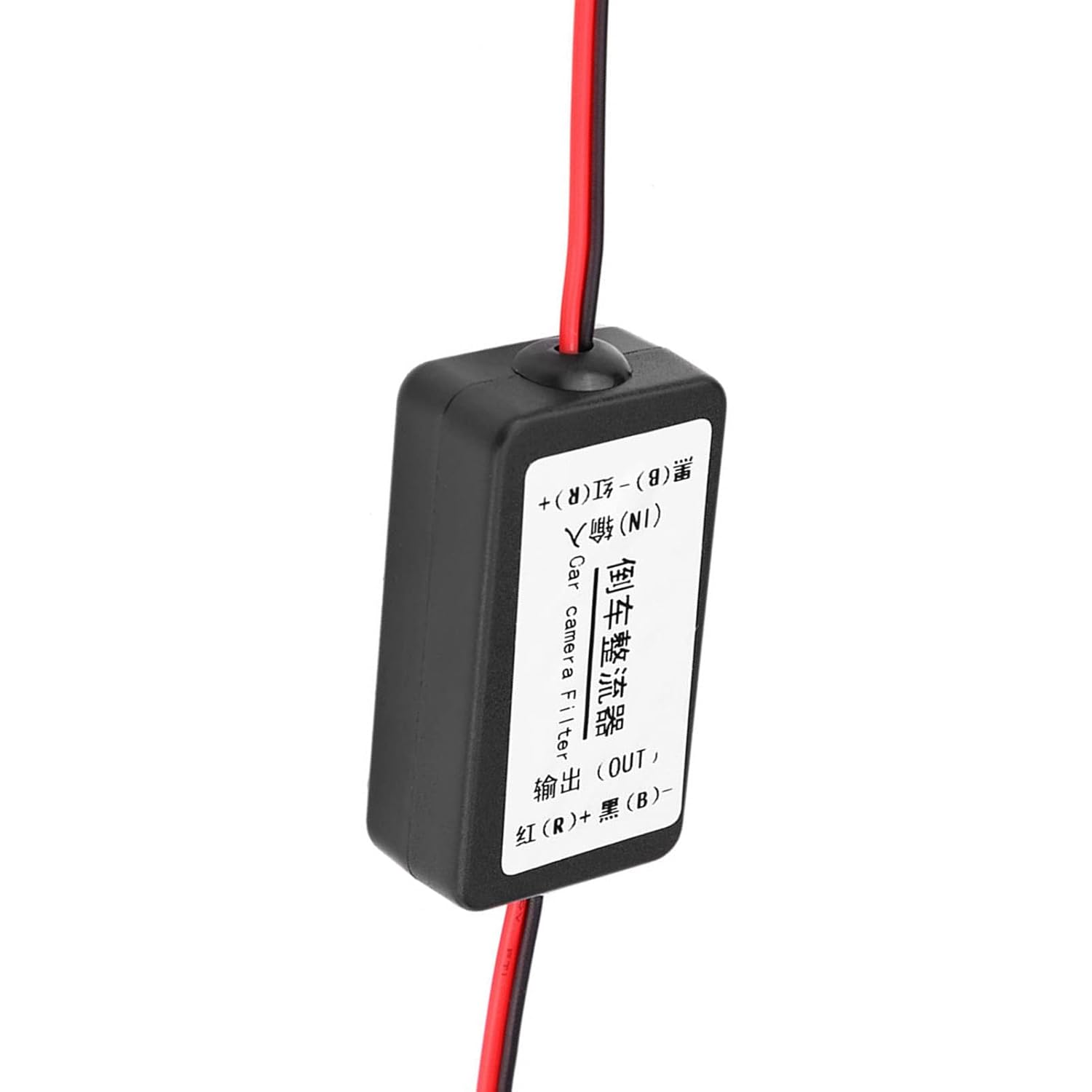

brand new, stabilized 12 DC power filter rectifier for car rearview camera.

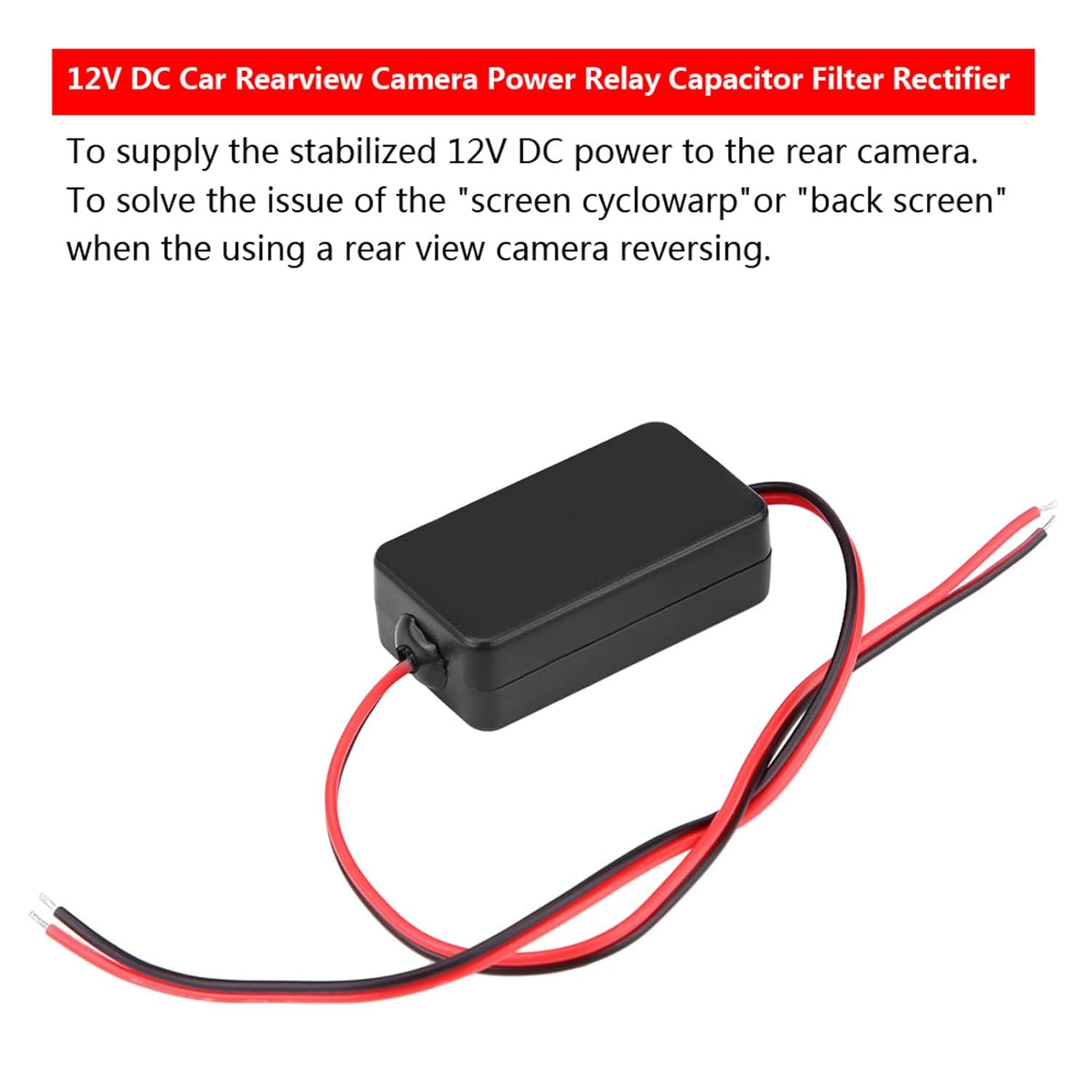

Used to supply the stabilized 12V DC power to the rear camera.
To solve the issue of the screen cyclowarp or black screen when using a rear camera reversing.
Professional manufacturing, high characteristic and stable performance.
Easy to install, input connect with reversing light positive and negative, output wire connect with camera positive and negative.
Specifications:
Condition: Brand New
Material: Plastic
Color: Black
Size: 4.8 * 2.6 * 1.5cm/1.9 * 1.0 * 0.6in
Package Weight: approx.17g
Fitment: for Germany/ Car Series
Package List:
1 * Rectifier

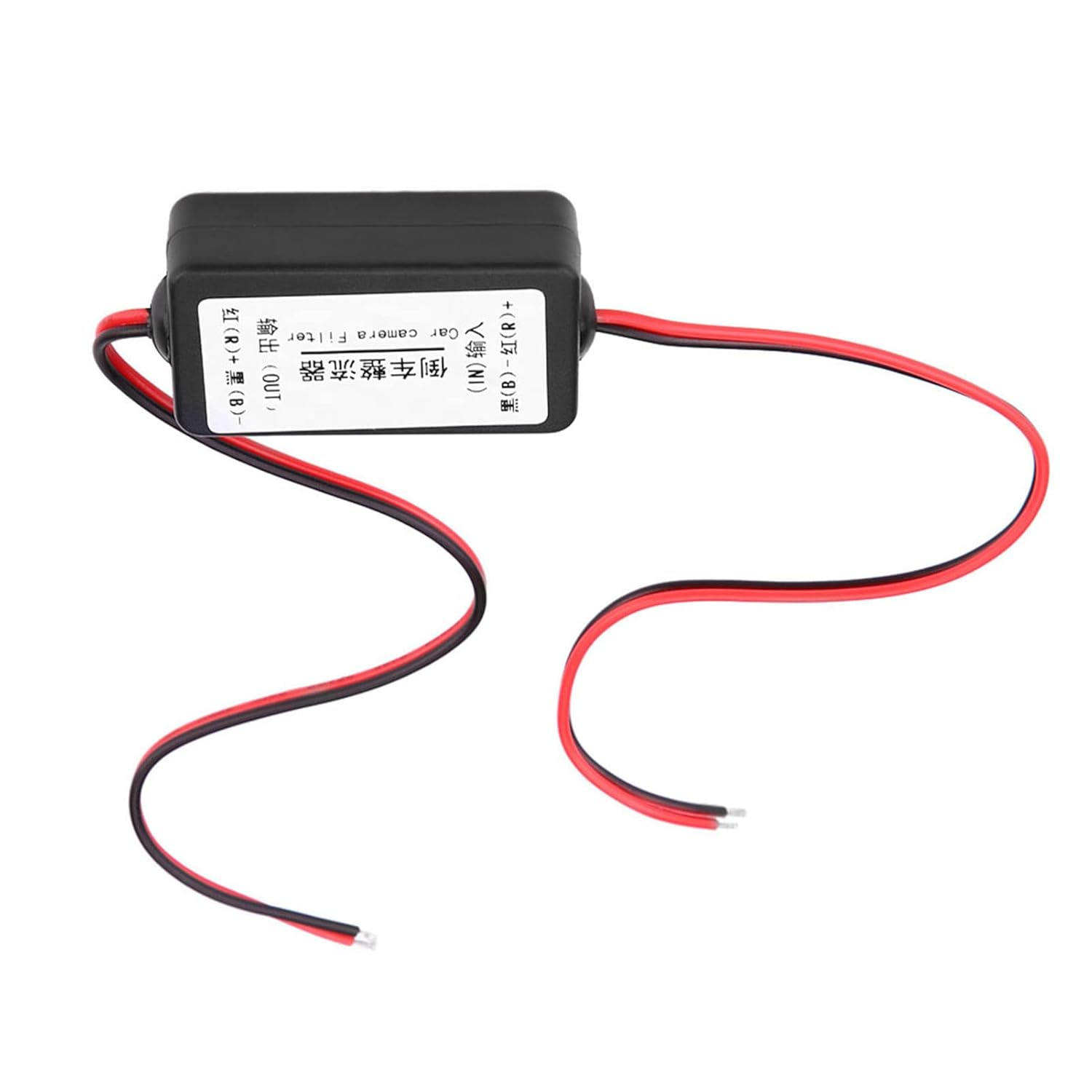

Installation Method:
Input Red Wire: Reversing Light Positive Pole
Input Black Wire: Reversing Light Negative Pole
Output Red Wire: Camera Positive Pole
Output Black Wire: Camera Negative Pole
