DC 12V 10A Relay Remote Control Switch, 433Mhz 4 CH Universal Remote Control Momentary Wireless Switch for Wireless Control and More
DC 12V 10A Relay Remote Control Switch, 433Mhz 4 CH Universal Remote Control Momentary Wireless Switch for Wireless Control and More
Brand: MURANCLOUD
A$40.95

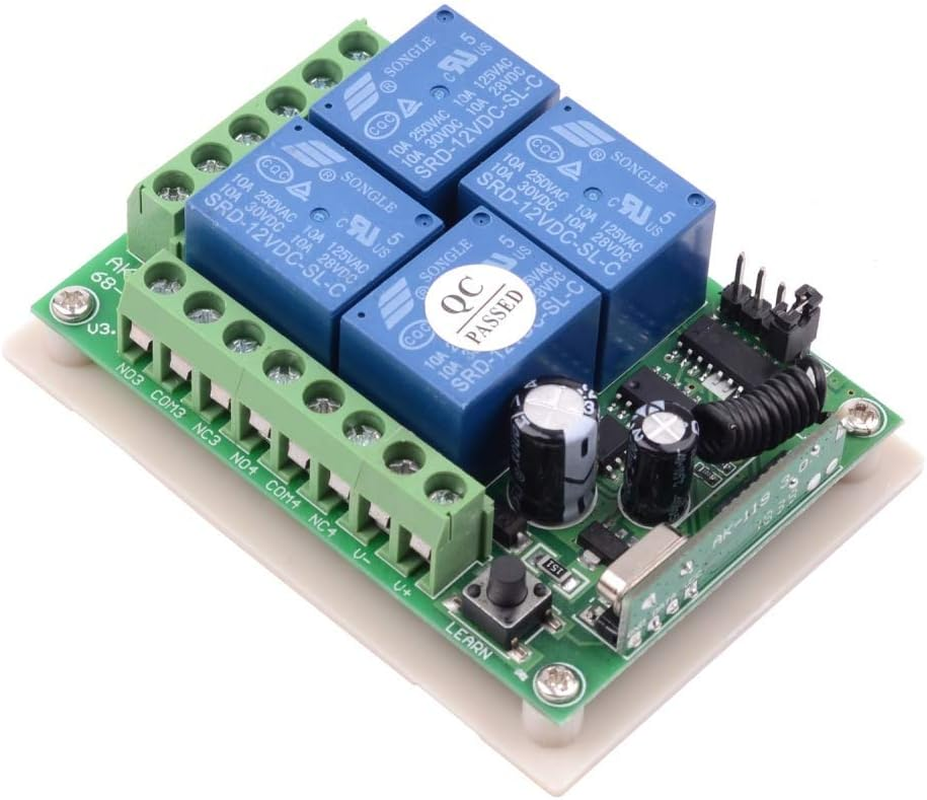

- Product Parameters: Working voltage: DC12 V; Working frequency: 433 Mhz; Max load current: 10 A(Output current: Less than 8A); Size: 7.2 X 5.2 X 2.6 cm
- 4CH For More Control: 4 Channel Wireless Remote Control, Adjustable working way, control equipment Momentary, Toggle, Latched, 2CH Momentary+2CH Latched
- Signal: Wireless RF signal can pass through walls, floors, doors or windows. You can use two or more units in the same place. You can turn on / off the receiver with transmitter from any place within a reliable distance(Max range is up to 164 ft / 50 m with no obstacle)
- Easy To Use: Wireless control, easy to install, Remote control and receiver are paired and tested before shipment, when you get it don't need to do anything, just install it. The wireless receiving controller, with high confidentiality, stable performance, Can be connected with manual switch, easy to change working model

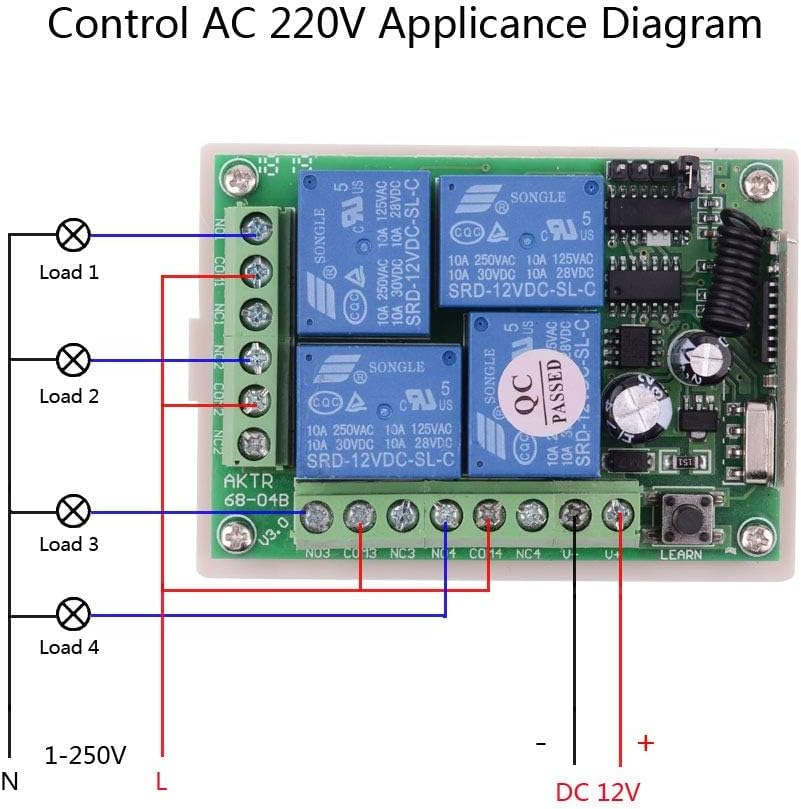

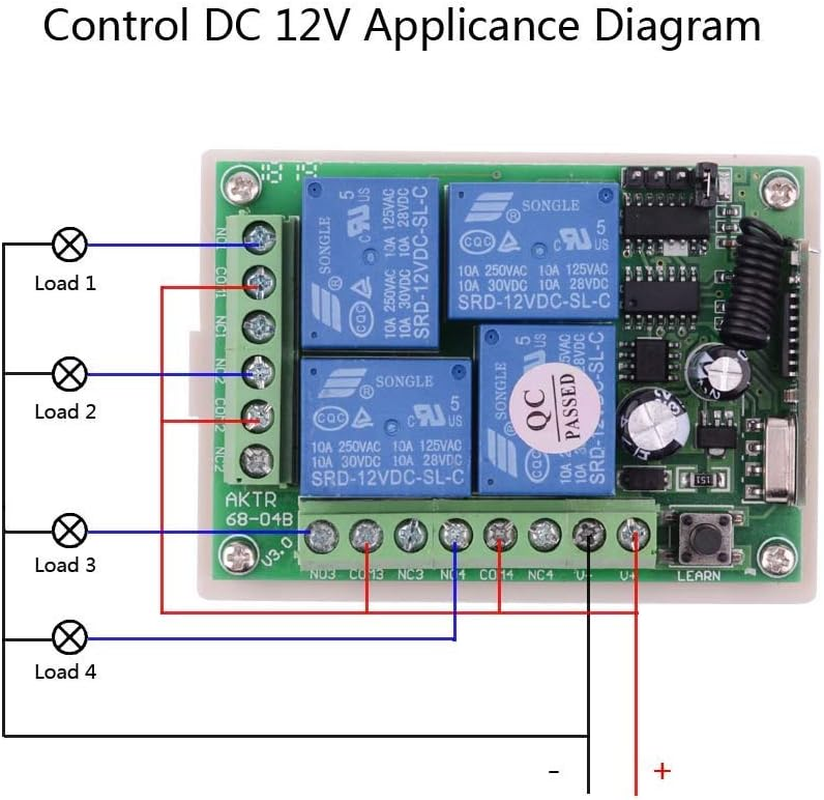

- Widely Use: The wireless remote control switch can control Lights, Motors, Fans, electrically operated Doors / Locks / Windows / Blinds / Cars or Other Appliances, Widely Used in Homes and Industries
About Receiver:
Working voltage: DC12V
Quiescent condition: Less than 6mA
Working temperature: -40 Degree +80 Degree
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz
Output voltage: DC and AC is optional
Output current: Less than 8A
Max load current:10A
Size:7.2 x 5.2 x 2.6cm

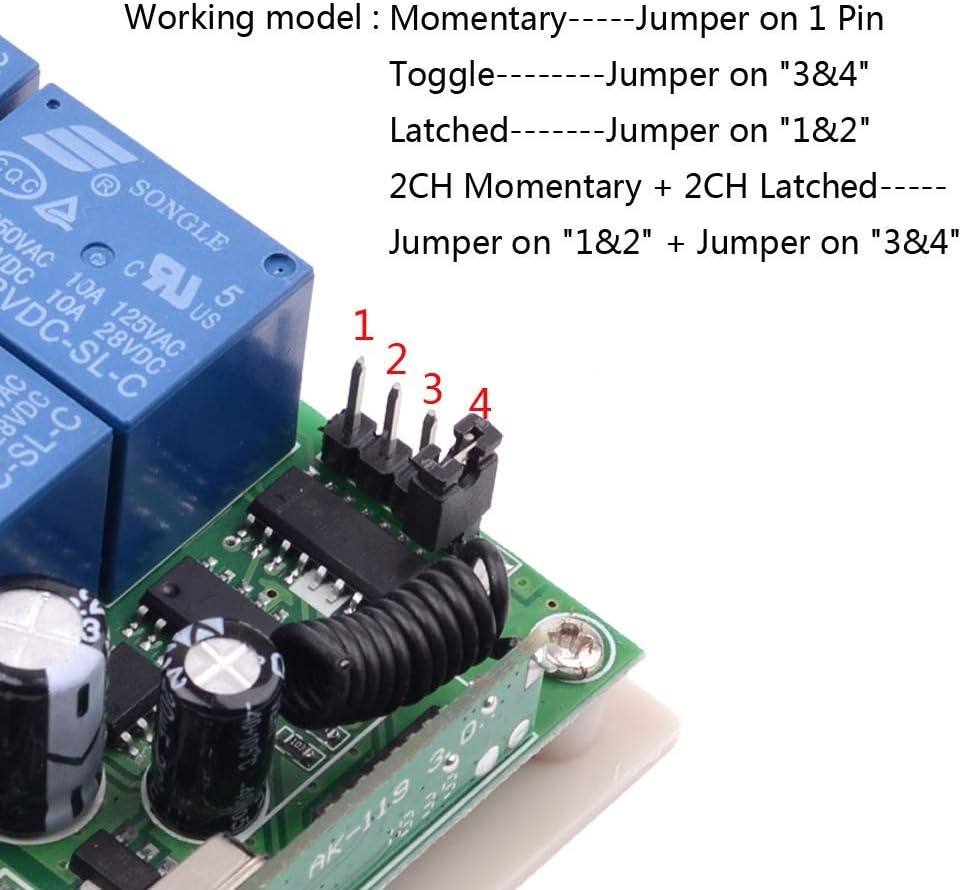

About Working way:
Working way changed by jumper on pins
1.Momentary:Jumper doesn't connect any two pins.
Relay: Press and hold -> On;Release -> Off
2.Toggle:Jjumper connects the pin "3"and pin"4".
Relay: Press -> On;Press same button again -> Off
3.Latched: Jumper connects the pin “1”and pin”2”.
Relay: Press -> On;Press other button -> Off
2CH Momentary + 2CH Latched: Jumper on "1&2" + Jumper on "3&4"
About Learning and clearing Method:
Learning:Input DC12v Power for the receiver,Press learning button,the indicator OFF,loosen finger,press any button of the remote transmitter,indicator flashes three times, meaning learning succeeds.
Clearning:Hold press learning button about 5 seconds,indicator from OFF to ON,then press remote,Relay did not Respond,it means clearning code successful.
About Transmitter:
1.Buttons:4 Buttons
2.Working Voltage:DC6V
3.Operating frequency:433MHz
4.Remote Distance:20-50M
5.Operating Current:13 mAh
6.Encode:Fixed code / EV1527 code
7.Size:5.7 x 3.2 x 1.1cm

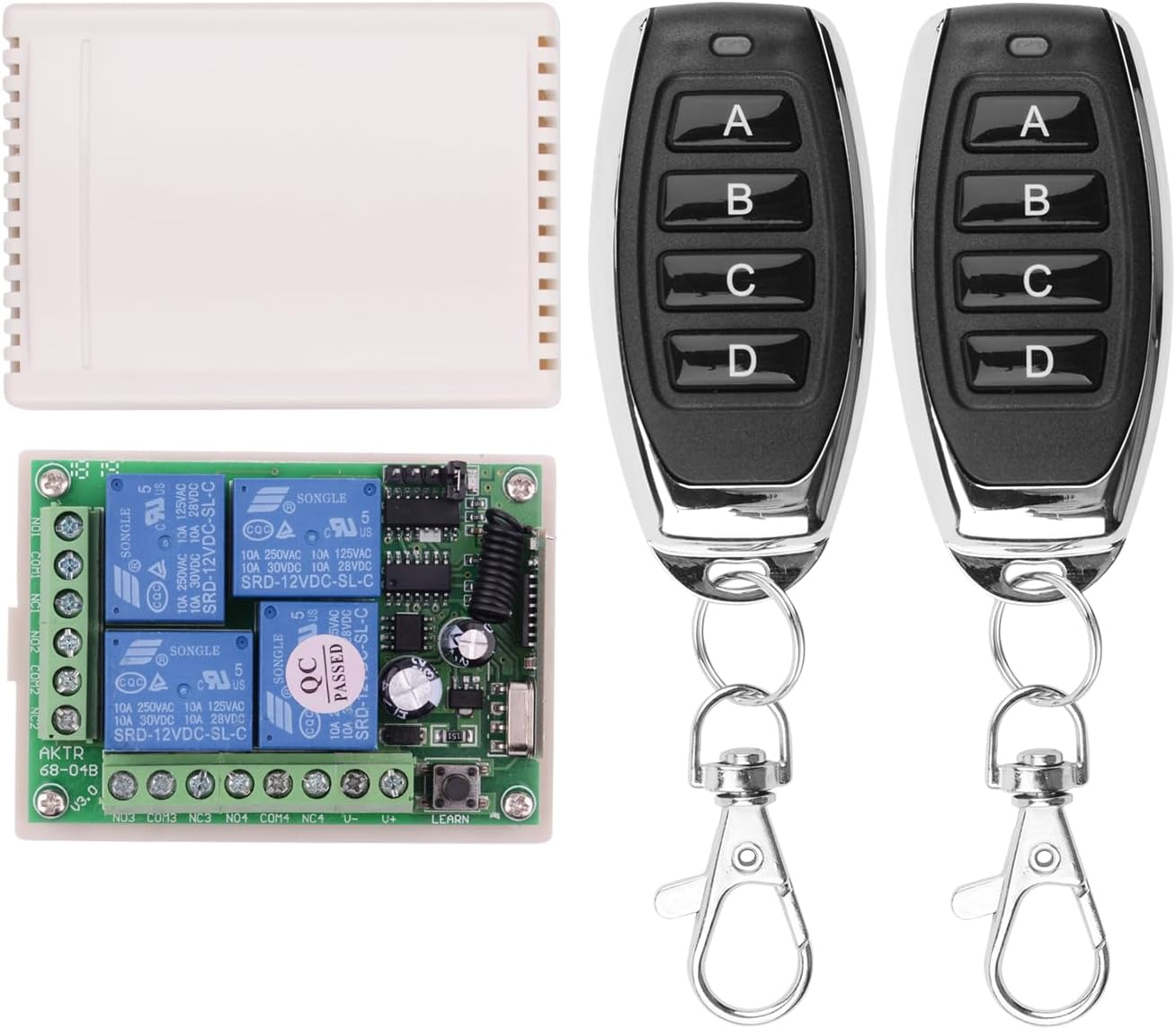

Package Includes
2 x Transmitters
1 x Receiver
1 x User Manual
- Includes Rechargeable Battery: No
- Number of items: 1
- Country/Region of origin: China
- Batteries Included: Yes
- Batteries Required: Yes
- Brand: MURANCLOUD
- Battery cell composition: Alkaline
- Special Features: Penetrates Obstacles, Multi-Working Ways, Universal Compatibility
- Compatible Devices: Lights, Motors, Fans, Doors, Windows, Blinds, Cars, Other Appliances
- Connector Type: Radio Frequency
- Item Weight: 140 g
- Battery Description: 4 x AA/AAA batteries
- Package Dimensions: 10 x 8 x 3 cm; 140 Grams
- Manufacturer: MURANCLOUD
