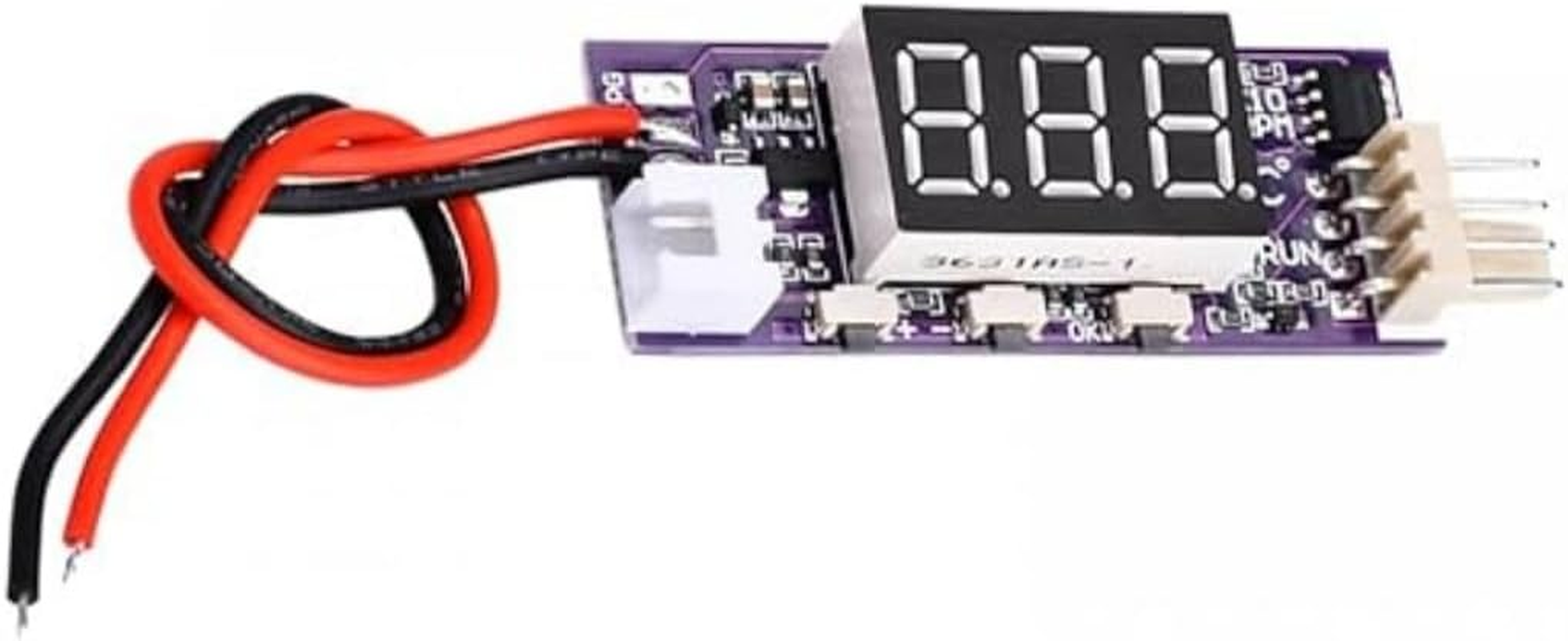

Fan Speed Control Module,Dc 12V 3A 4-Pin Fan Temperature Controller Automatic Temperature Controller NTC Sensor ，For Adjust Fan Speed Fan Speed Control
Fan Speed Control Module,Dc 12V 3A 4-Pin Fan Temperature Controller Automatic Temperature Controller NTC Sensor ，For Adjust Fan Speed Fan Speed Control
Brand: YLSDSW
A$17.85
- Automatic Temperature Control: Our Fan Speed Control Module is equipped with a temperature controller that can automatically adjust the fan speed based on the actual temperature.
- Convenient Wiring: With our Fan Speed Control Module, wiring becomes hassle-free. It is designed to be user-friendly, allowing for easy installation and connection to your fan system.
- Temperature Measurement Error: 0~50℃ less than 1.2℃; other temperature ranges less than 2℃ Parameter:Supply Voltage: DC 12V. Voltage Range: DC 8~16V.
- Cricuit Dissapation: <40mA. Current of Fan: =<3.3A.

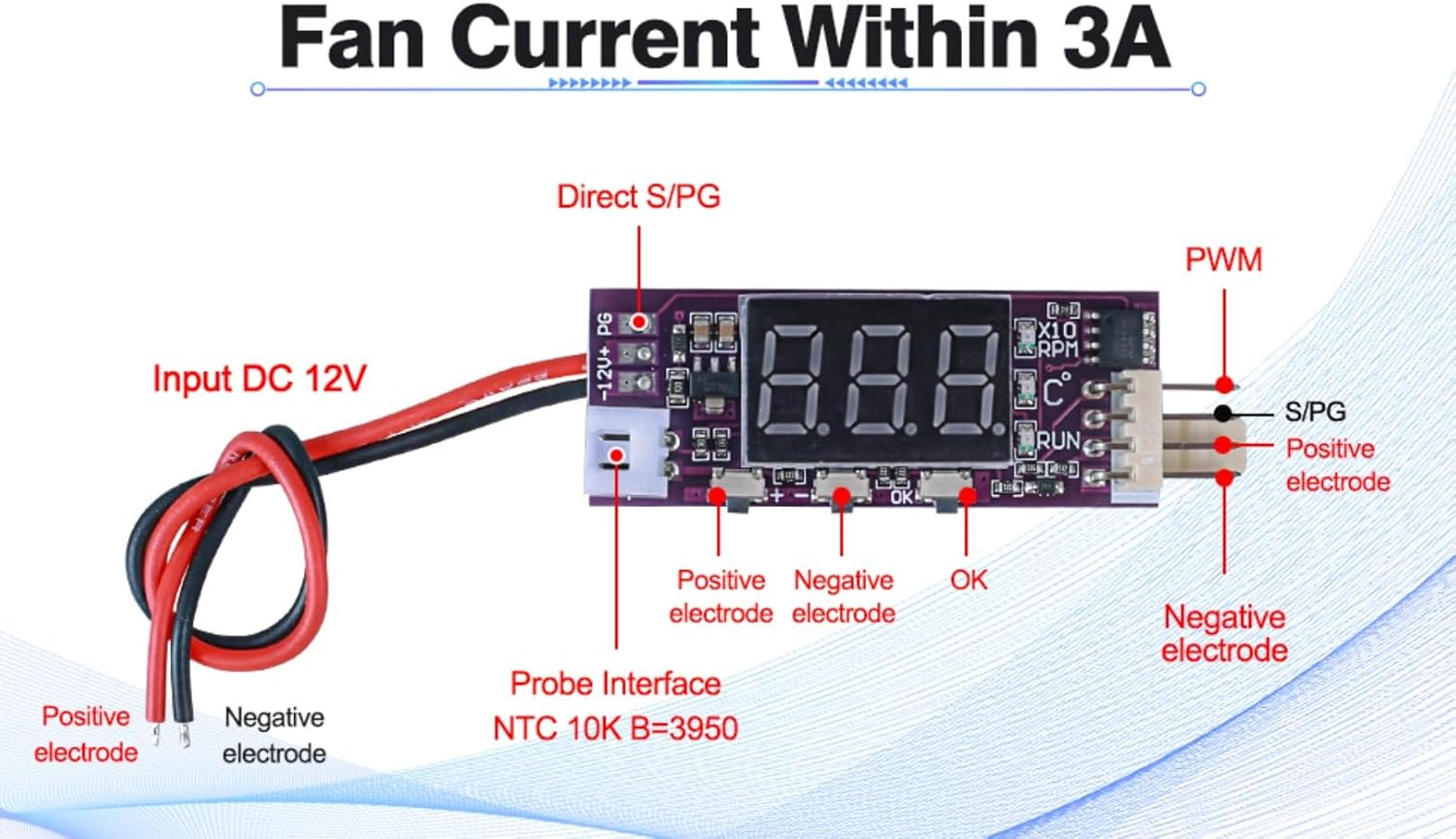

Design power supply voltage: DC12V
Voltage range: DC8-16V (circuit working voltage, please pay attention to the fan voltage range)
Circuit self consumption: less than 40mA (tested at 12V)
Fan current: not exceeding 3.3A
PWM range: 1-100 (signal percentage non actual speed ± 0.5%)
PWM frequency: 25KHZ (plus or minus 1KHZ)
PWM signal amplitude: 5V (no-load)
Temperature measurement range: -9.9℃-99.9 ℃
Temperature measurement error: The error within the range of 0-50 ℃ is less than 1.2 ℃, and the error in other ranges is less than 2 ℃
colour: Purple

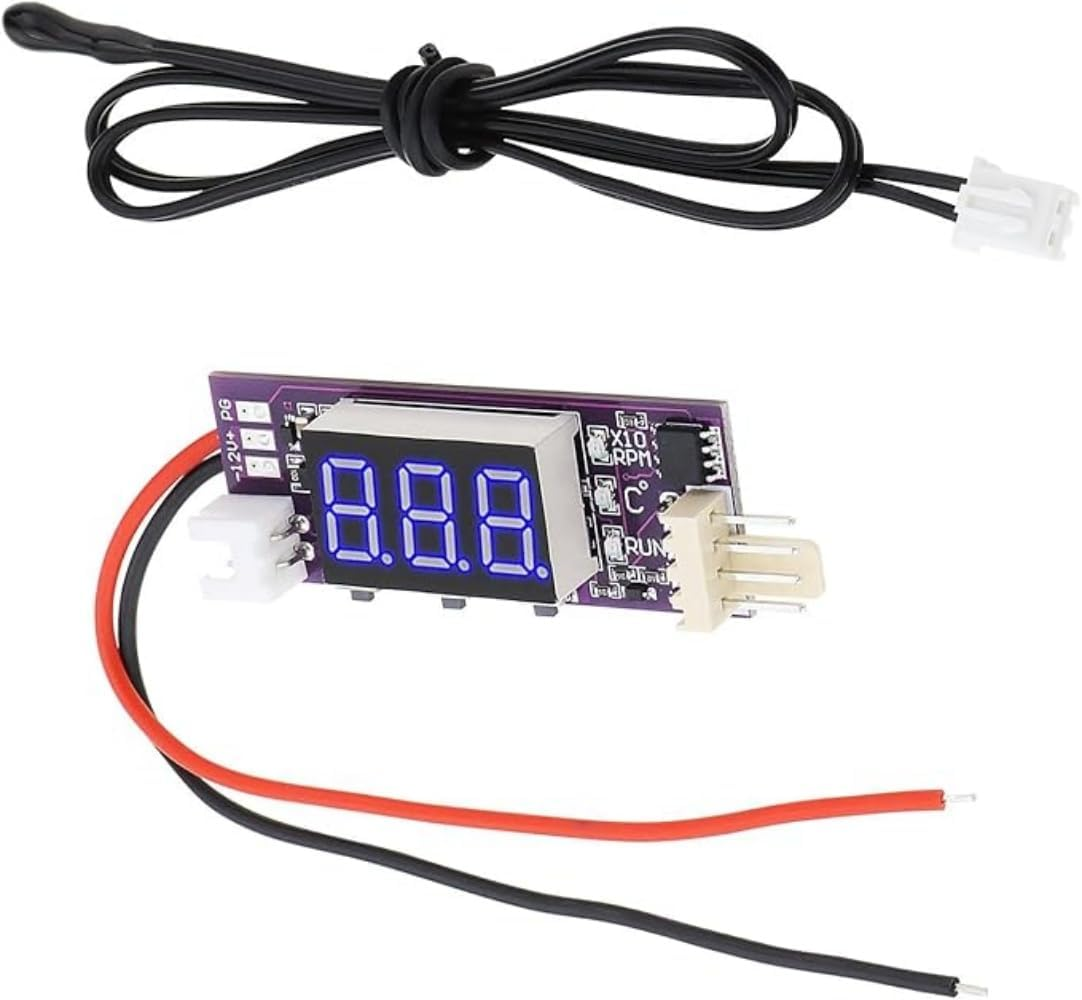

Package Contents:
1 x Fan temperature control regulator
1 x large black spot probe cable
- Batteries required: No
- Type of guarantee: Other
