1. COMPATIBILITY: TL611 Pro motherboard diagnostic card supports PCI E, mini PCI E, and LPC. It is compatible with all PCI slots.

2. EASY TO USE: The motherboard diagnostic card has a high recognition rate and automatically identifies power modules, making it simple and user friendly.

3. MULTI FUNCTIONALITY: The mainboard debug card can detect multiple channels and LED indicator lights, providing information on the status of the power supply, motherboard, CPU, memory, video card, and hard drive.

4. PERFORMANCE: TL611 Pro motherboard diagnostic card is designed to provide accurate and diagnostic information, helping users troubleshoot and diagnose issues with their computer systems efficiently.

5. WIDE APPLICATION: The motherboard debug card kit is suitable for Asus, for , for MSI, for Gigabyte, and other brands, making it a versatile tool for various computer models.

Spec:

Item Type: Multipurpose Debug Card

Material: PCB

Product Color: Black

Product Interface: PCI E, LPC

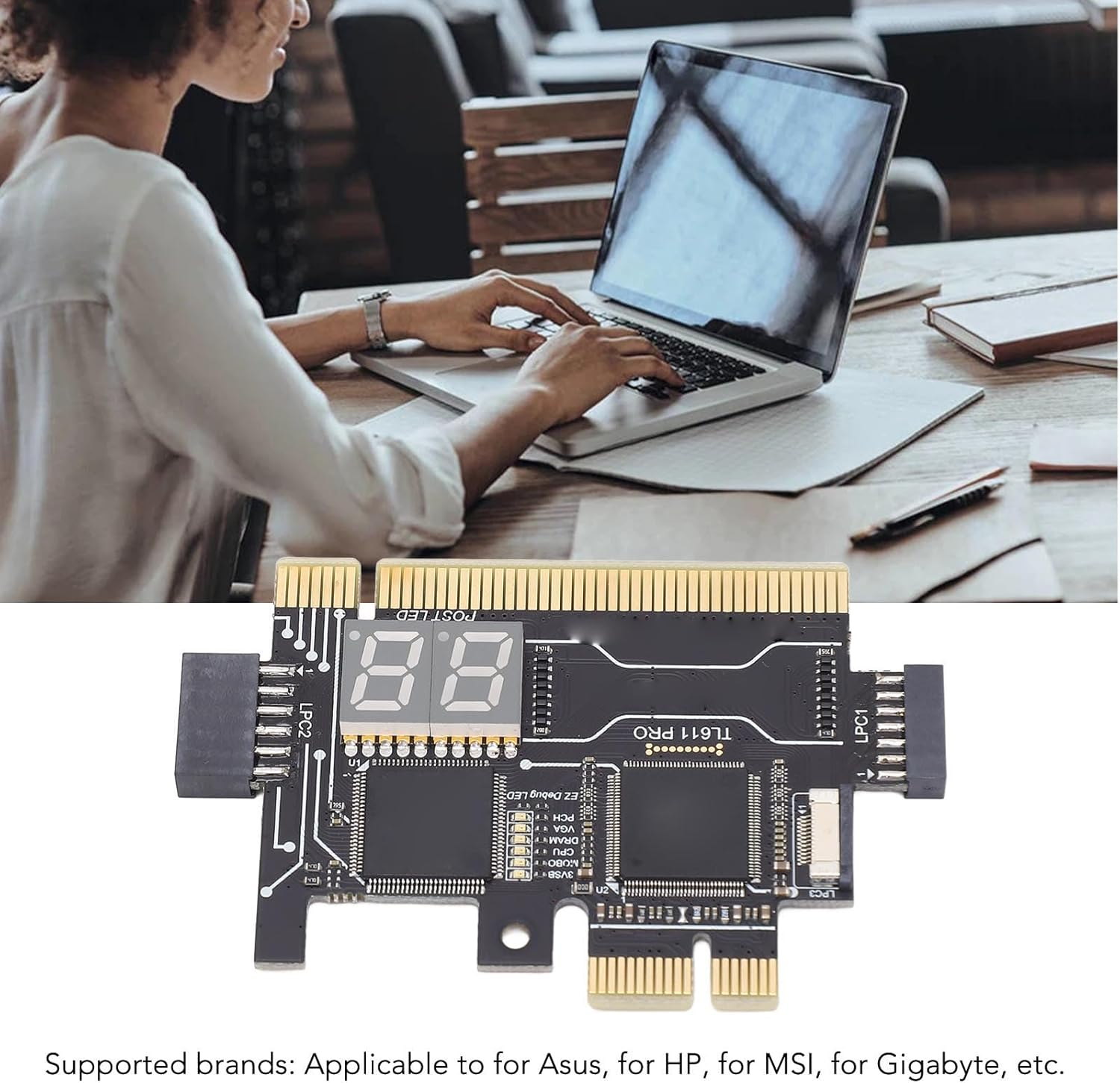

Supported Brands: Applicable to for Asus, for , for MSI, for Gigabyte, etc.

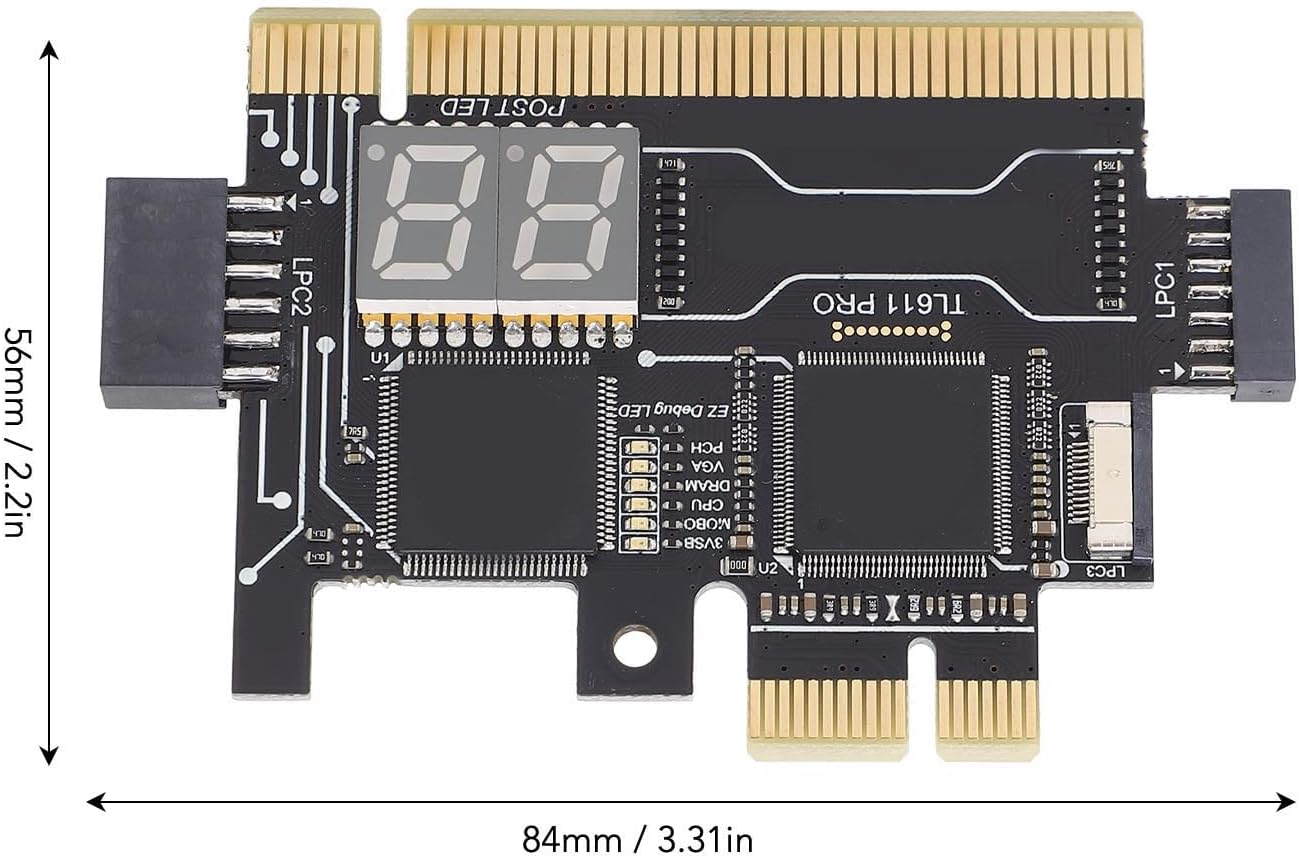

Product Size: Approx. 84 x 56mm / 3.31 x 2.2in

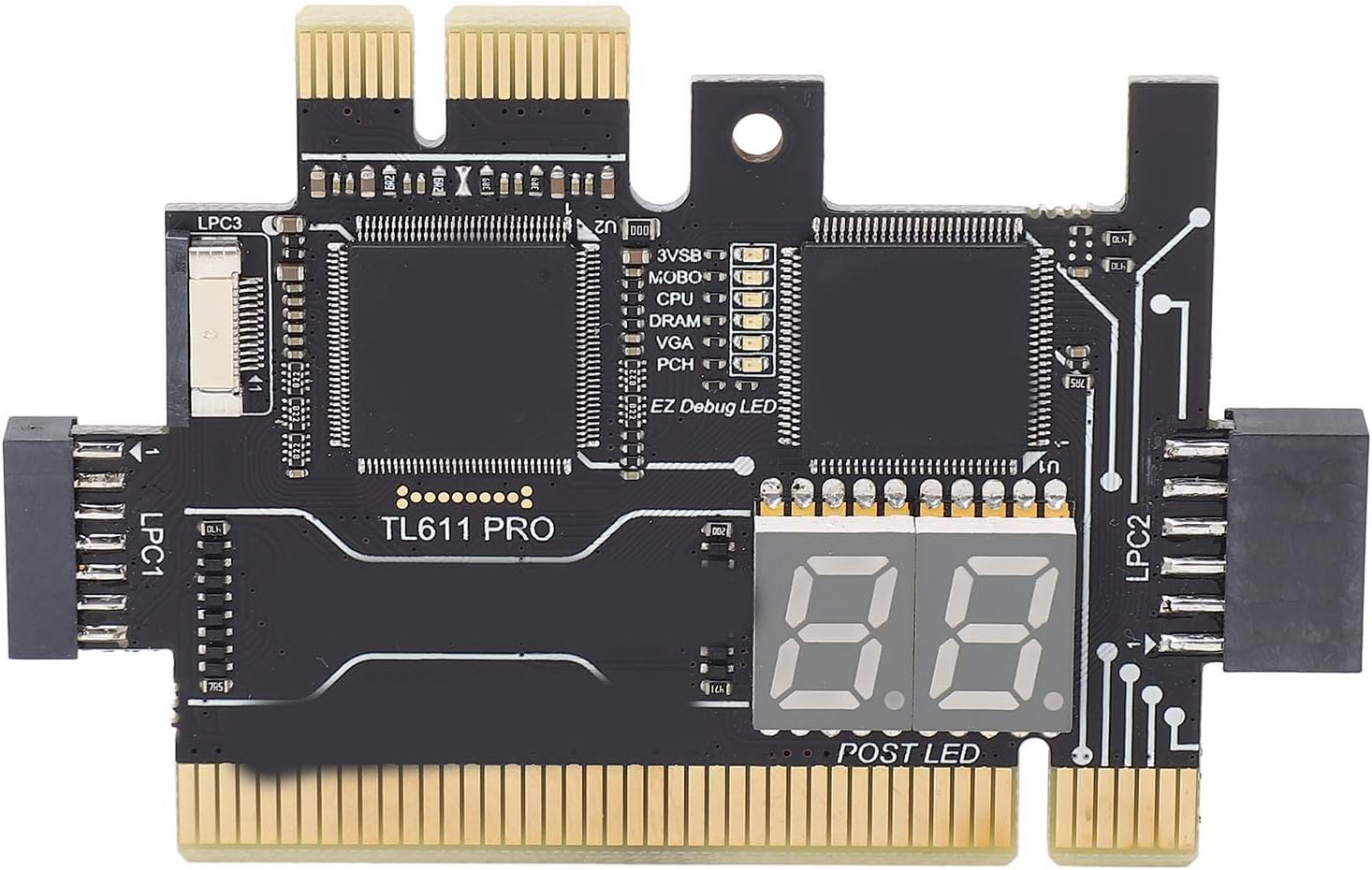

The diagnostic card has the following Settings:

01, LPC1 Shared high speed channel = Connect mainboard 2.0 pin bar and Notebook for MINI PCIE.

02, PCI High speed channel = Support for all PC slots.

03, LPC2 shared high speed channel = Connect motherboard 2.54 large row of pins and ultra micro SPI.

04, PCIEX1 High speed channel = Can test for Gigabyte without PCI motherboard.

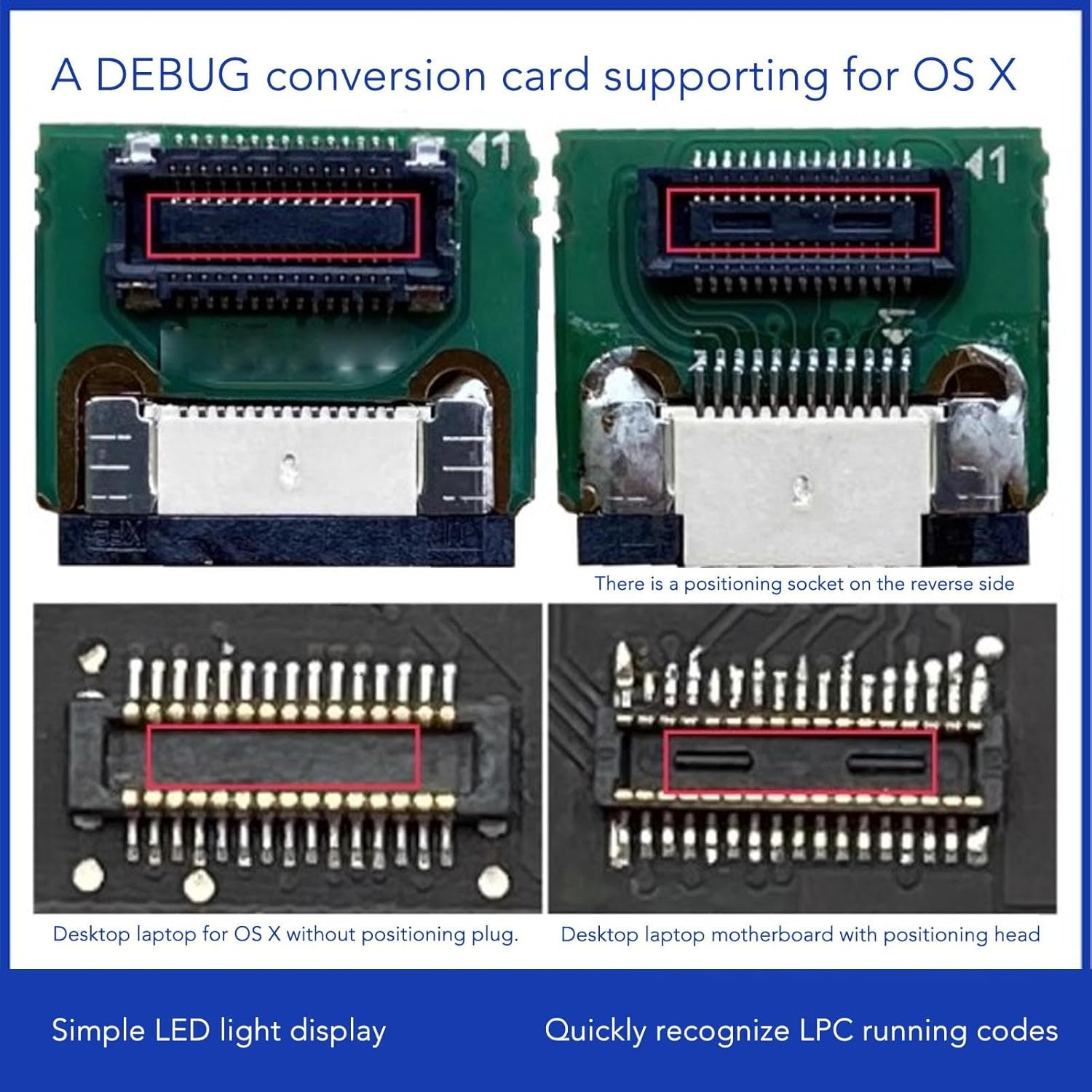

05, LPC3 shared high speed channel = Connect the laptop for MINI PCIE, for A DEBUG conversion card, for ASUS DEBUG CON, for EC DEBUG.

06, 3VSB power indicator to check whether the power supply is normal.

07, MOBO mainboard indicator, check whether the mainboard is normal.

08, CPU indicator, check whether the CPU module is normal.

09,
