Features
[Professional Accuracy] Equipped with a professional vacuum sensor, this digital vacuum gauge offers accurate measurement of vacuum levels and rapid response times.
[7/16 Inch 20UNF Interface] The vacuum tester adopts 7/16 inch 20UNF interface, comes with extension connector for easy connection.
[Large Screen Display] The vacuum meter features a large screen for real time and intuitive display, with the capability to switch between four different vacuum units for versatility.

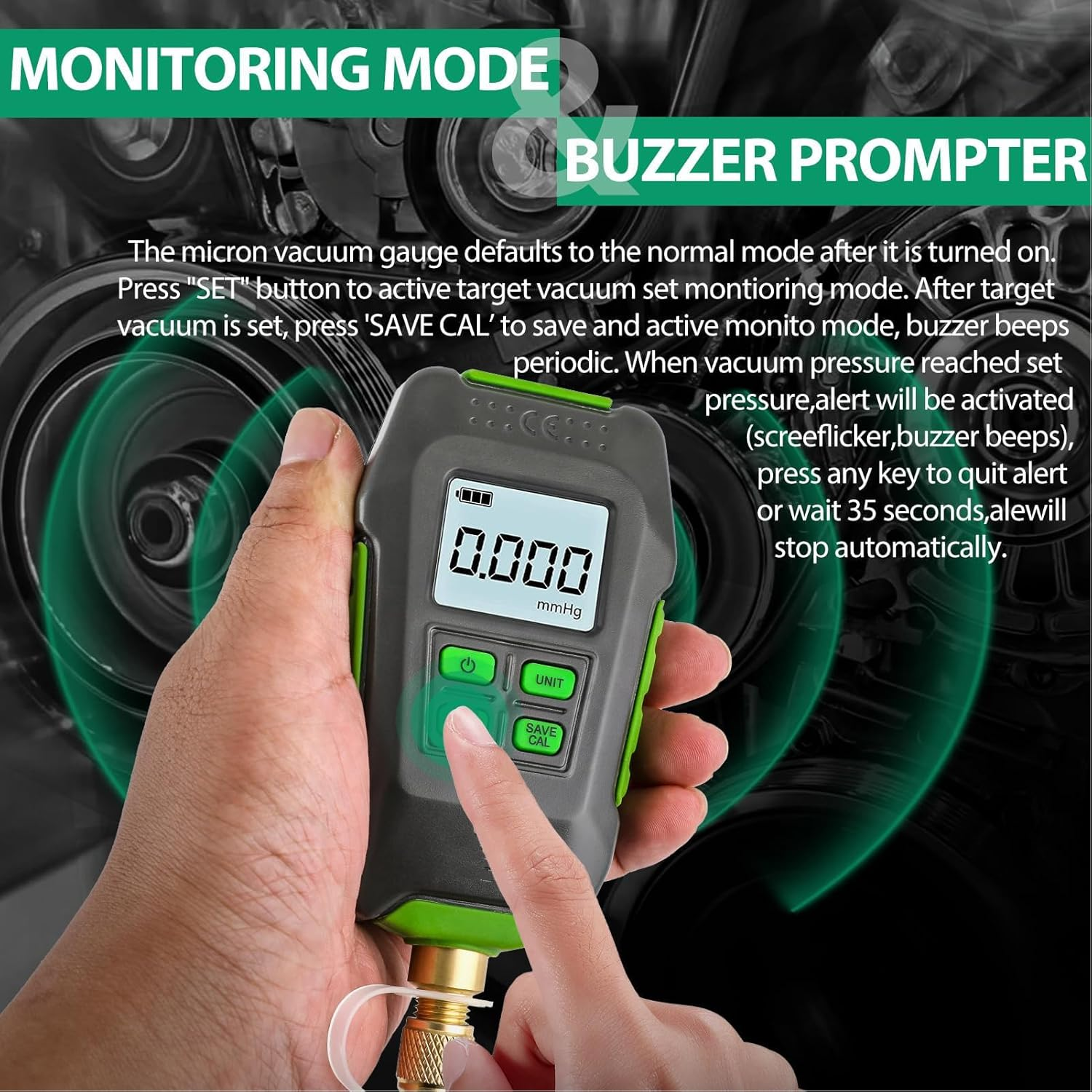

[More Features] Supports over range protecting and zero setting functions for enhanced usability and accuracy in vacuum measurements.
[IP54 Rating] With an IP54 rating, this digital vacuum gauge is water and dust resistant, making it suitable for a wide range of on site testing applications.
Specification
Item Type: Digital Vacuum Gauge
Material: ABS
Maximum Overload Pressure: 72Psi 0.5Mpa
Measurement Range: 0-10000Pa, 0~100.00mBar, 0-75.000mmHg, 0~75000Micron
Resolution: 0.01 ( Measurement Accuracy: 0.1pa~1000Pa, ±5% reading (at 20℃)
Operating Temperature: 0-50℃ (32-122℉)
Battery: 3 x AA batteries (not included)
Battery Life: Up to 40 hours
Units: Pa, mBar, mmHg, Microns
Refresh Rate: 0.5 seconds
Interface: 1 x 7/16in 20UNF
Sensor: 1 x Pirani Sensor
Auto Shut Off Time: 10 minutes
Backlit Time: 20 seconds
Buzzer: 90dB volume, shuts off after 10 seconds
Application: Atmospheric environment (cannot be used for measurement in other environments containing refrigerants, etc.)
How to Use
Insert batteries and press the button to operate.
Package List

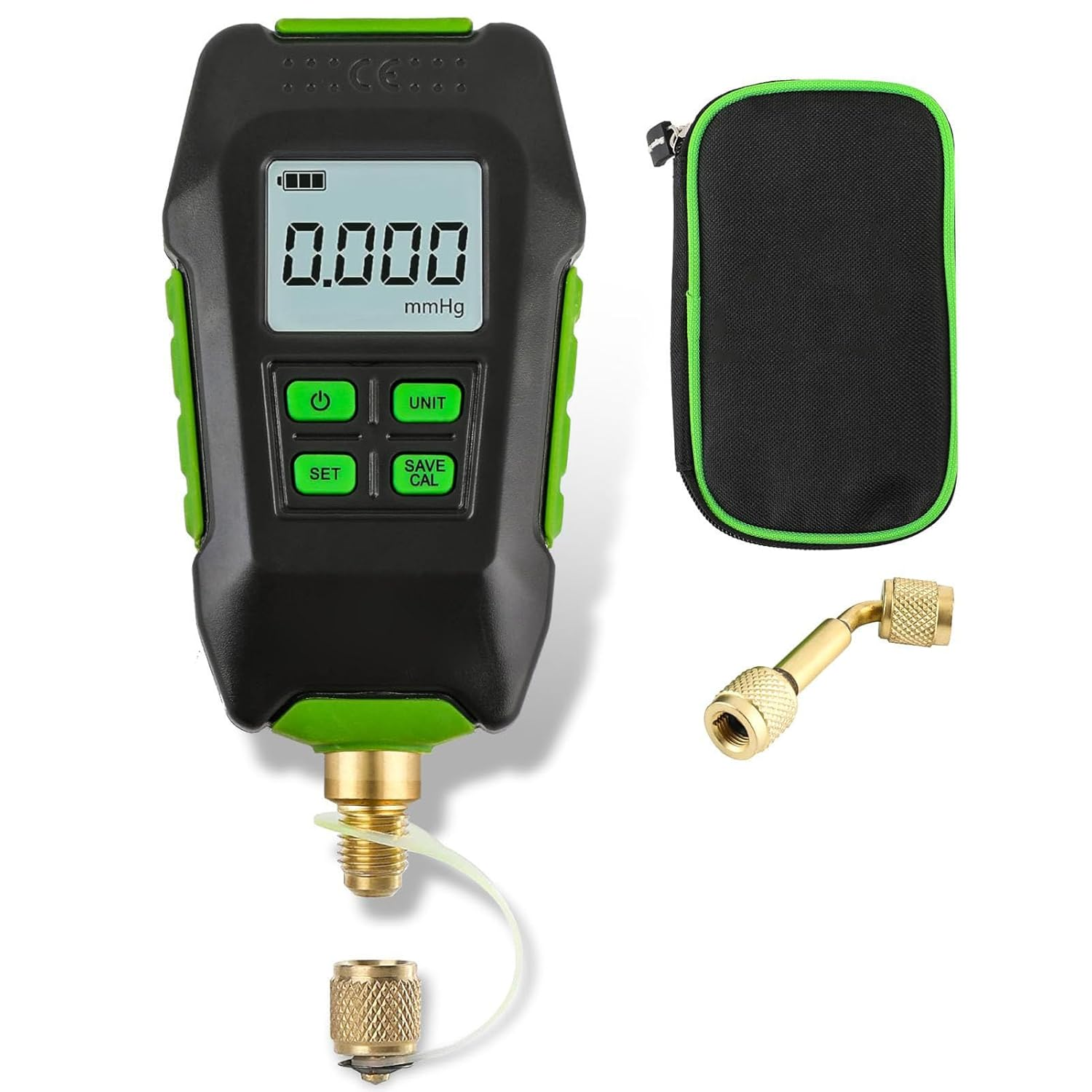

1 x Digital Vacuum Gauge
1 x Connector
1 x Storage Bag
