Feature

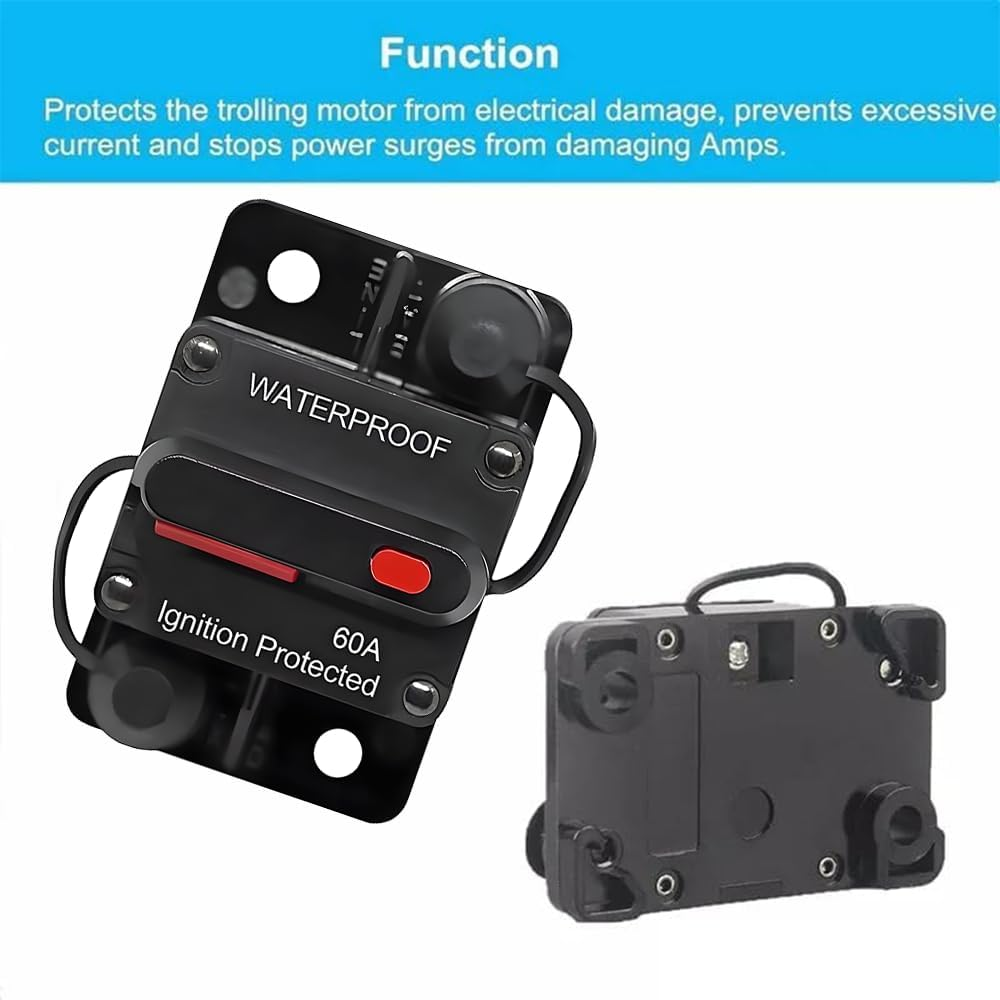

1.Designed for Electrical Protection：Circuit Breaker can protect car audio, low-voltage, and high-current electrical equipment from current overload damage. When the circuit current exceeds the rated current, the fuse burns out and automatically disconnects, which can well protect the electrical appliances

2.Unique Manual Reset Design：Circuit Breaker with manual control reset button, easy to operate, can also be used as an on/off switch for the battery. Manual Reset Circuit Breaker,No need to replace the inline fuse，can also be used as an on/off button switch for the battery

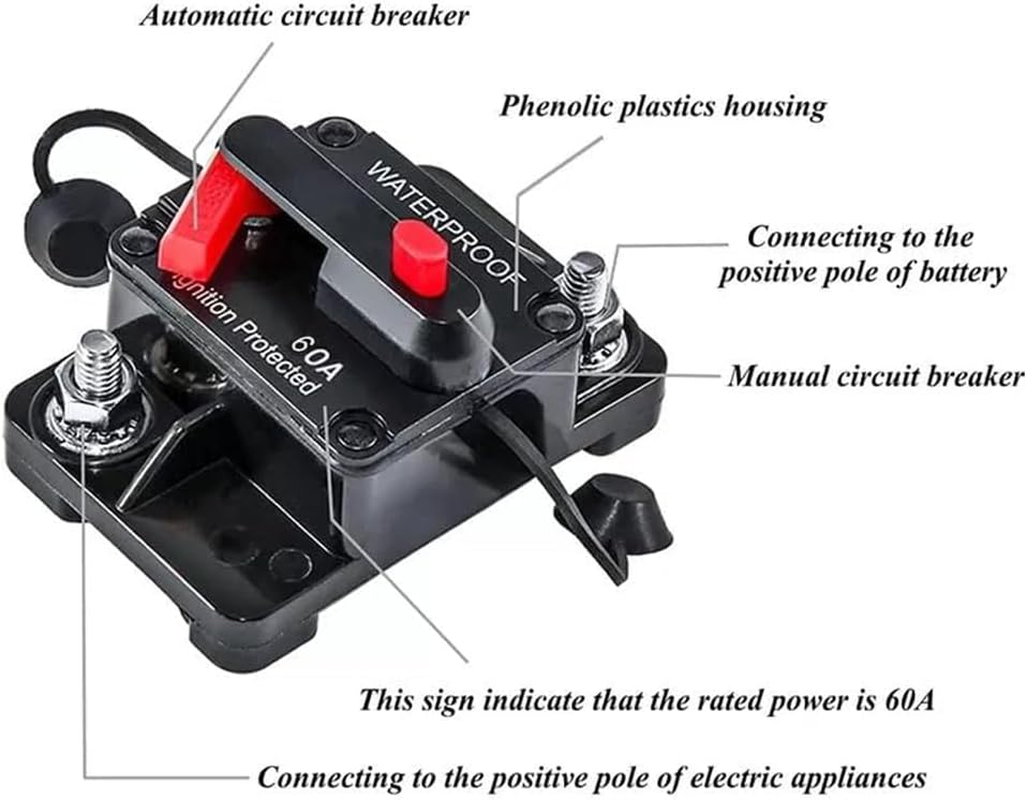

3.Copper lugs：Circuit Breaker’s copper lugs provide a high conductivity connection between the circuit breaker and the electrical wiring. Copper lugs are resistant to corrosion, which helps to prevent the formation of oxide layers that can increase resistance and cause overheating. Copper lugs are easy to install, and their malleability allows for easy bending and shaping to fit the wiring or circuit breaker

Specification

Current Rating: 60 Amps

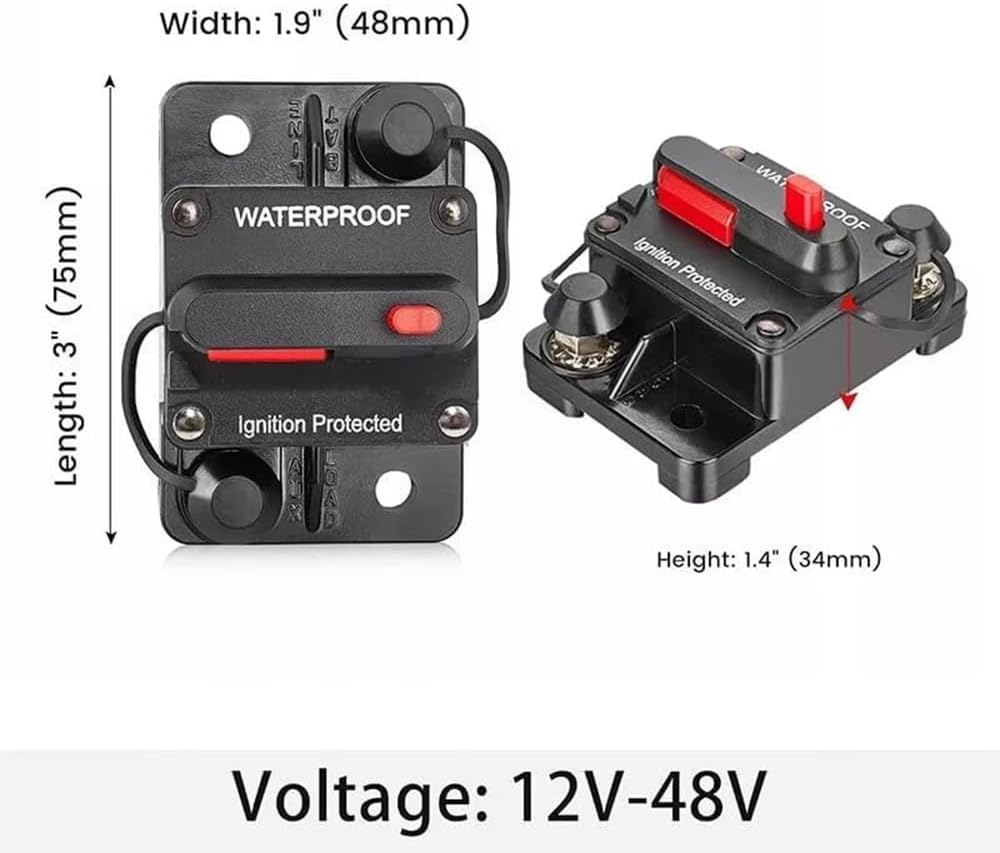

Voltage: 12-48 Volts

Rating Options: 60Amps 48V DC

Interrupt Rating: 48VDC

Operating Temperature Rating: -32°C to 82°C (-25°F to 180°F)

Storage Temperature Rating: -34°C to 149°C (-30°F to 300°F)

Material:phenol formaldehyde plastic/PF+zinc alloy

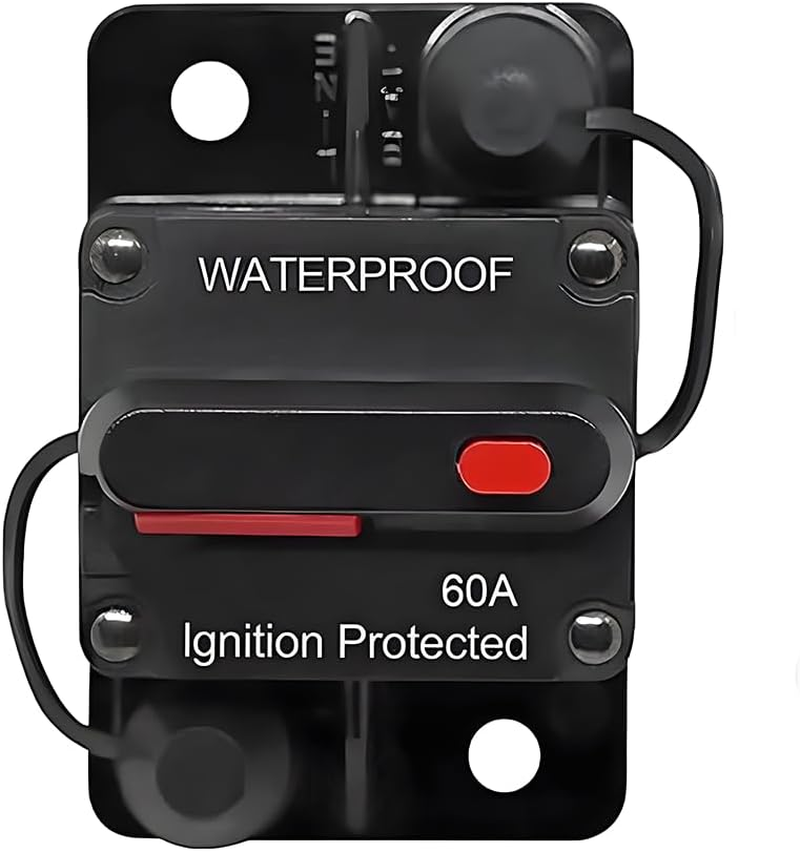

Marking:Standard marking includes amp/volt ratings

Ingress Protection Rating:IP67

Circuit Breaker Class:Type III - switchable/manual reset - trip free

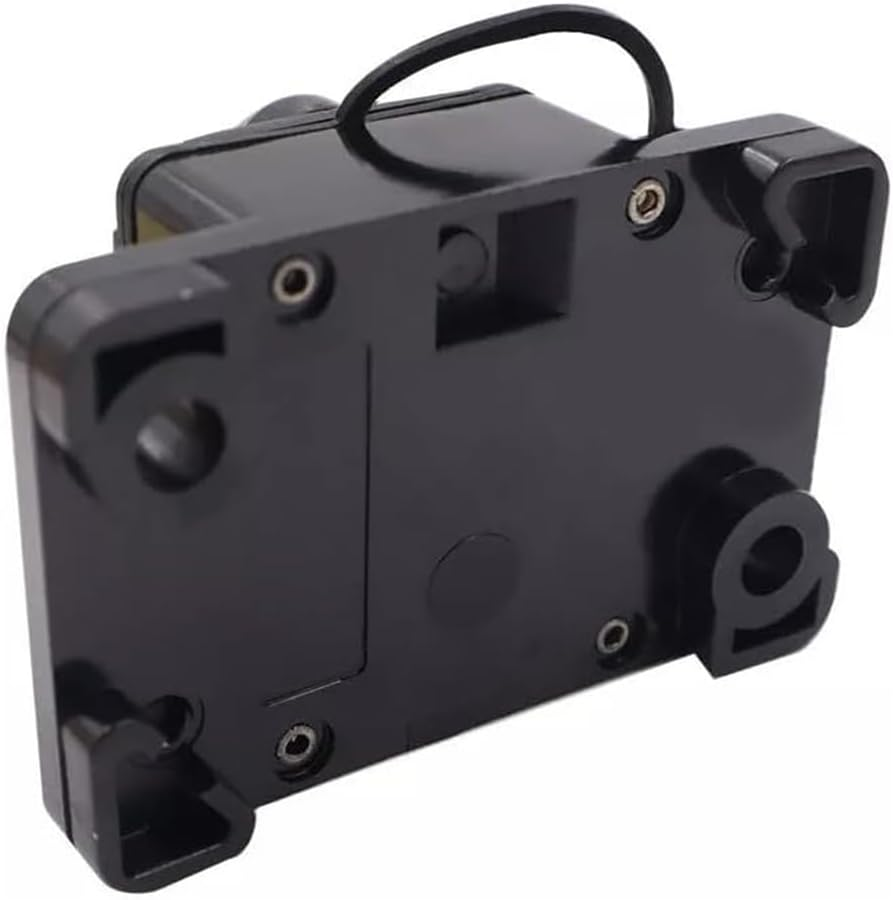

Installation and Waterproof：Surface Mount, mount on panel or firewall. Water resistant housing, protective stud insulator included, splash & dust Proof

Package included： 1* Circuit Breaker with Manual Reset

Application：Circuit Breaker used in auxiliary and accessory circuits for fit to Boat Marine RV Yacht Battery Trailer Bus Truck ATV Winches applications. Also used in battery charges and DC sound amplifier system
