ESP32 Touchscreen 2.8 Inch LCD TFT Module with Touch Screen Display Module, Wireless Bluetooth 4.2 Support LVGL, ESP32 Touch Screen Smart Display Development Board
ESP32 Touchscreen 2.8 Inch LCD TFT Module with Touch Screen Display Module, Wireless Bluetooth 4.2 Support LVGL, ESP32 Touch Screen Smart Display Development Board
Brand: Sxhlseller
A$49.15

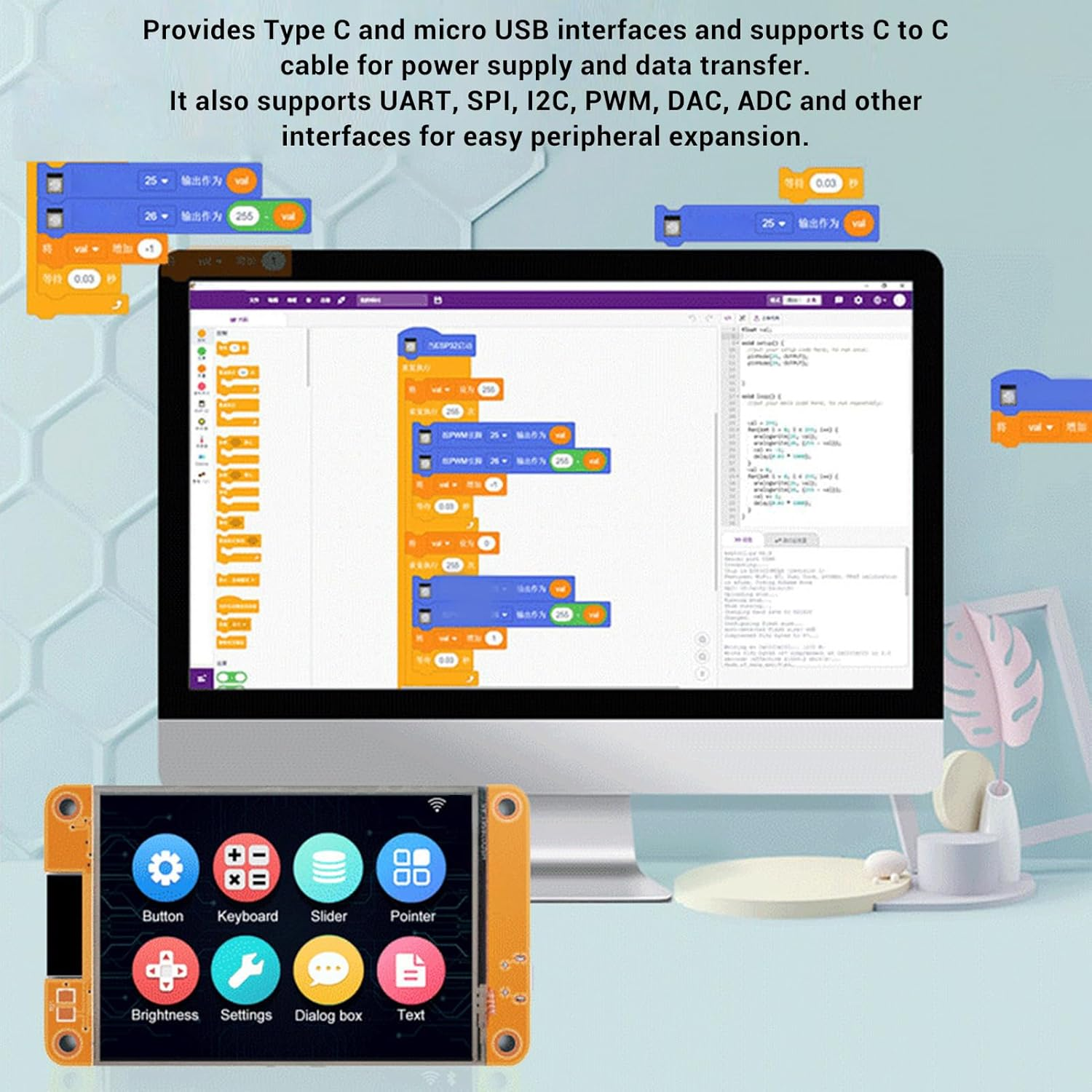

- RICH CONNECTIVITY OPTIONS: It provides Type C and micro USB interfaces and supports C to C data cable for easy power supply and data transfer. It also supports UART, SPI, I2C, PWM, DAC, ADC and other interfaces for easy peripheral expansion.
- MULTIMEDIA SUPPORT: It can be equipped with 1.5W 4Ω speakers to enhance the sound output capability. Meanwhile, the expansion I/O interface can directly access the temperature and humidity sensor to increase the environmental awareness function.
- EASY TO DEVELOP: Compatible for openOCD debugging interface, supports universal AT commands, as well as local serial upgrade and remote upgrade (FOTA), which simplifies the development process and improves development efficiency.
- WIRELESS COMMUNICATING CAPABILITY: Supports 802.11b/g/n Wireless Fidelity and Bluetooth 4.2BR/EDR and BLE standards, which can realize efficient data transmission and wireless connection.
- INTEGRATED DESIGN: This development board not only includes all the features of the for ESP‑WROOM‑32 module, but also integrates an additional 2.8inch TFT touch screen, making hardware development more convenient and eliminating the need for additional screen components.
Specification
Item Type: ESP32 Touch Screen Development Board
Material: PCB
Screen: 2.8inch 240x320 TFT Touch Screen
Power and Data Transfer Interface: Type C and Micro USB, Also Supports C to C Data Cable
Storage: Supports Up to 128GB Memory Card (not Included)
SPlFlash: Default 32Mbit
Bluetooth: Bluetooth 4.2BR/EDR and BLE Standards
Wireless Fidelity: 802.11b/g/n
Security: WPA, WPA2, WPA2 Enterprise, WPS
Supported Interfaces: UART, SP, SDIO, I2C, PWM, I2S, IR, ADC, DAC
On‑chip Sensors: for Hall Sensors, Temperature Sensors, Capacitive Touch Sensors
Serial Port Rate: Default 115200bps
Spectrum Range: 2412‑2484MHz
Antennae: Onboard PCB Antennae, 2dBi Gain
Transmit Power:
802.11b: 17±2dBm(11Mbps)
802.11g: 14±2dBm(54Mbps)
802.11n: 13±2dBm(MCS7)
Receiving Sensitivity:
CCK, 1Mbps: ‑90dBm
CCK, 11Mbps: ‑85dBm
6Mbps(1/2BPSK): ‑88dBm
54Mbps(3/464‑QAM): ‑70dBm
MCS7(65Mbps, 72.2Mbps): ‑67dBm
Power Supply Range: USB Power: 5V; Vin Pin Power: 6.0‑12V
How to Use
Install to use.
Package List
1 x Development Board
1 x Data Cable
1 x Adapter Cable
1 x Stylus
1 x Storage Case
- Item Model Number: Sxhlseller0rsv7f25eg
- Part Number: Sxhlseller0rsv7f25eg
- Total USB ports: 2
- Model Name: Sxhlseller0rsv7f25eg
- Country/Region of origin: China
- Graphics Card Interface: Integrated
- Batteries Required: No
- Memory Storage Capacity: 128 GB
- Brand: Sxhlseller
- Wireless Type: Bluetooth
- Item Weight: 74 g
- Number of Ports: 8
- Compatible processor types: ESP32
- Ram Memory Technology: DDR3
- Voltage: 220 Volts
- Chipset Type: ESP32
- Model: Sxhlseller0rsv7f25eg
- Package Dimensions: 9 x 6 x 3 cm; 74 Grams
- Manufacturer: Sxhlseller
