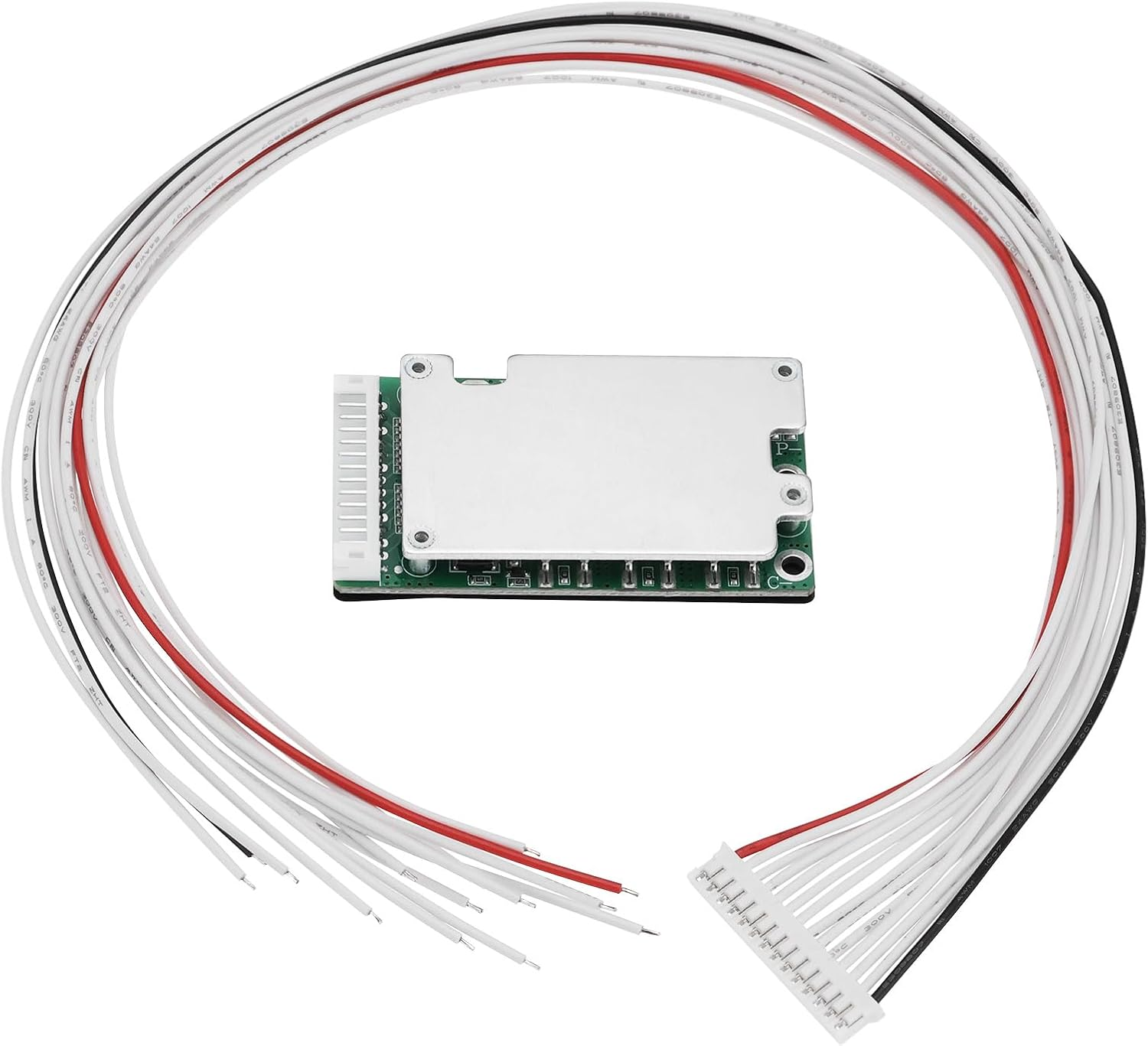

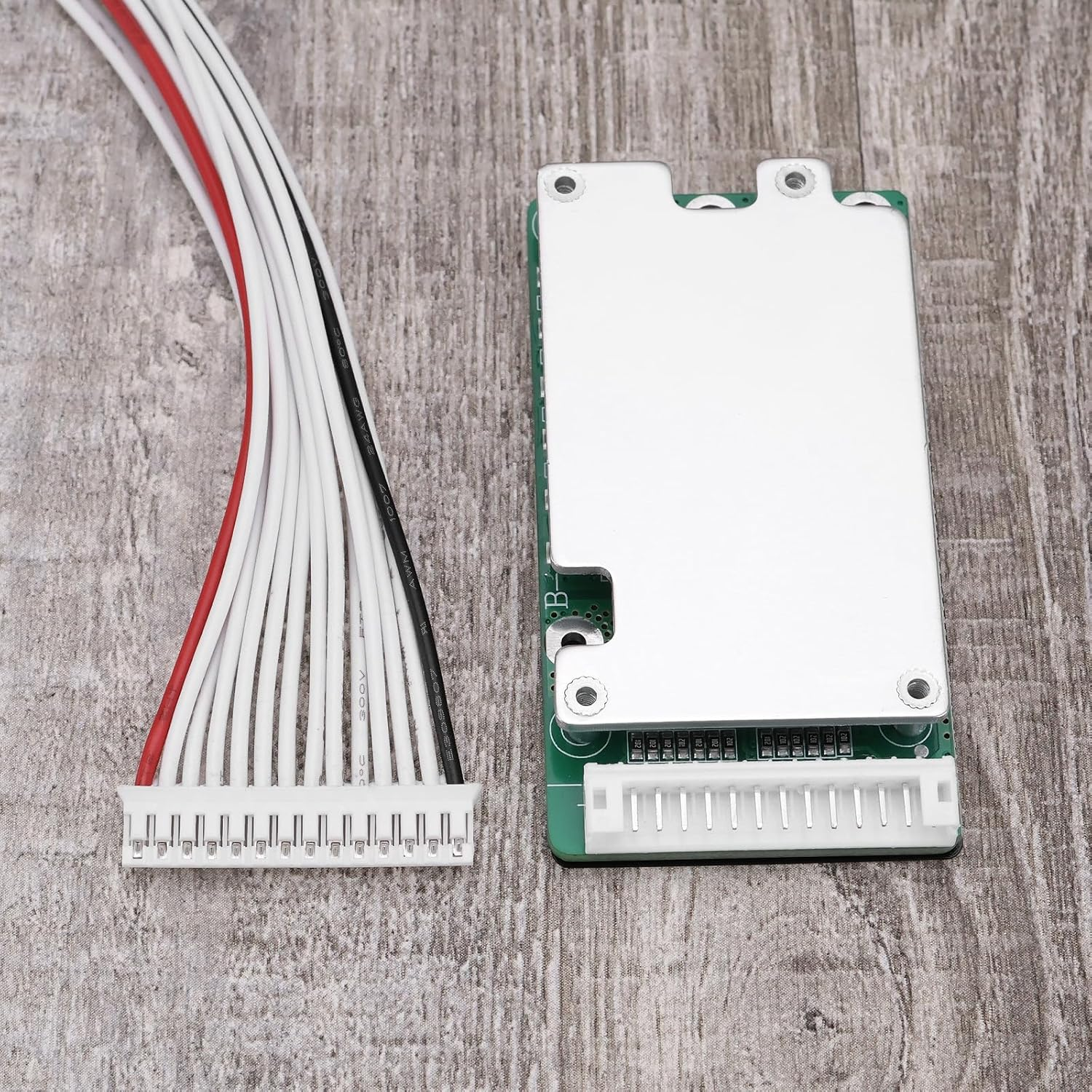

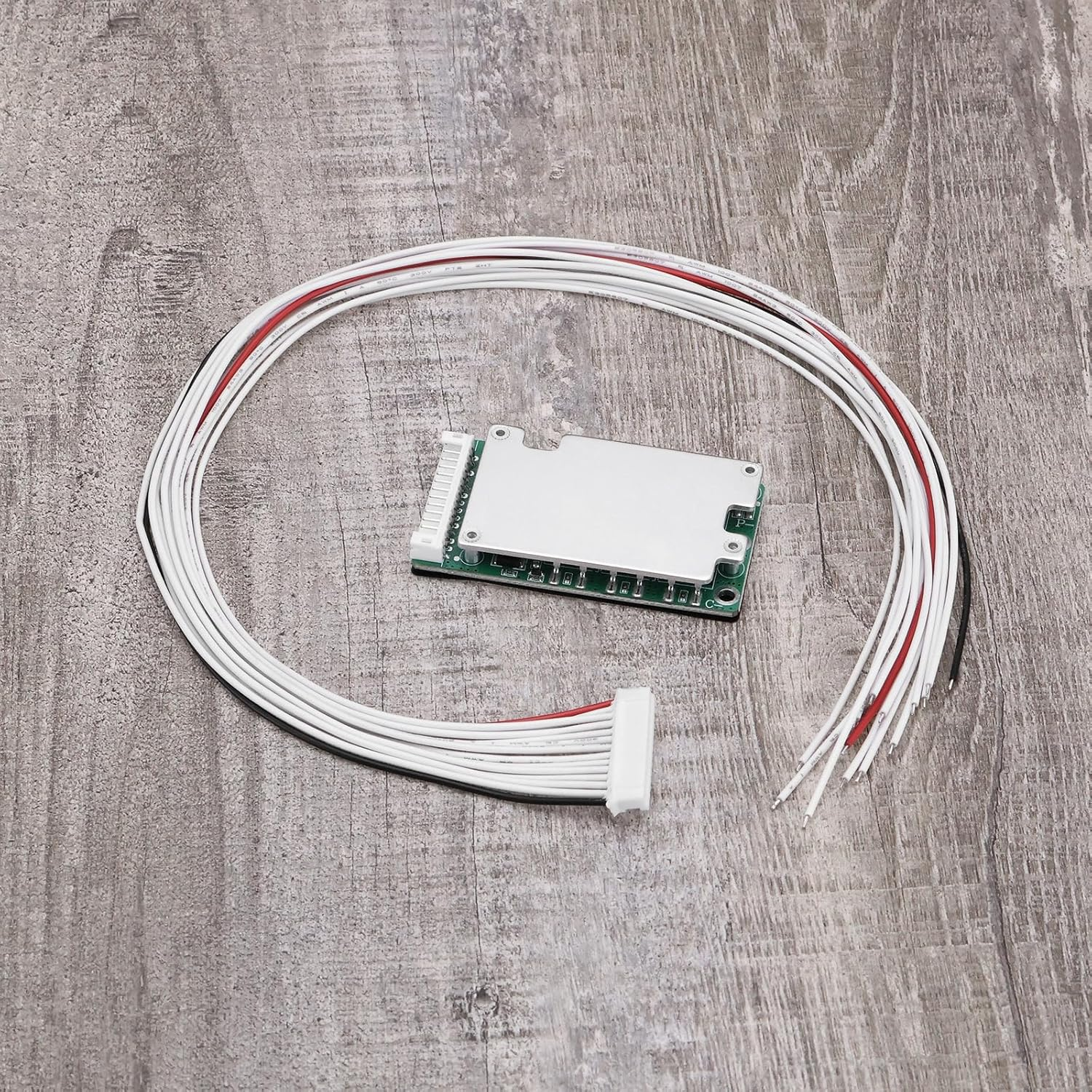

Create Idea BMS 13S 48V Li-Ion Lithium PCB Protection Board 20A Battery Balance Protection Circuit Board Charge Protection Board Battery Cell Suitable for Electric Motorcycles

Create Idea BMS 13S 48V Li-Ion Lithium PCB Protection Board 20A Battery Balance Protection Circuit Board Charge Protection Board Battery Cell Suitable for Electric Motorcycles

Brand: Create idea
3.5
A$27.95
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

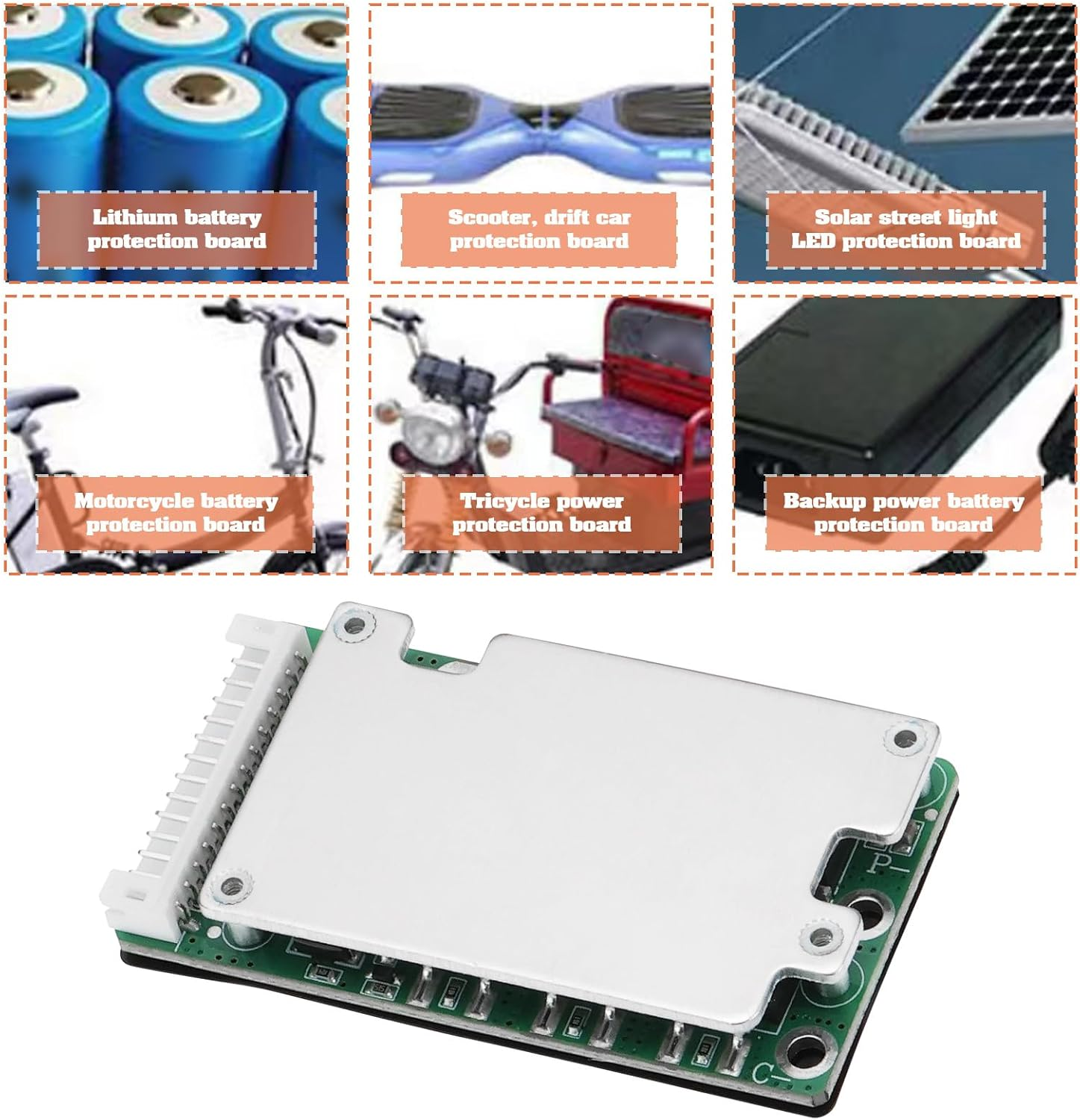

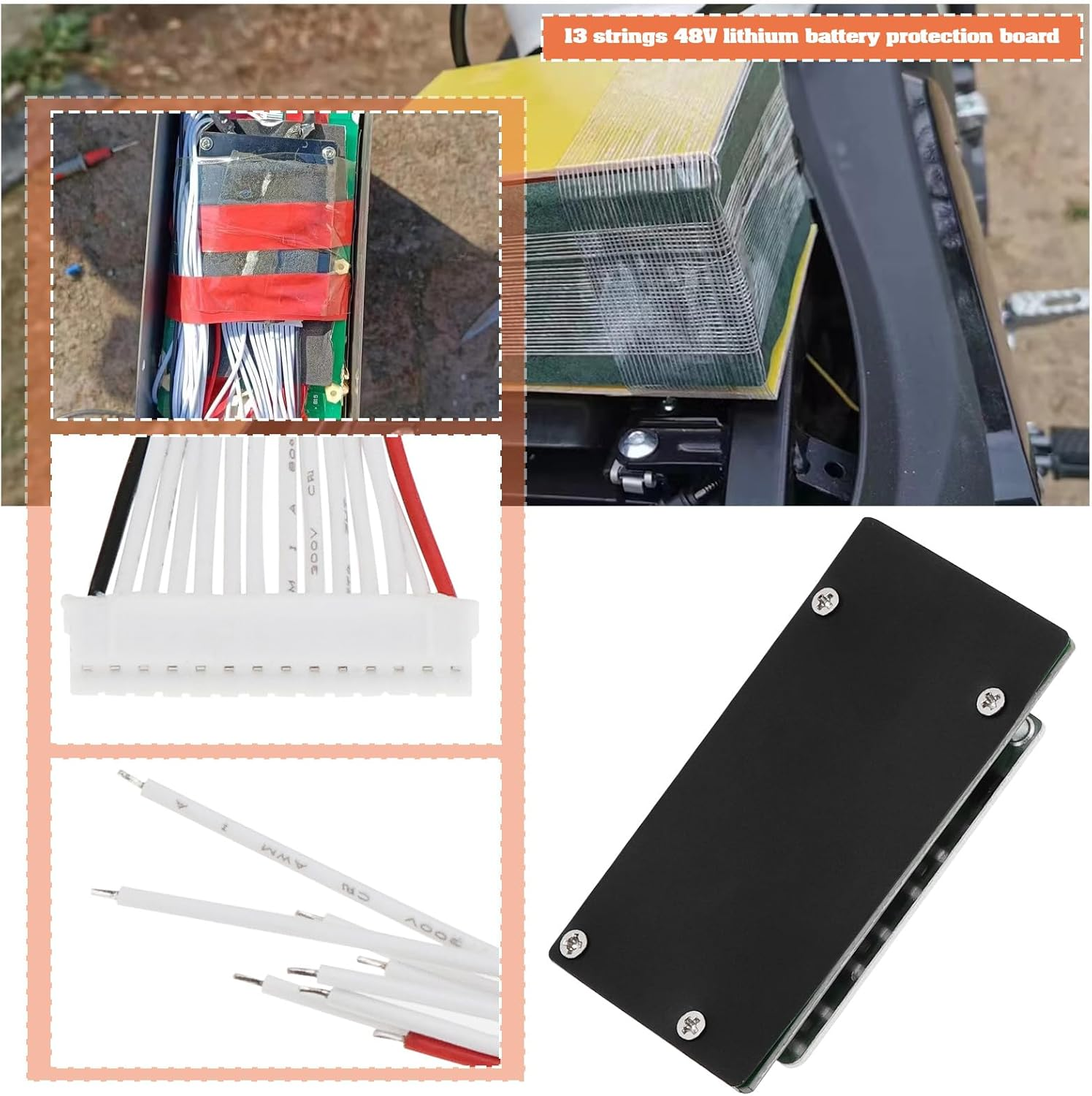

  • The 13S 48V lithium battery protection board is applicable to electric bicycles, electric motorcycles, lithium battery scooters, energy storage devices, backup power supplies and other scenarios.

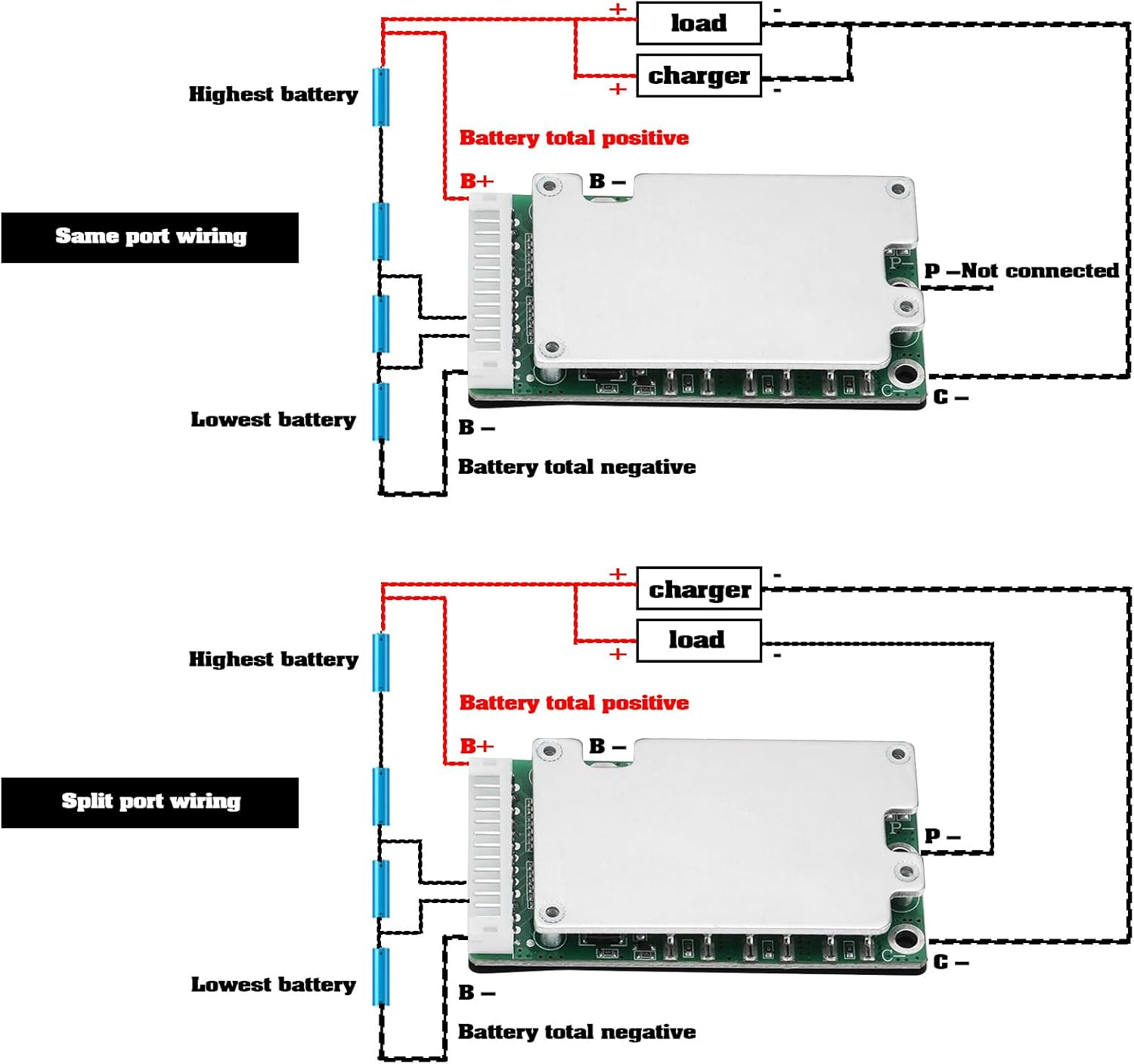

  • Same port wiring: B- connect to the negative pole of the battery, C- connect to the negative pole of charging and discharging, P- not connected.
  • Separate port wiring: B- connect to the negative pole of the battery, C- connect to the negative pole of charging, P- connect to the negative pole of discharging.
  • Same port activation: Two activation methods for the first PACK (I) Short-circuit the B- and C- wires once. (II) Or charge to activate.
  • Separate port activation: Two activation methods for the first PACk (I) Short-circuit the B- and P- wires once. (II) Or charge to activate.

Product Description

Item Specifications

Connection mode:same port/separate port

Operating temperature:-40~80℃

Overdischarge protection voltage:2.7V±0.05V

Overdischarge recovery voltage:3.0V±0.05V

Continuous working current:4MOS=15A, 6MOS=20A

Instantaneous protection current:4MOS=65A, 6MOS=80A

Overcurrent recovery condition:charge recovery or disconnected load

Short circuit recovery condition:charge recovery or disconnect load

Overcharge protection voltage:4.25V±0.015V

Overcharge recovery voltage:4.15V±0.015V

Continuous charging current:4MOS=15A, 6MOS=20A

Self-consumption (working power consumption):≤40uA

Internal resistance (main circuit conduction internal resistance):≤15mΩ

Charger voltage:56V(recommended)

Package

1x Board

1x Wiring

  • Item Model Number: 434-BF
  • Part Number: 434-BF
  • Batteries Included: No
  • Batteries Required: No
  • Brand: Create idea
  • Item Weight: 20 g
  • Model: 434-BF
  • Package Dimensions: 15.3 x 12.9 x 1.1 cm; 20 Grams
  • Manufacturer: Create idea
