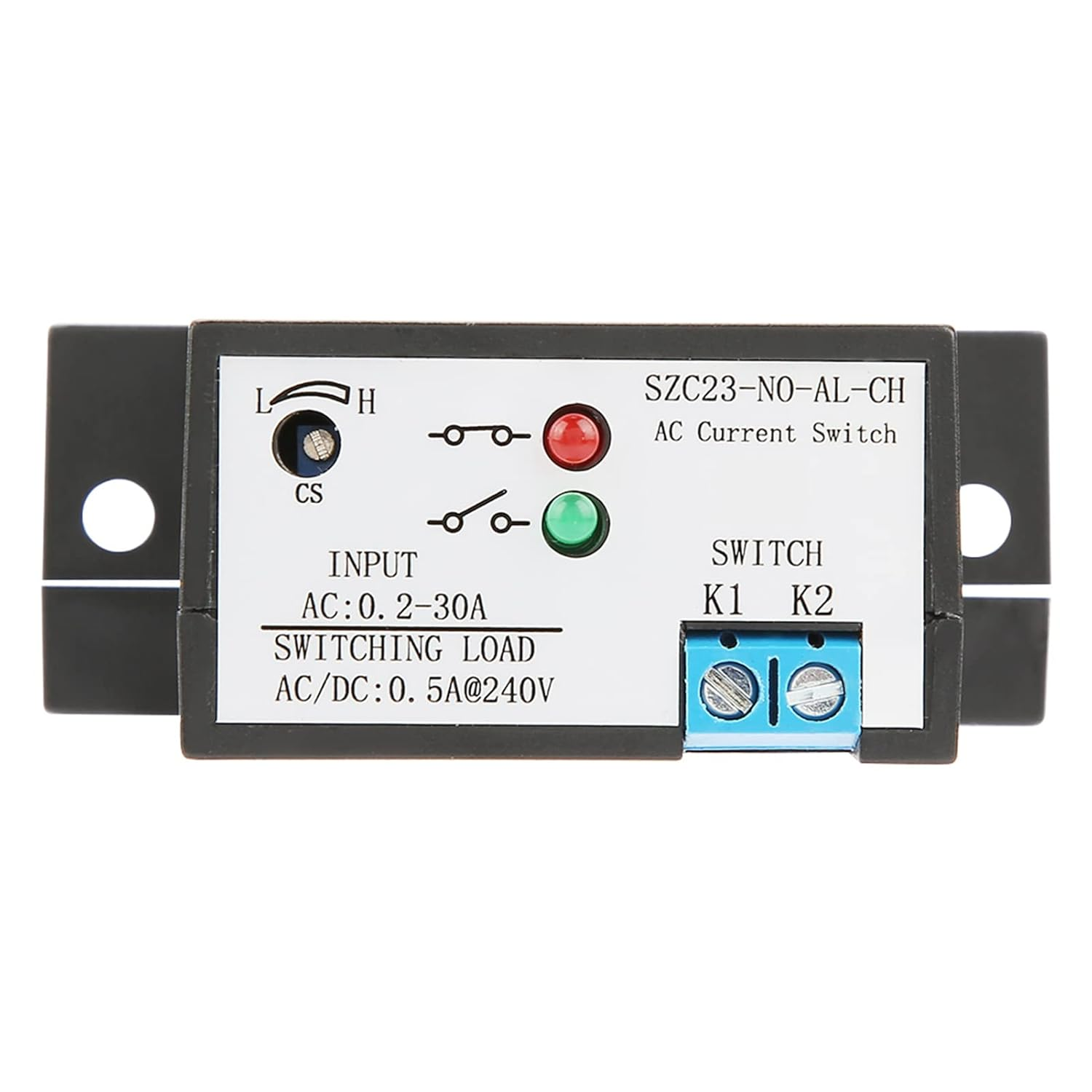

Current Sensing Switch, AC Current Isolation Monitoring, Adjustable AC Sensing Switch, 0.2 to 30A SZC23 NO AL CH for Currents Measurement and Monitoring

Current Sensing Switch, AC Current Isolation Monitoring, Adjustable AC Sensing Switch, 0.2 to 30A SZC23 NO AL CH for Currents Measurement and Monitoring

Brand: QANYEGN
4.0
A$40.10
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • ADVANCED AC CURRENT SENSING TECHNOLOGY: Our SZC23 series AC current sensing switch utilizes innovative mutual inductance principles to accurately and reliably monitor AC straight through currents. With its high accuracy measurement capabilities, this switch is ideal for applications requiring precise current detection and monitoring.

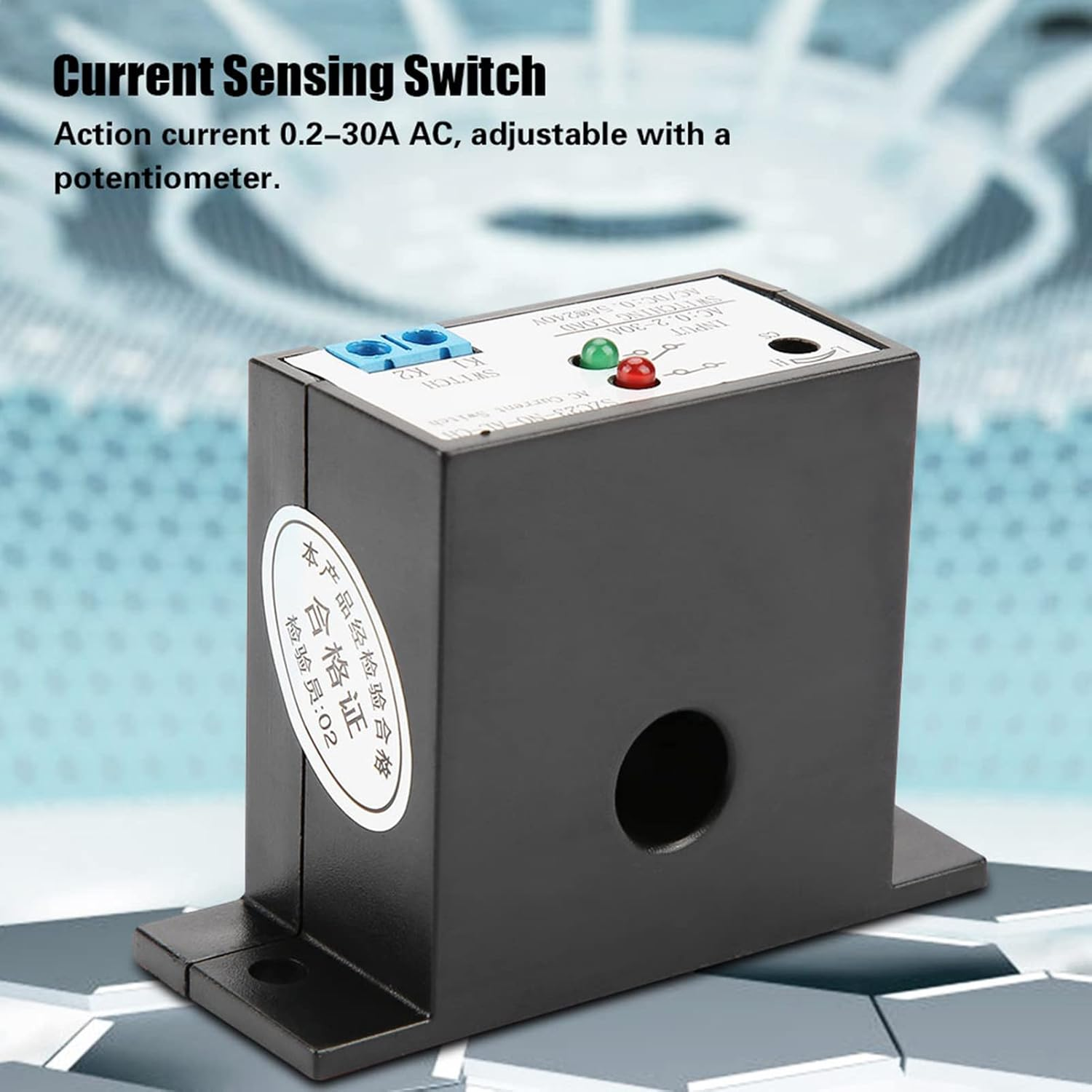

  • FLEXIBLE AND TUNABLE ACTION CURRENT: The tunable feature of our switch allows for seamless adjustment of the action current from 0.2A to 30A AC. This flexibility ensures compatibility with a wide range of automation industrial equipment, providing reliable control over various power load devices such as flashlights, buzzers, relays, and more.

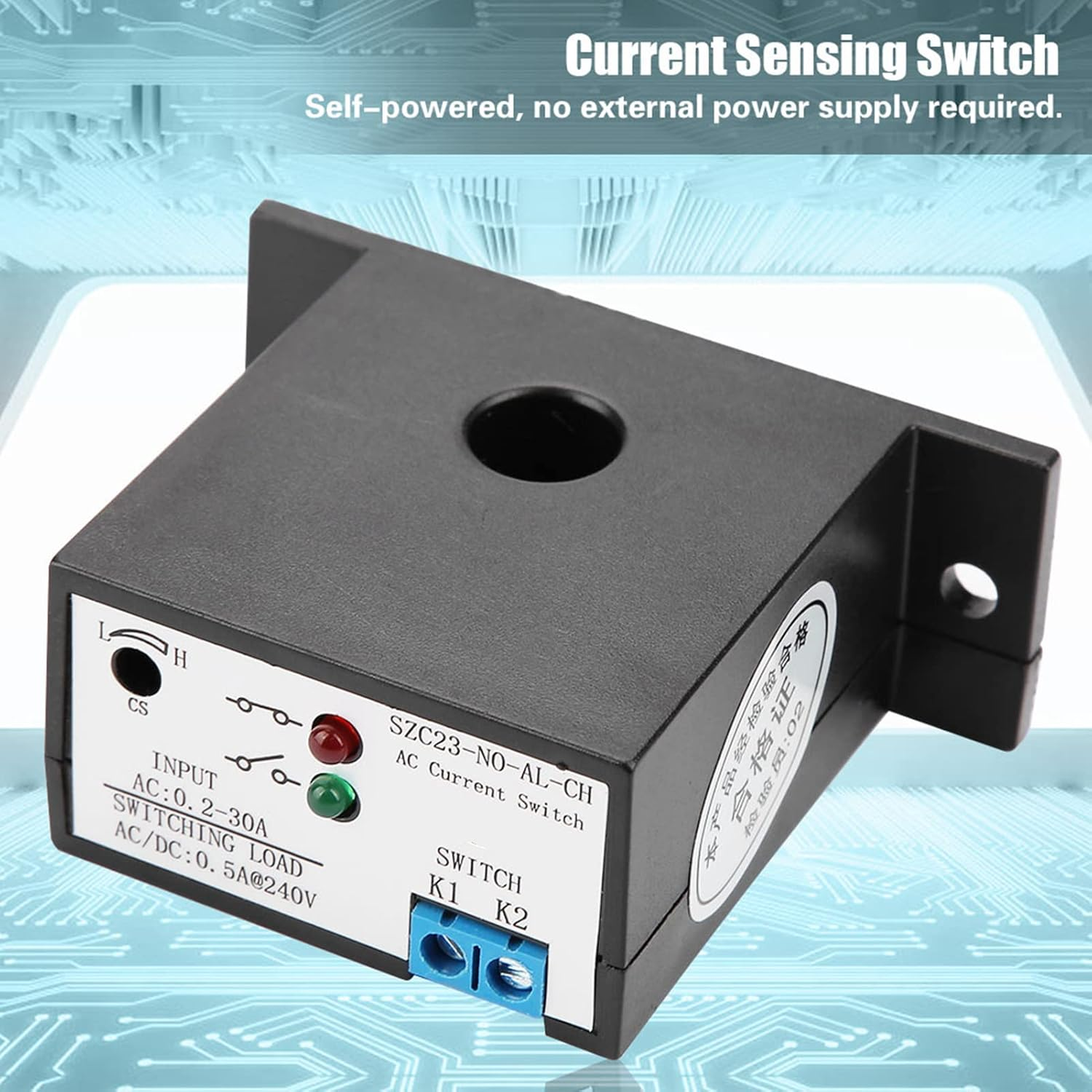

  • ENHANCED EFFICIENCY AND COST SAVINGS: By replacing traditional transformers and thermal protectors with our adjustable current sensing switch, businesses can achieve higher accuracy, timeliness, and cost savings. The self powering capability of this switch eliminates the need for external power sources, simplifies the design process, and reduces overall project costs.
  • ROBUST DESIGN AND VERSATILE APPLICATIONS: Equipped with a high power MOS tube contactless electronic switch, our current sensing switch offers exceptional durability and reliability. Its compact and sturdy ABS casing ensures protection against harsh environments and guarantees long lasting performance.

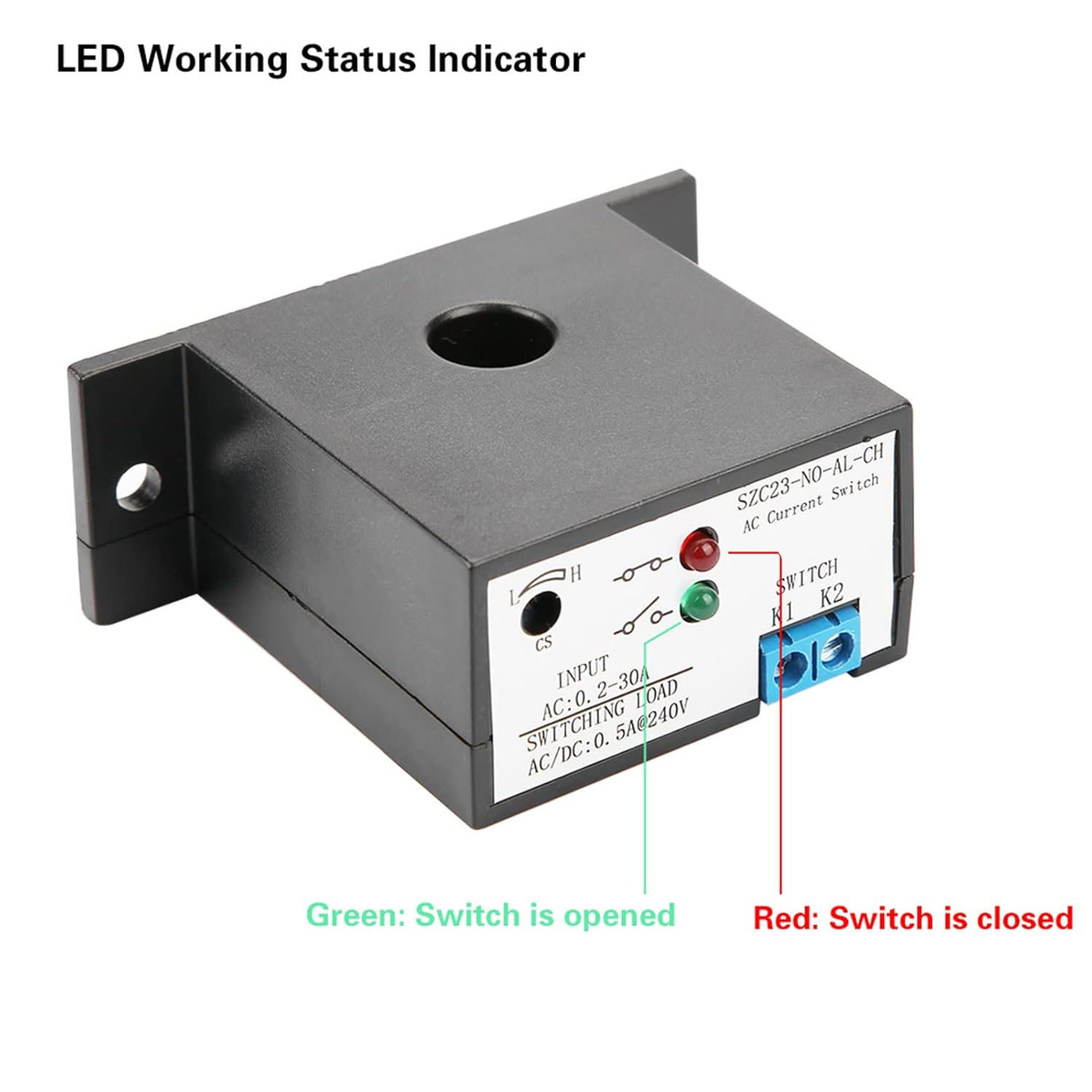

  • USER FRIENDLY FEATURES FOR EASY MONITORING: The SZC23 series current sensing switch comes complete with user friendly features such as an LED indicator that provides convenient and intuitive working status indication. Additionally, the switch has no limitations on the number of opening and closing cycles, offering unmatched versatility.

Specification:

Model: SZC23-NO-AL-CH

Power supply: Not required

Rated load: ≤ 0.5A@240V AC/DC

Input current: 0.2-30A AC

Switch on minimum: 0.5±0.2A

Maximum overload: 100%

Leakage current: ≤0.1A

Accuracy: 1%

Hysteresis: ≤1%

Response time: ≤200ms

Repeatability: 100%

Working temperature: -20~60℃

Waterproof: IP30

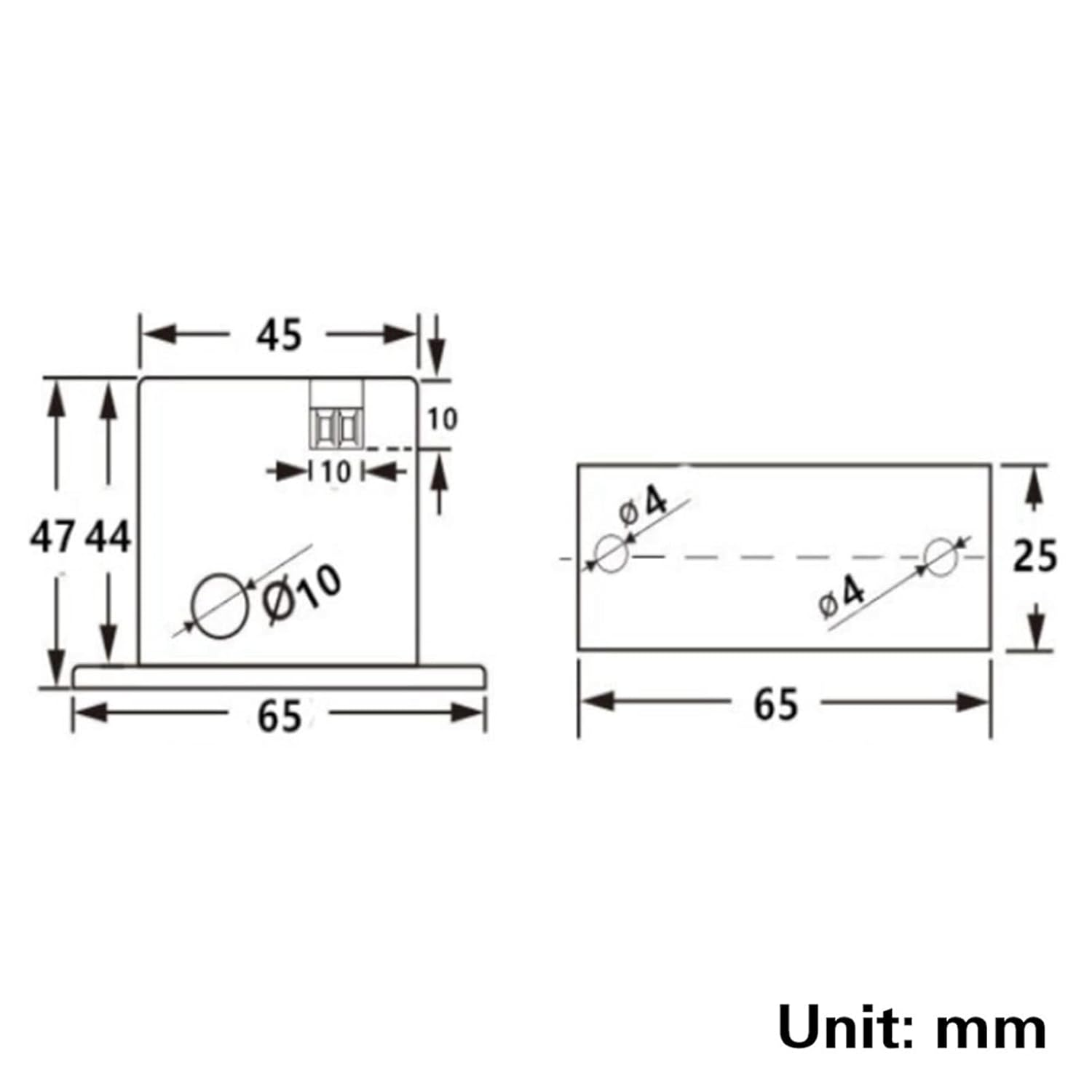

Dimensions: 65*25*47mm / 2.56*0.98*1.85in

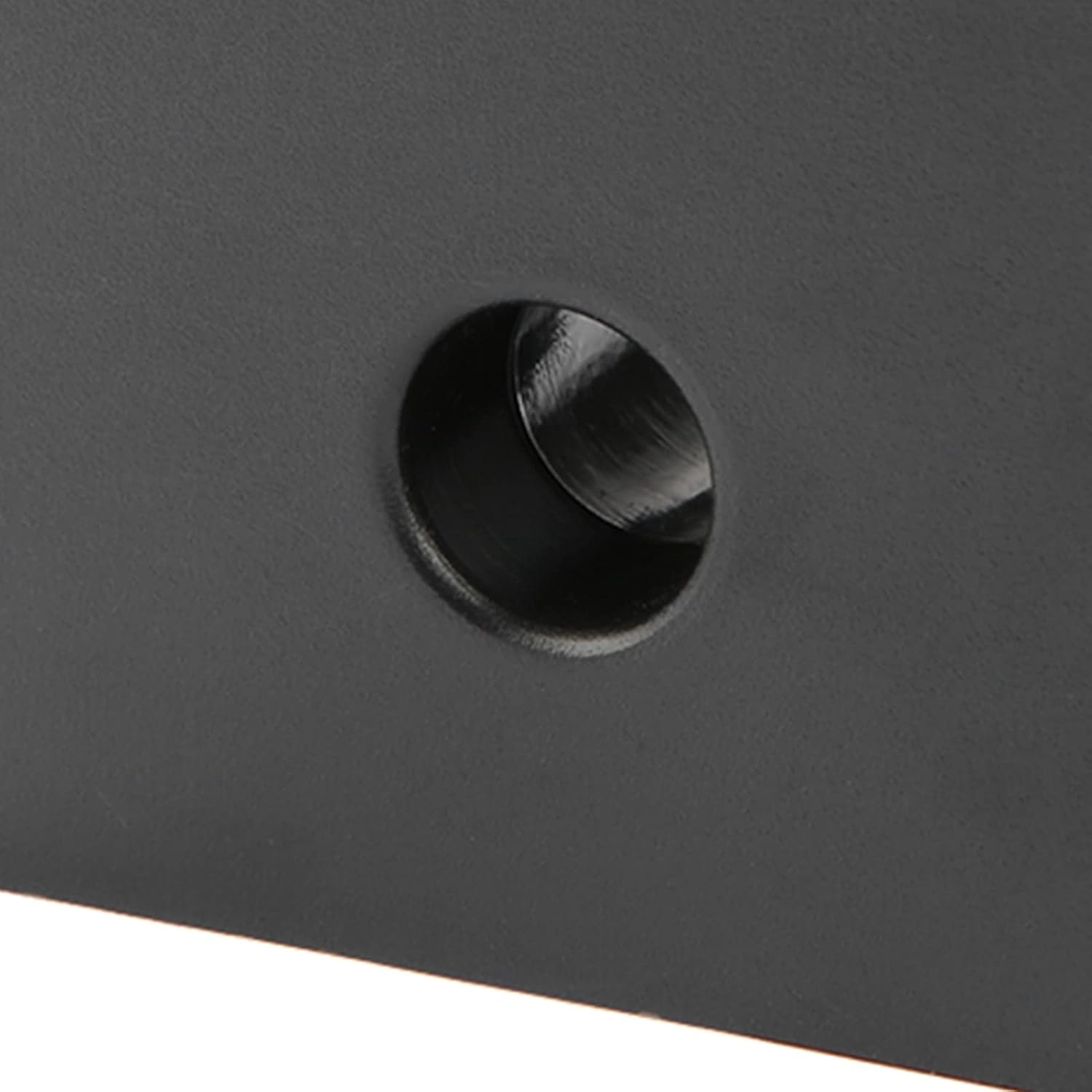

Hole diameter: 10mm / 0.4in

Package weight: Approx. 56g/2.0oz

Package list:

1 * Current Sensing Switch

Note:

1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.

2. Please allow slight error due to manual measurement. Thanks for your understanding.
