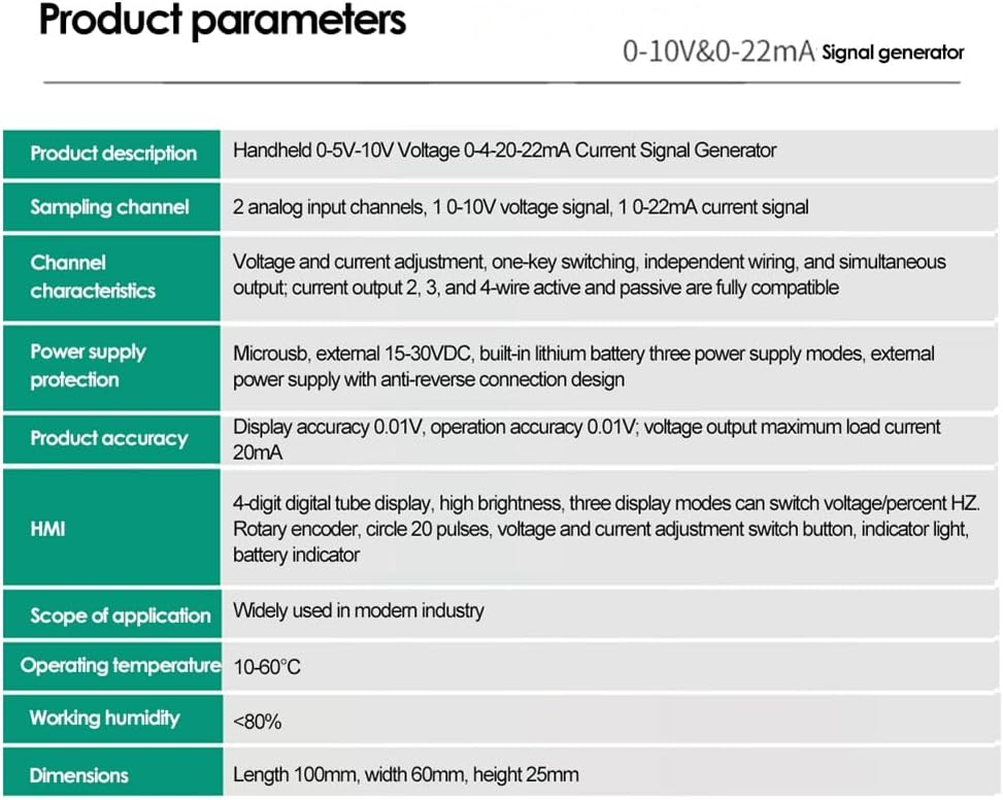

Aribrnten Product parameters:
A Power supply mode: external power supply DC15-30V, external microUSB‐5V
B. Voltage output: 0-10V adjustable, the accuracy after calibration is 0.01V, the maximum current is 20mA
C. Current output: 0-22mA adjustable, the accuracy after calibration is 0.01mA, the load equivalent resistance ≤ 500 ohms
D. Power consumption parameters: external power supply DC15-30V, power 1W (not charging)/5W (charging)
External microUSB-5V, current 0.2A (not charging)/1A (charging)

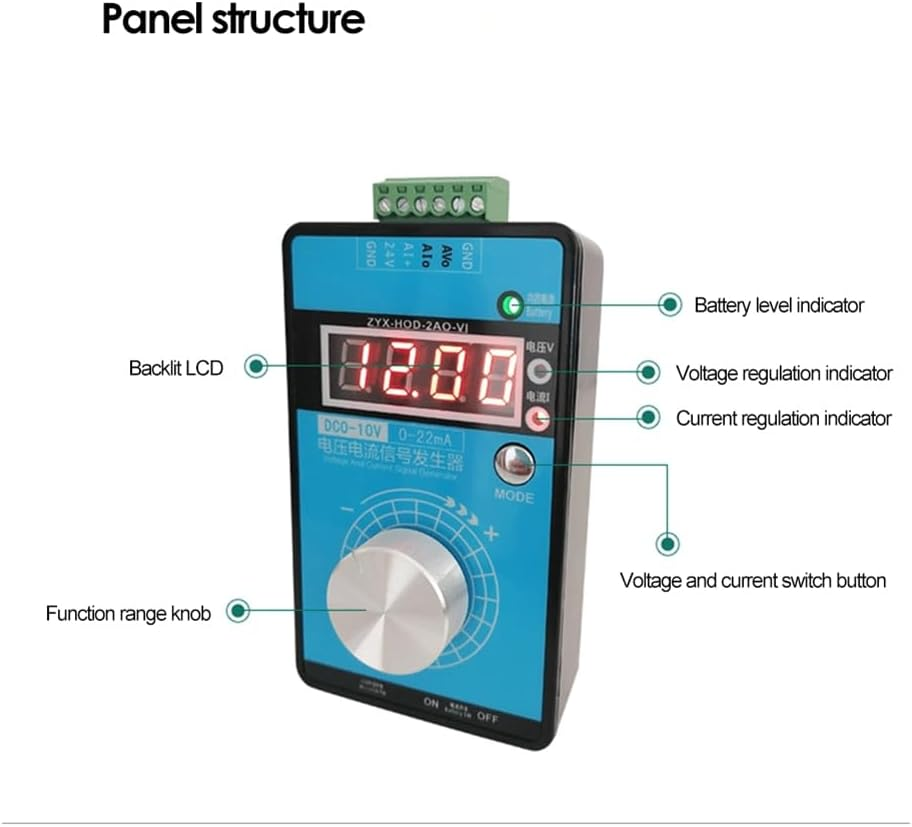

e display elements: 4-digit 0.4-inch digital tube
E. Setting button: rotary encoder, 20 pulses per circle

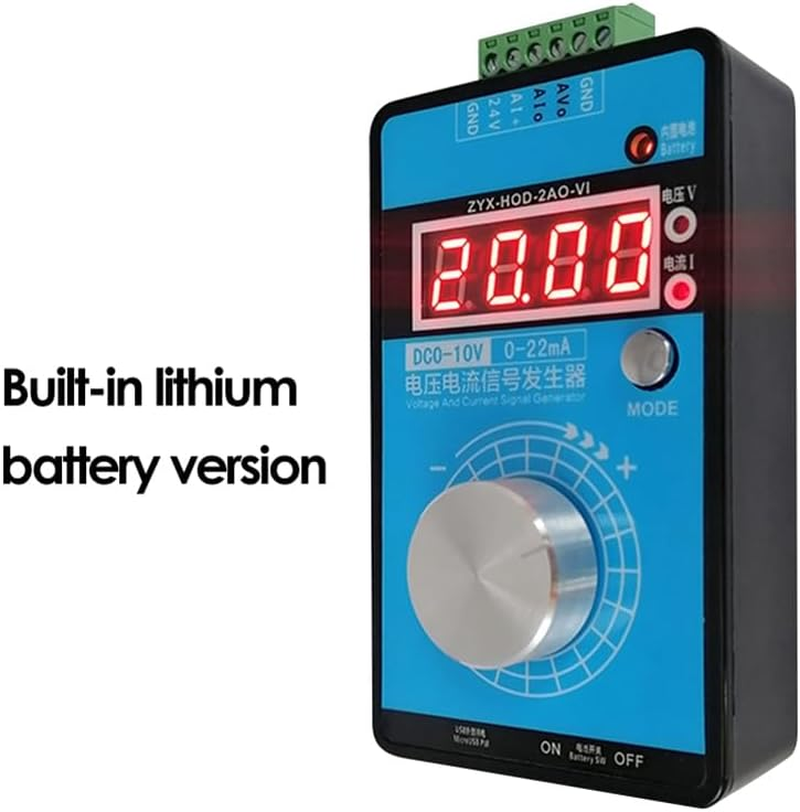

F. Optional type: only USB/DC24V power supply model built-in lithium battery model
Precautions:
3 power supply modes, only 1 channel can work, and can also be connected at the same time
Material: plastic
colour: As shown
Package Contents:

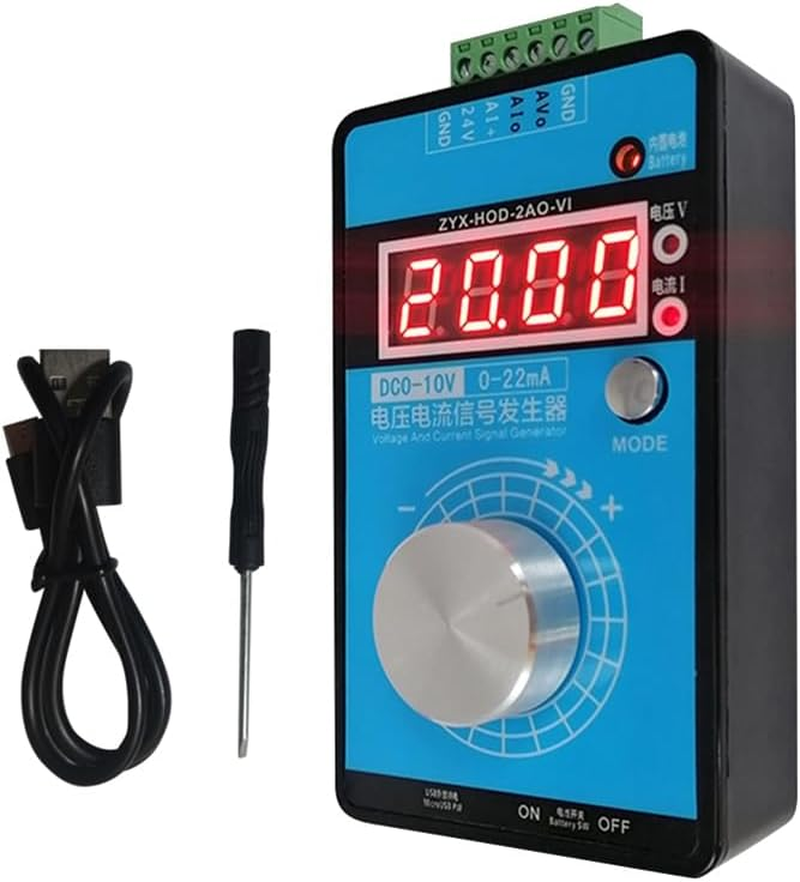

1 x Signal Generator
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
