Elqater Description:
The sensor is suitable for low-voltage light strips. When someone enters the sensing range, the sensor detects
The change of the infrared spectrum of the human body, the switch automatically turns on the load, the light is on when people arrive, and the light is off when people leave, which is friendly and convenient, safe and energy-saving.

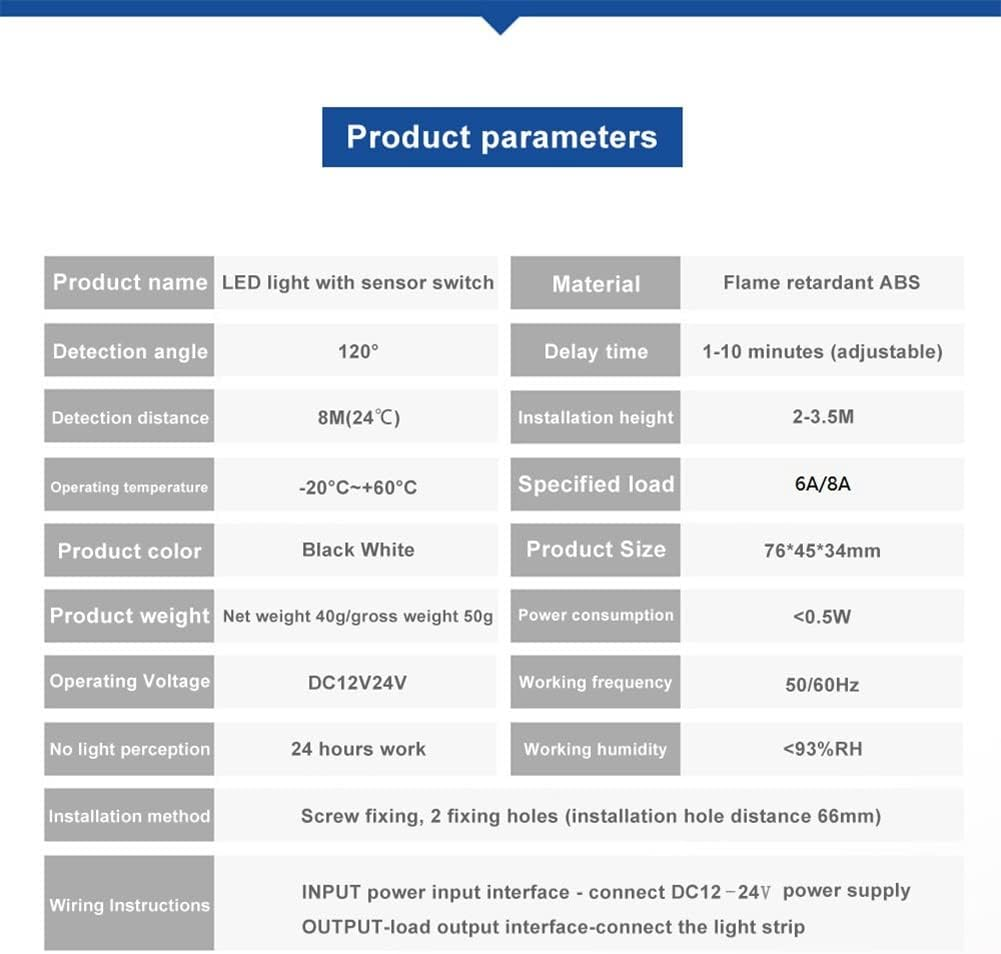

Specifications:
Product name: LED light with sensor switch
Material: plastic
Detection angle: 120°
Delay time: 1-10 minutes (adjustable)
Detection distance: 8M (24℃)
Installation height: 2-3.5M
Working temperature: -20℃~+60℃
Rated load: 6A/8A
Product color: black

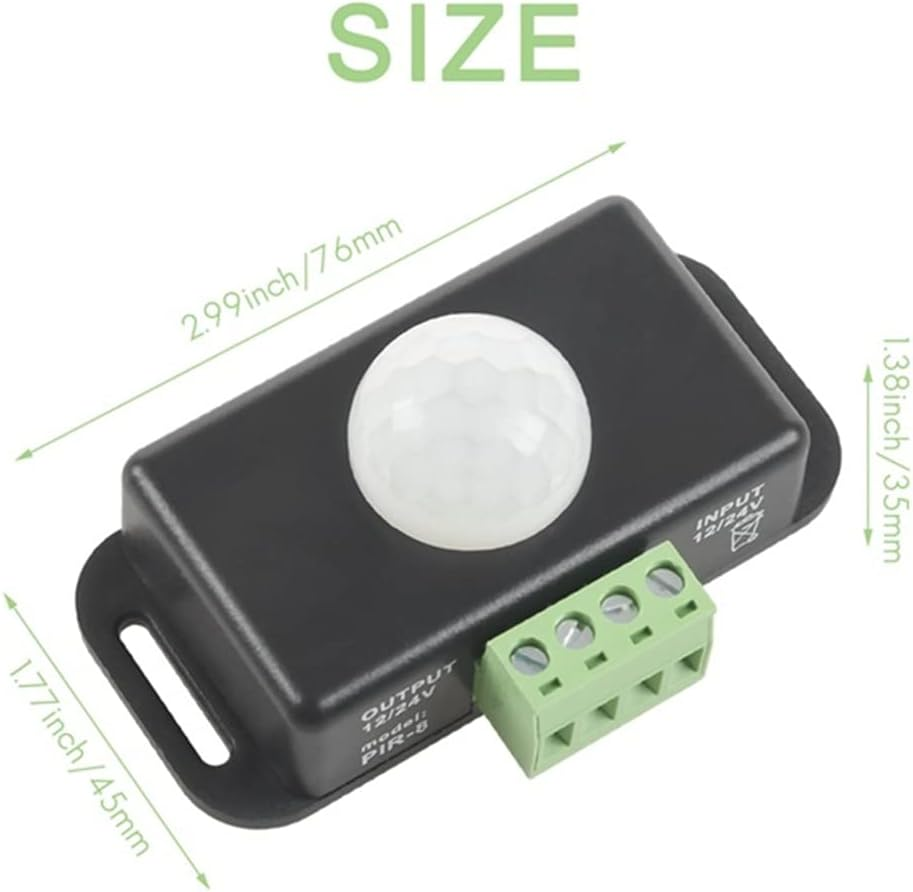

Product size: 76 x 45 x 34 mm
Power consumption: Less than 0.5W
Working voltage: DC12V24V
Working frequency: 50/60Hz
No light perception: 24 hours work
Working humidity: Less than 93%RH
Installation : screw fixing, 2 fixing holes (installation hole distance 66mm)

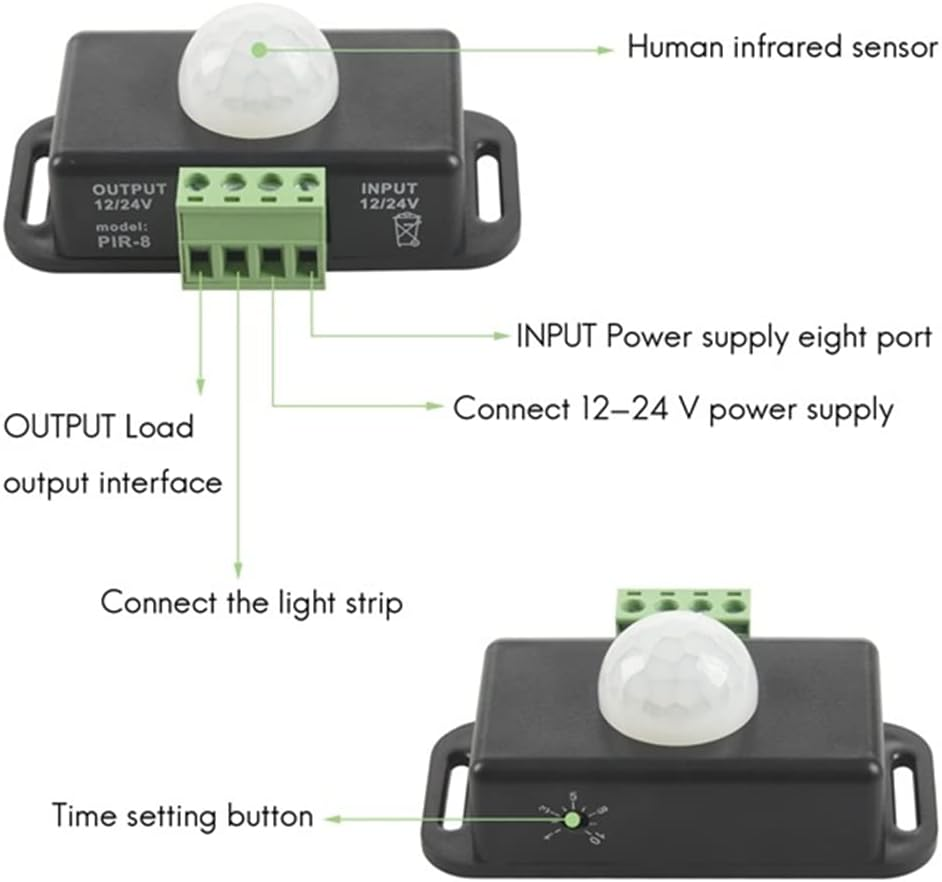

Wiring Instructions:
INPUT-power input interface-connect DC12-24V power supply
OUTPUT-load output interface-connect the light strip
Package Contents:

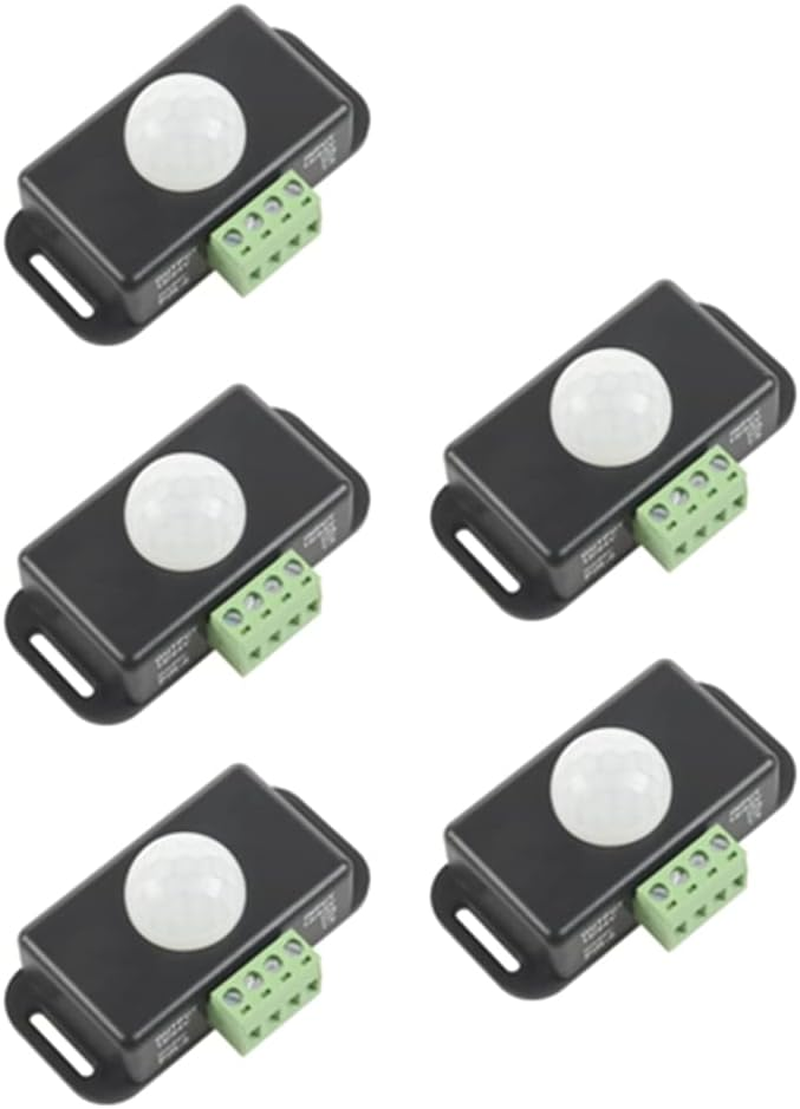

5 x Automatic Sensor Switch
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
