VEVOR VFD 2.2KW 10A 3HP Variable Frequency Drive for 3-Phase Motor Speed Control
VEVOR VFD 2.2KW 10A 3HP Variable Frequency Drive for 3-Phase Motor Speed Control
Brand: VEVOR
A$161.15
- Unparalleled Quality: VEVOR 2.2KW, 10A, 3HP VFD delivers unmatched quality and power. Offering a single-phase AC 220-240V input and three-phase AC 220V-240V output, it ensures soft start and stops, steady motor control, and energy efficiency. Input Frequency: 50/60Hz ; Output Frequency: 0-400Hz.
- Effortless Setup & Operation: With the detailed guide, parameter adjustments are straightforward. An intuitive control panel, clear display, and frequency knob streamline operations. The detachable panel with 7.9in cable allows for convenient remote use.
- Safety & Durability Redefined: Our VFD stands out with a 10-layer protection system, guarding against overcurrent, overload, overvoltage, phase loss, and more. Combined with the triple-proof paint circuit board, we prioritize your safety and the product's longevity.
- Efficient Strength in Silence: The variable frequency drive's powerful fan ensures rapid cooling during extended use. Its multi-sided and multi-hole design promote optimal ventilation, while keeps low noise operation.
- Master of Versatility: Our VFD is ideal for driving 3-phase motors in diverse machinery, including compressors, lathes, fans, milling machines, etc. Kindly NOTE: it doesn't support external braking resistors. For heavier motor loads, please choose a higher-powered VFD for best results.

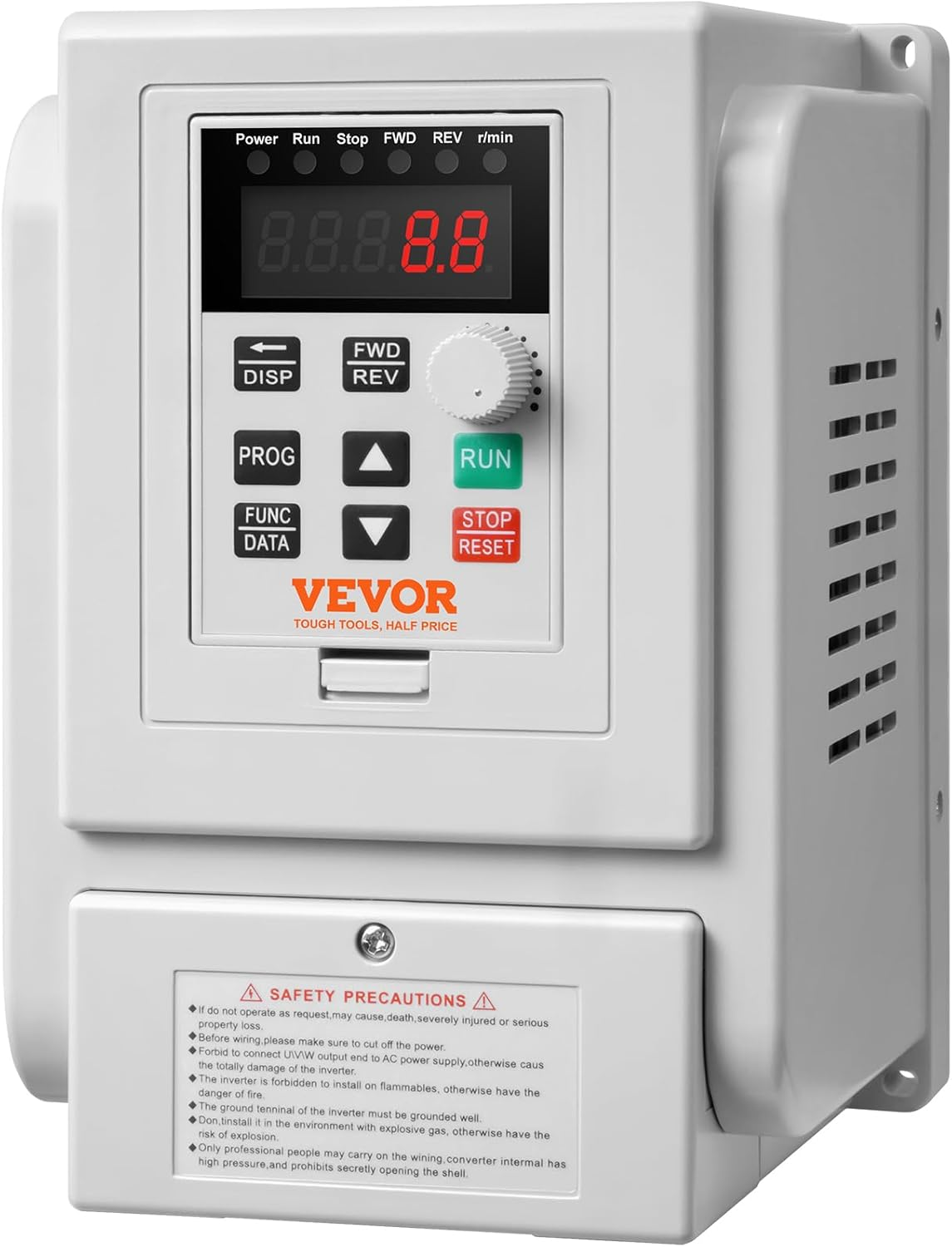

VEVOR 2.2KW, 10A, 3HP VFD
Wide-Range Variable Frequency Speed Control

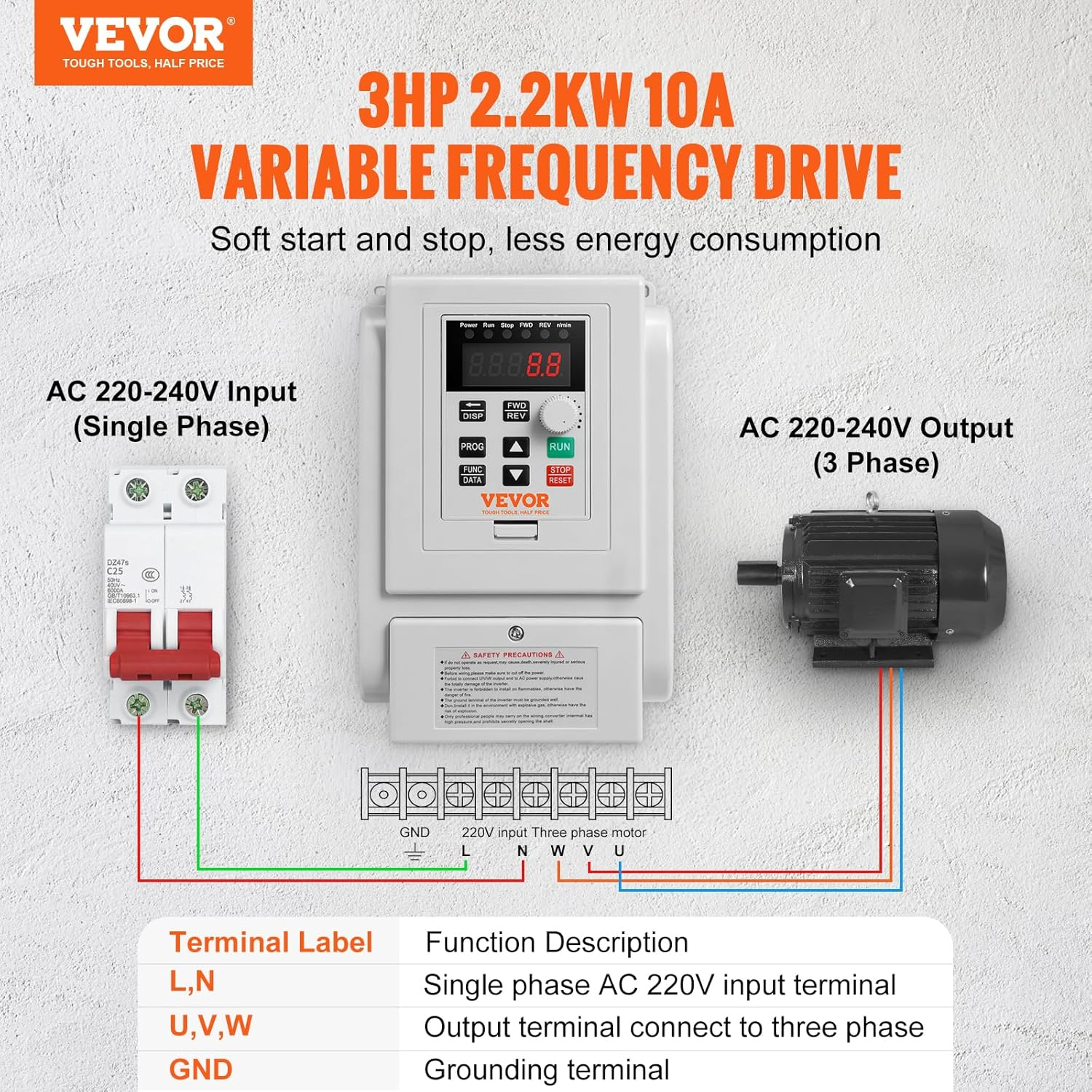

VEVOR 2.2KW, 10A, 3HP VFD provides precise motor speed control via accurate frequency and amplitude of motor drive current. With easy wiring, a user-friendly panel, and a soft start/stop, it simplifies operations, enhances energy efficiency, and minimizes machinery faults.
Key Features
2.2KW, 3HP Variable Frequency Drive
Capable of accepting input frequencies of 50/60Hz and providing an output frequency range of 0-400Hz.

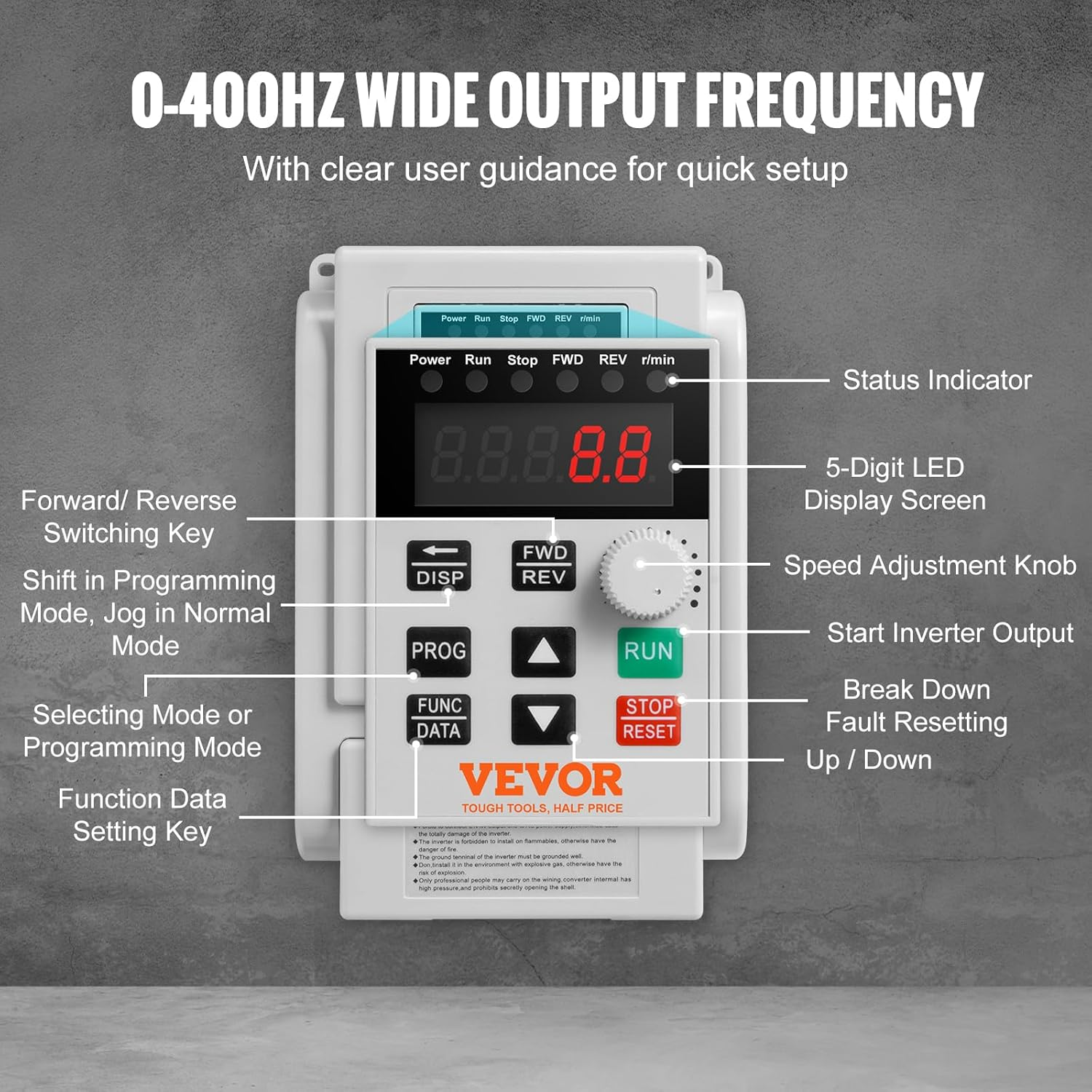

User-Friendly Operation
Comes with a detailed user manual for easy parameter settings. Equipped with an easy-to-use control panel and a clear display screen.

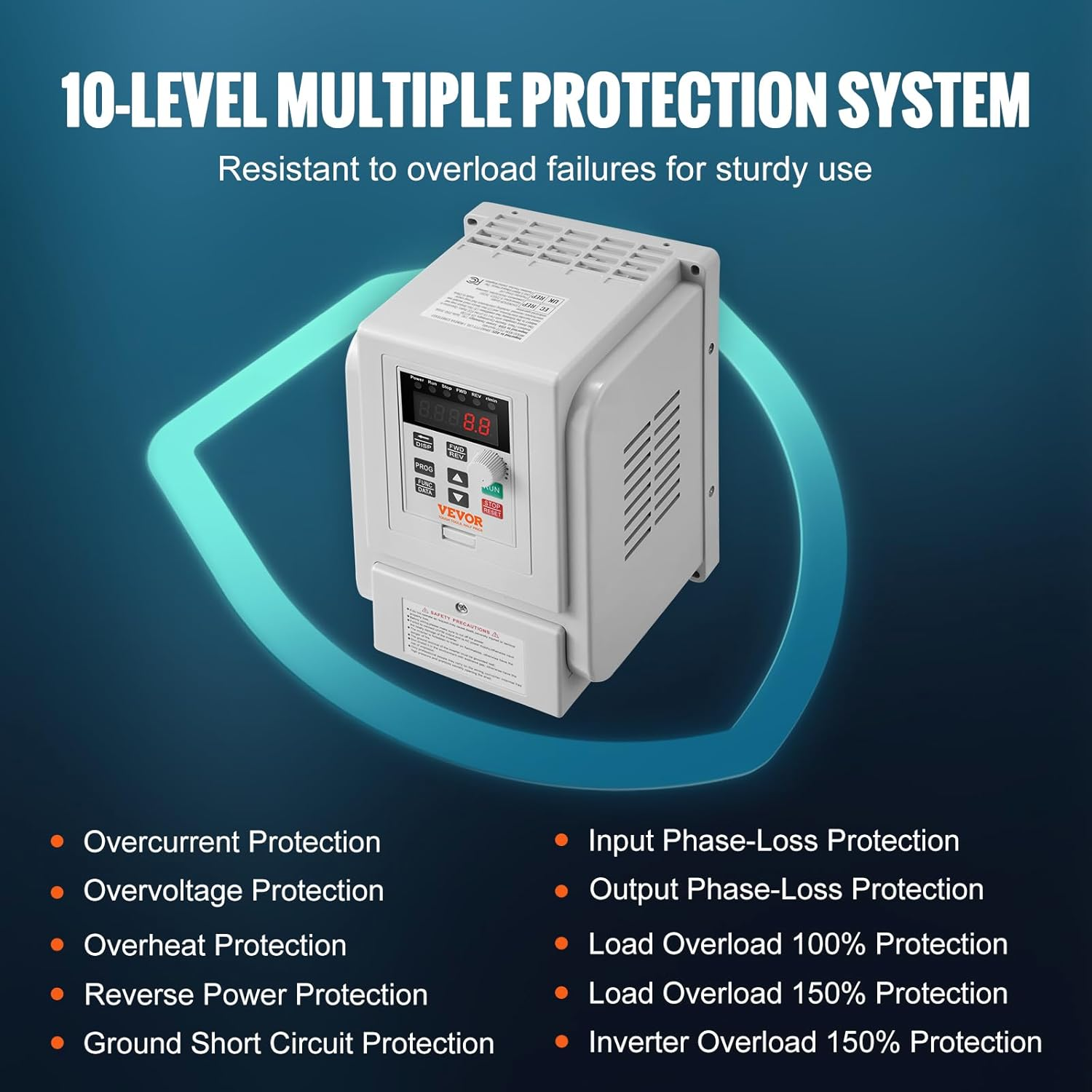

Built-in 10-Level Protection System
Including overcurrent protection, overload protection, overvoltage protection, phase loss protection, and more, ensuring safe operation.

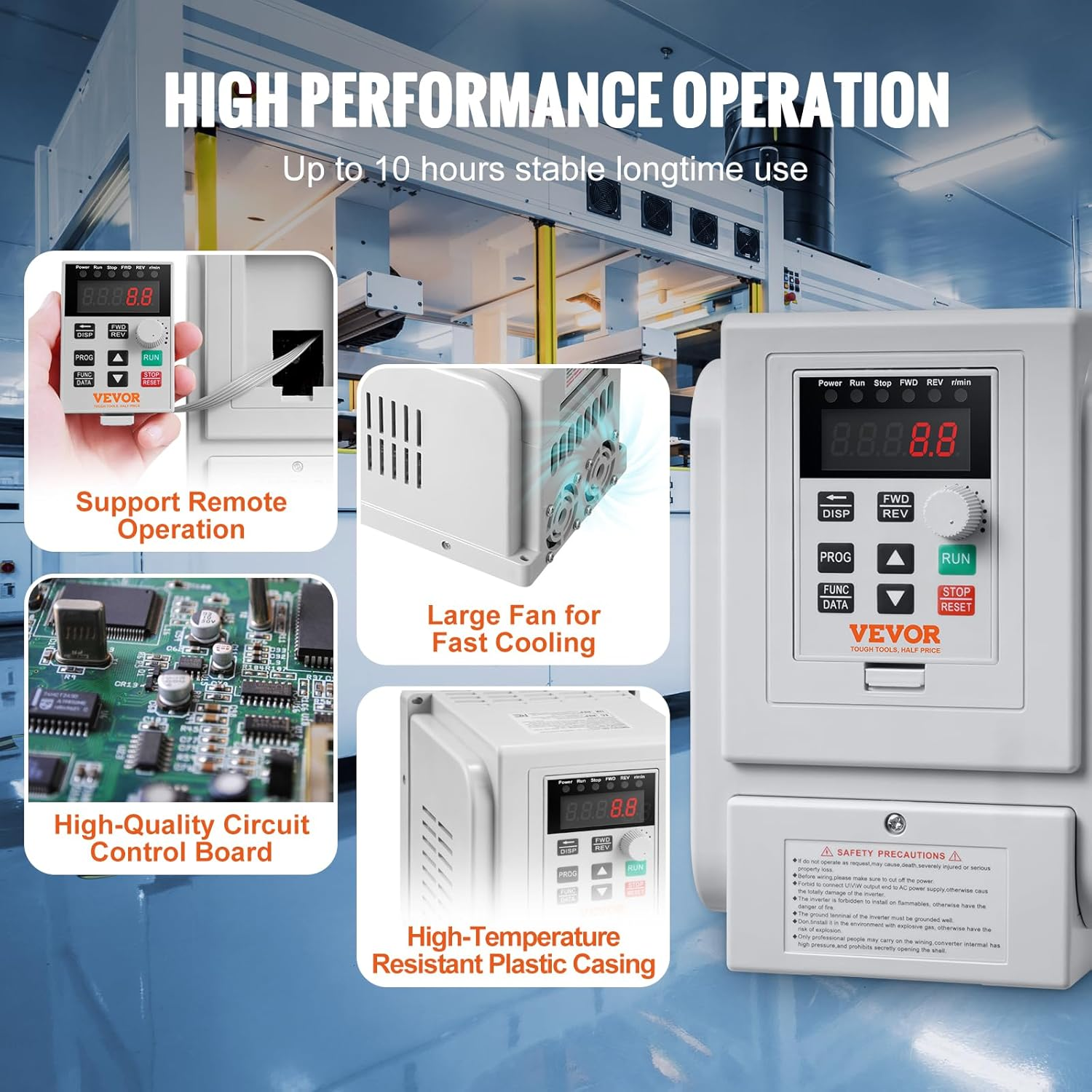

Efficient Cooling with Low Noise
Efficient Cooling with Low Noise
Detachable Panel Design
The panel can be detached, and it includes a 7.9-inch (20cm) long control cable for remote and independent control from a distance.
Versatile Applications
Versatile Applications

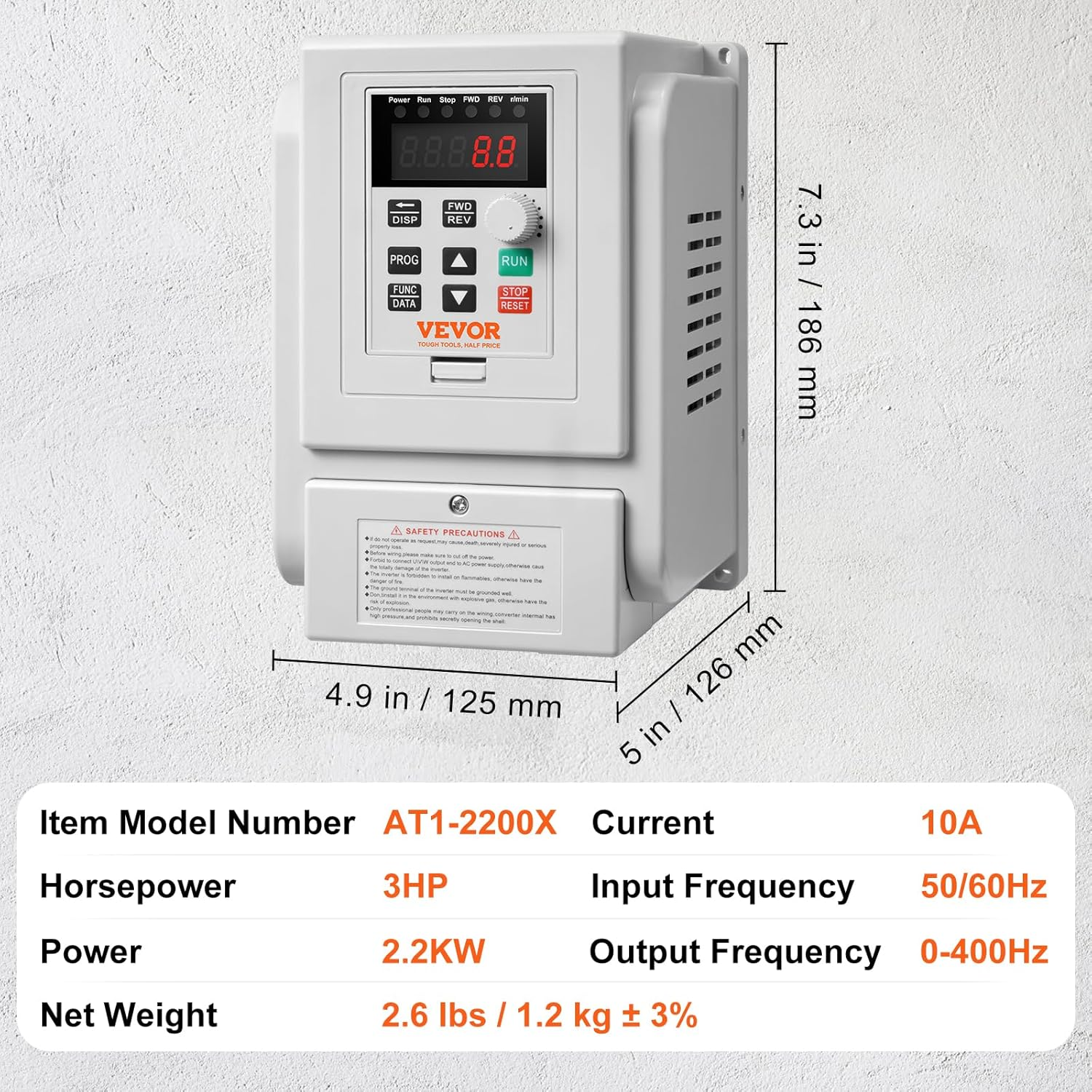

Specification
- Item Model Number: AT1-2200X
- Horsepower: 3HP
- Power: 2.2KW
- Current: 10A
- Input Voltage: AC 220-240V Single Phase
- Output Voltage: AC 220-240V Three Phase
- Input Frequency: 50/60Hz
- Output Frequency: 0-400Hz
- Operating Temperature: 50°F-104°F / 10°C-40°C
- Net Weight: 2.6 lbs / 1.2 kg ± 3%
Package Content
- 1 x 3HP Variable Frequency Drive
- 1 x User Manual
- Item Model Number: AT1-2200X
- Number of items: 1
- Power Source: Mains AC Powered
- Batteries Required: No
- Brand: VEVOR
- Item Weight: 998 g
- Frequency: 4E+2 Hz
- Model Name: AT1-2200X
- Mounting Hardware: Instruction Manual
- Model: AT1-2200X
- Package Dimensions: 21.49 x 19.99 x 18.01 cm; 997.9 Grams
- Country/Region of origin: China
- Manufacturer: VEVOR
