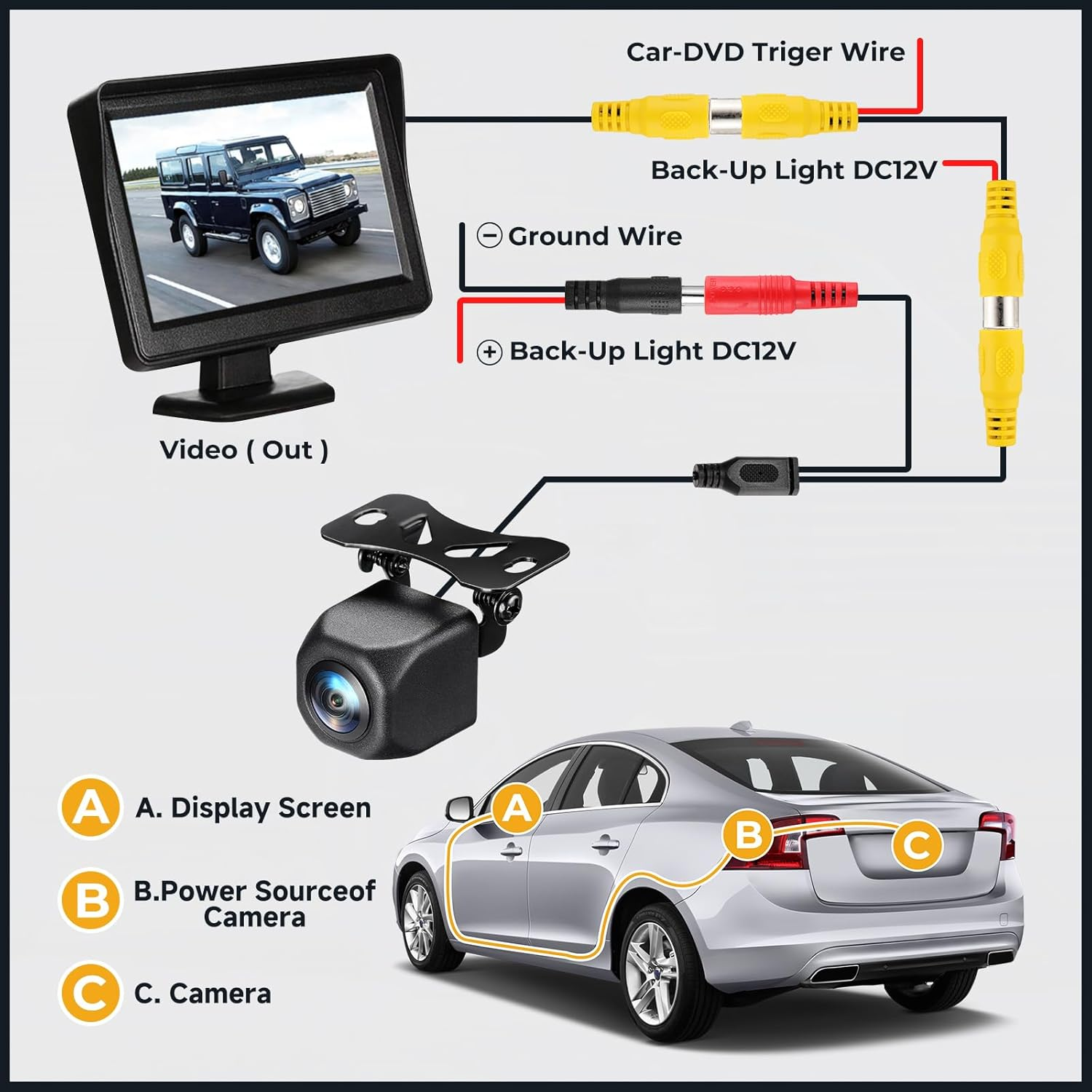

1. The single yellow plug is connected to the reversing image display screen

2. The red connection line at the end of the single yellow plug is powered from the car computer and needs to be powered from the reversing module behind the central control (non-professionals are not recommended to power from here)

3. The red connector at one end of the double connector is connected to the power interface of the camera

4. The yellow connector at one end of the double connector is connected to the video interface of the camera

5. The red and black wires without connectors are the connecting wires (powered by the brake light circuit)

1.Before installation, conduct a simple test on the camera at the display screen to confirm that there is a video signal output and whether the receiving screen format is CVBS or AHD; the default output format of the camera is CVBS, and to switch the output format to AHD, just unplug the terminal in the figure below.

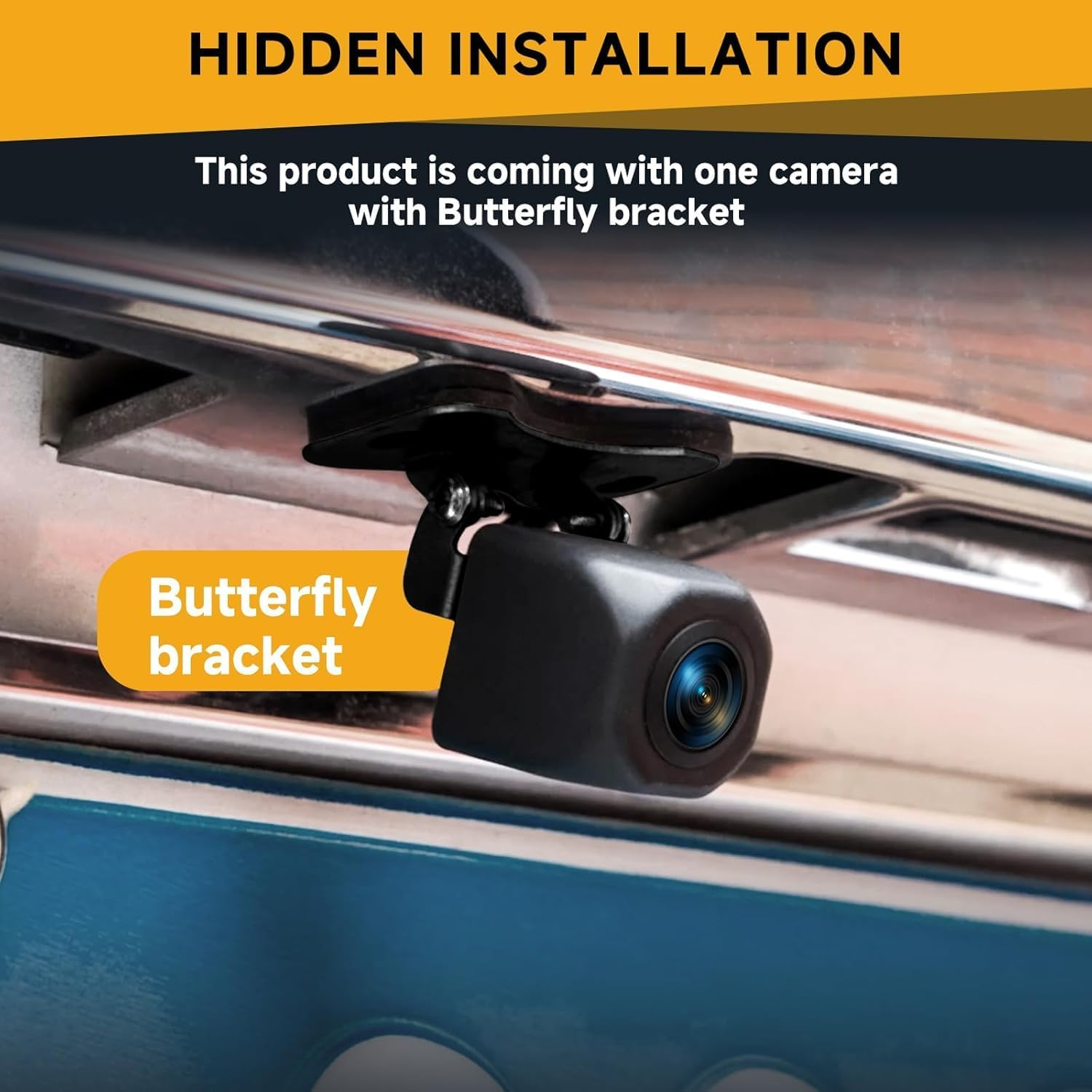

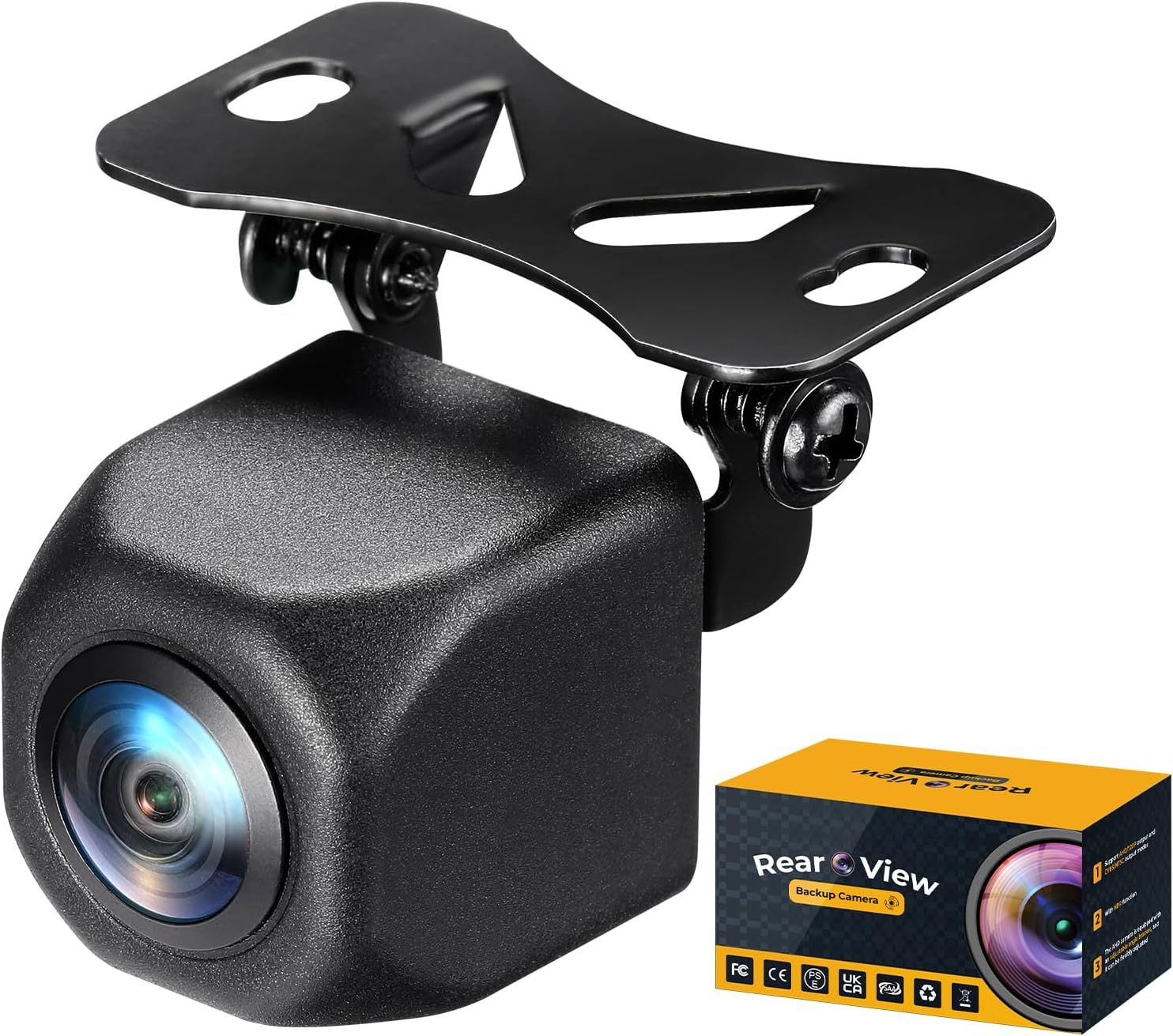

When installing and fixing the camera, choose the center position of the rear of the car. If it is not centered, the final reversing image will be offset.

2.Open the rear guard plate of the car's tailgate, find the circuit of the car's brake light (either left or right), peel off the insulation layer and scrape it to the reverse gear, use a multimeter to test and confirm the positive and negative poles, and confirm that the rear gear is shifted back to "P" gear.

3.Use the connecting wire on the signal extension cable to connect in the red "+" "black" -" wiring method; after connection, use insulating tape to wrap around the connection.

4.Connect the power interface on the extension cable with the power interface on the camera.

5.Arrange the extension cable to the central control position and connect the signal connector with the connector of the receiving screen.

6.Put the reverse gear to confirm that the camera is working properly. If the up and down angle of the camera is incorrect, loosen the screws on the small bracket of the camera to adjust the up and down angle until the camera range is suitable for you and then tighten the screws.

7.Install the rear guard plate of the tailgate, and all installation work is completed.
