Condition: 100% Brand New
Item Type: Camera Converter
Material: Zinc Alloy
Color: As picture shown
Operating Current: Operating Temperature: -10℃ - 70℃
Relative Humidity: 95%

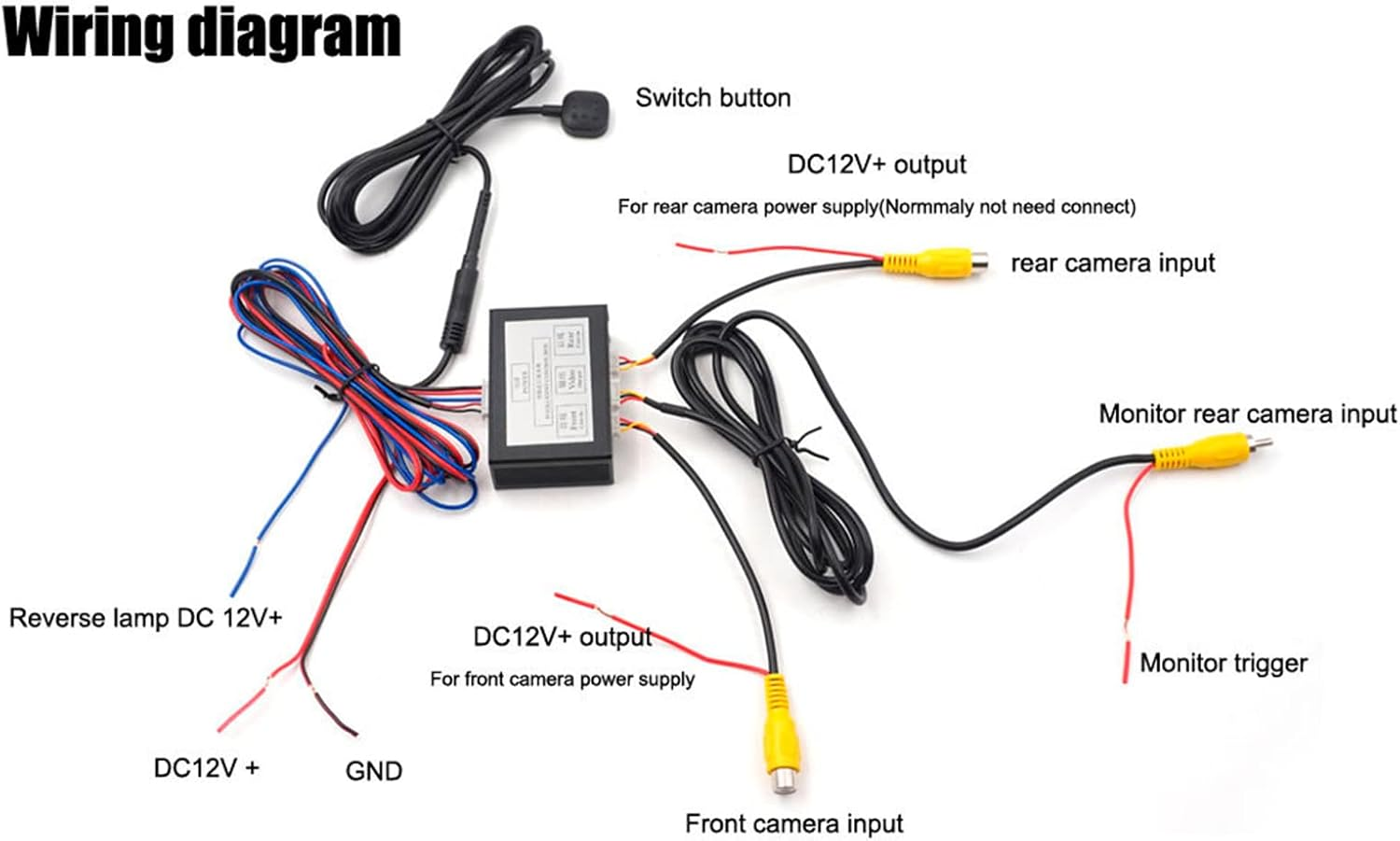

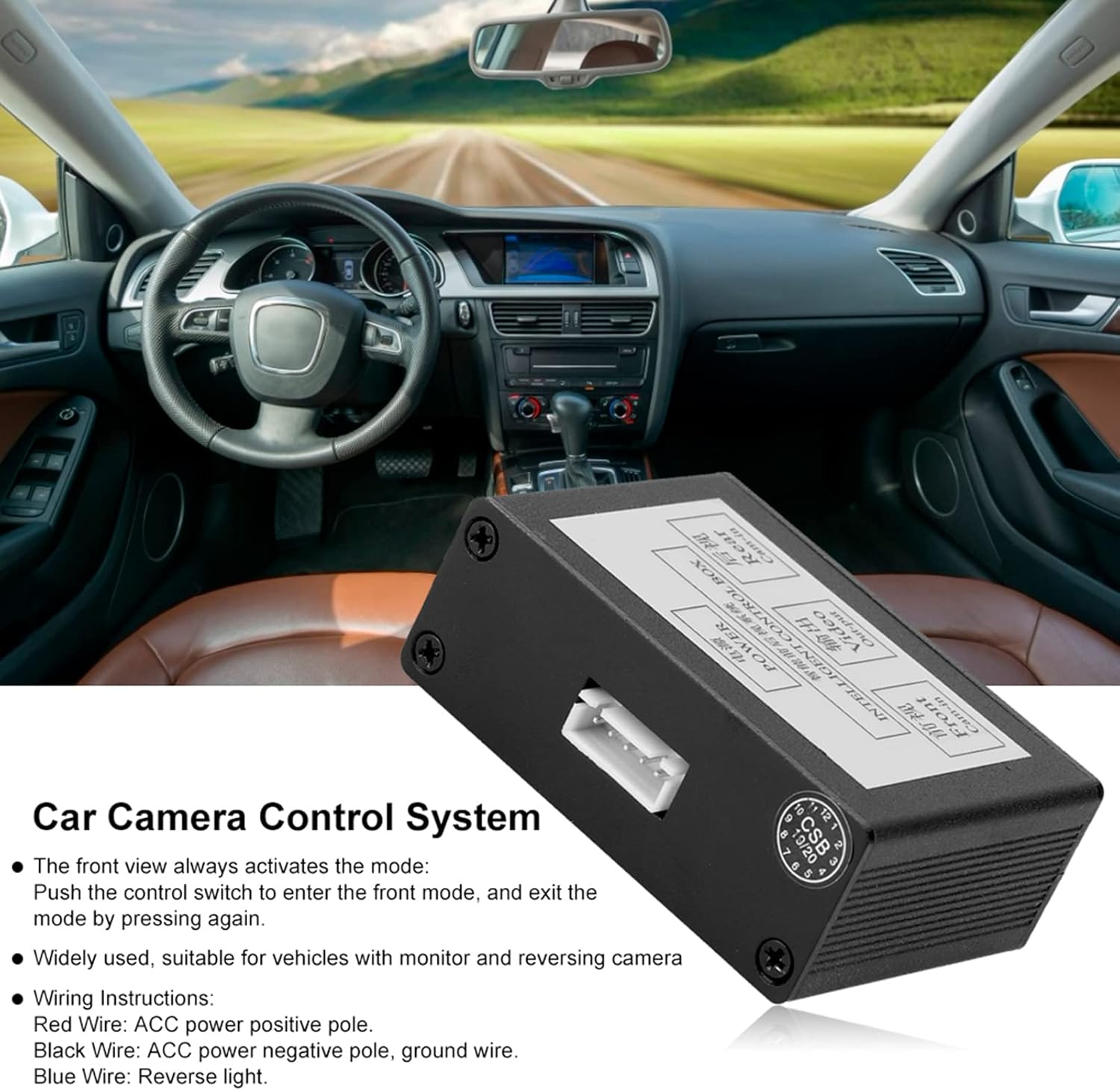

Wiring Instructions:
Red Wire: ACC power positive pole.
Black Wire: ACC power negative pole, ground wire.
Blue Wire: Reverse light.
Application:
As long as the car with a display (such as for android navigation, rearview mirror display, and the factory's own screen needs to be decoded before use), and with a reverse camera, all can be used, the ordinary display only one reversing camera signal input, after installing the switcher can be an additional front camera signal input, it had no effect on the original screen.
Package：

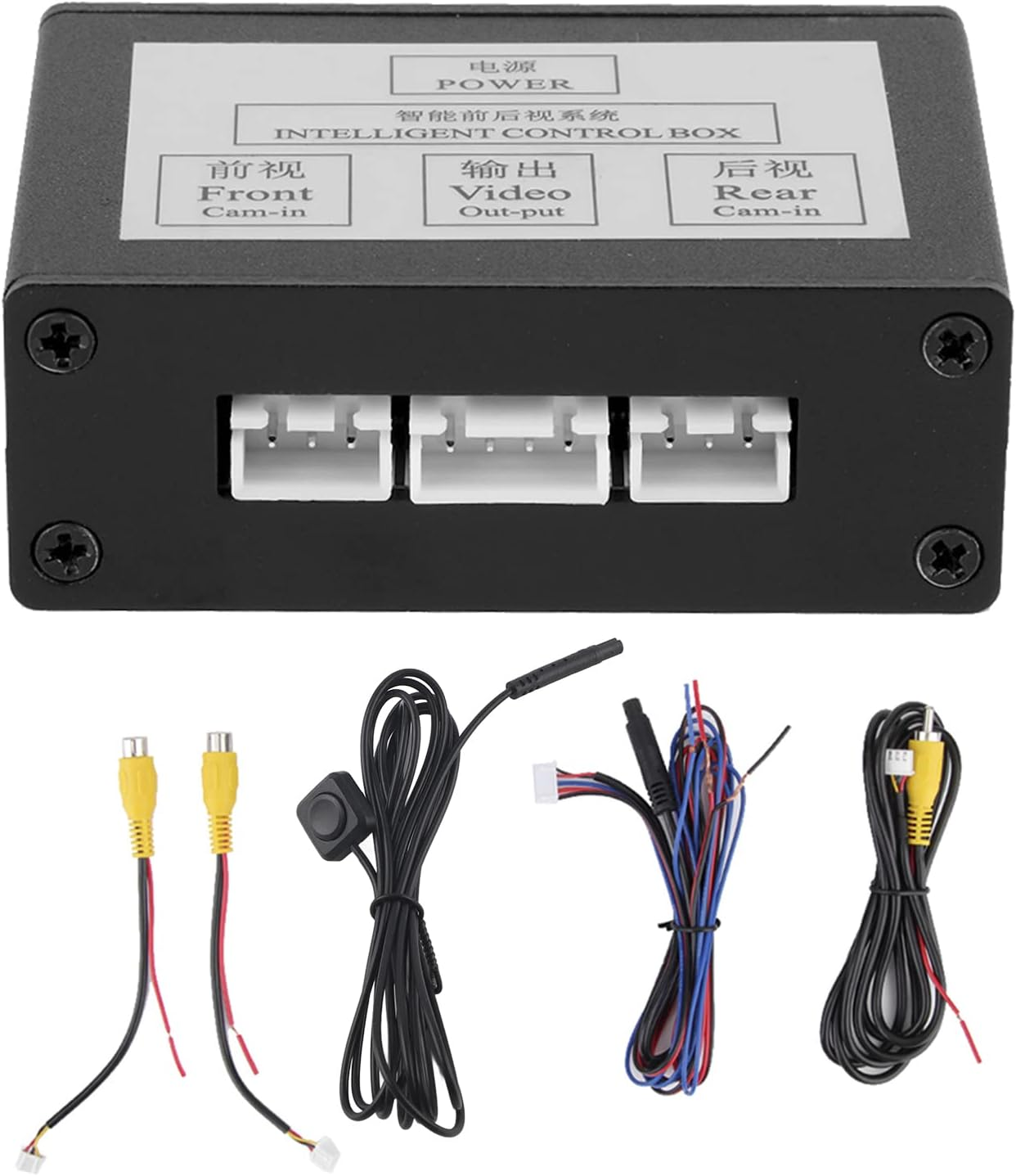

1 x Camera Converter
4 x Power Cable
1 x Insruction
Note:
1.The small red wire at the temporary input port of the camera video is connected to the positive pole of the front and rear camera power supply respectively.
2.The small red wire of the output port is connected to the trigger wire of the display screen. If the original trigger line of the display screen is connected to the inverted headlight, it should be disconnected from the backlight firstly and then connected to the small red line.
3.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
