DC 12V 40A Relay Remote Control Switch, 1CH Universal 433Mhz Remote Control Wireless Latching Function Switch for Industrial Control and Low Voltage Power Systems & More
DC 12V 40A Relay Remote Control Switch, 1CH Universal 433Mhz Remote Control Wireless Latching Function Switch for Industrial Control and Low Voltage Power Systems & More
Brand: MURANCLOUD
A$38.85
- Working Voltage: DC12 V ; Max load current: 40 A ; Working frequency: 433 Mhz
- Easy And Convenience: Remote control and receiver are paired and tested before shipment, when you get it don't need to do anything, just install it
- Signal Stability: The RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 20-50 meters with no obstacle
- Application: Suitable for electric control circuits of remote control electric doors and windows, signal control, industrial control, lifting equipment,12 V batterys, power switch for low voltage DC power sources, DC LED lighting and low voltage power systems and a wide variety of 12 volt equipment; Ideal for direct control of various loads
- We send latched mode default ( that is, Press the button "on" , the receiver relay is ON; Press the button "off", the receiver relay is OFF ). You can switch to different modes as needed，Latched / Momentary / Toggle / 5 seconds delay
About Receiver:
1. Working voltage: DC12V
2. Working temperature: -40 Degree +80 Degree
3. Receiver sensitivity: more than -105dBm
4. Working frequency: 433mhz
5. Output voltage: DC12V
6. Input voltage = Output voltage
7. Max load current: 40A

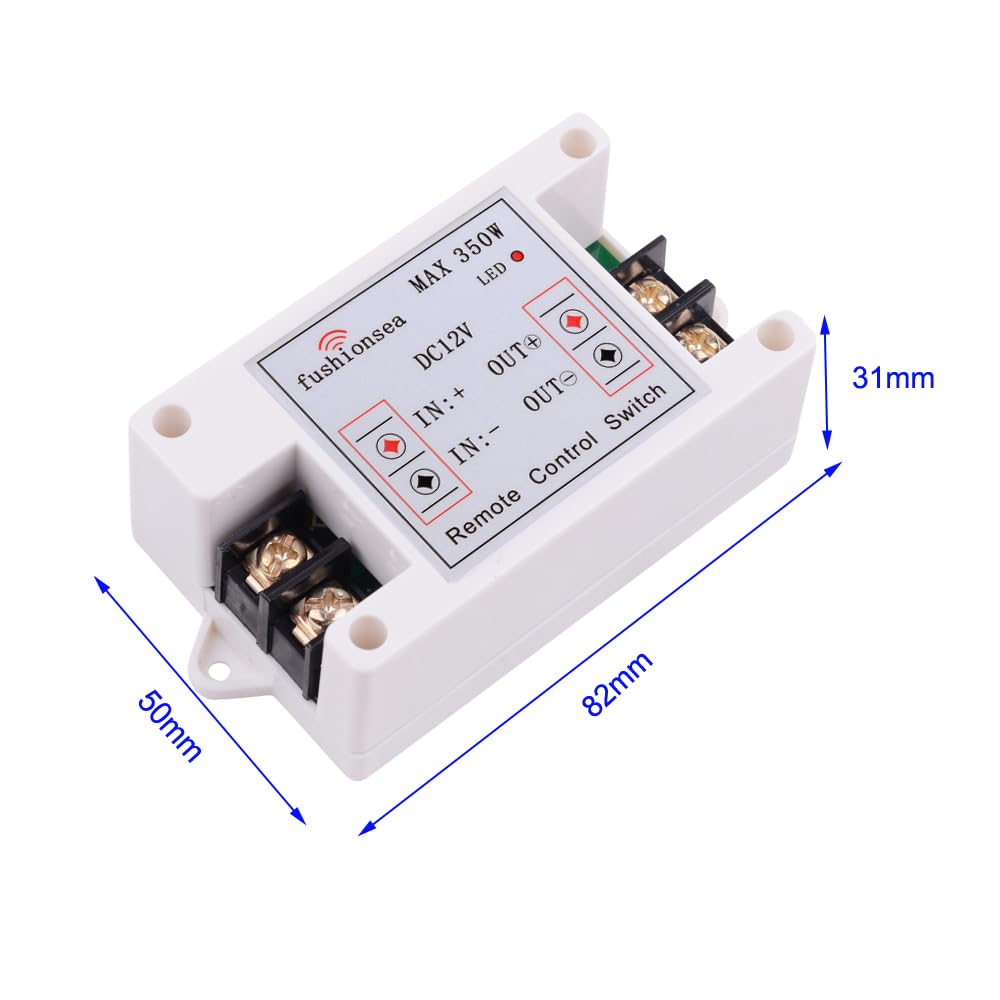

8. Size: 8.2 x 5.0 x 3.1cm
About Working way:
Working way changed by learning button :
Latched: press learning button ,until receiver LED indicator flash for 1 time , it Change Latched successfully. ( Relay: Press " button on " is On; Press " button off" is Off. )
Momentary: press learning button ,until receiver LED indicator flash for 2 times , it Change Momentary successfully. ( Relay: Press and hold -> On ; Release -> Off. )
Toggle: press learning button ,until receiver LED indicator flash for 3 times , it Change Toggle successfully. (Relay: Press -> On; Press same button again -> Off·)
5 seconds delay: press learning button. Until the receiver Led indicator flash for 4 times, it mean Change Delay time successfully.(Relay: Press -> On , relay actuates and keeps working until the time out.(5S))
About Learning and clearing Method:
Learning: Input 12V for the Receiver , Press learning button , The receiver Led indicator ON. Press remote button “ON” 1 time, Led indicator flash for 1 times , Then Press remote button “OFF” 1 time , Led indicator flash for 1 times again , it mean learning successfully.
Clearning: Press and hold learning button,Until the receiver Led indicator flash for 5 times, it mean Clearing Code.
About Transmitter:
1.Buttons: 2 Buttons
2.Operating frequency :433MHz
3.Remote Distance: 20-50M
4.Operating Current: 13 mAh
5.Encode: Fixed code / EV1527 code
6.Size: 5.7 x 3.2 x 1.1cm

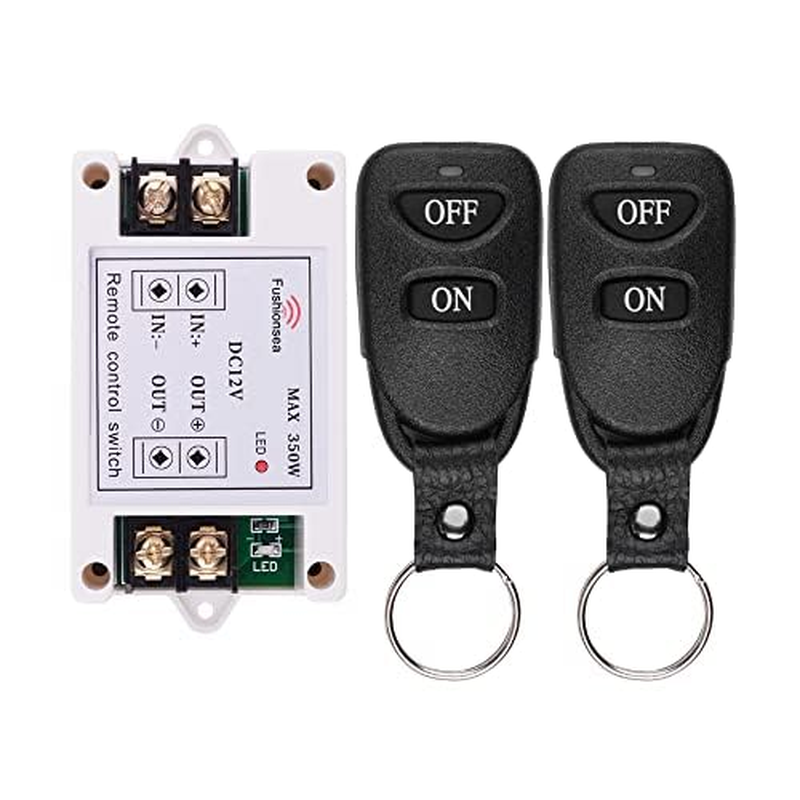

Package Includes
2 x Transmitters
1 x Receiver
1 x User Manual
- Package Dimensions: 14.8 x 10.9 x 3.8 cm; 120 Grams
- Manufacturer reference: 12V remote
- Manufacturer: MURANCLOUD
