DC45E-2475S Micro brushless dc water pump

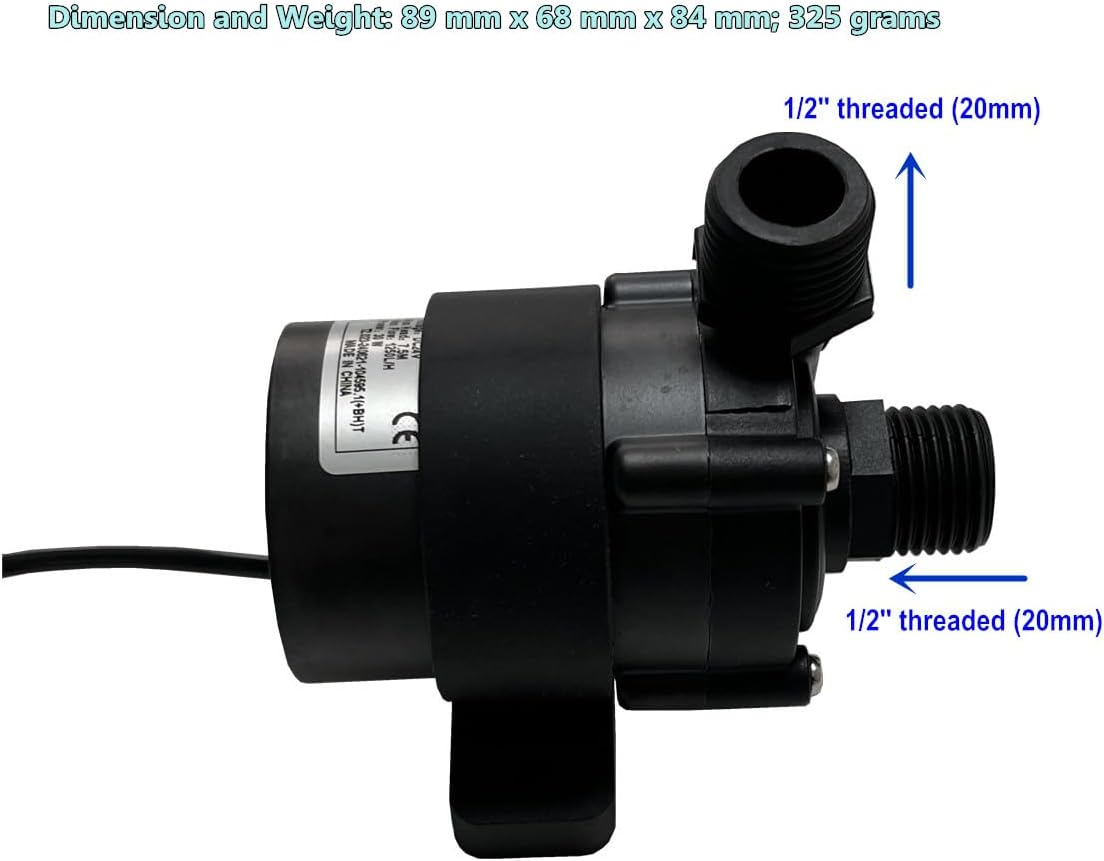

NOTE: DC45E-2475S Water pump, rated voltage 24VDC, 30W, 3-phase brushless DC built-in design, soft start. Max. Static lift appr. 7.5m 24VDC and (24.6ft) Max. Horizontal flow rate appr. 1250LPH 24VDC. Both ports are with external diameter of appr. 1/2'' threaded (20mm). Pump weighs appr. 325 grams, as a whole. It is sine wave control design that is adopted, greatly reducing high-frequency electromagnetic noise when at work, when compared with other similar pump products. This is a new pump product of our series.

It is suggested that our users get a bucket of water, powering the pump with matching DC power supply, and watching the pump’s working performance for a while. Then, we install the pump to the needed circulation/ pressurization system.

Package includes: 1 x DC45E-2475S Micro Brushless DC Water Pump (No power supply is included)

[DRY RUN Protection is integrated in default] NEW FEATURE: DRY-RUN PROTECTION feature is integrated now in default. Pump works at rated voltage: When there exists no/ in-sufficient in-flow (or significant air bubble contained), it is DRY RUN scenario and protection will be triggered: Pump will access stop-run-stop-run---cycle, greatly reducing rotation. When flow comes sufficiently again, pump will re-access normal run. It greatly reduces physical friction between parts and heat generated, yet, not completely eliminate the impact.

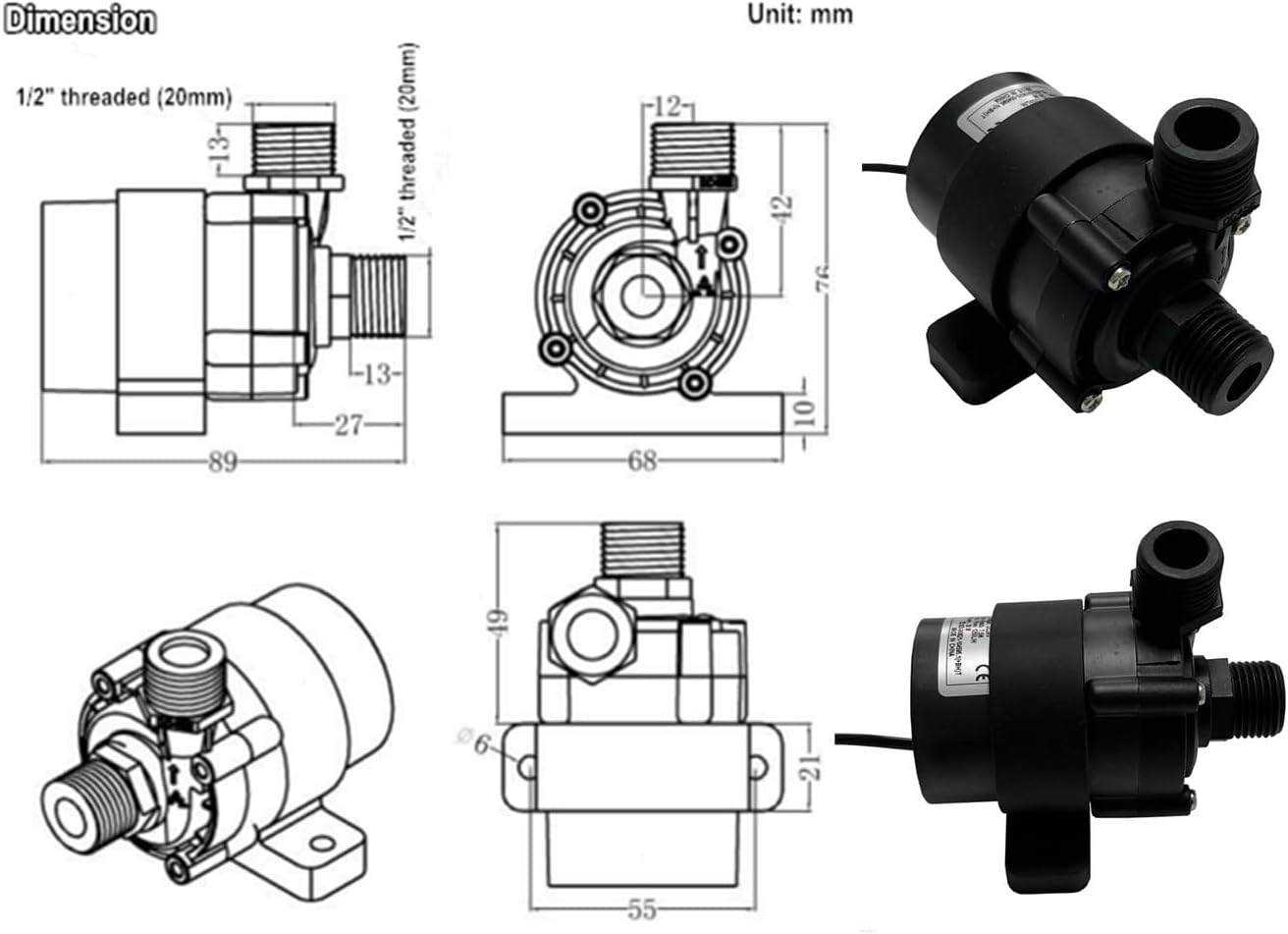

Dimension

Typical features:

a) 3-phase brushless DC design, magnetic force isolation driving, supporting long time continuous running.

b) Small size, high power-efficiency, nice lift and flow rate comprehensive performance at this power level and small dimension.

c) Stable running with low noise, matching various micro circulation, cooling, pressurization systems, for yacht, medial equipment, houshold equipement systems, etc.

d) With rubber bracket, flexible at installation, reducing vibration and noise at work.

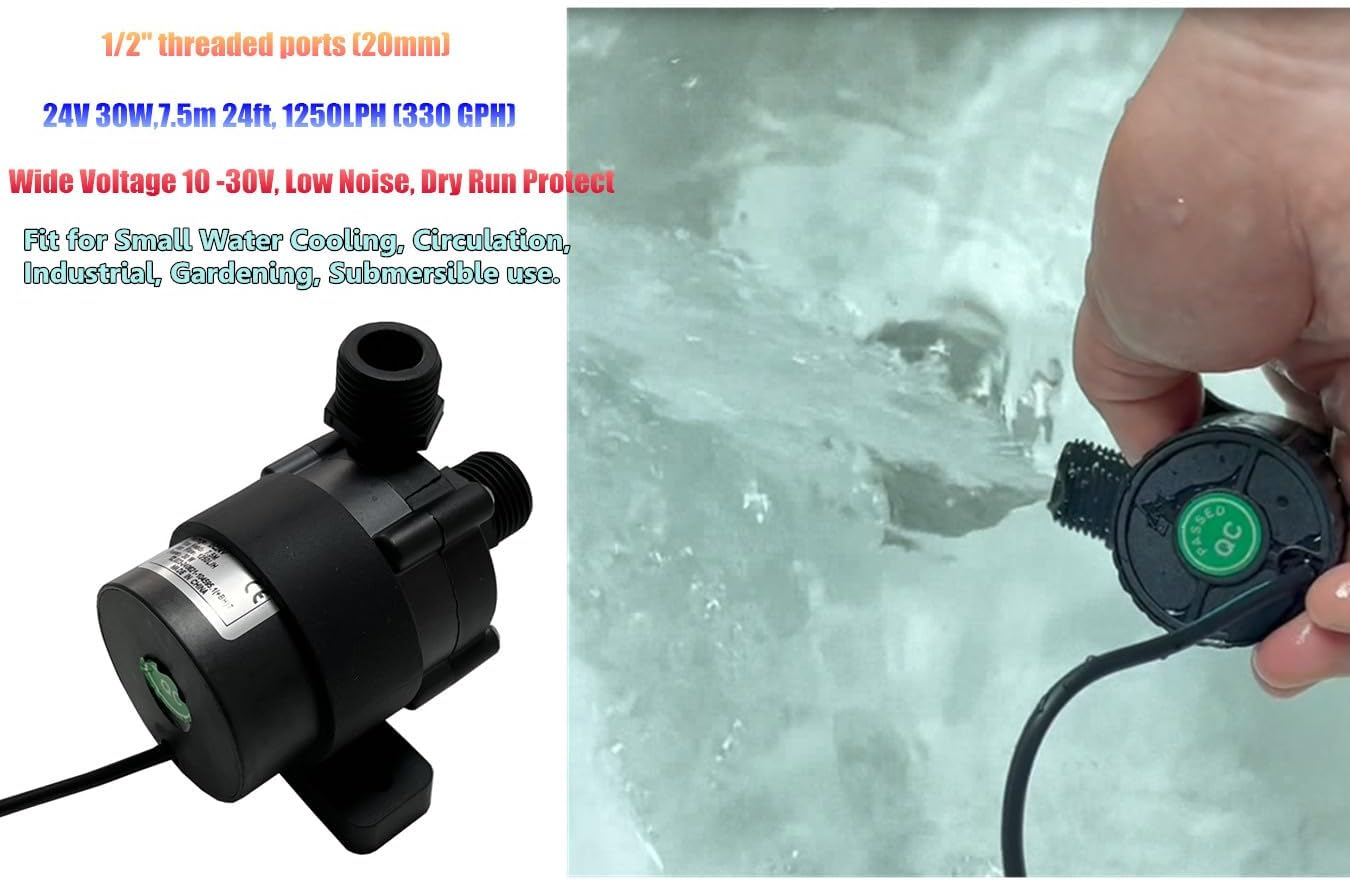

e) Low DC voltage powering, supporting wide powering voltage range.

As a small pump using centrifugal force of impeller, it cannot be self-priming. Land use rather than submersible installation, (connected with matching hose, Not included) is more recommended in the circulation system.

Important Notes about Pump’s use & installation

Important Notes about Pump’s use & installation

• DC 24V power supply. No direct AC power powering or over-voltage powering.
• If it is AC/DC Power adapter, make sure that it can offer sufficient power to pump: output capacity be 24VDC, 2A or over (24V*2A ~ 48W). Note that Power supply cannot be placed in water or moisty location.
• Pump supports continuous long time work with relatively low noise at normal working environment. Land use or submersible installation can be either OK, yet pump cannot be self-priming. Make sure that fluid can actively flow passing through inlet/outlet because pump works via centrifugal force of high-speed rotation of impeller inside (to push/throw in-flow out). No long-time dry work without in-flow, or it may damage the pump (Even though DRY-RUN Protection is equiped.).
