1. Fast and accurate measurement results.
2. Open phase indication and phase rotation indication 2 functions.
3. Checks the open phases and identifies the three-phase sequence condition.

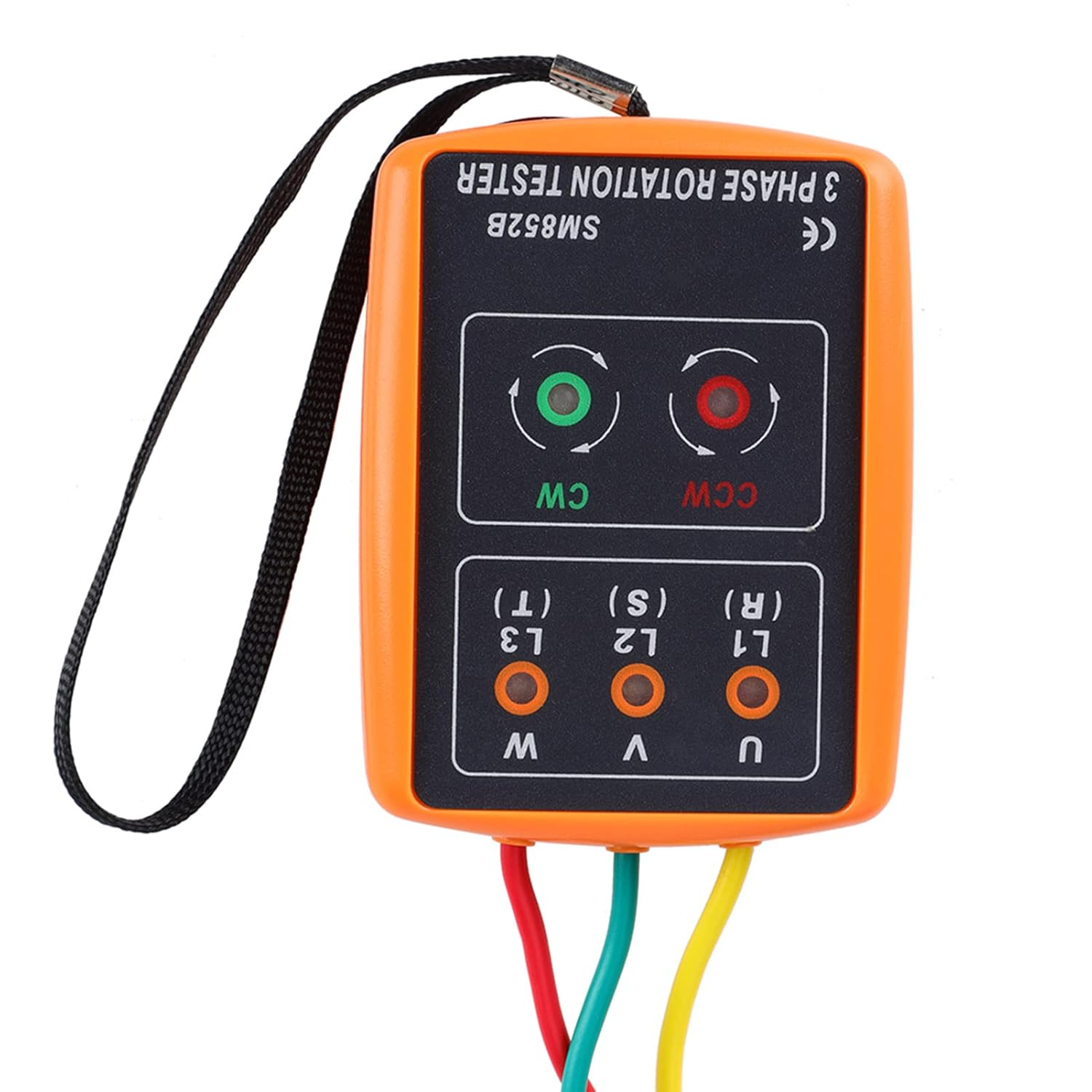

4. With simultaneous indications via LED and audible buzzer sound.
5. Indicates the direction of rotation.
Specifications:
Features:
Fast and accurate measurement results.
Open phase indication and phase rotation indication 2 functions.
Check the open phases and identify the 3-phase sequence condition.
With simultaneous indications via LEDs and sound buzzer.
Indicates the sense of .
Ensures that the object being tested is not damaged due to incorrect wiring.
Portable and compact design meets IEC‑348 electrical safety standards.
Specifications:
Working Voltage: 60V~600V (AC, Three Phase)
Continuous use time: ≤60 minutes at 60 VAC ; ≤4 minutes at 600 VAC
Working frequency range: 20Hz-400Hz
Maximum supported voltage: 2000 V/min (impulse voltage 4000 V)
Test conductors: Double insulation
Length of test conductor: approx. 1m/3.3ft
Protection level: 2000V
Operating temperature: -10℃~60℃
Dimensions (L x W x D): approx. 8.5 x 6.5 x 2 cm/3.27 x 2.56 x 0.79 inches.
Weight: 253g (approx.)

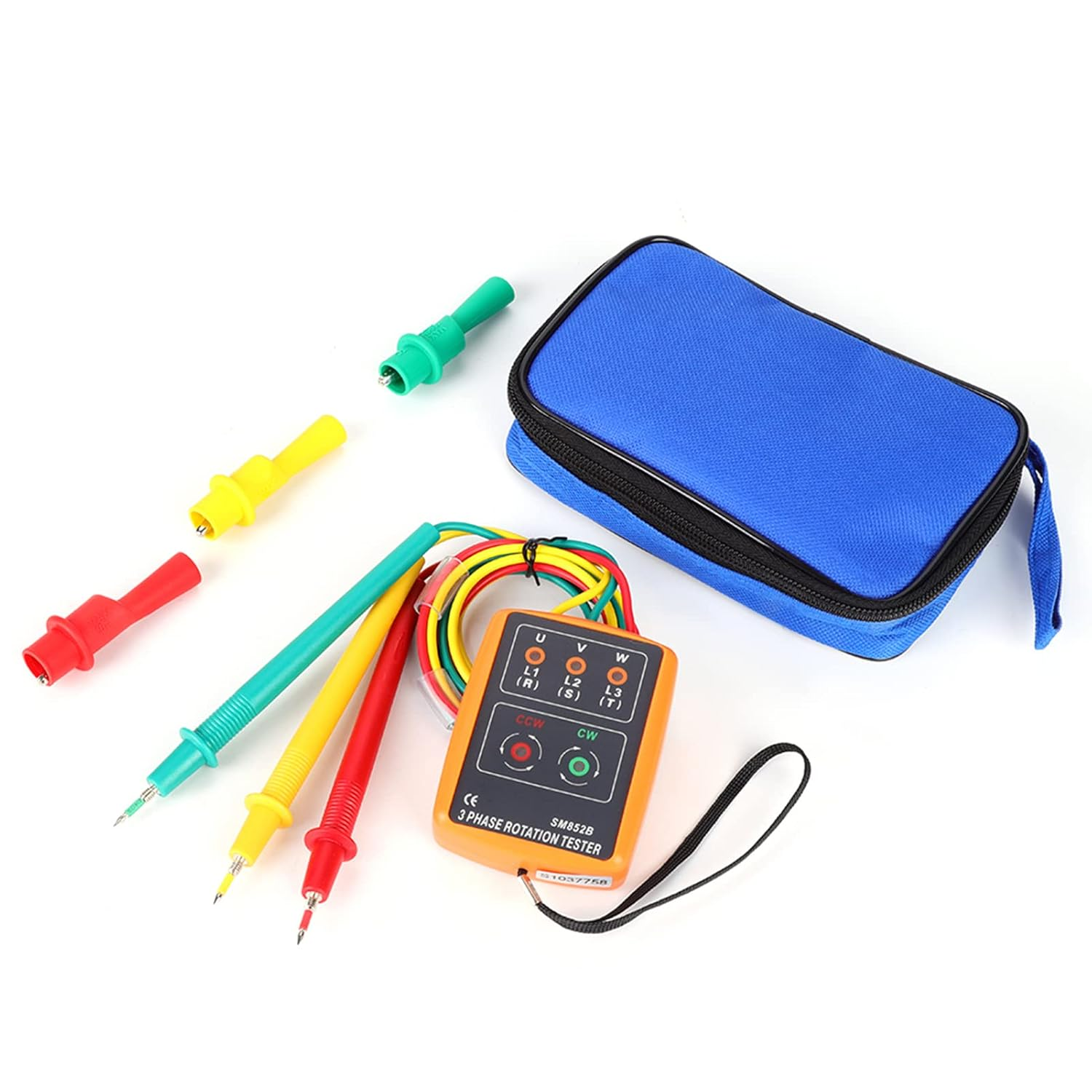

Package includes:
1 x Tester

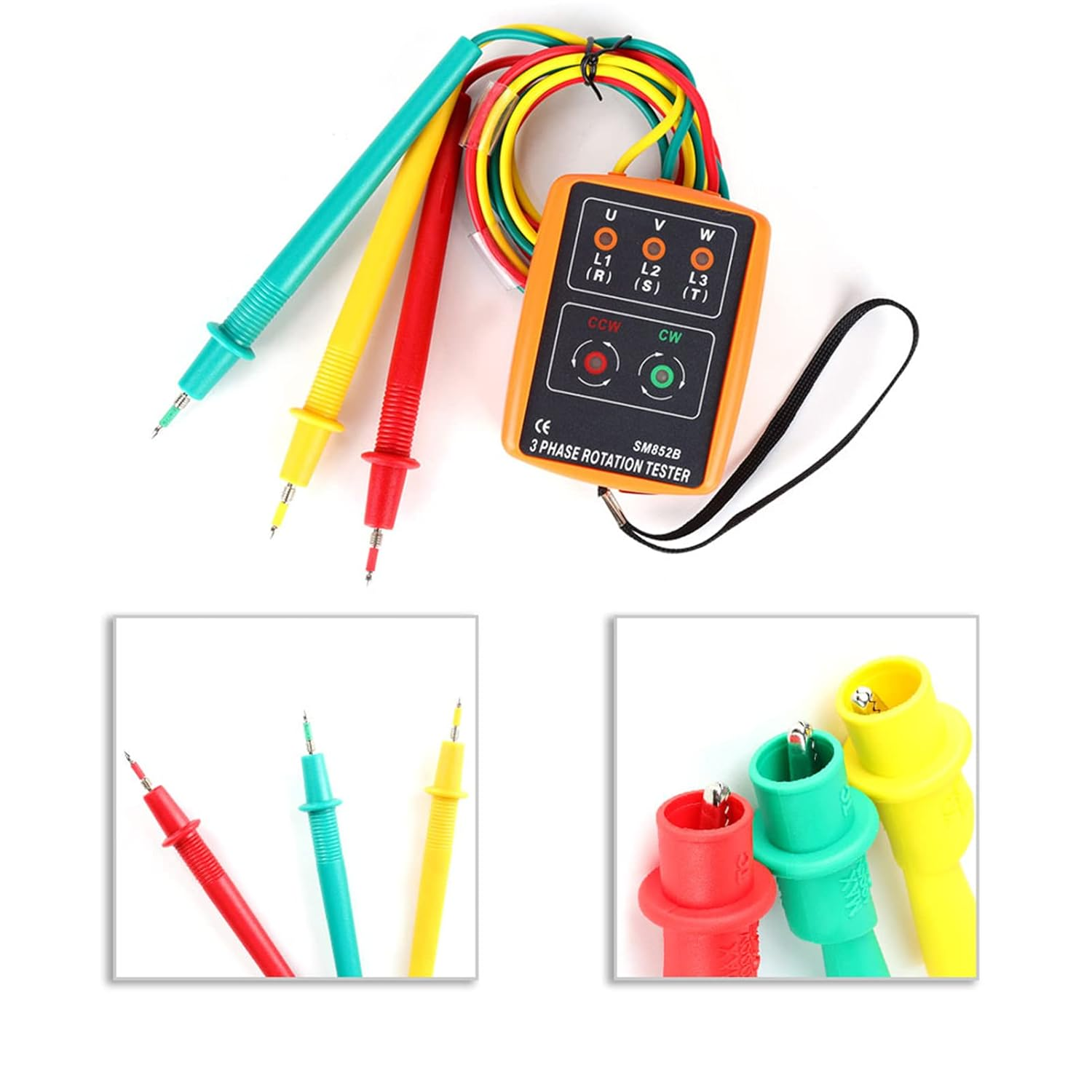

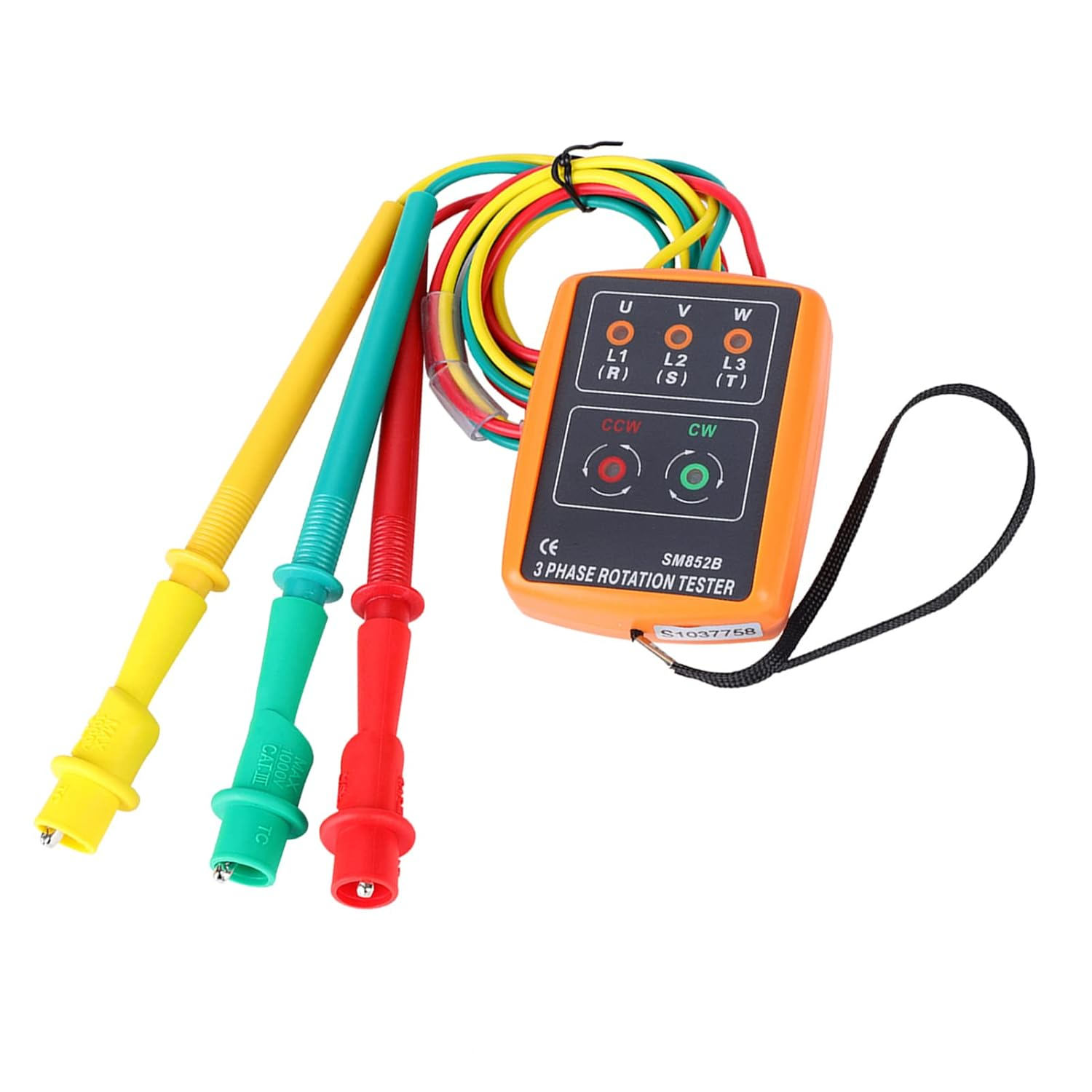

3 x Test Leads with Clips
1 bag
