ESP32-S3 Development Board with 1.28Inch round Touch LCD 240×240 Pixel 65K RGB Color, 32-Bit LX7 Dual-Core Processor with 6-Axis Sensor, Support 2.4Ghz W-I-F-I (802.11 B/G/N) and Blue-Tooth 5

ESP32-S3 Development Board with 1.28Inch round Touch LCD 240×240 Pixel 65K RGB Color, 32-Bit LX7 Dual-Core Processor with 6-Axis Sensor, Support 2.4Ghz W-I-F-I (802.11 B/G/N) and Blue-Tooth 5

Brand: UeeKKoo
4.1
A$53.15
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

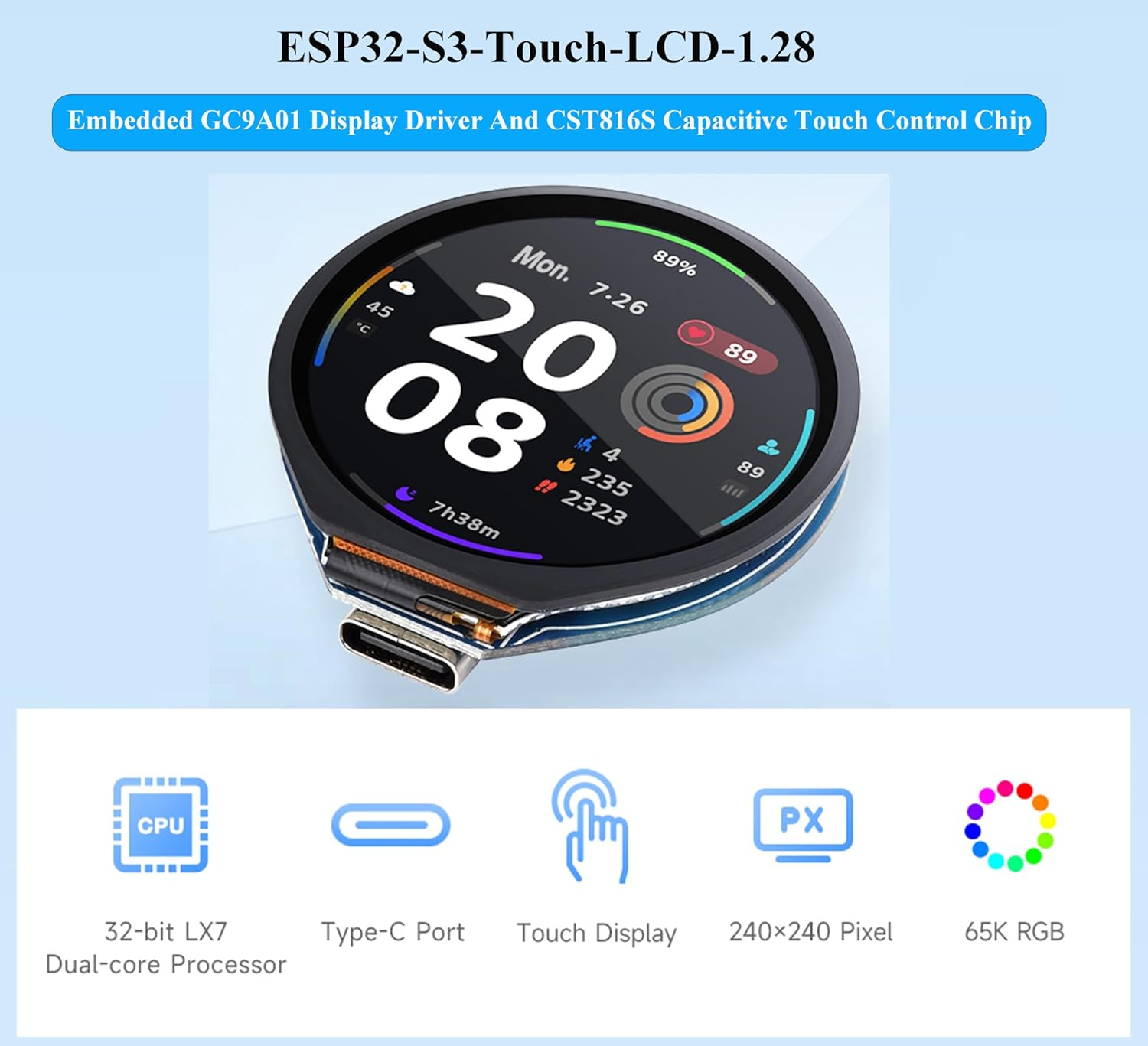

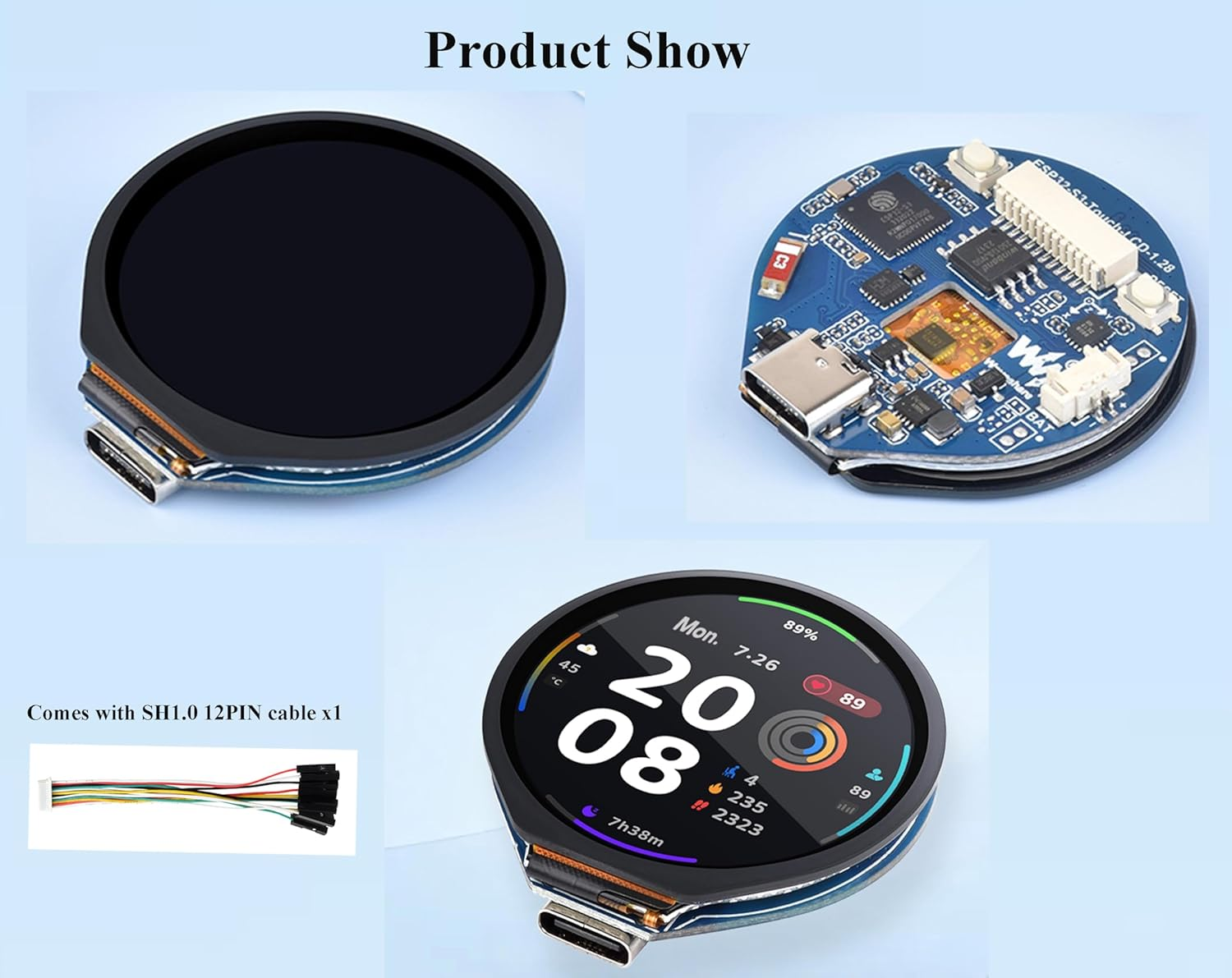

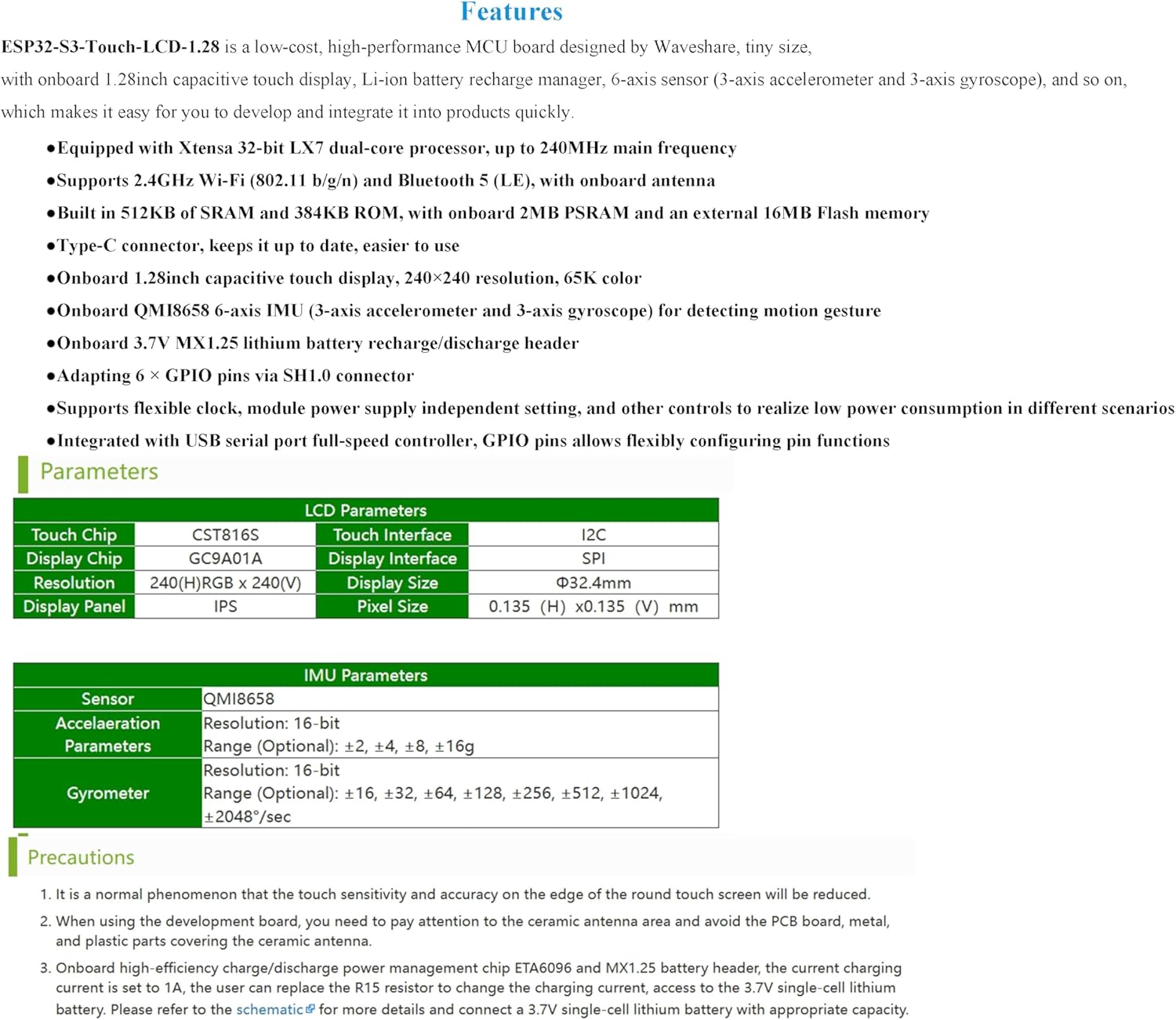

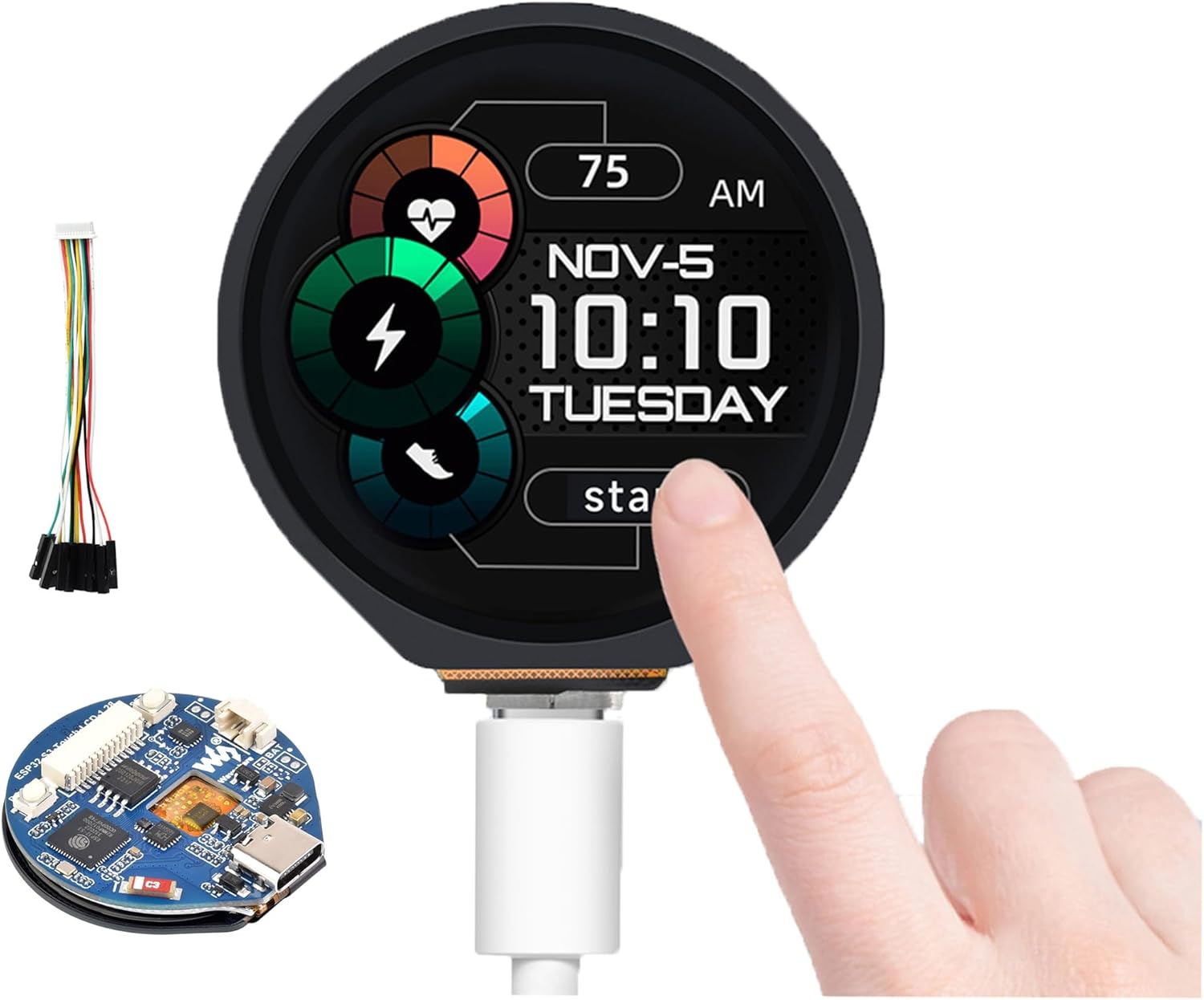

  • ESP32-S3-Touch-LCD-1.28 is a high-performance MCU board designed by Waveshare, Compact size. ESP32-S3 Development Board onboard with 1.28inch Round Capacitive Touch LCD, 240×240 resolution, 65K RGB color.
  • It is also onboard with batt-ery rechar-ge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, which makes it easy for you to develop and integrate it into products quickly.
  • Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (LE), with onboard an tenna.
  • Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture. Onboard 3.7V MX1.25 lith--ium batt-ery rechar-ge/dischar-ge header.
  • Type-C connector, keeps it up to date, easier to use. Adapting 6 × GPIO pins via SH1.0 connector. Comes with SH1.0 12PIN cable.
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.
  • Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions.
  • Provide Online Development Resources /User Manual: bit.ly/3FFaDT3

Product Description

  • Memory Storage Capacity: 16 MB

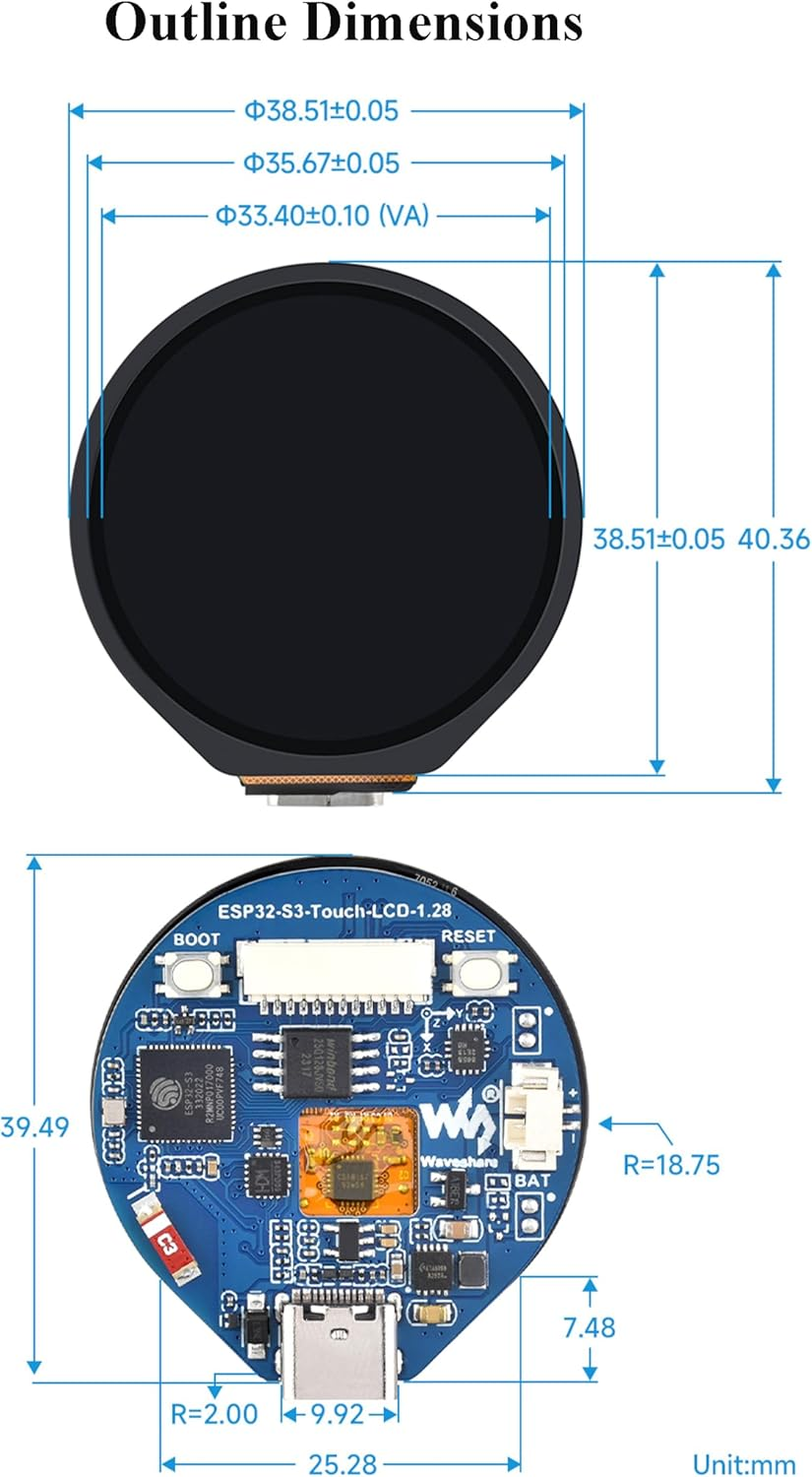

  • Product dimensions: 0.5 x 3 x 2 cm; 9.07 Grams
  • Compatible Devices: Devices with SH1.0 connector
  • Processor Count: 2
  • Processor Brand: Espressif
  • Wireless Type: 802.11b
  • Operating System: FreeRTOS
  • Brand: UeeKKoo
  • Ram Memory Technology: LPDDR
  • Model Name: ESP32-S3-Touch-LCD-1.28
  • Response Time: 4 Milliseconds
  • Does it contain liquid?: No
  • Manufacturer: UeeKKoo
  • Item Model Number: ESP32-S3 with 1.28inch Round Touch LCD
  • Batteries Included: No
  • Batteries Required: No
  • Ram Memory Installed Size: 512 KB
  • Connector Type: Bluetooth, USB, Wi-Fi
  • Item Weight: 9.07 g
  • Standing screen display size: 1.28 Inches
  • Model: ESP32-S3 with 1.28inch Round Touch LCD
  • Total USB ports: 7
  • Mounting Hardware: ESP32-S3-Touch-LCD-1.28 x1, SH1.0 12PIN cable x1
  • Maximum vertical resolution: 240
