Description:

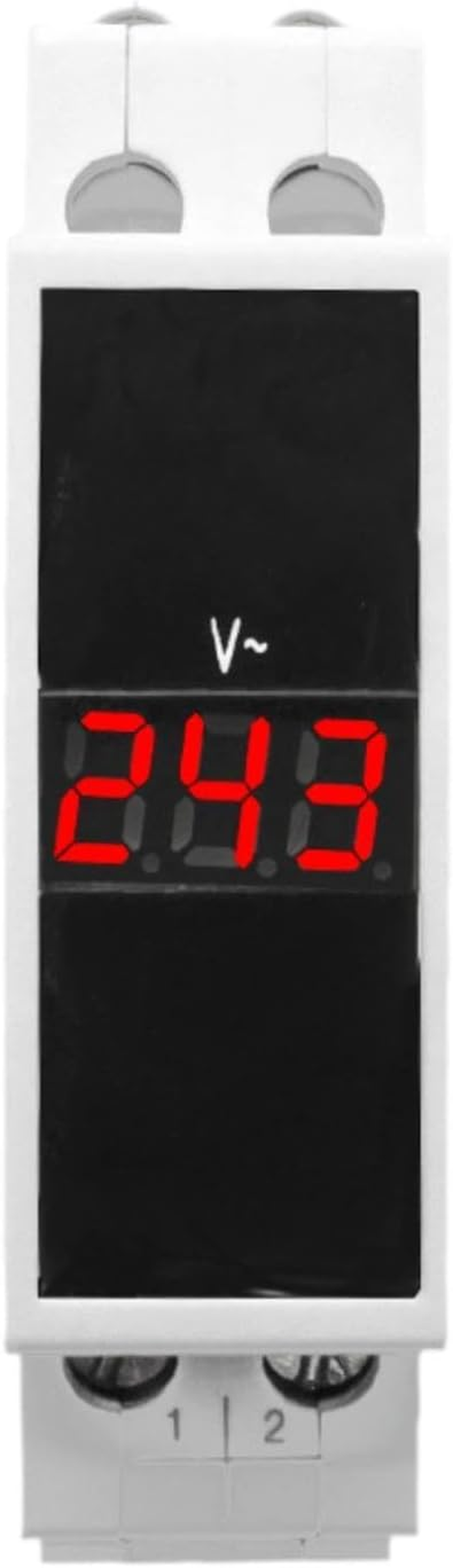

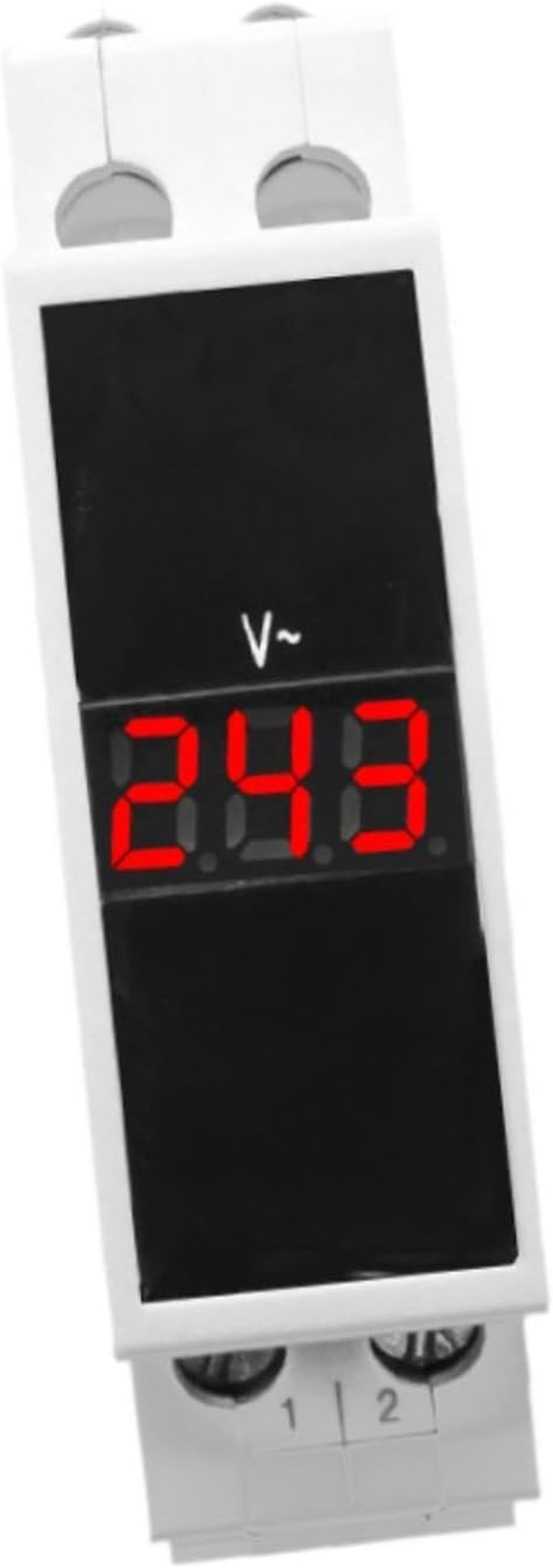

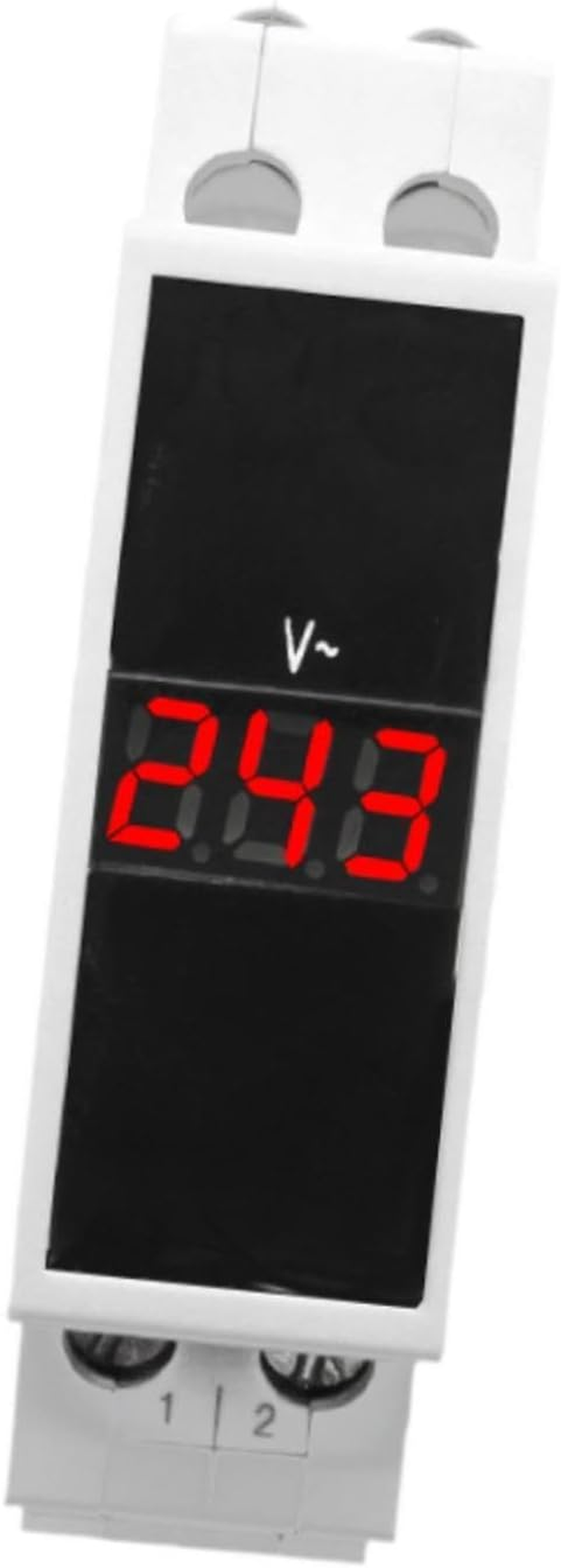

- 【Digital Display】: The Din Rail Single Phase Digital Voltmeter features red digital display for clear and intuitive readings.
- 【AC Voltage Measurement】: This voltmeter is specifically designed to measure alternating current (AC) voltage, offering a wide AC80-500V measurement range.
- 【Single Phase Measurement】: It is suitable for single phase AC power supply systems, making it versatile for various applications.
- 【Rail Mounted Design】: With its rail mounted design, this voltmeter is easy and quick to install, providing convenience in usage.
- 【Size】: Din Rail Single Phase Voltage Meter with dimensions of 8.1cmx1.8cmx6.6cm/3.19inchx0.71inchx2.60inch, compact to install.

Specification:

- Voltage display range: AC80-500V
- Frequency compatibility range: 50-60HZ
- Installation method: DIN 35MM standard rail
- Digital display color: red
- Accuracy: ±2%V
- Display resolution: 1V
- Sampling rate: about 1 time/S
- Input circuit power consumption: <2VA
- Note: This product is prohibited from being used in a strong frequency, variable frequency, or high frequency power supply environment.

- Wiring Method:
- Type PZ1:4mm
- Strip length 9mm
- Circuit: control circuit
- Upper 0.8N.m
- Hard wire 1.5~6mm²
- Flexible cord Terminal block 1~4mm²

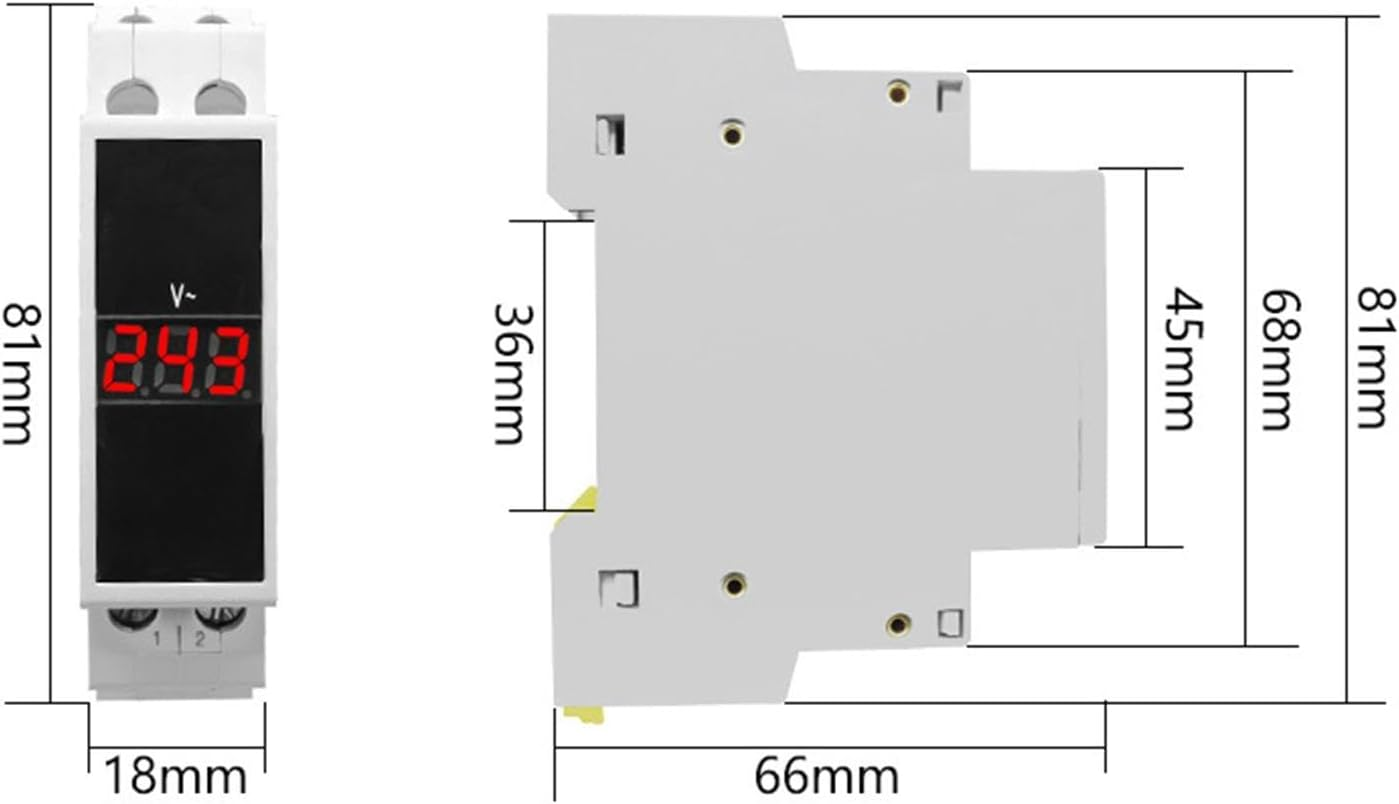

Size Chart:

8.1cmx1.8cmx6.6cm/3.19inchx0.71inchx2.60inch

Package Includes:

1 Single Phase Voltmeter

Note:

Please allow slightly errors 1-2cm differences due to manual measurement.
