180PCS T Tap Wire Connectors Male Spade Terminals,90Pairs Auto Quick Splice Electrical Wire Insulated Quick Disconnect Assortment Kit, AWG 22-18, AWG 18-14,AWG 12-10

180PCS T Tap Wire Connectors Male Spade Terminals,90Pairs Auto Quick Splice Electrical Wire Insulated Quick Disconnect Assortment Kit, AWG 22-18, AWG 18-14,AWG 12-10

Brand: AONNOUS
3.2
A$16.80
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • [WIDE APPLICATIONS] The 180(90Pairs) T-Tap Wire Connectors and Male Quick Disconnects will last for numerous wiring projects. Marine, automotive, scientific, home wiring projects - you name it. AONNOUS T TAP connector kit will allow you to quickly tap into any wire in any application. The connector assortment includes 30pairs red (AWG 22 – 18), 30pairs blue (AWG 16 – 14) and 30 pairs yellow (AWG 12) T-TAP connectors that can be used on wire AWG from 22 to 12
  • [TAP INTO ANY WIRE WITH EASE] AONNOUS self stripping electrical T Tap wire connectors will tap into any wire without needing to cut, strip or solder. Mid span wiretapping has never been easier before
  • [PREMIUM QUALITY] Constructed with thicker tinned copper contacts, these wire connectors are durable enough to tap into thicker wires without bending. They also feature a secure lock system and a plastic insulated housing that ensures reliability once attached.
  • [DURABILITY] Each electrical terminal features a thick tinned copper barrel that resists corrosion to hold the wire tight when crimped. The temperature resistance of the auto audio wire tap is up to 221F.
  • [AONNOUS BRAND QUALITY COMMITMENT] We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please contact us. We provide 30-day money back and 24-month warranty. 100% Satisfaction Guarantee for risk-free shopping!

Product Description

180 Pcs Quick Splice Wire Terminals T-Tap Self-stripping with Nylon Fully Insulated Male Quick Disconnects Kit

  • Material: Nylon, Copper, Tin
  • Maximum Operating Temperature: 221 °F
  • Maximum Recommended Voltage Rating: 600 V
  • Color:Red/Blue/Yellow

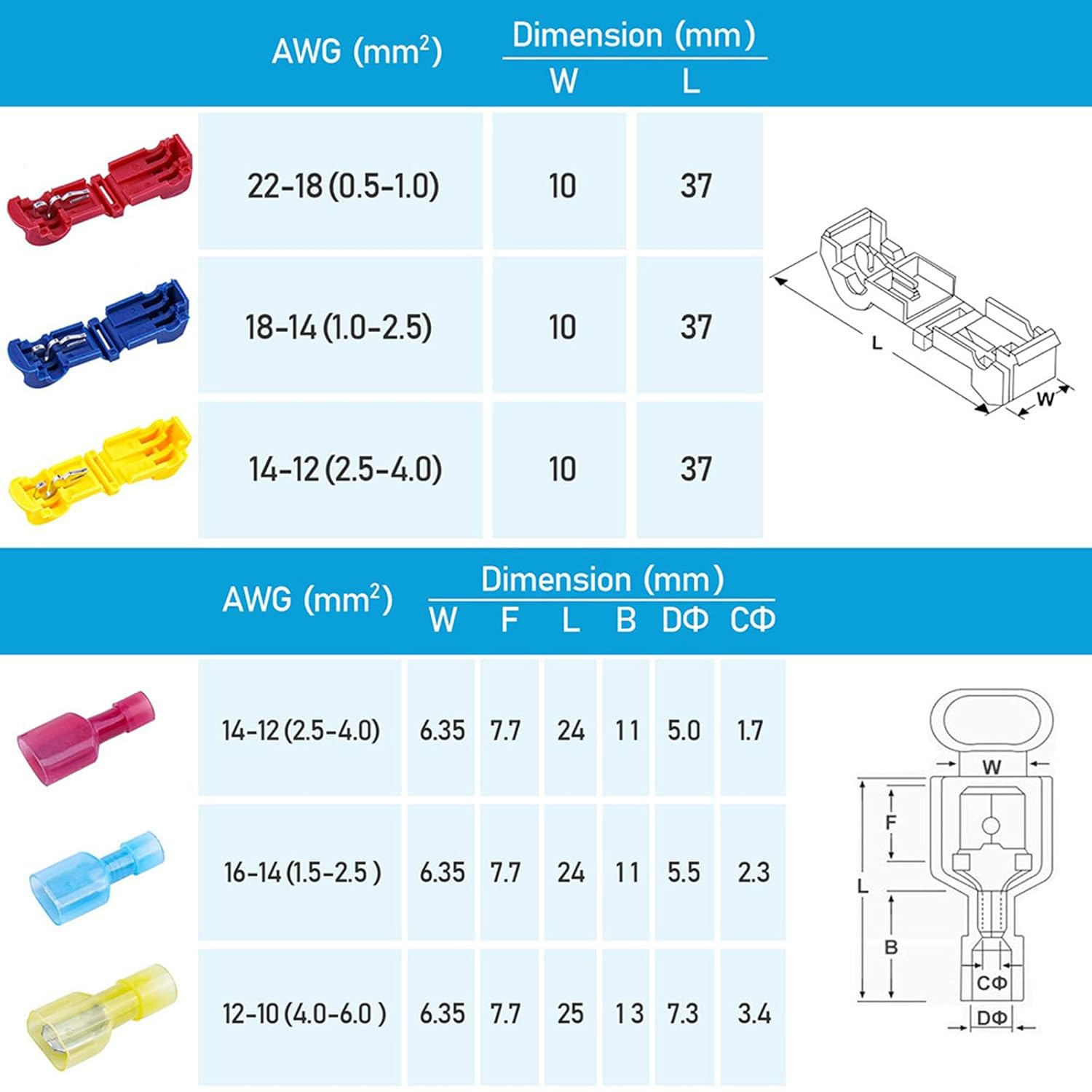

90pcs/Pairs Package Content:

Quick Splice Connector:

Red | 22-18 Gauge - Wire range (0.5-1.0mm²) x30;

Blue |16-14 Gauge - Wire range (0.75-2.5mm²)x30;

Yellow |12-10 Gauge - Wire range (0.5-1.0mm²)x30;

Nylon Fully Insulated Male Spade terminals:

Red | 22-18 Gauge Wire range: 0.5-1.5mm² (Max current 10A)x30;

Blue |16-14 Gauge Wire range: 1.5-2.5mm² (Max current 15A)x30;

Yellow | 12-10 Gauge Wire range: 4-6mm² (Max current 24A)x30;

1x Plastic Box for easy storage!

90 Pairs High quality T-Tap Terminals Connector Kit

1 Pair=1 Quick Splice Wire connector+ 1 Female Spade Connector

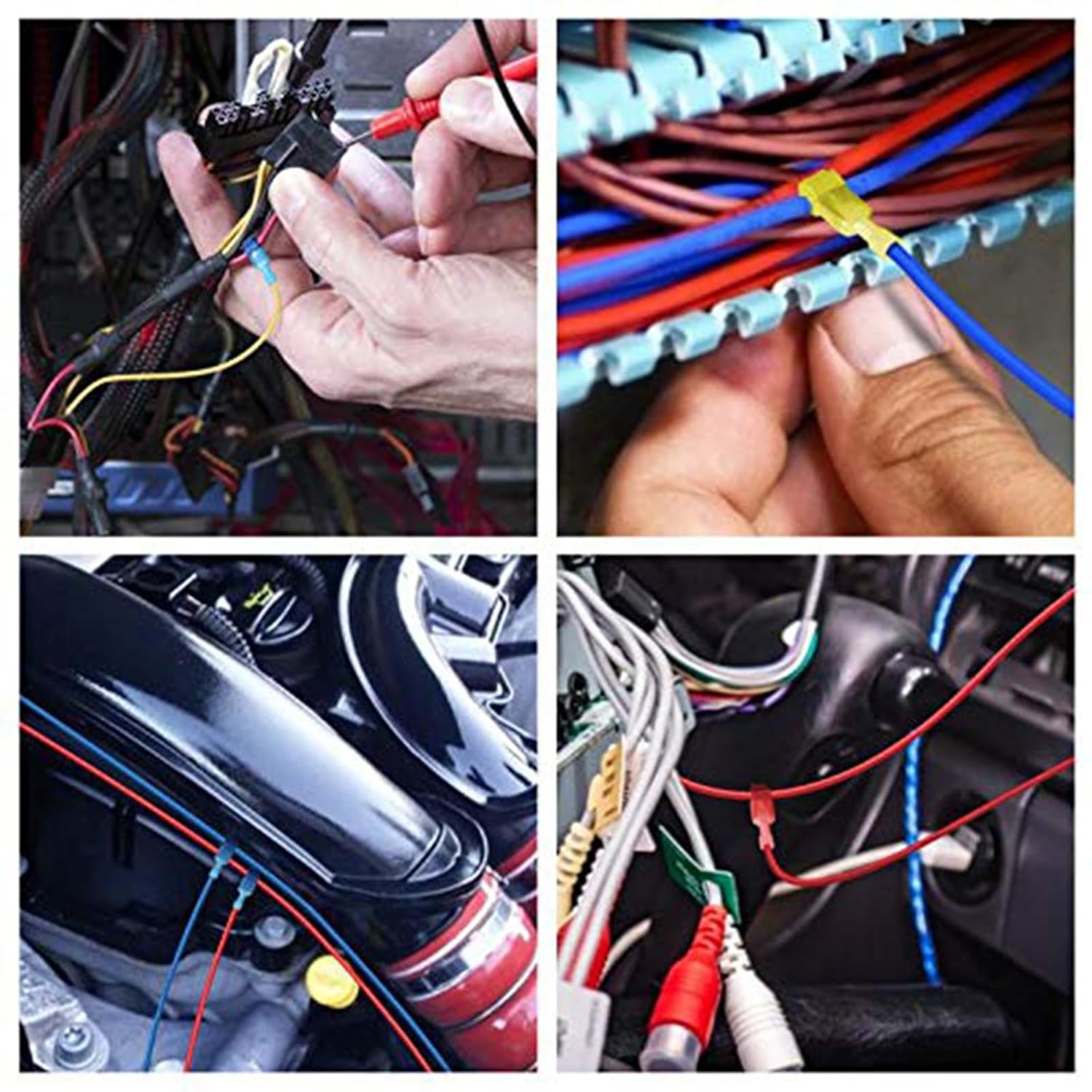

AONNOUS T-Tap wire terminals will last for numerous wiring projects such as marine wiring, automotive wiring, scientific wiring, or home wiring projects. Allow you to tap into any wires in any applications.

Quality T-Tap Connector Housing Quick splice T Tap connectors will securely lock on the wire.Male spade terminal will not slip out of T Tap connector!

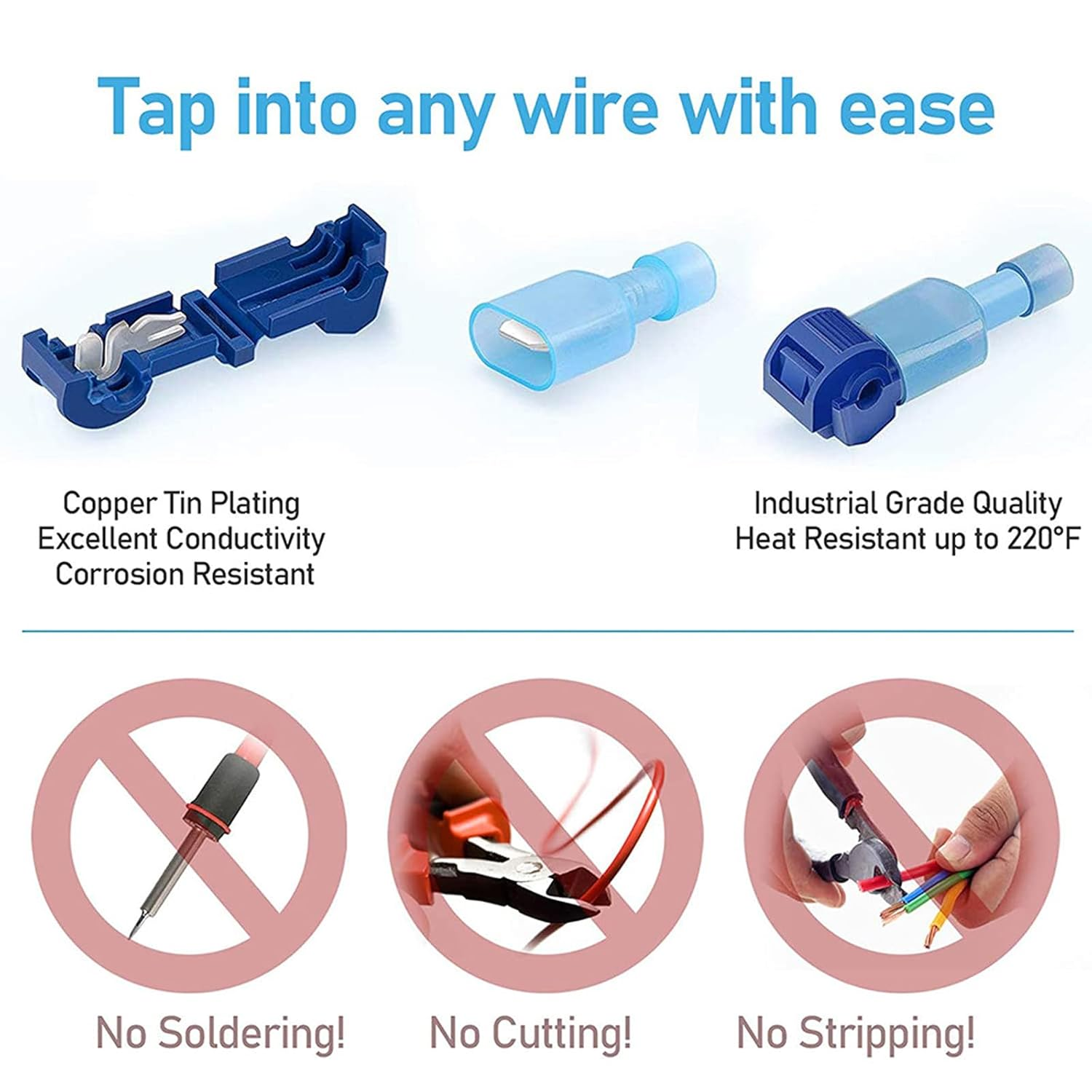

  • Use these Self-Stripping Electrical Tap Connectors to electrically tap into a wire in mid-span without cutting or stripping the wire
  • Prevents the wire from shorting out efficiently.These Self-Stripping Electrical T-Tap Spade Connectors combo makes tapping into an existing wire quick, easy, and reliable.

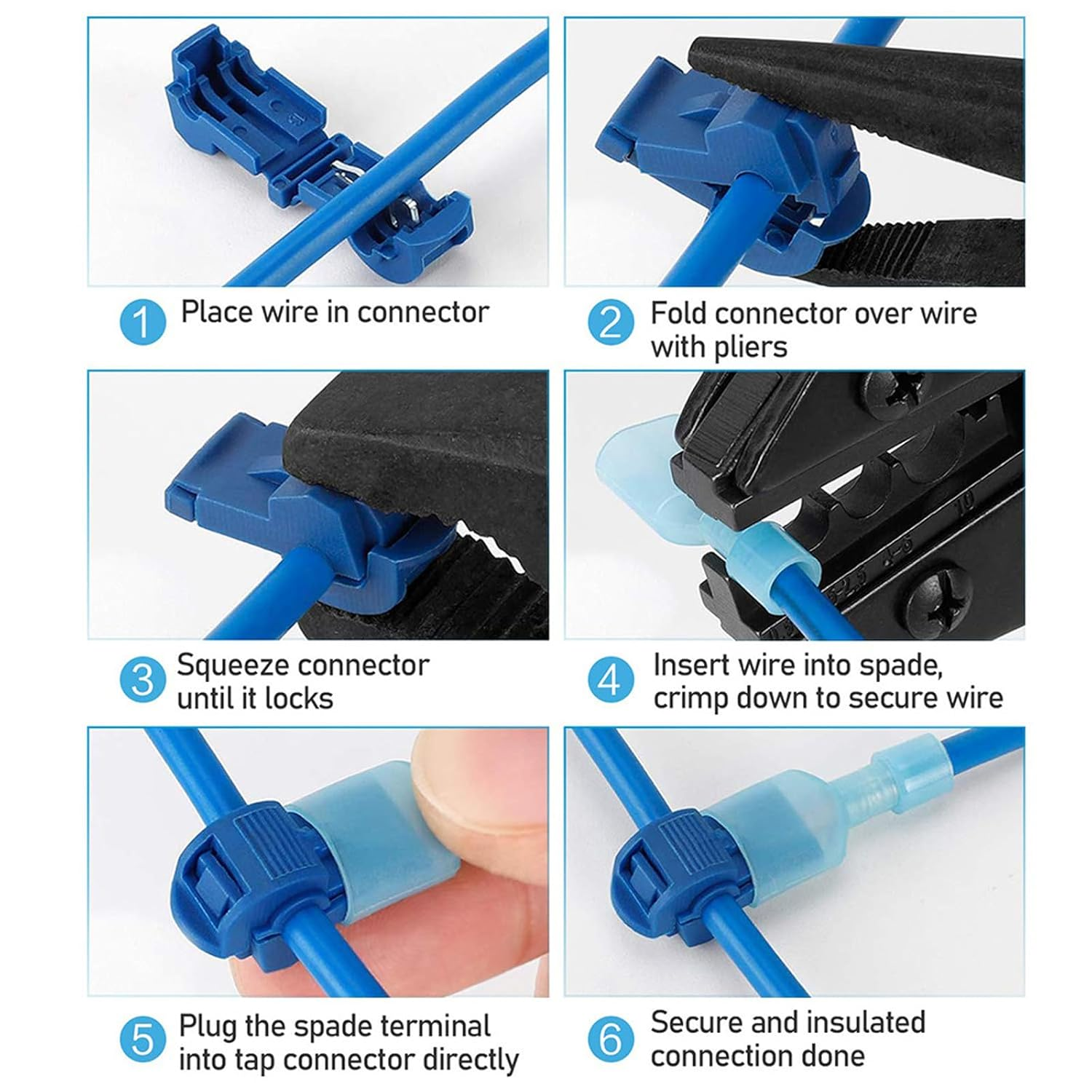

  • The T-tap is a insulated female quick disconnect that can be spliced into a wire and mated with the fully insulated male quick disconnect, all without stripping or twisting - no special tools needed.

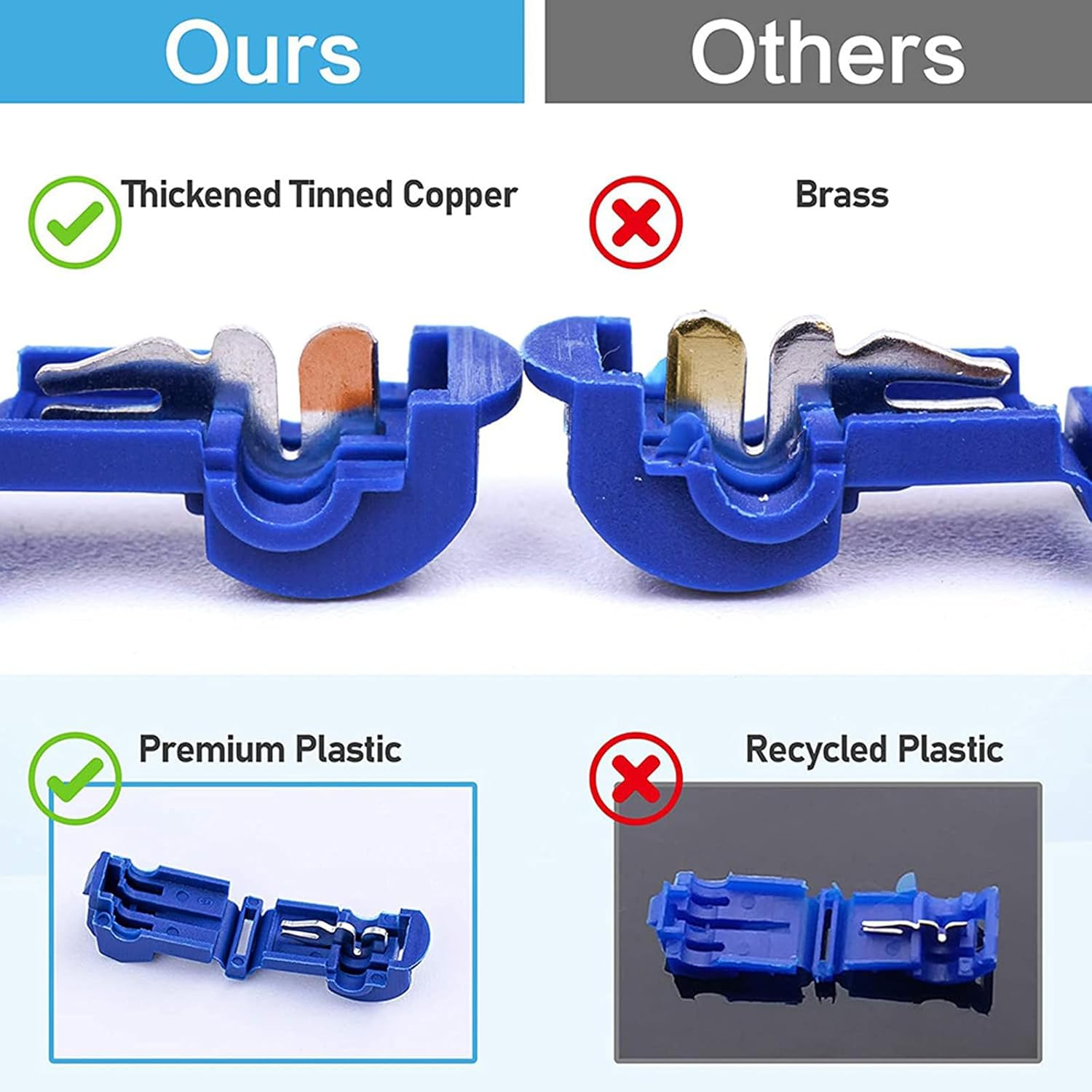

  • The cores are made of true tinned copper for maximum conductivity and the strongest crimps.
  • Easily tap into thicker insulation
  • Work with solid and stranded wires
  • Allows to connect different gauge wires
  • All T Tap terminals use 0,25" male spades
  • Mechanical stretch and Vibration resistant
  • Can be easily disconnected if needed-

Don’t need to strip, cut, or splice the wires, saving much time for you. No risk of electrical leakage: No need to wrap the wire with tape; Reduce the insulation loss caused by the ignition of the contact point.

Easy Identification

Color-coded tubing makes it easy to identify the right size of the connector for every application.

Red: AWG 22-18;

Blue: AWG 18-14;

Yellow: AWG 12-10.

Safety and reliable

These Self-Stripping Electrical T-Tap Spade Connectors combo makes tapping into an existing wire quick, easy, and reliable, no wire stripping needed. Quick splice T Tap connectors will securely lock on the wire. Plastic housing will not open after it has been snapped on the wire

High Quality

The cores are made of true tinned copper for maximum conductivity and the strongest crimps. It prevents the wire from shorting out efficiently.

  • Item Weight: 320 g
  • Item Model Number: AMMYJ180
  • Product dimensions: 25.5 x 18.5 x 1.9 cm; 320 Grams
  • Manufacturer: AONNOUS
