1. This product has strong adaptability and is suitable for different types of engines.
2. Compared with the traditional flame solenoid valve, the working current is small, no heat generation, operation, long service life, etc.
3. After the oil stop and flameout work is in place, it will automatically stop, which is controlled by a relay internally and controlled by a travel switch.

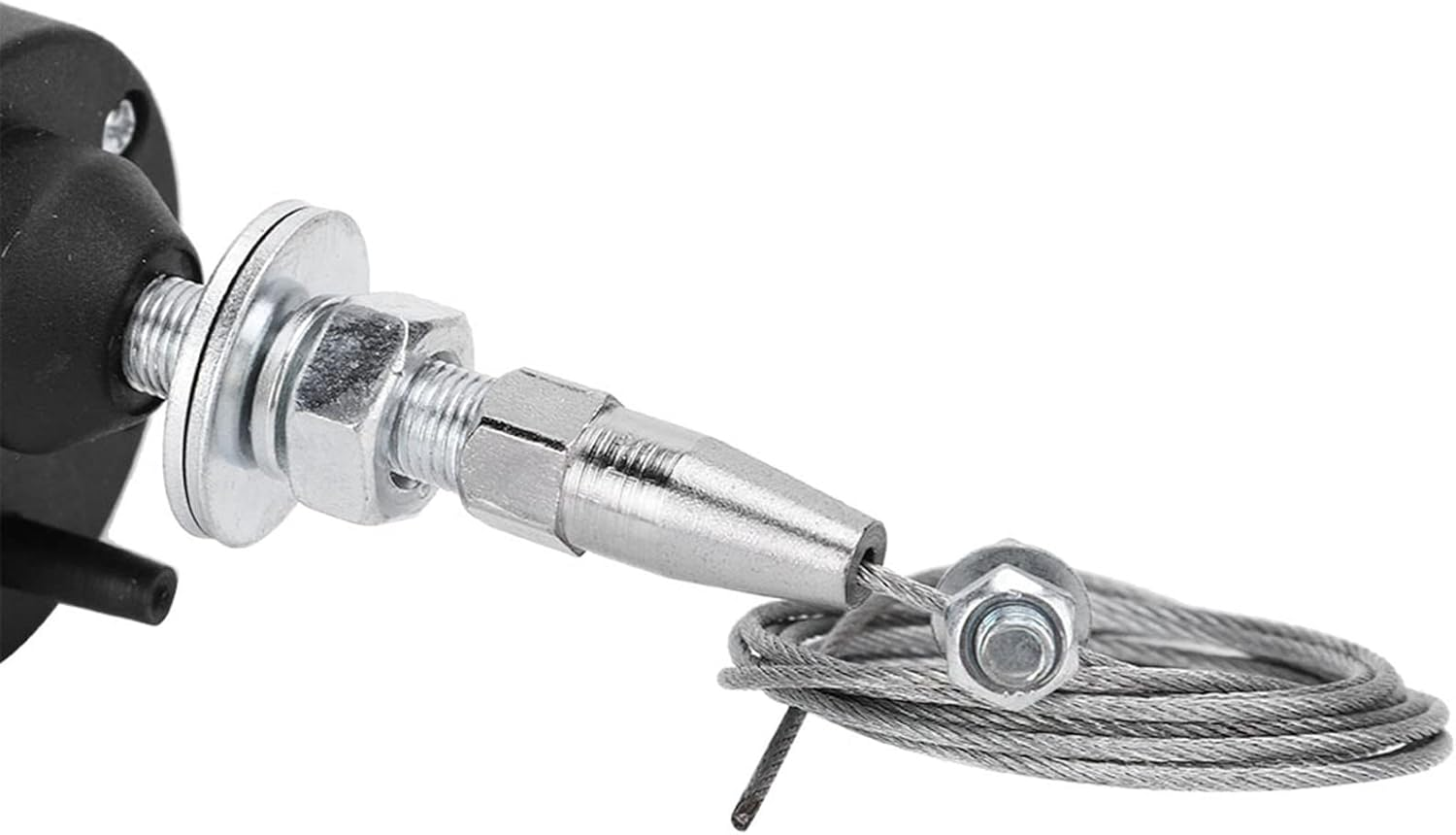

4. Small in size and easy to install. It can be directly mounted on the fuel injection pump, or it can be equipped with a flexible shaft and steel wire rope assembly. Choose an appropriate location for installation.
5. The shell material has the advantages of high strength, high hardness, flame retardant, antifreeze, impact resistance, and aging resistance.
Spec:

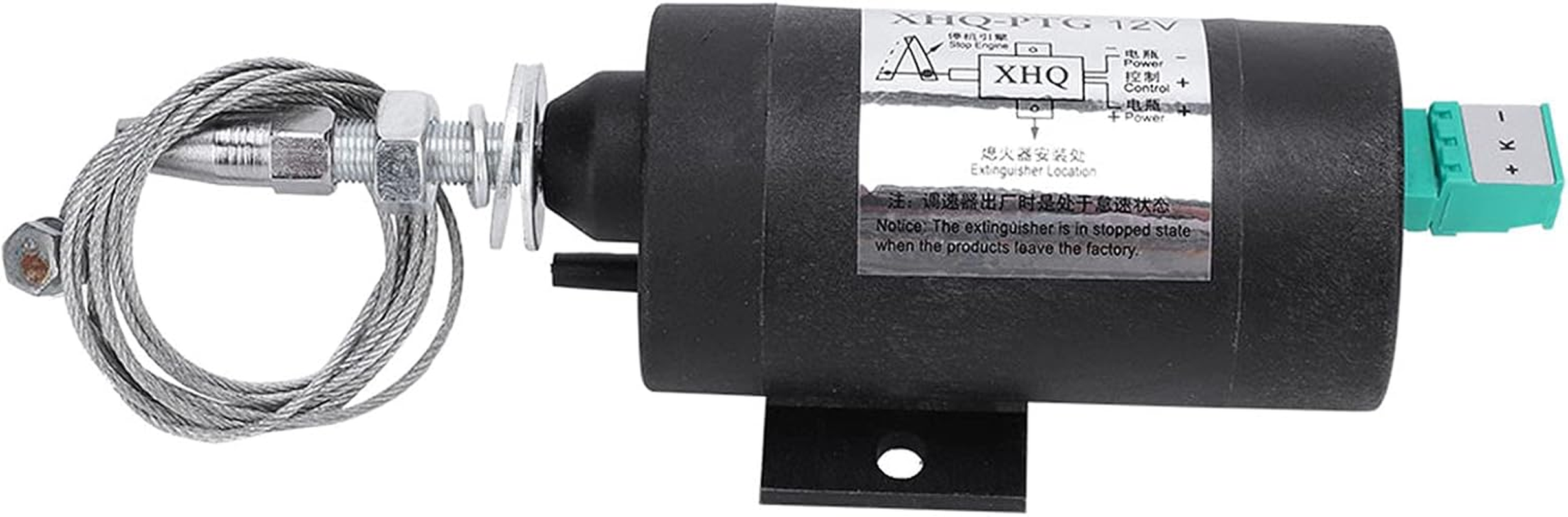

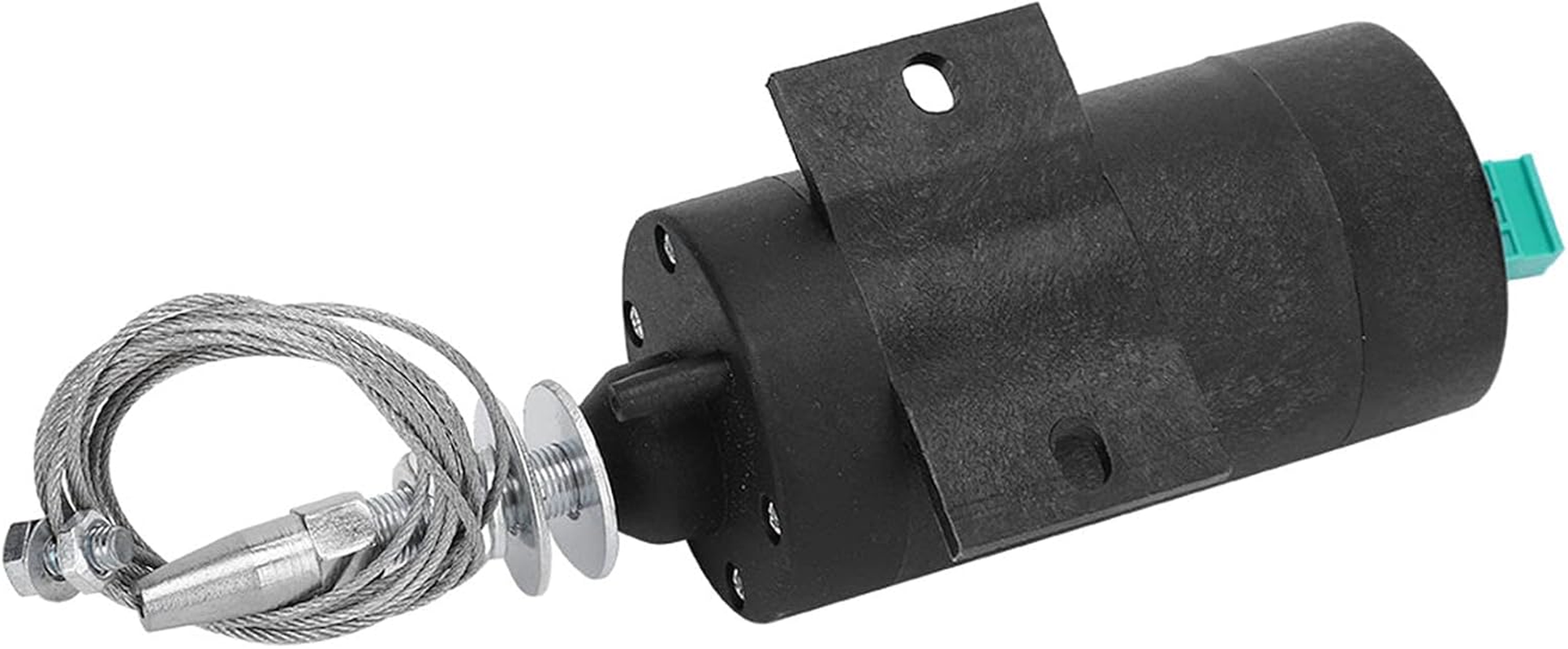

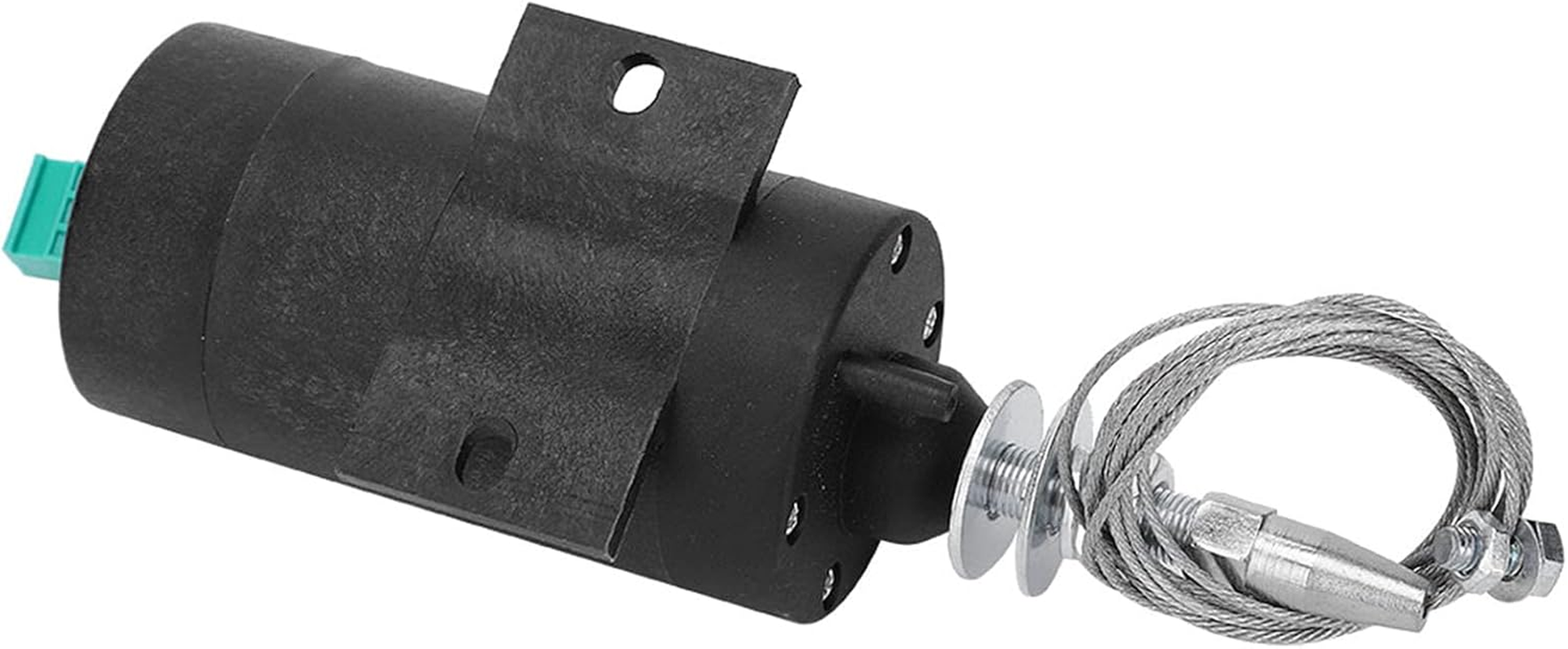

Item Type: Shutdown Solenoid Valve
Optional Voltage: DC12V, DC24V
Material: Plastic
Model: XHQ-PTG
Working Temperature: -30℃~60
Full Load Operating Current: 12V-2A/24V-1A
Tensile Force: 100N;
Stroke: 45±1mm;

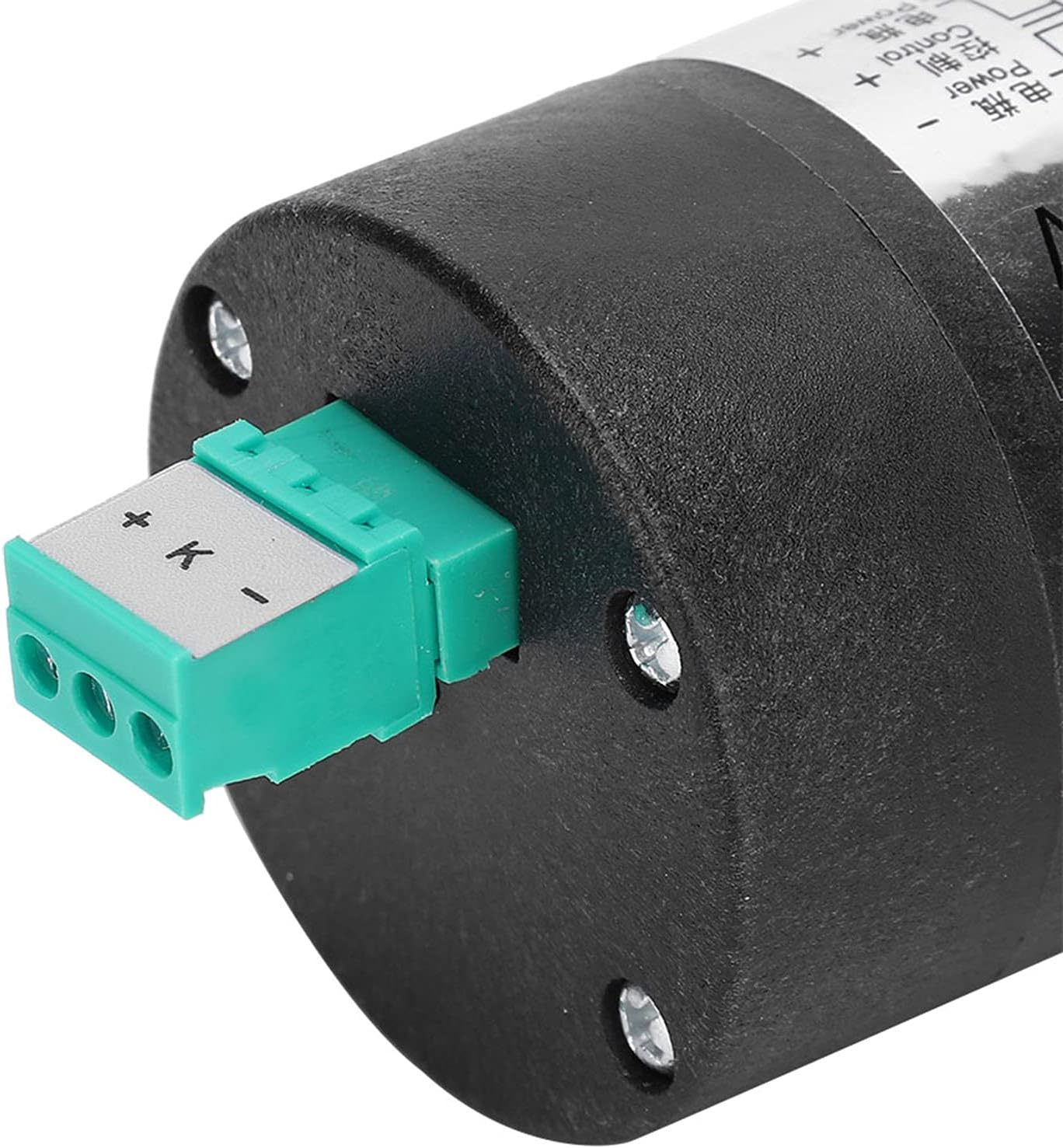

Wiring:
Red Wire: Battery positive;
Green Line: Flameout control line, positive pole is effective
Black Wire: Battery negative.
PackageList:
1 x Shutdown Solenoid Valve
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
