Features:

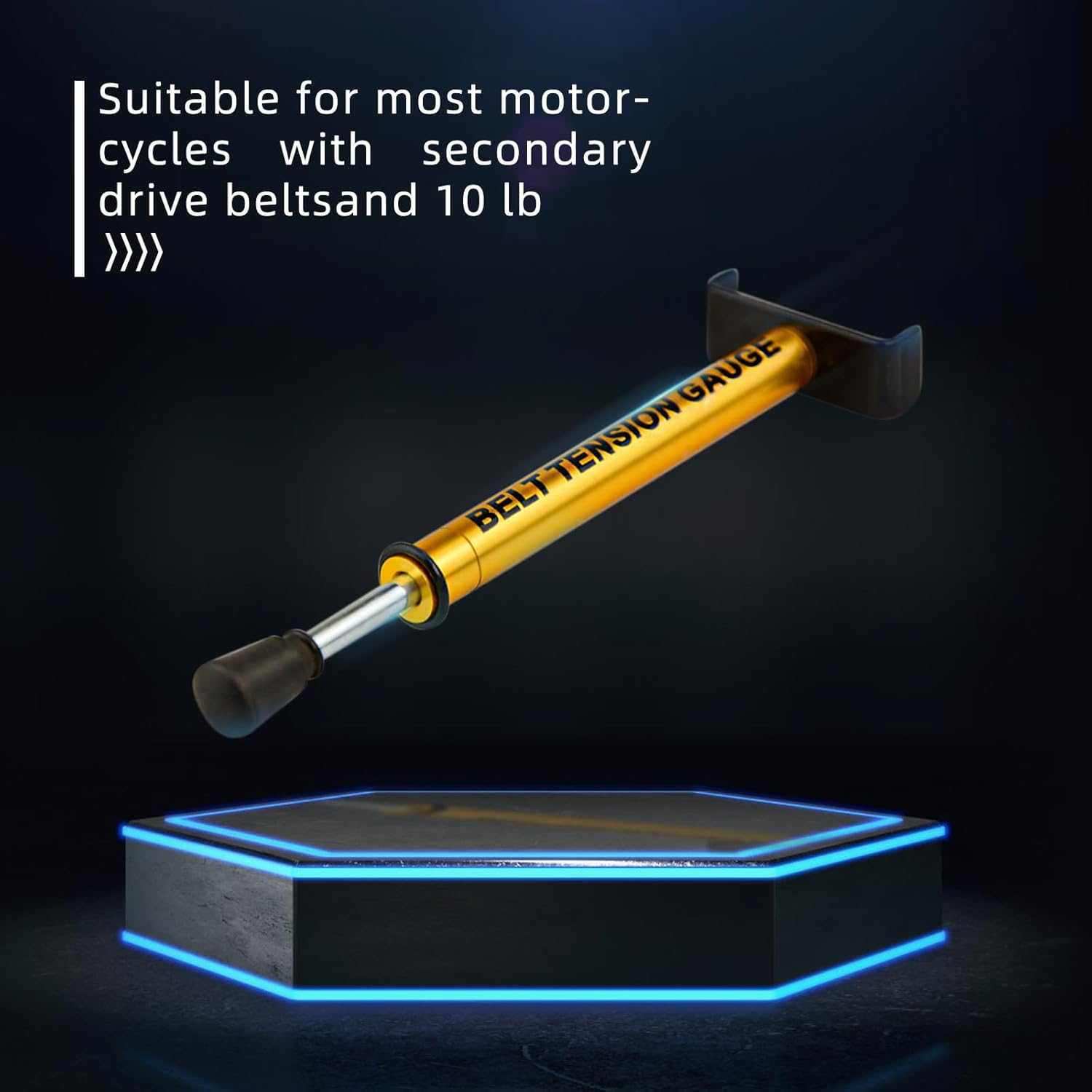

✔ Works on all belt drive models with a 10-lb. specification

✔ This gauge features a U-shaped cradle that fits all belt size with width below 40 mm or 1-9/16 inch

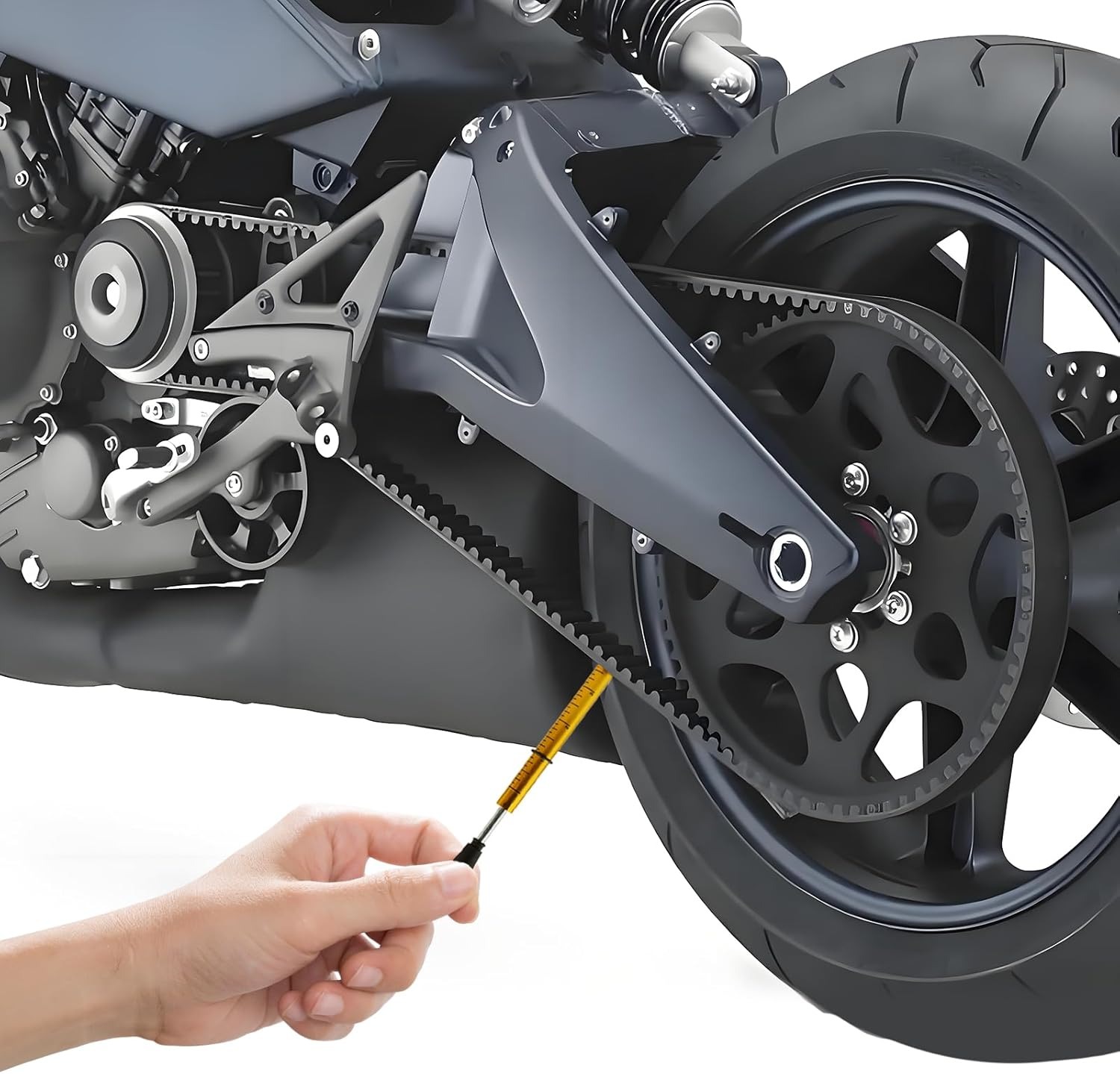

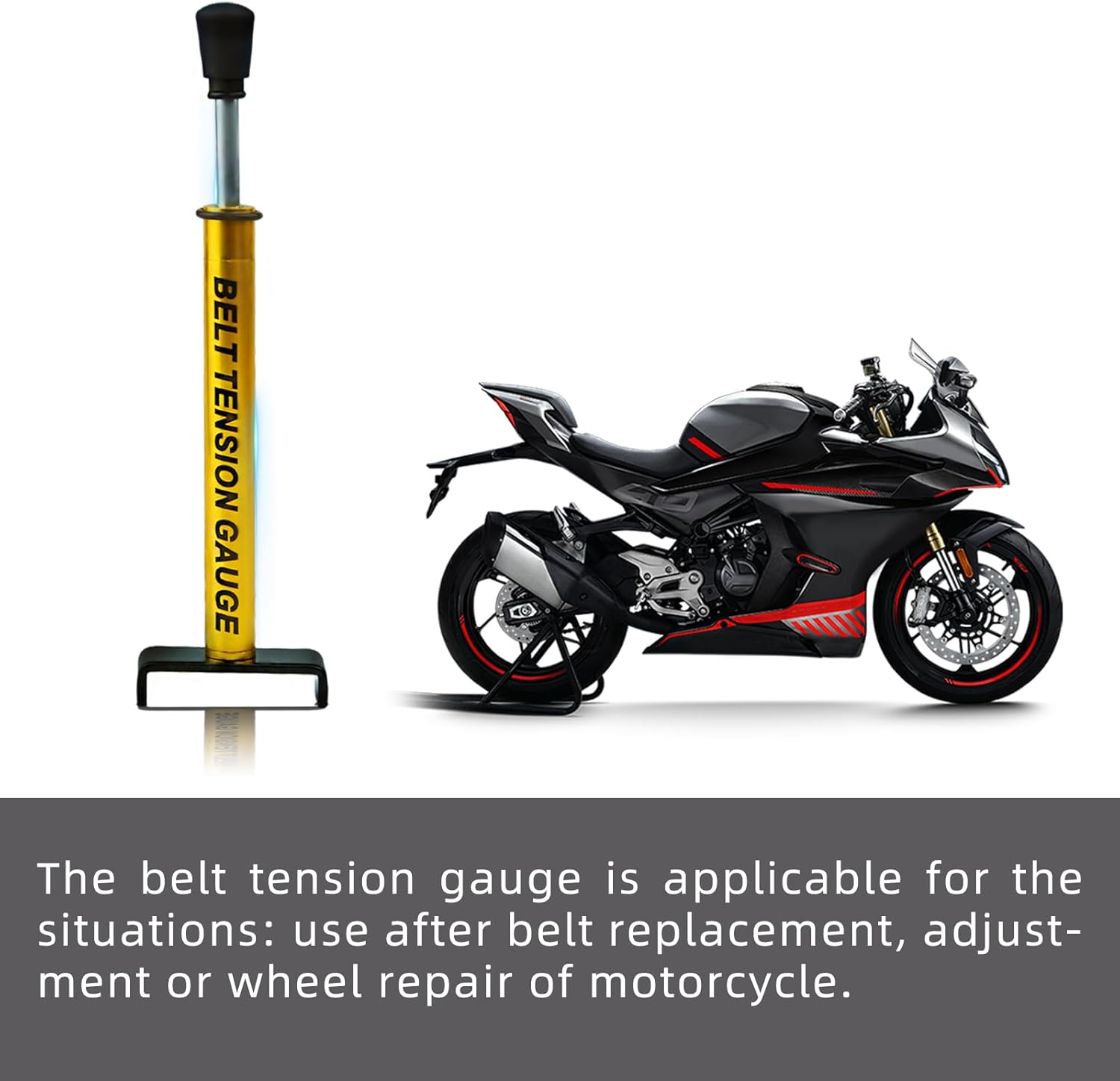

✔ Achieve accurate vehicle belt tension effortlessly, especially post-wheel service or belt adjustments. Designed for durability and convenient portability

How to Use:

① Position the small O ring over the 10 pounds mark.

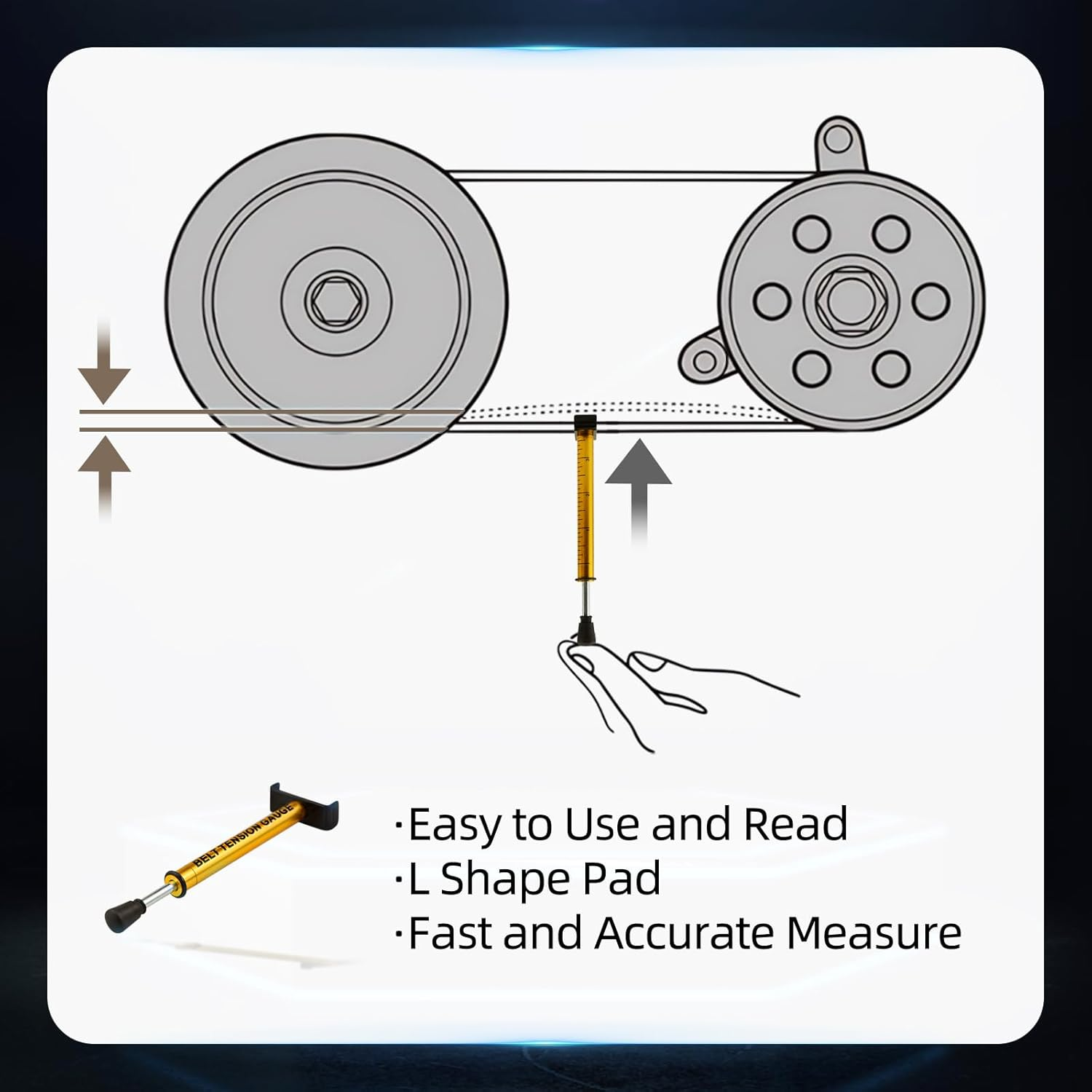

② Position the U shaped belt stand against the bottom of the belt at a 90 degree angle and locate the large O ring to a reference point, record reading.

③ Push upward on the rubber bumper until the small O ring touches the bottom of the tool body.

④ Realign the large O ring to the reference point; difference in the reading is the belt deflection.

Specifications:

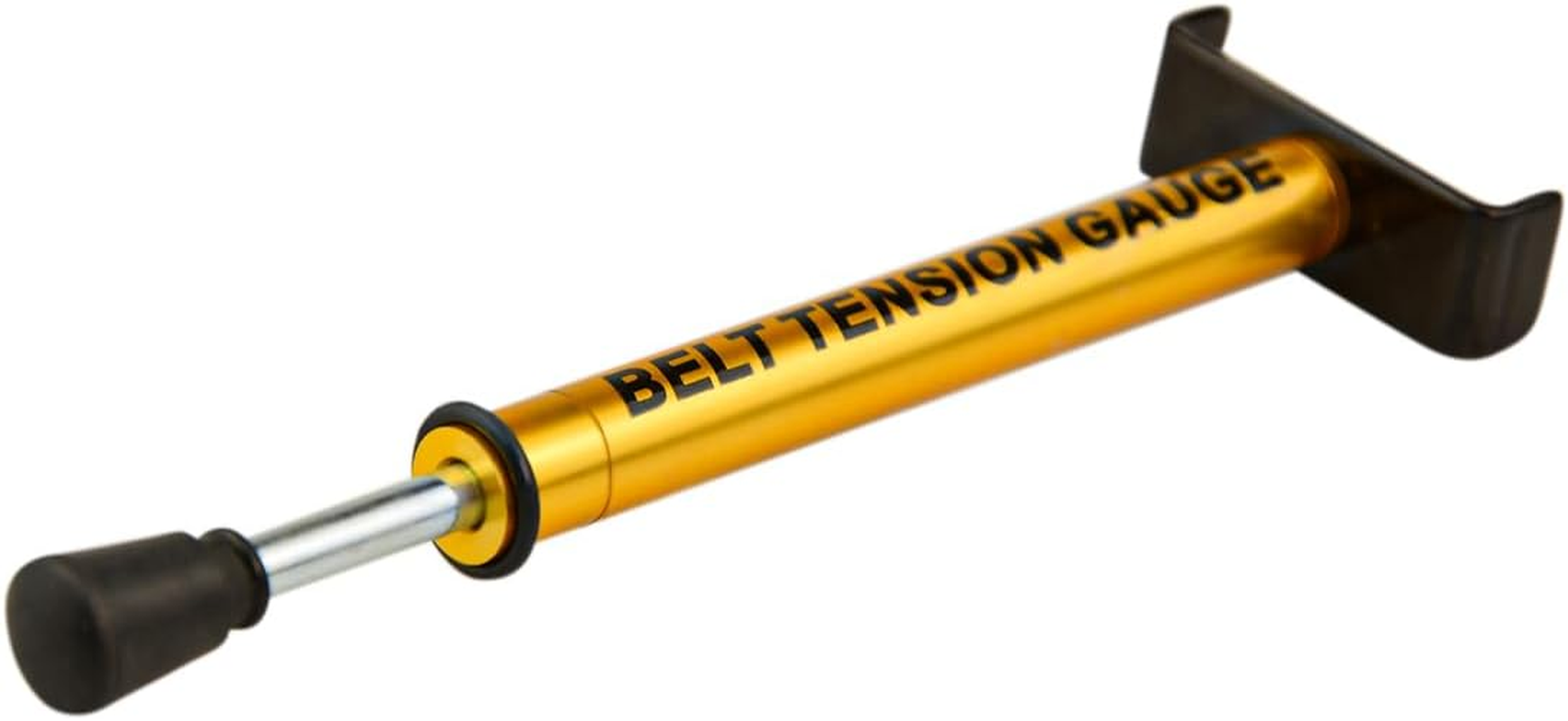

Product Name: Belt Tension Gauge

Product Material: Aluminum Alloy

Size: Approx. 4.5 x 16 cm (1.77 x 6.3 in)

Package List:

1 x Belt Tension Gauge

Note:

→ Due to manual measurement, there may be 1-2 mm measurement error, hope you can understand.
