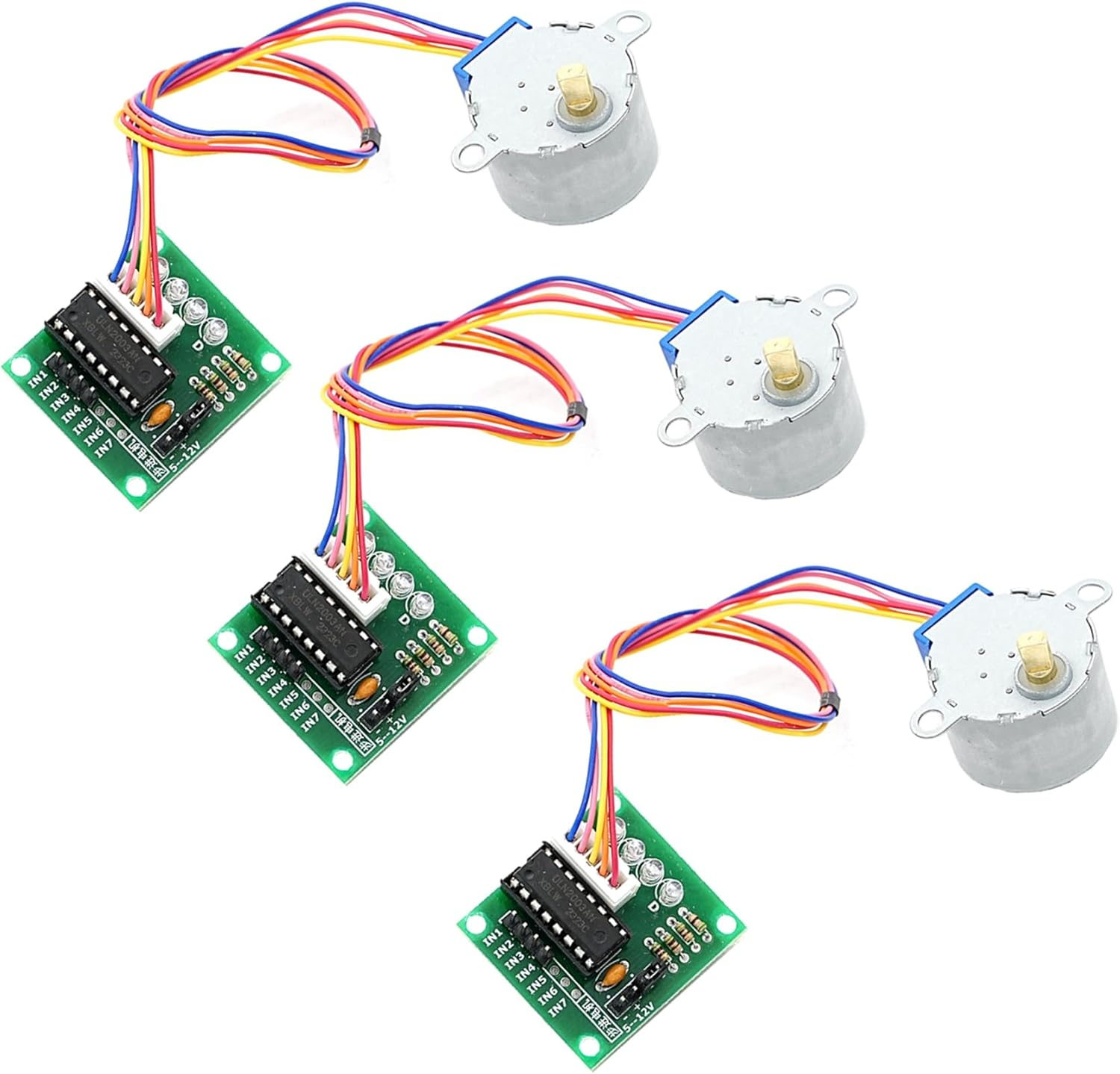

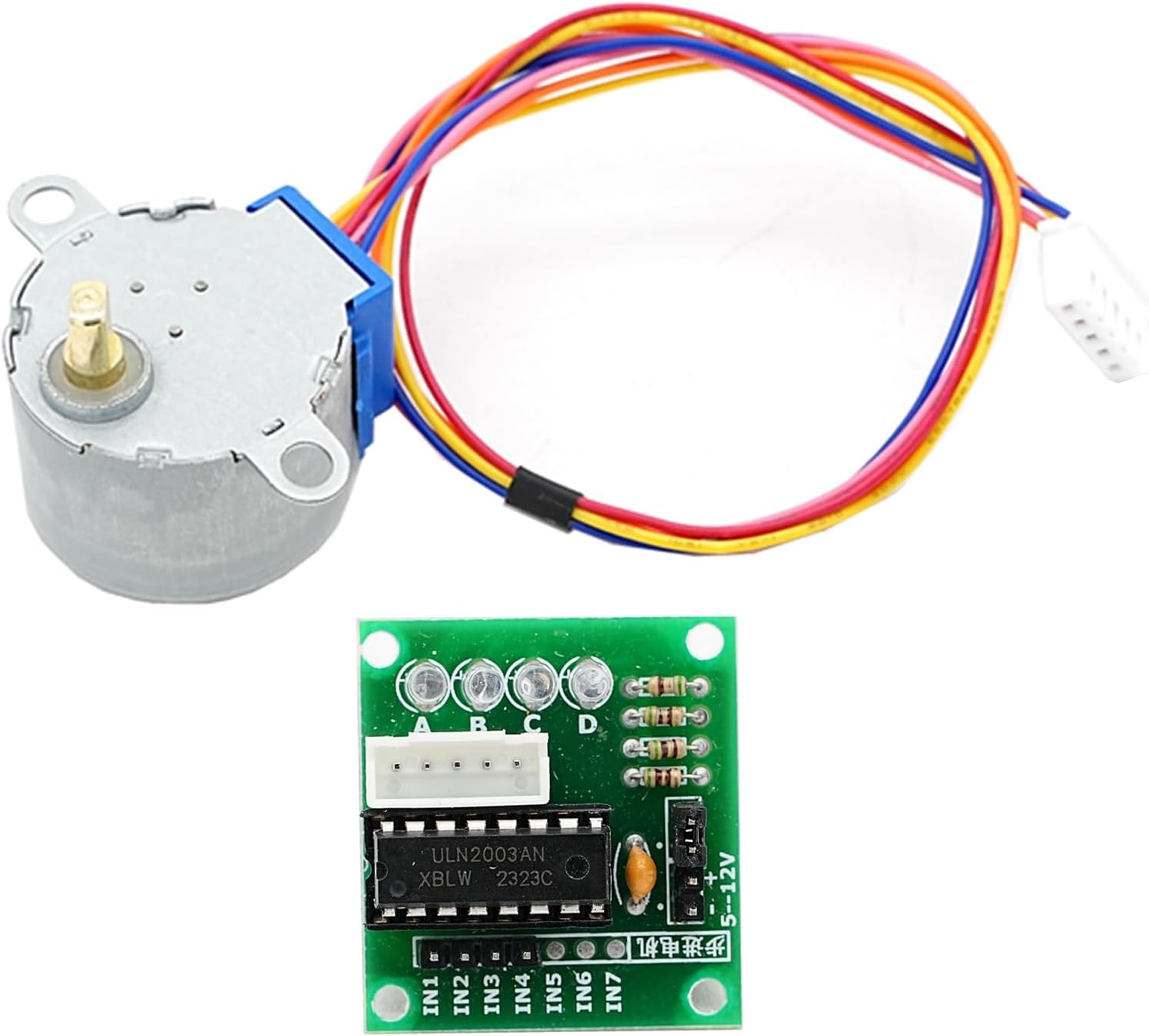

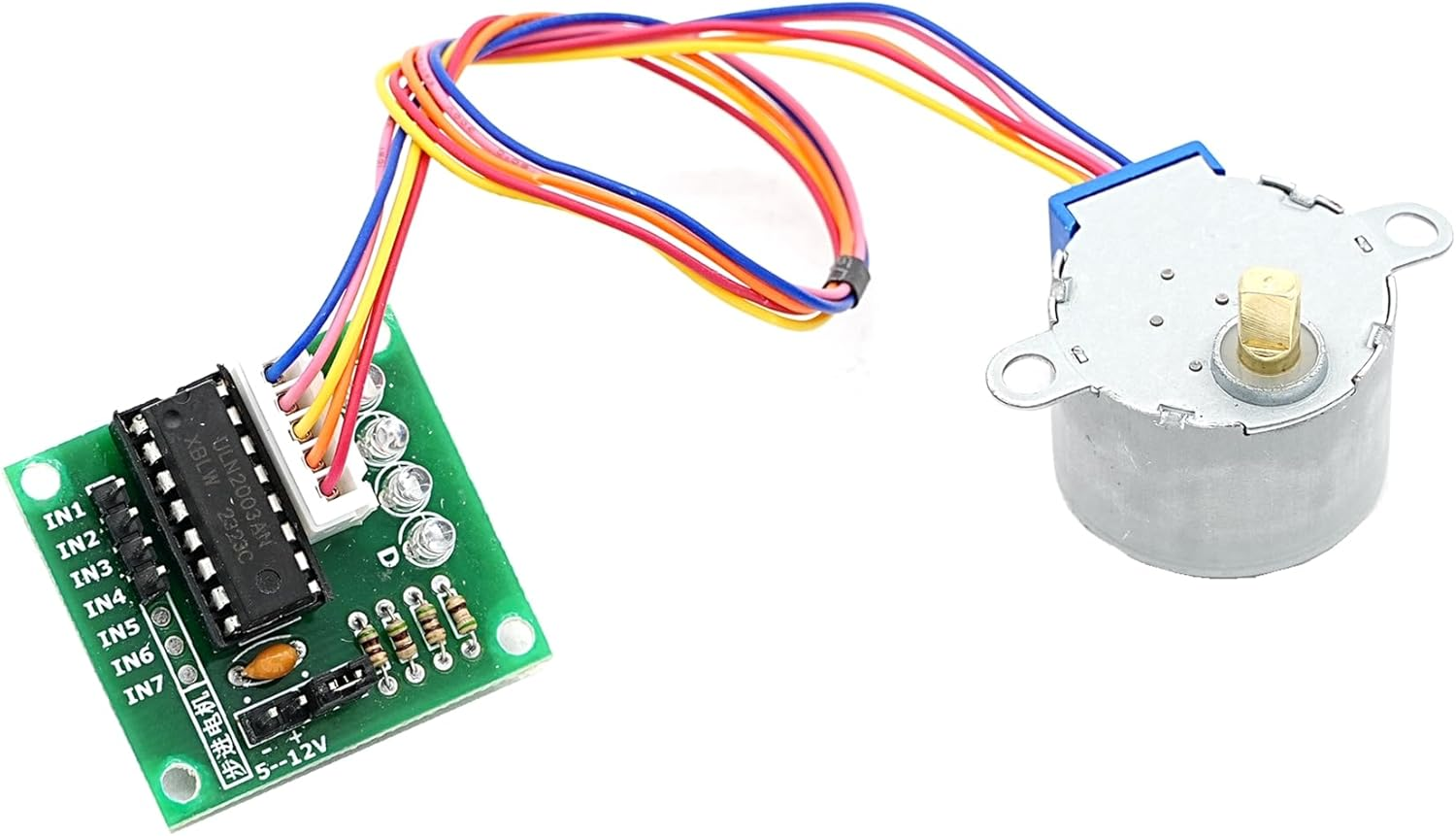

DIGISHUO 3Pcs ULN2003 28BYJ-48 4-Phase Stepper Motor with 5V Drive Board for Arduino PI PIC Raspberry Pi
DIGISHUO 3Pcs ULN2003 28BYJ-48 4-Phase Stepper Motor with 5V Drive Board for Arduino PI PIC Raspberry Pi
Brand: DIGISHUO
A$21.45

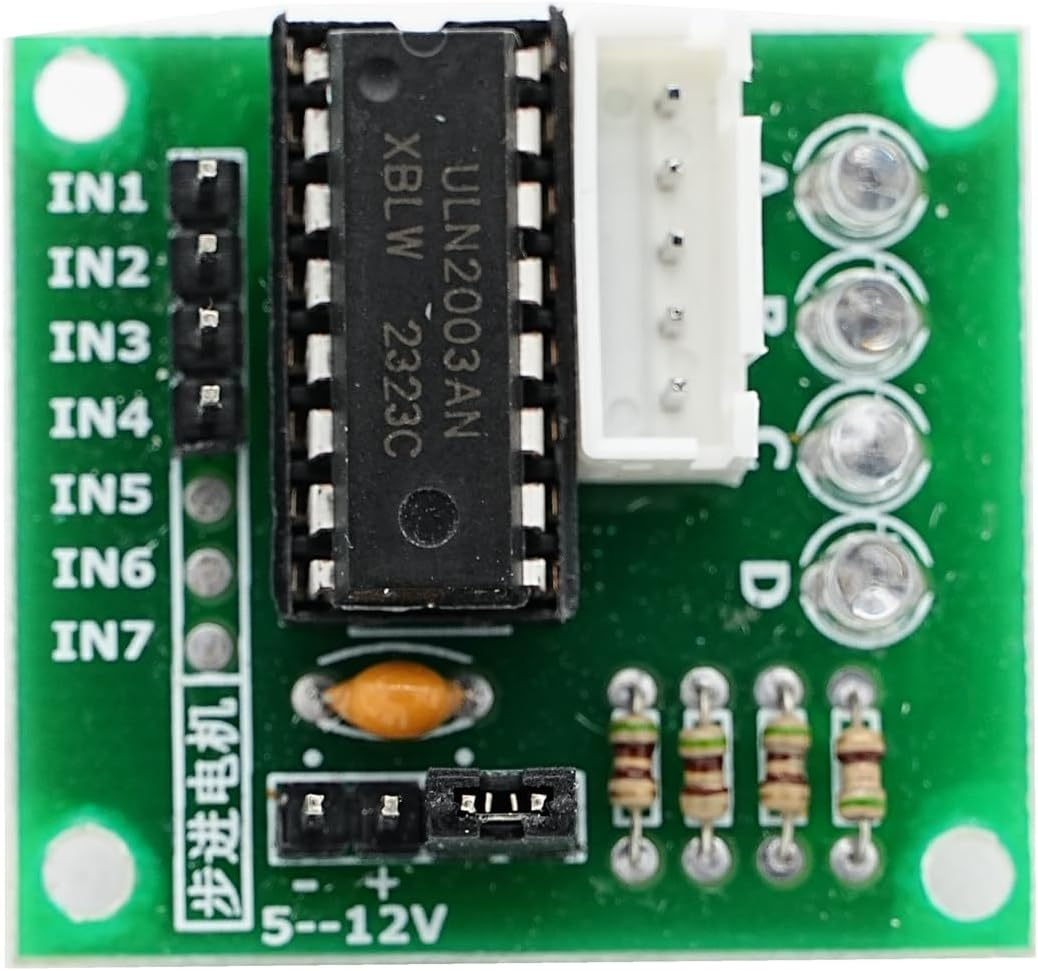

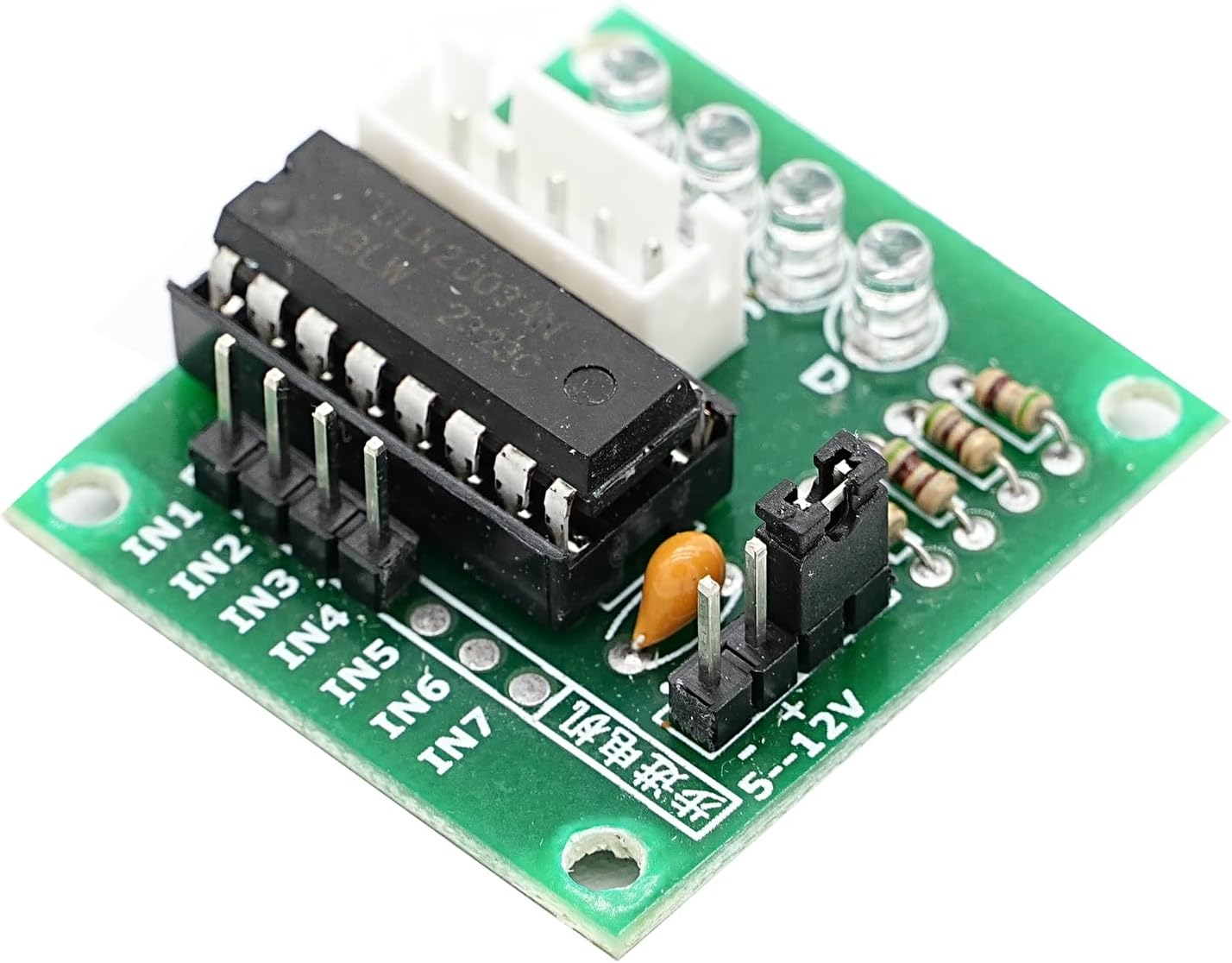

- ※The ULN2003 module is often used to drive a small five-wire four-phase motor, and there's A,B,C,D light diodes indicate the working state of the four-phase stepper motor. Equipped with a standard interface of the stepper motor,can directly plugged in and out.
- ※5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board，With convenient use, direct docking
- ※Stepper motor can converts pulse signals into angular displacement or linear displacement. It is the main executive element in modern digital program control systems.
- ※Speed down stepping motor | Stepping angle: 5.625 X 1/64 | Diameter: 28mm
- ※Widely application: It is suitable for various platforms such as 51、avr、arm Compatible with Arduino and the needs of robot design and development.
product name：Stepper Motor+ Driver Board ULN2003 5V 4-phase 5 line
Specification:
Rated voltage: DC 5V 4-phase
Step angle: 5.625 x 1/64
DC resistance: 200Ω±7% (25C)
Insulation resistance: >10MΩ (500V)
Dielectric strength: 600V AC / 1mA / 1s
Insulation grade: A
No-load pull in frequency: >600Hz
No-load pull out frequency: >1000Hz
Pull in torque: >34.3mN.m(120Hz)
Detent torque: >34.3mN.m
Temperature rise: <40K(120Hz)
Noise: <40dB (120Hz, No load, 10cm)
Diameter: 2.5cm(0.98in)(approx)
Width: 2cm(0.79in)(approx)
Color: As pictures shown.
You will receive it:
3PCS Driver Boards
3PCS Stepper Motors

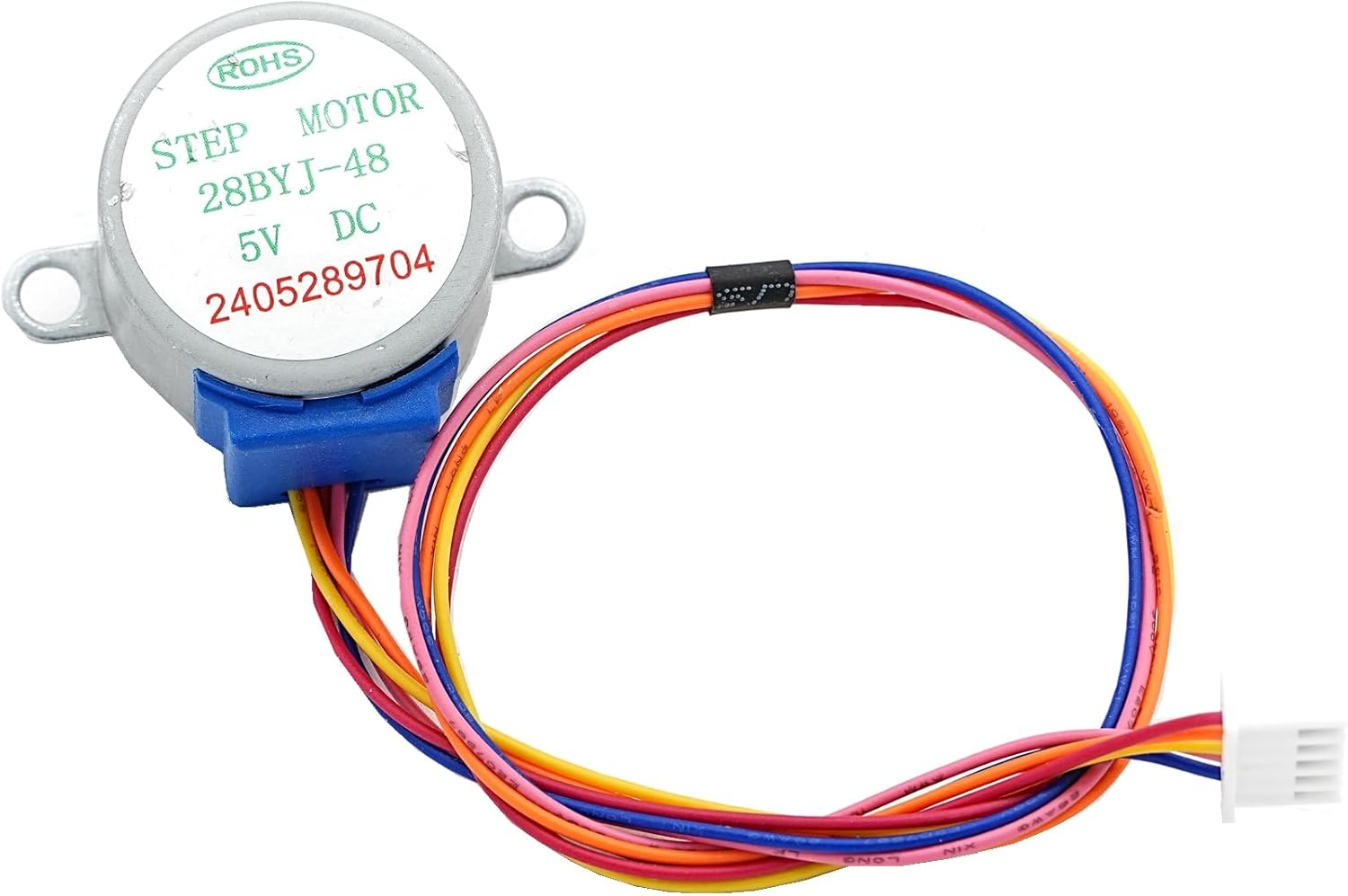

- Item Model Number: 28BYJ-48
- Number of items: 3
- Country/Region of origin: China
- Batteries Required: No
- Brand: DIGISHUO
- Item Weight: 140 g
- Ram Memory Technology: 1
- Model Name: Stepper Motor
- Model: 28BYJ-48
- Package Dimensions: 10.3 x 7.2 x 3.4 cm; 140 Grams
- Manufacturer: DIGISHUO
