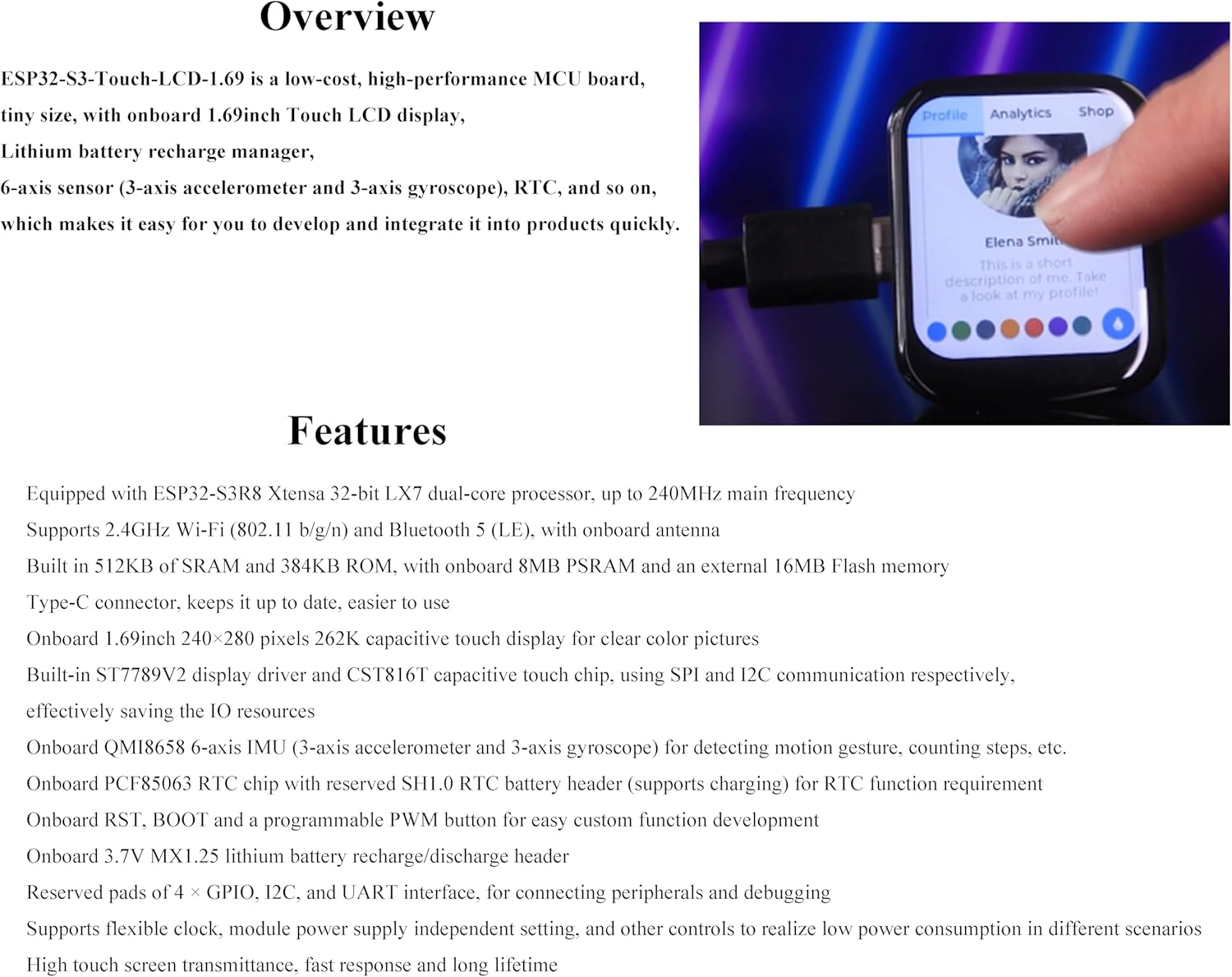

Overview

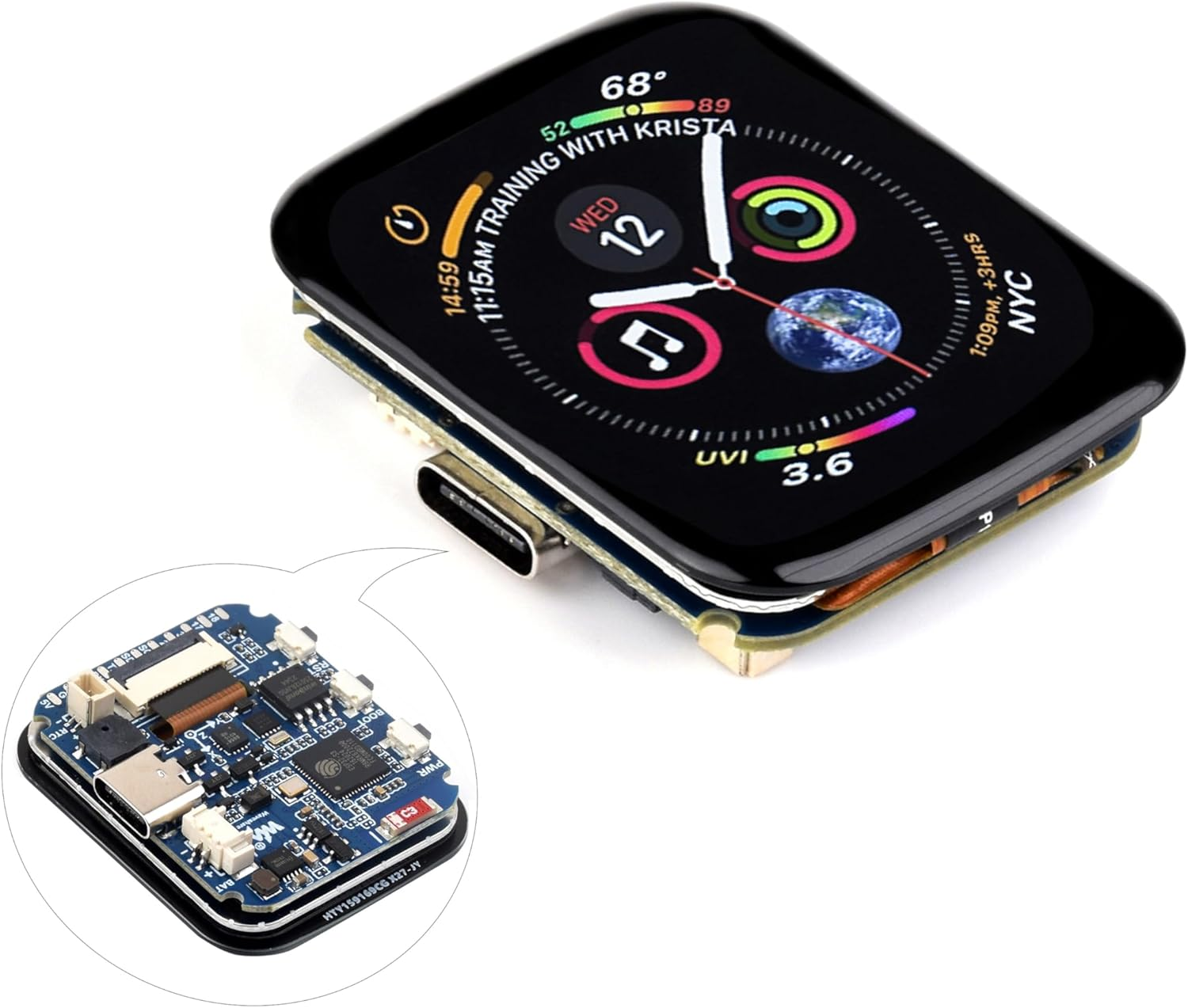

ESP32-S3-Touch-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.69inch LCD display, Li-thi-um ba-tt-ery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and integrate it into products quickly.
Features
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (LE), with onboard an tenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.69inch 240×280 pixels 262K capacitive touch display for clear color pictures

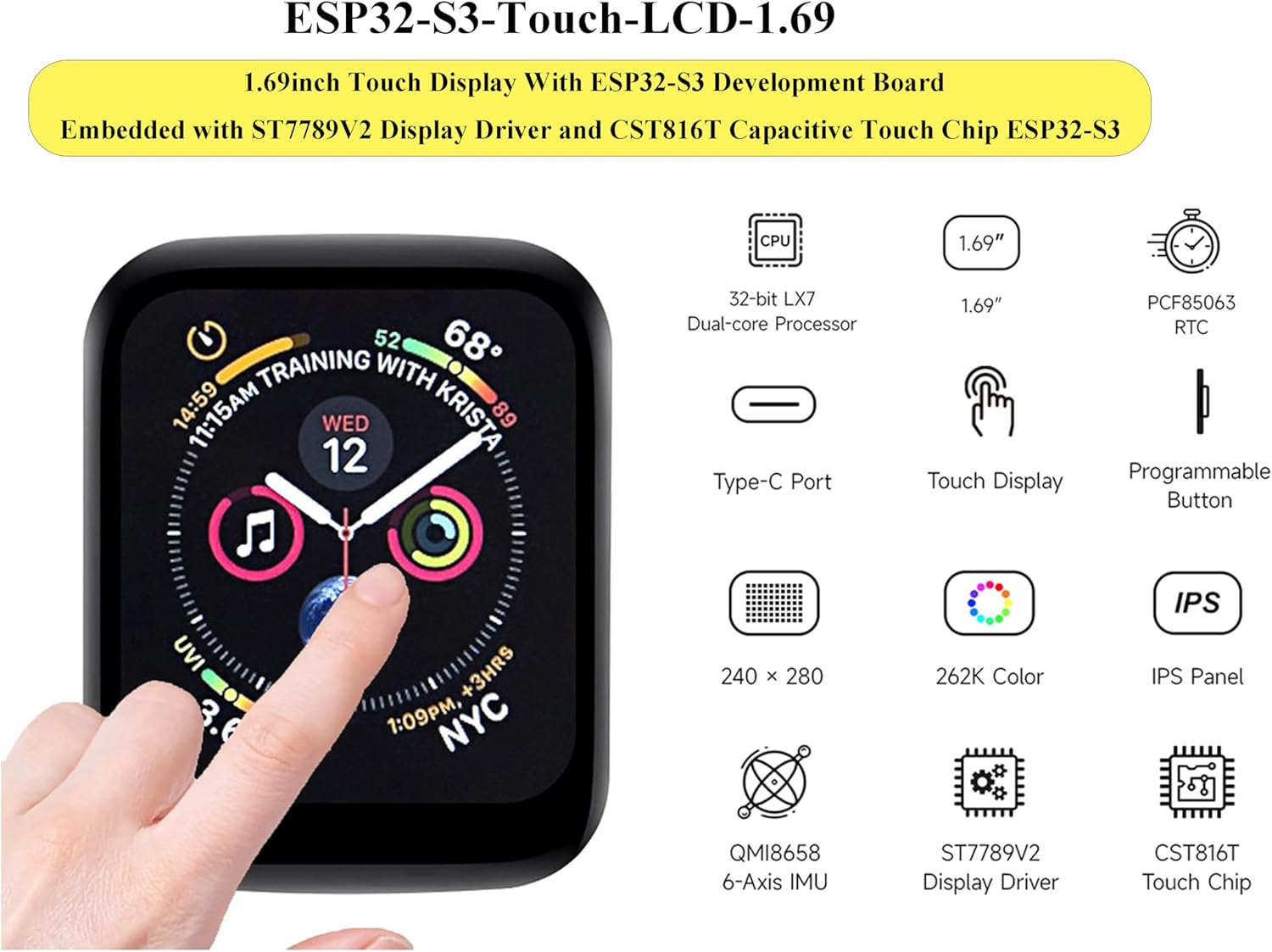

Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved SH1.0 R TC batte ry header (supports charging) for RTC function requirement

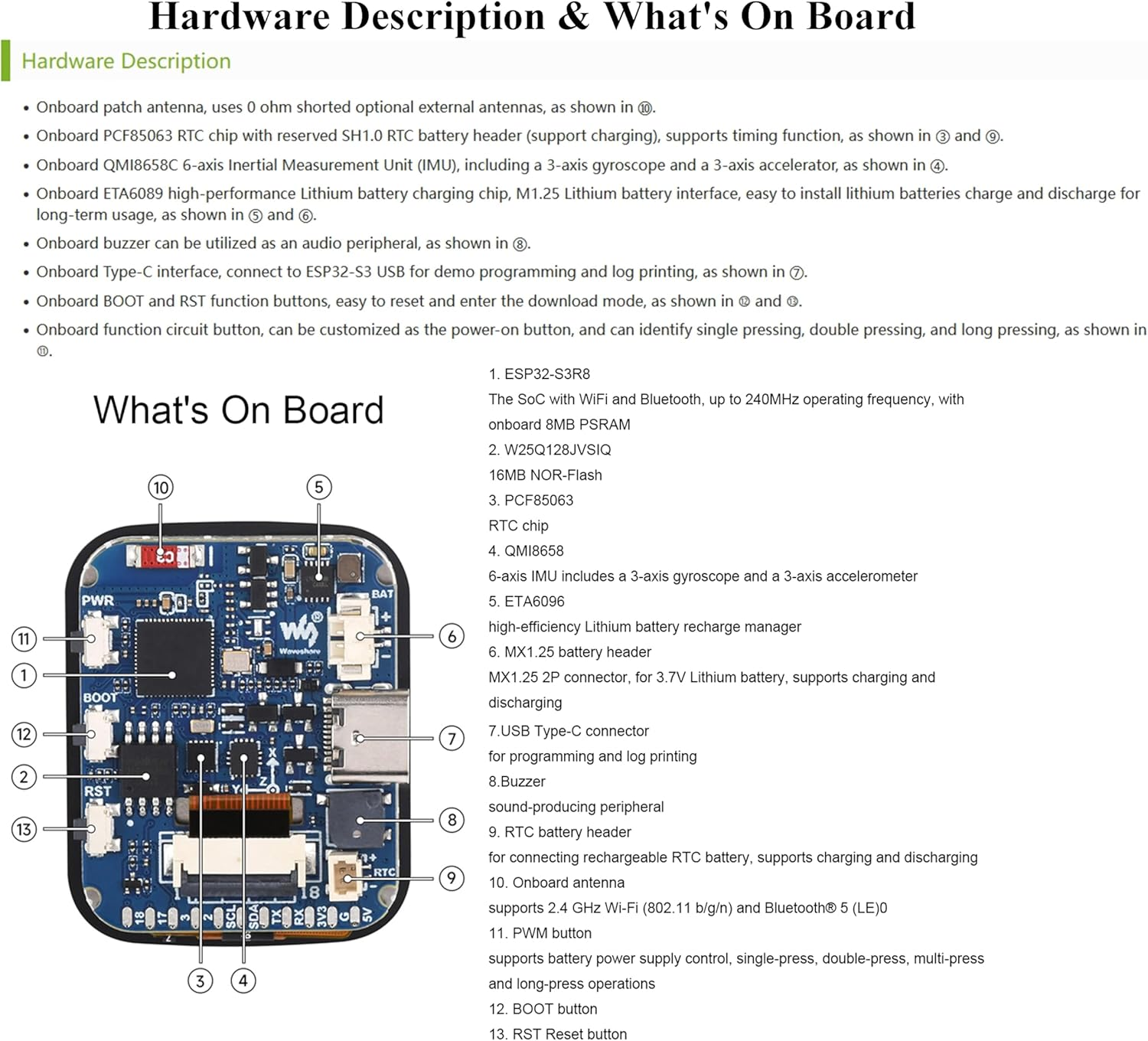

Onboard RST, BOOT and a programmable PWM button for easy custom function development
Onboard 3.7V MX1.25 lith-iu-m ba-tte-ry recharge/discharge header

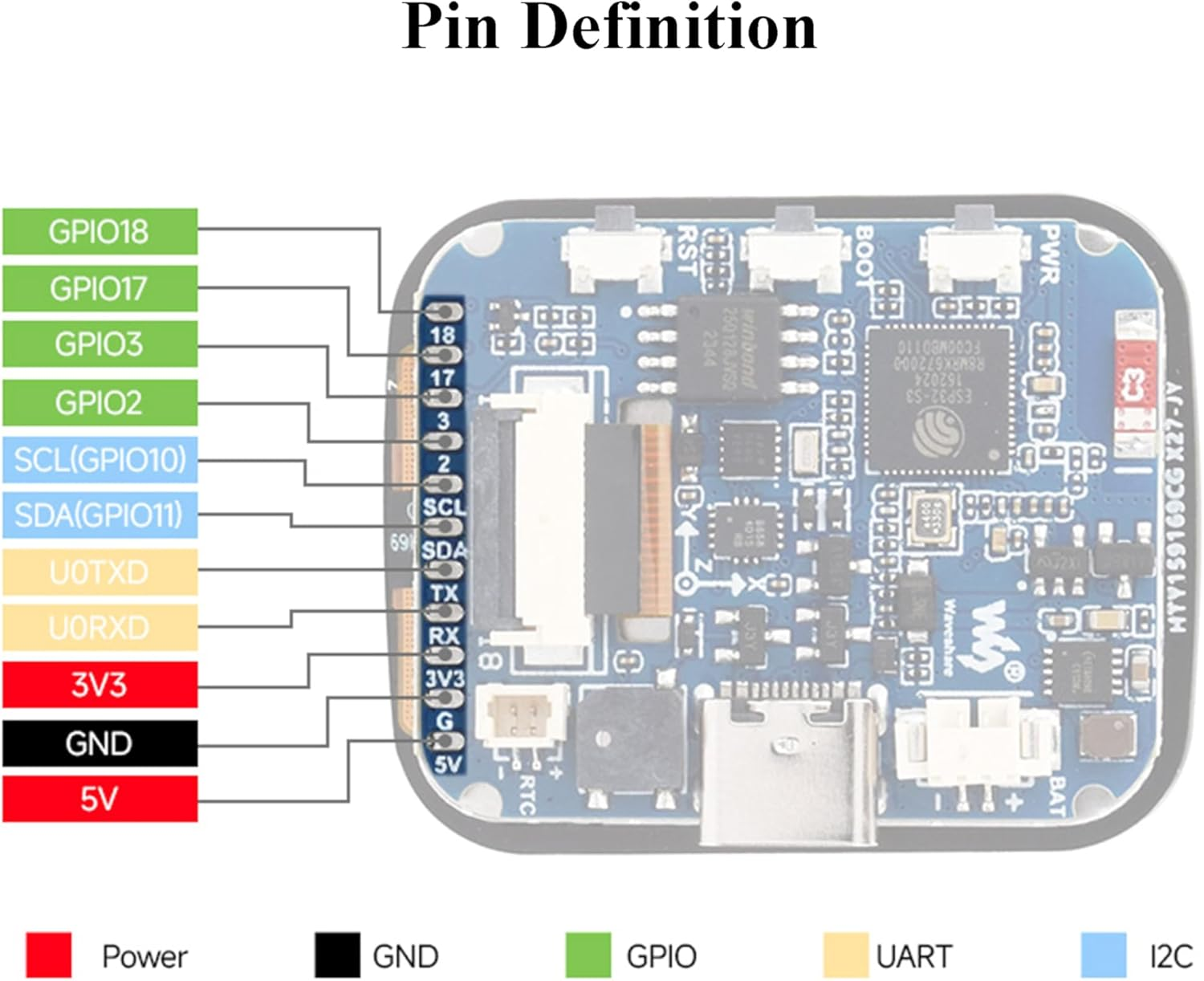

Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
High touch screen transmittance, fast response and long lifetime
Comes with Online Development Resources /User Manual: bit.ly/3QKw5Mv
Package Content
ESP32-S3-Touch-LCD-1.69 x1
