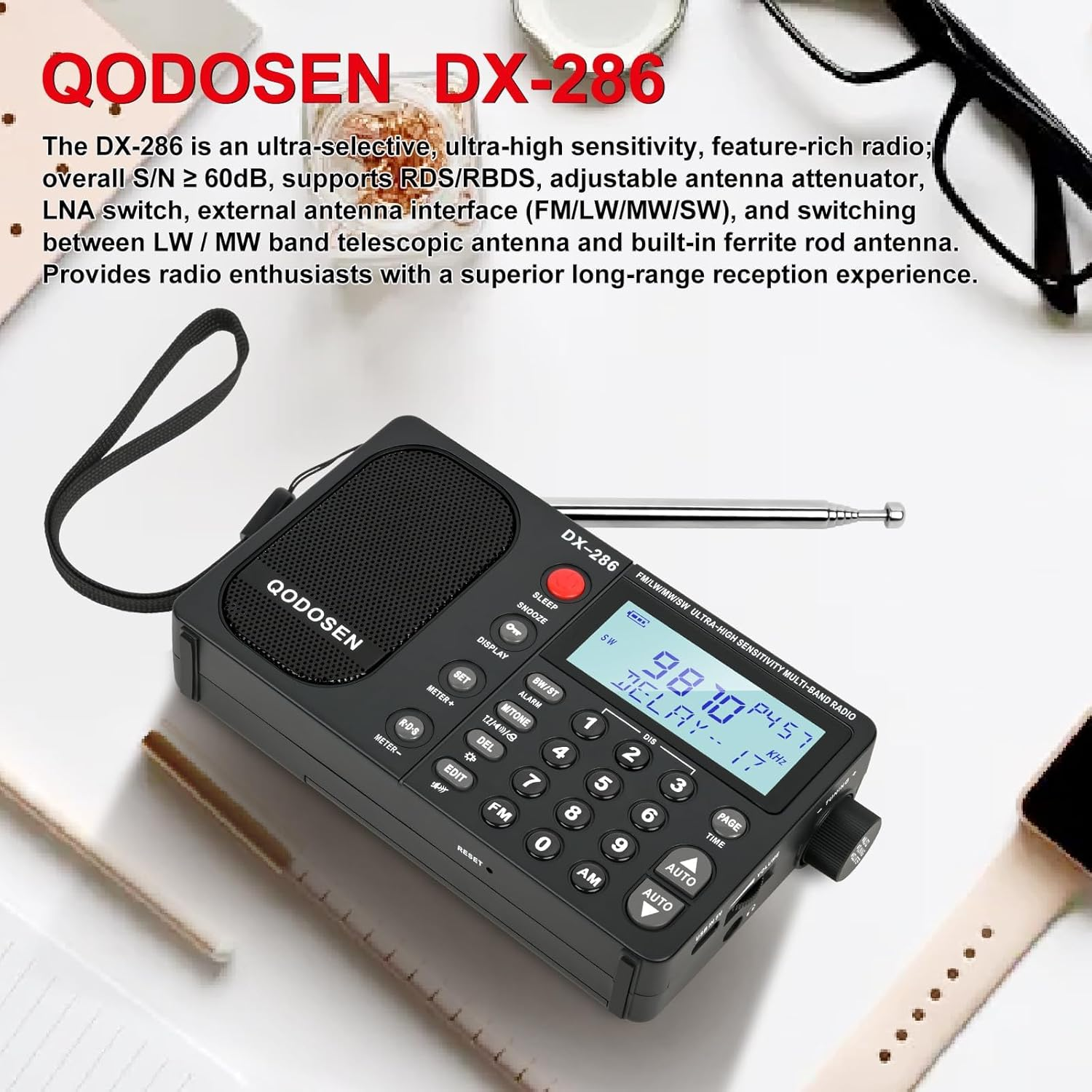

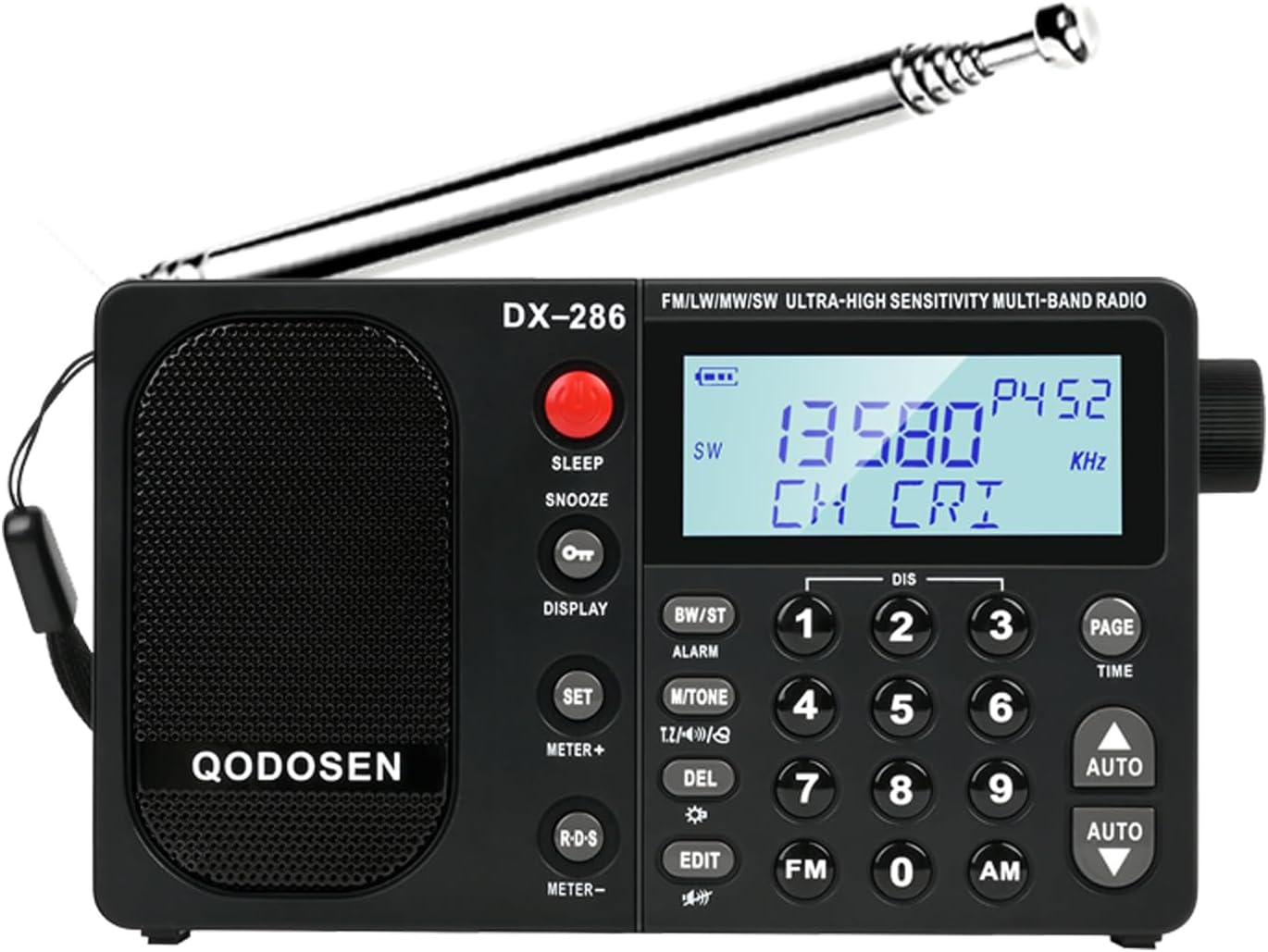

QODOSEN DX-286 Introduction

1.DX-286 ( the performance is the same as QODOSEN SR-286 with more user-friendly operation) adopts NXP's high-performance automotive chip TEF6686 to ensure superior selectivity and ultra-high sensitivity.Better reception experience for you!

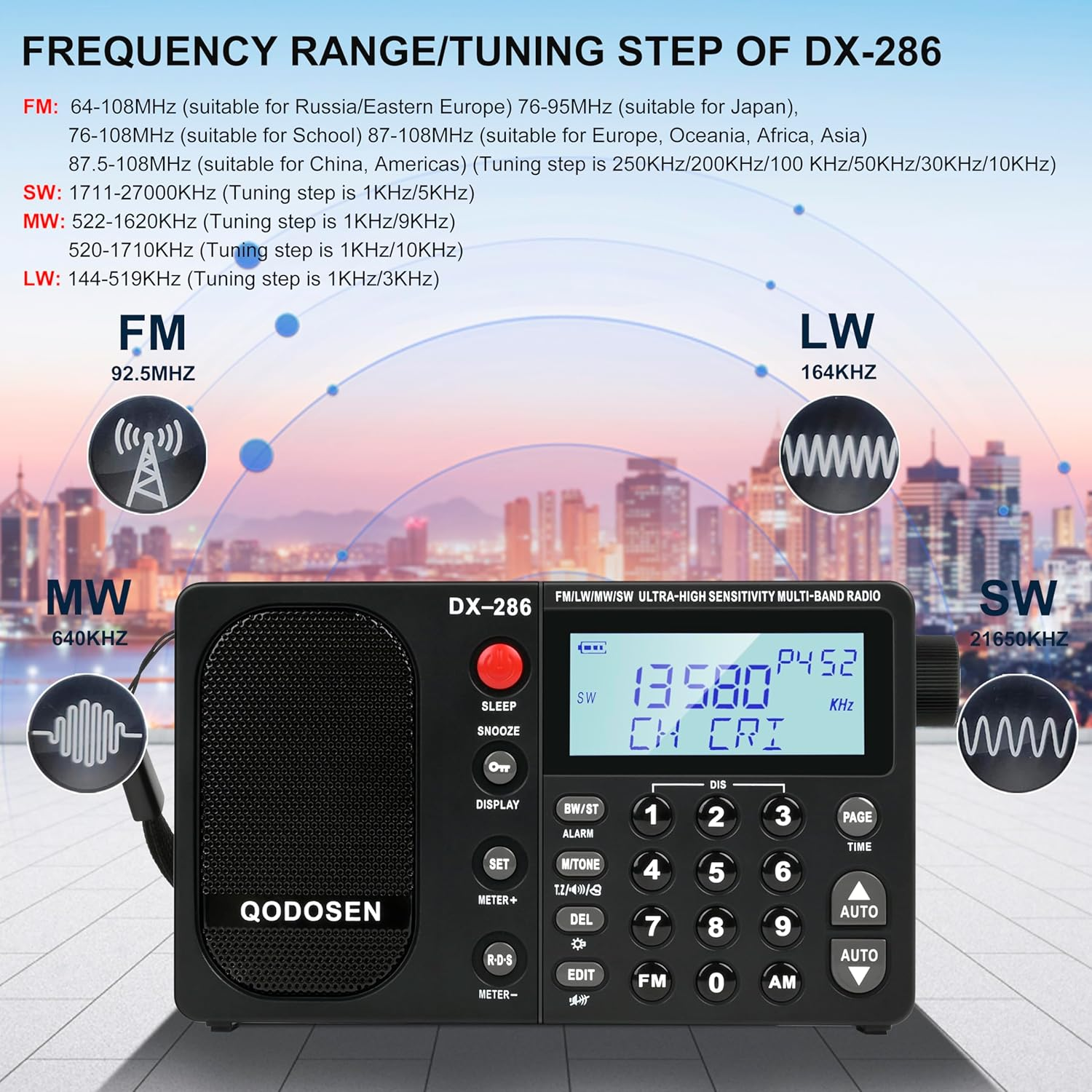

2.FM band support 64-108MHz, support RDS/RBDS Radio Data System, 5 kinds of frequency range selectable,6 kinds of step selectablesuitable for diferent areas to receive;there are 17 kinds of bandwidth selection, with excellent selectivity.

3.S/N Ratio ≥ 60dB, clear signal, low noise, built-in adjustable antenna attenuator, improve the overload resistance;LW/MW/SW band with built-in low-noise amplifier switch to improve the reception sensitivity.

4.All bands support external antennas, using an external antenna can make the DX-286's sensitivity even better.

5.LW and Mw bands support switching between telescopic antenna and internal ferrite bar antenna. In an outdoor setting with minimal interference, reception is even better with a telescopic antenna or external antenna.

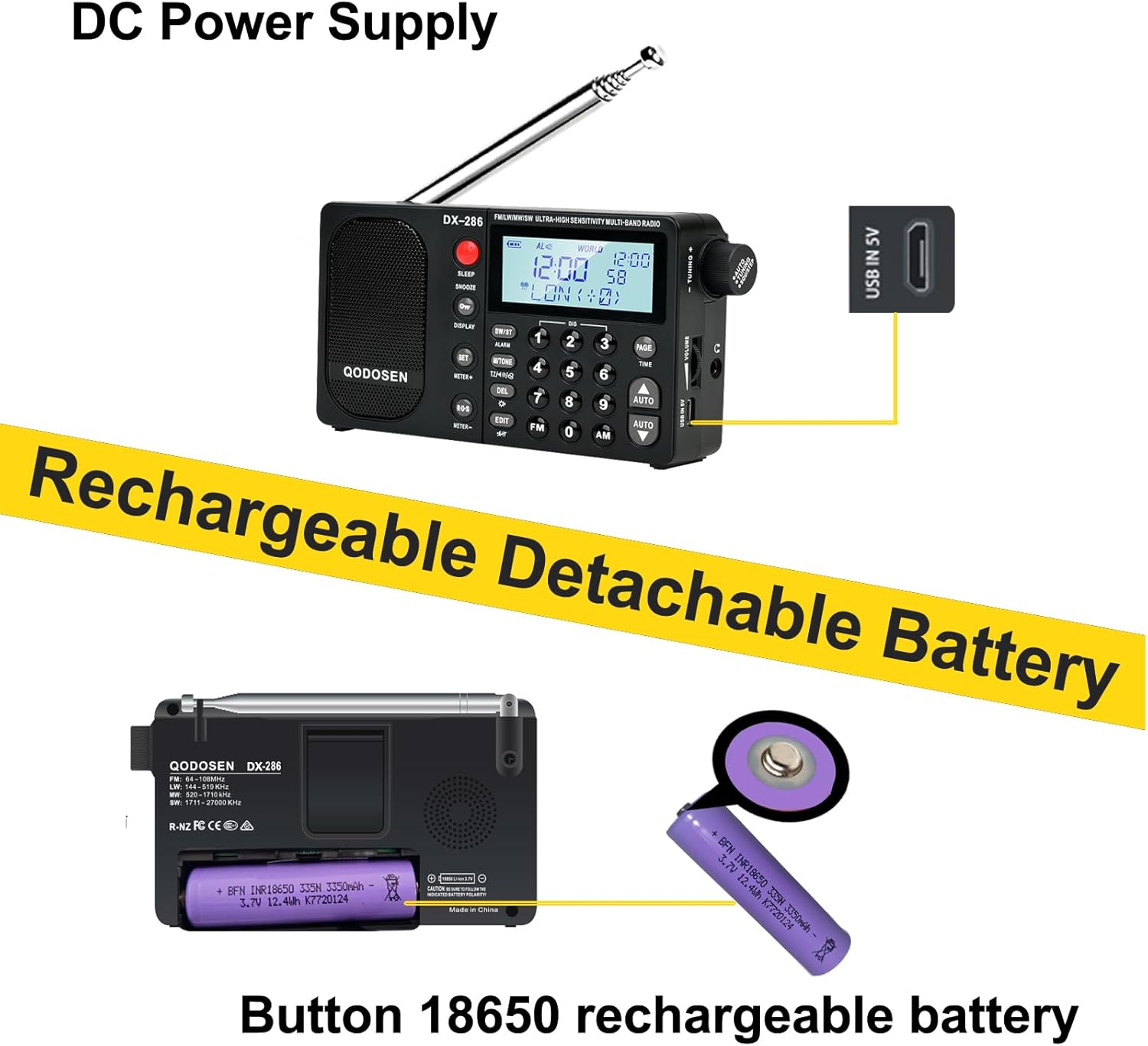

18650 BATTERY POWERED/INDEPENDENT AMPLIFIER DESIGN

1. The DX-286 uses a button-top 18650 battery, not a flat-top, that can be replaced easily. It can also be recharged with a standard 5V USB charger when the battery is dead. (Avoid the use of fast chargers to avoid damage).

2. The DX-286 uses separate amplifiers for speakers and headphones to reduce interference and enhance sound quality,with greater dynamics, wider range and less distortion.

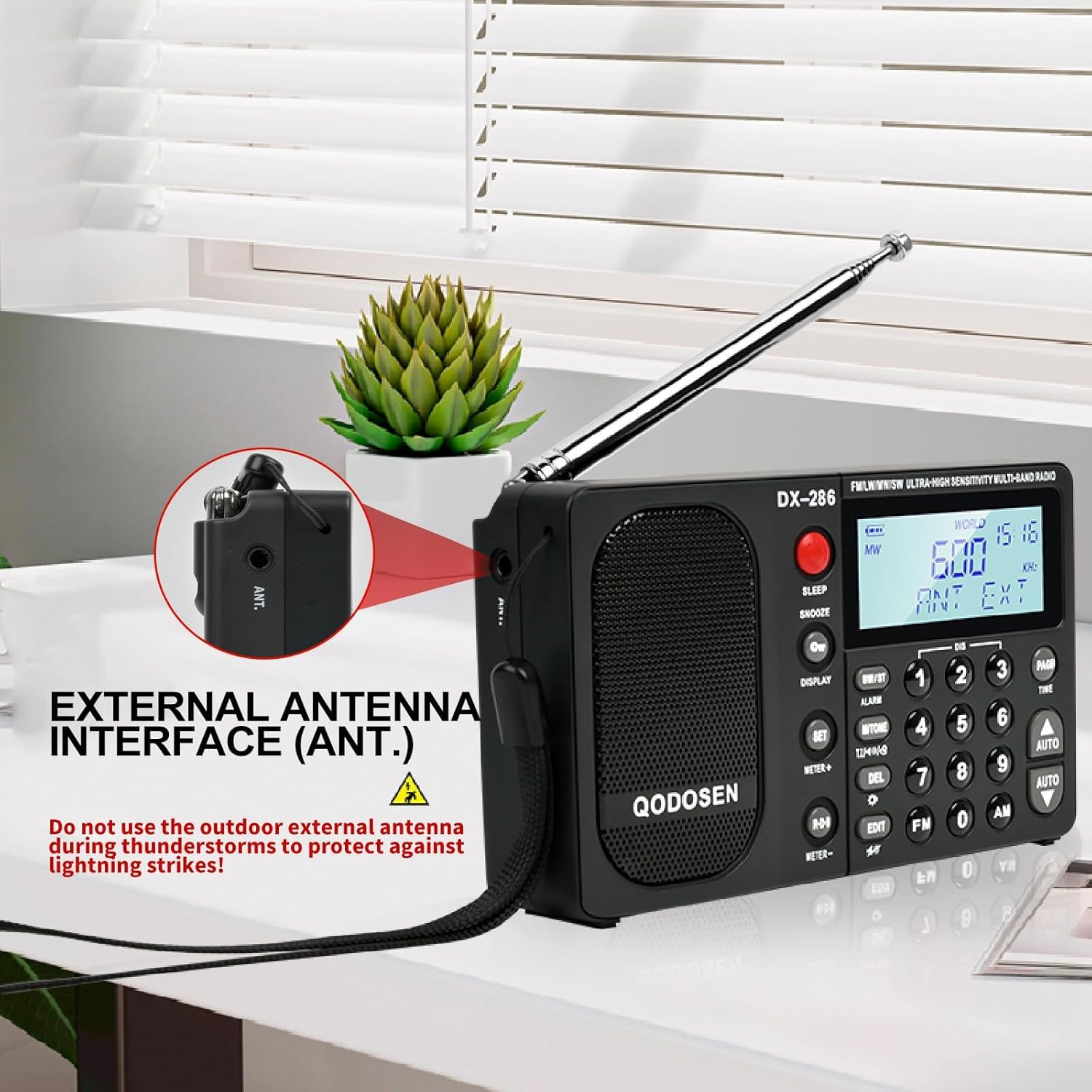

External antenna interface, supports all bands including LW/MW

1. Improved signal reception quality: By connecting an external antenna, the radio's sensitivity to receiving radio waves is enhanced, thus improving the quality of signal reception and allowing the radio to pick up more channels and clearer audio.

2. Expanded reception range: An external antenna can help broaden the radio's reception range, especially in areas with weak signals or limited signal coverage, allowing for a wider range of reception.

3. Reduced interference: Indoor environments often contain various sources of interference, such as electrical devices and metal structures, which can affect the radio's reception. Connecting an external antenna allows the antenna to be placed in a location with better signal reception, reducing the impact of such interference.

4. Convenient adjustment of antenna position: External antennas typically come with longer cables, allowing users to conveniently place the antenna in different positions to achieve the best signal reception. Users can optimize reception by adjusting the antenna's position and direction.

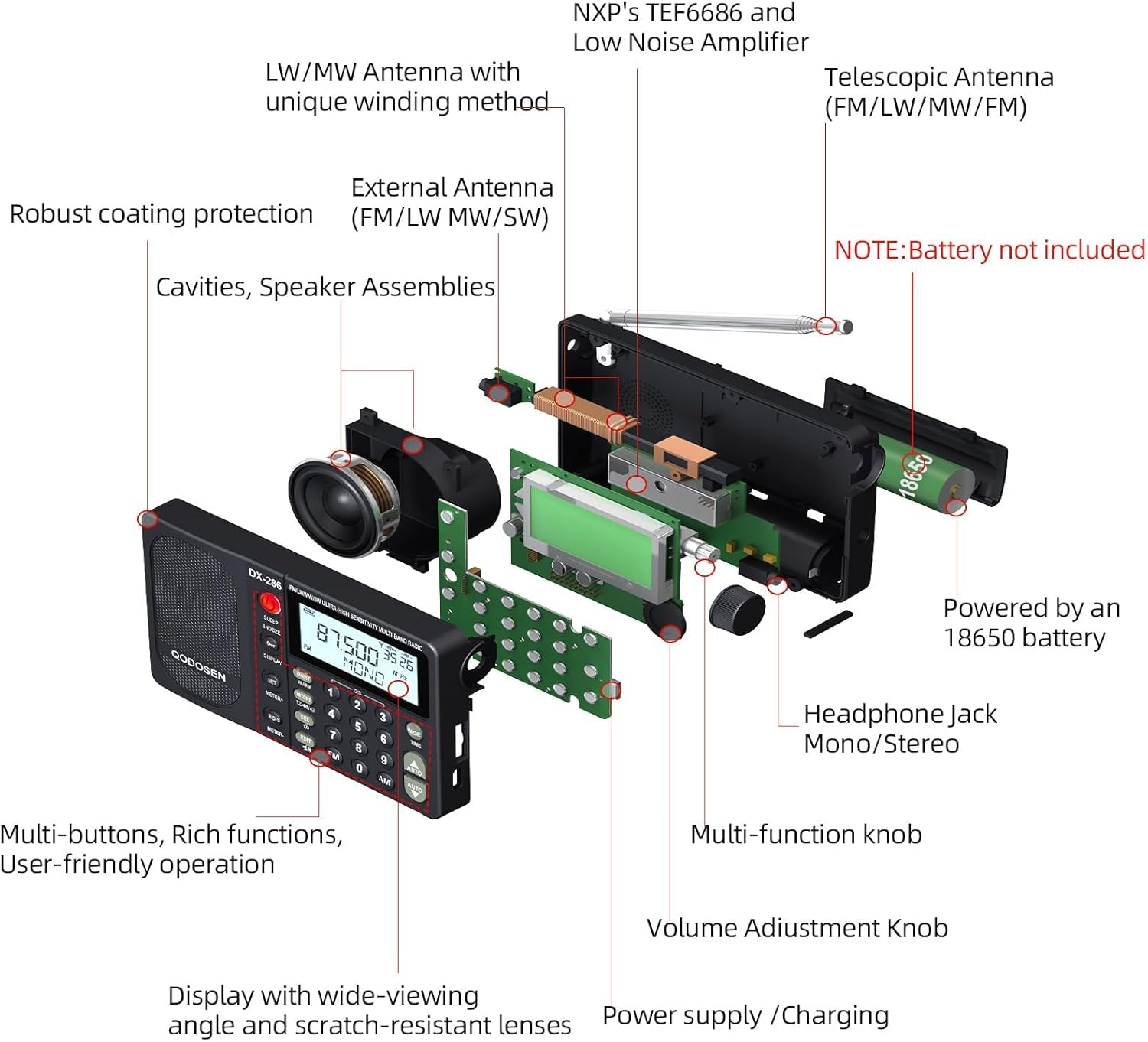

High Performance Automotive Chips

DX-286 radio adopts TEF6686 car radio chip,this car radio DSP tuner offer outstanding performance levels with the broad range of features and advanced algorithms(CEQ, EMS, lMS, and PACS,Noise Blanker..), software-defined radio signal processing,Especially in multipath improvement, adjacent frequency interference, weak signal processing, and noise elimination, it has significant advantages.

THERE IS ALWAYS A METHOD OF OPERATION THAT WORKS FOR YOU!

DX-286 has 5 tuning modes, 100 editable pages, supports 1000 cross band storage stations, two storage sorting (ATS JUMP/ATS COVER), multiple search thresholds, multiple store/delete methods. Flexible operation.
