1. Premium Material: Battery switch is made of premium ABS and N ickel plated red copper material, rustproof, sturdy and durable.

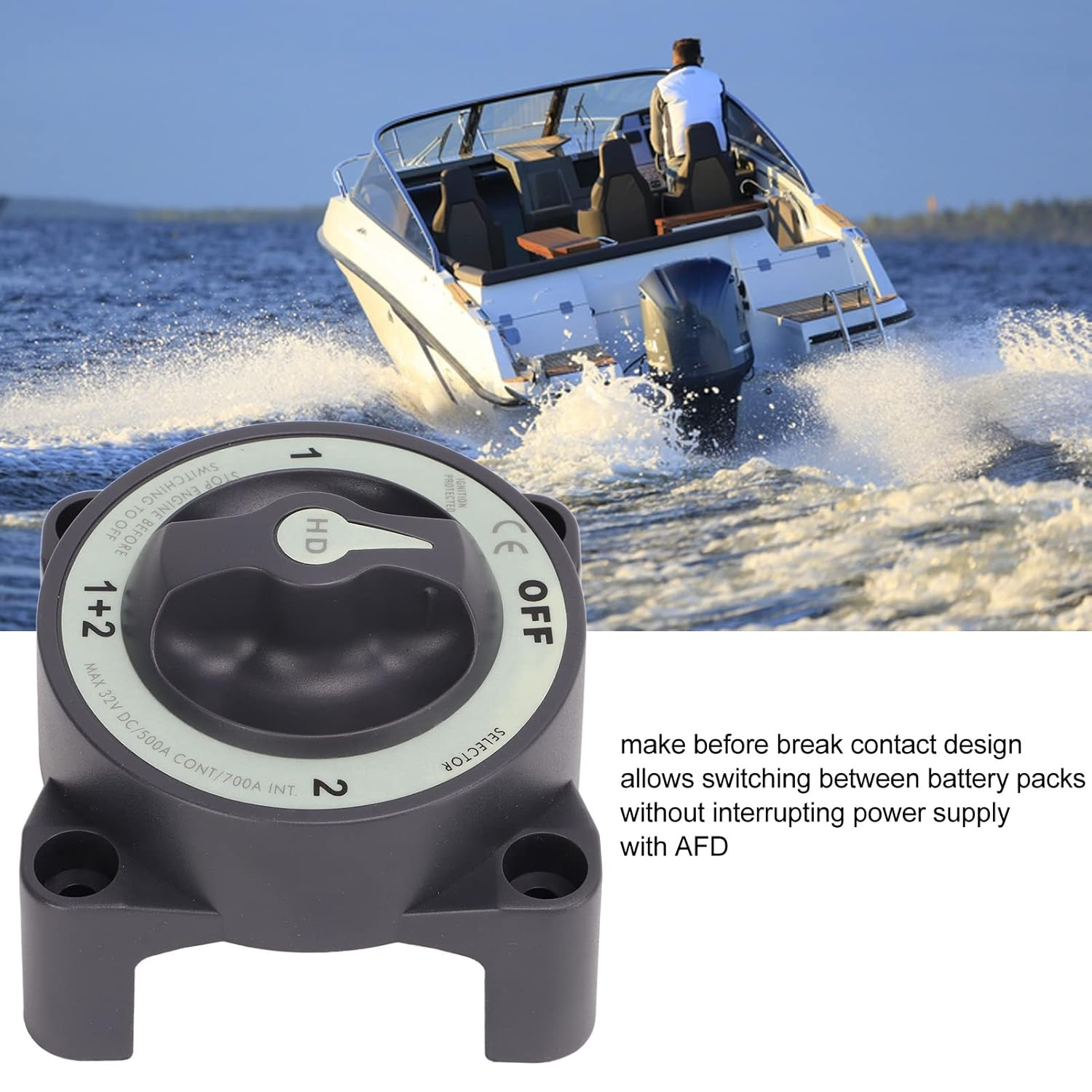

2. Function: The make before break design allows switching between battery packs without interrupting power supply, with AFD.

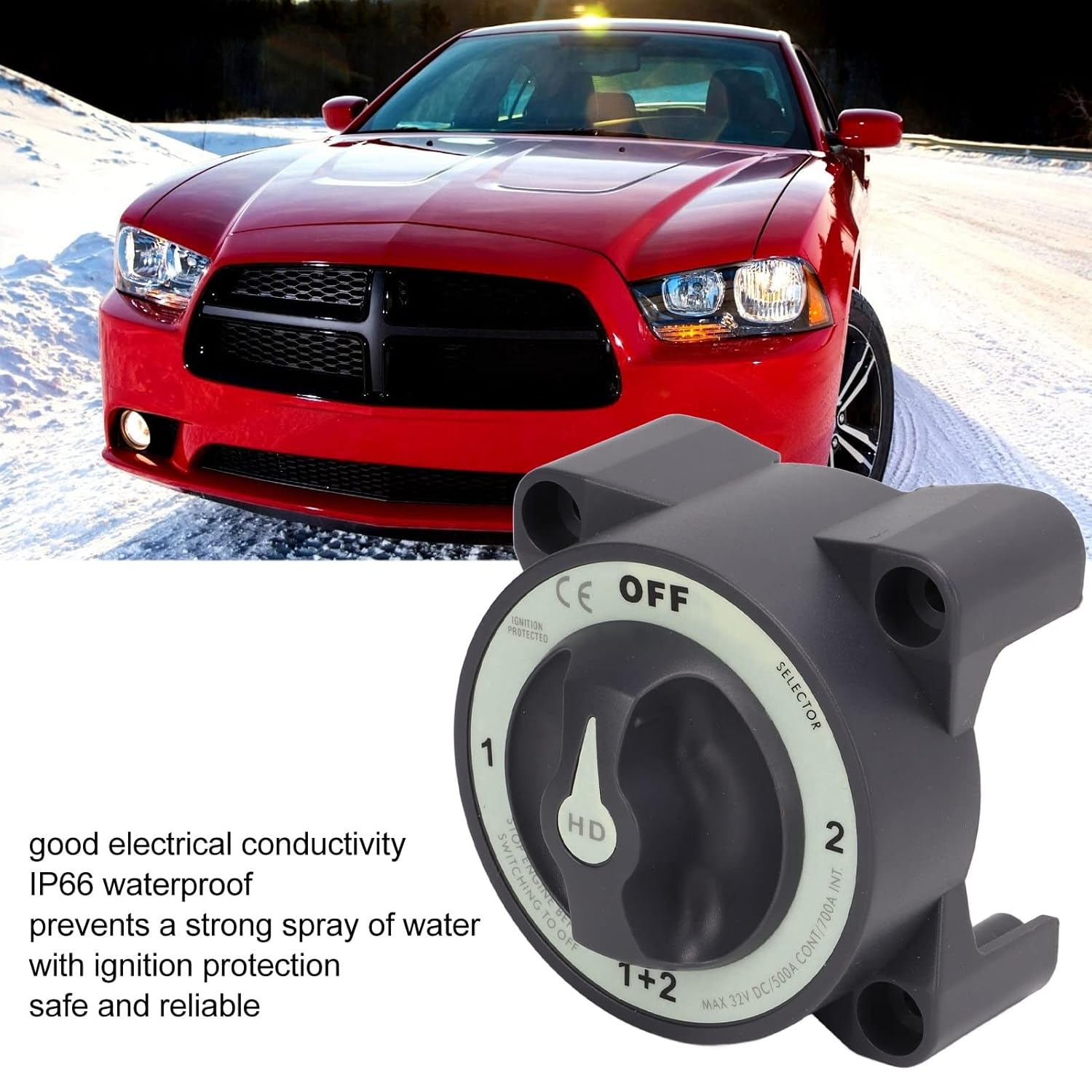

3. Excellent Performance: Good electrical conductivity, IP66 waterproof, prevents a strong spray of water, with ignition , safe and reliable.
4. Simple Installation: The installation is simple, mounting holes accept 1/4in (M6) screw, 1/2in (M12) terminal stud, convenient for using, save your efforts.
5. Wide Application: 500 amp continuous rating suitable for outboard and small petrol or d iesel engines, ideal for RV or boat.
Specification:

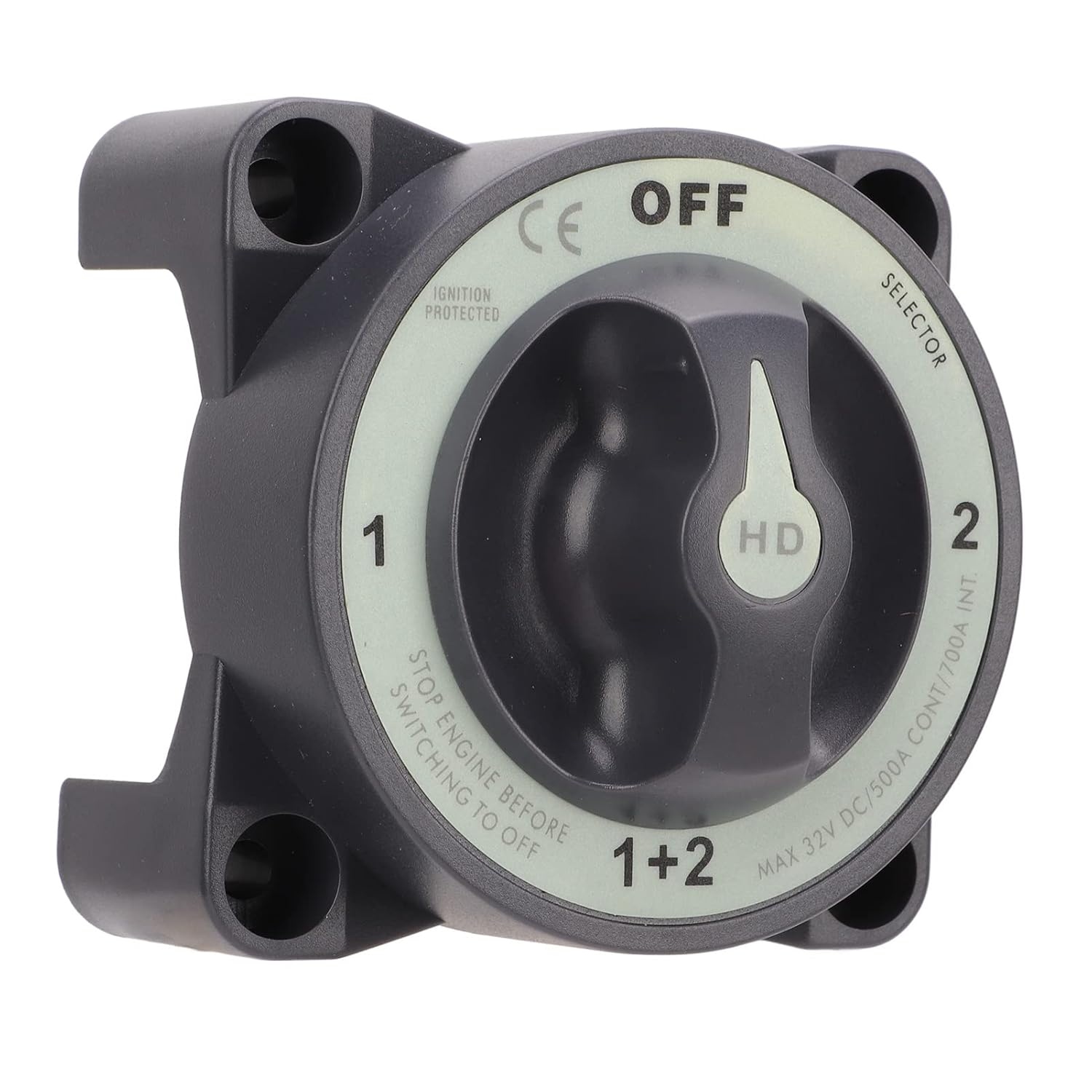

Item Type: Battery Disconnect Switch
Material: ABS, N ickel Plated Red Copper
Switch Type: Heavy Duty Selector 4 Position Battery Switch with AFD

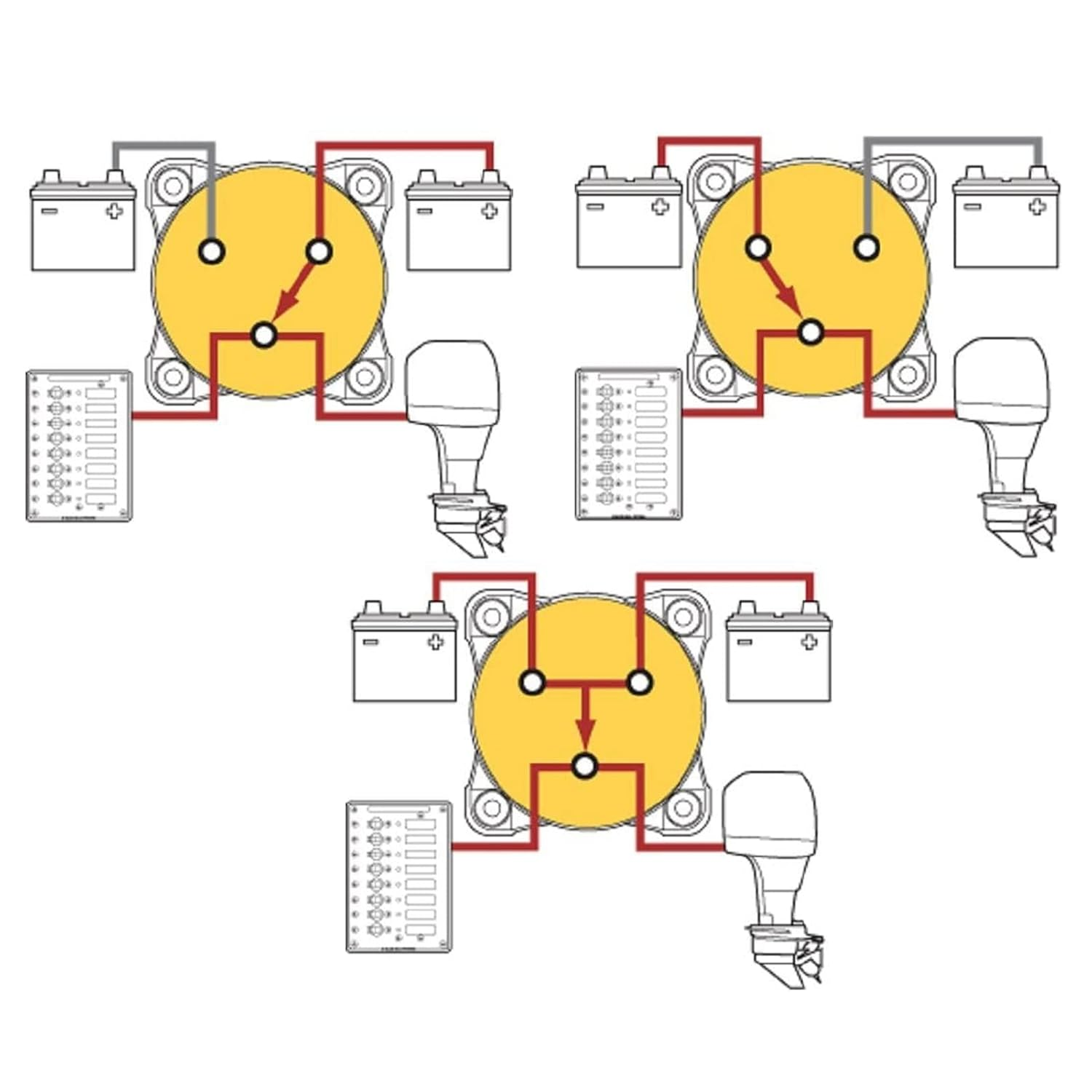

Switch Positions: 4(OFF-1-2-1+2)
Battery Combine: Yes
Alternator Field Disconnect: Yes
Maximum Voltage: 32V DC
Terminal Stud Torsion: 220 in-lb (24.86 Nm)
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating 30 sec: 1600A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: Approx. 27.94 mm/1.10in
Cable Quantity to Meet Ratings: Two Cables or Terminal
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept 1/4in (M6) Screw
Stud Material: Tinned Copper
Terminal Stud Size: 1/2in (M12)Function: The Make Before Break Design Allows Switching Between Battery Packs Without Interrupting Power Supply

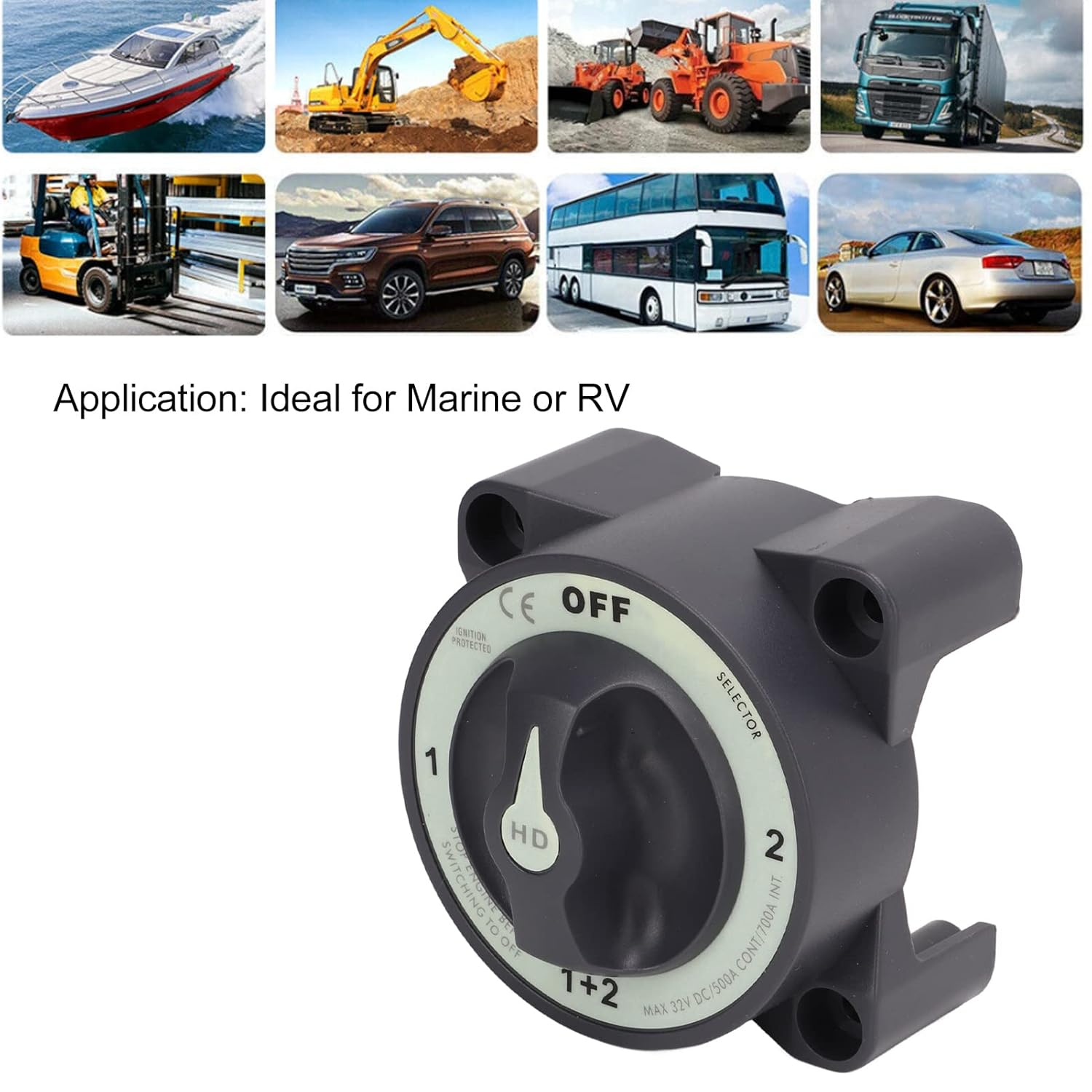

Application: Ideal for Marine or RV

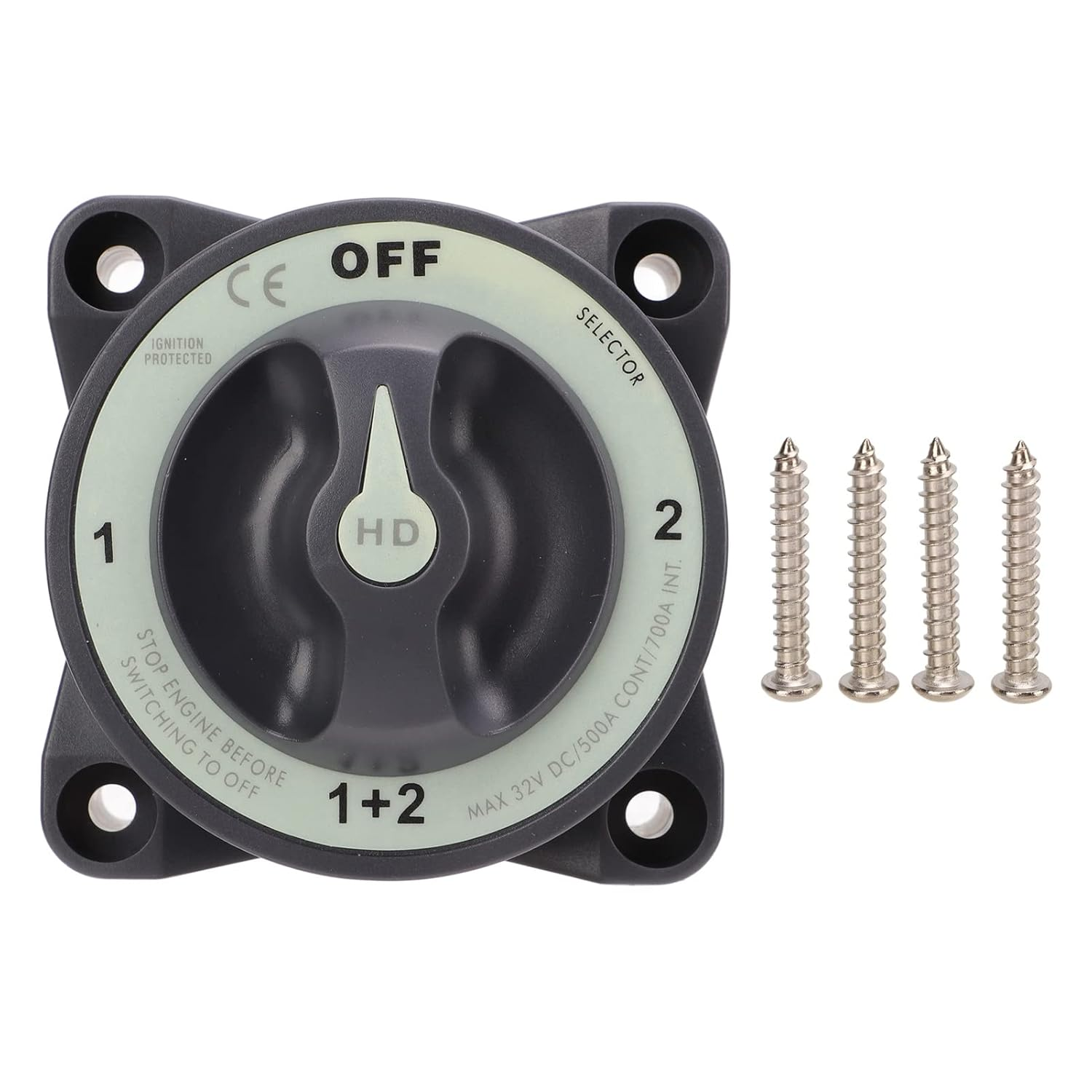

Package List:
1 xBattery Disconnect Switch
4 x Setscrew
