SMSL DO200 PRO Hifi Balanced DAC, 12X CS43131 XMOS XU-316 MQA-CD MQA DAC, 32Bit/768Khz DSD256 Home Audio Preamplifier, Usb/Opt/Coax/Bluetooth5.1/Hdmi ARC to RCA/XLR for Gaming PS5/PC/HDTV

SMSL DO200 PRO Hifi Balanced DAC, 12X CS43131 XMOS XU-316 MQA-CD MQA DAC, 32Bit/768Khz DSD256 Home Audio Preamplifier, Usb/Opt/Coax/Bluetooth5.1/Hdmi ARC to RCA/XLR for Gaming PS5/PC/HDTV

Brand: AOSHIDA
4.4
A$628.95
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【Multi Chip Combination】SMSL DO200PRO has 12 pieces CS43131 decoding chip, XMOS XU-316 chip support up to DSD256 and PCM768kHz. Utilizes 5 pieces high-end op-amps OPA1612 and numerous audio-grade components.

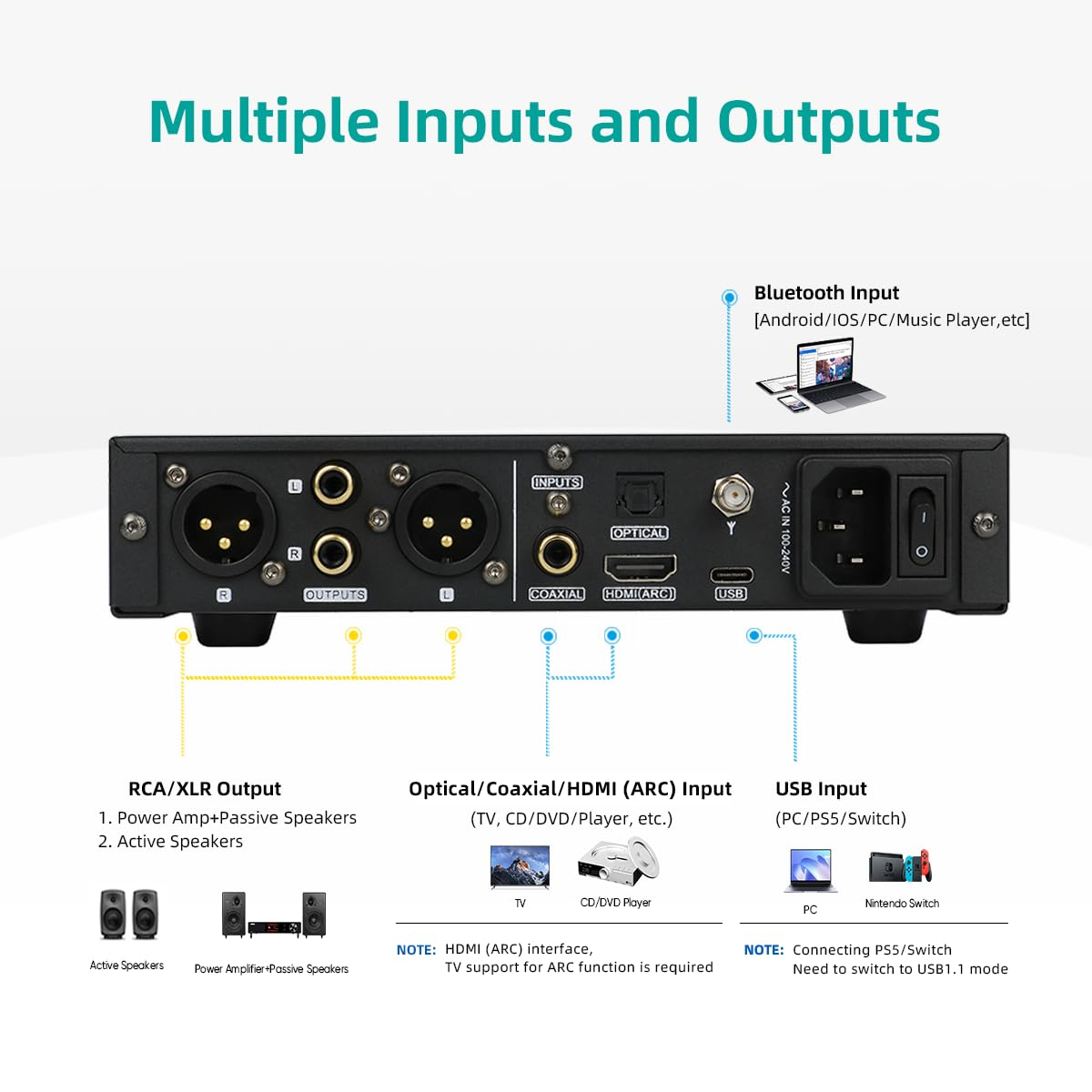

  • 【Full MQA Decoding & Multiple Inputs】It has USB/Optical/Coaxial/Bluetooth/HDMI(ARC) five input and RCA/XLR output modes; With pre-mode, can be a preamplifier, can meet your various connection needs. USB/Opt/Coax input support full MQA, and MQA-CD.

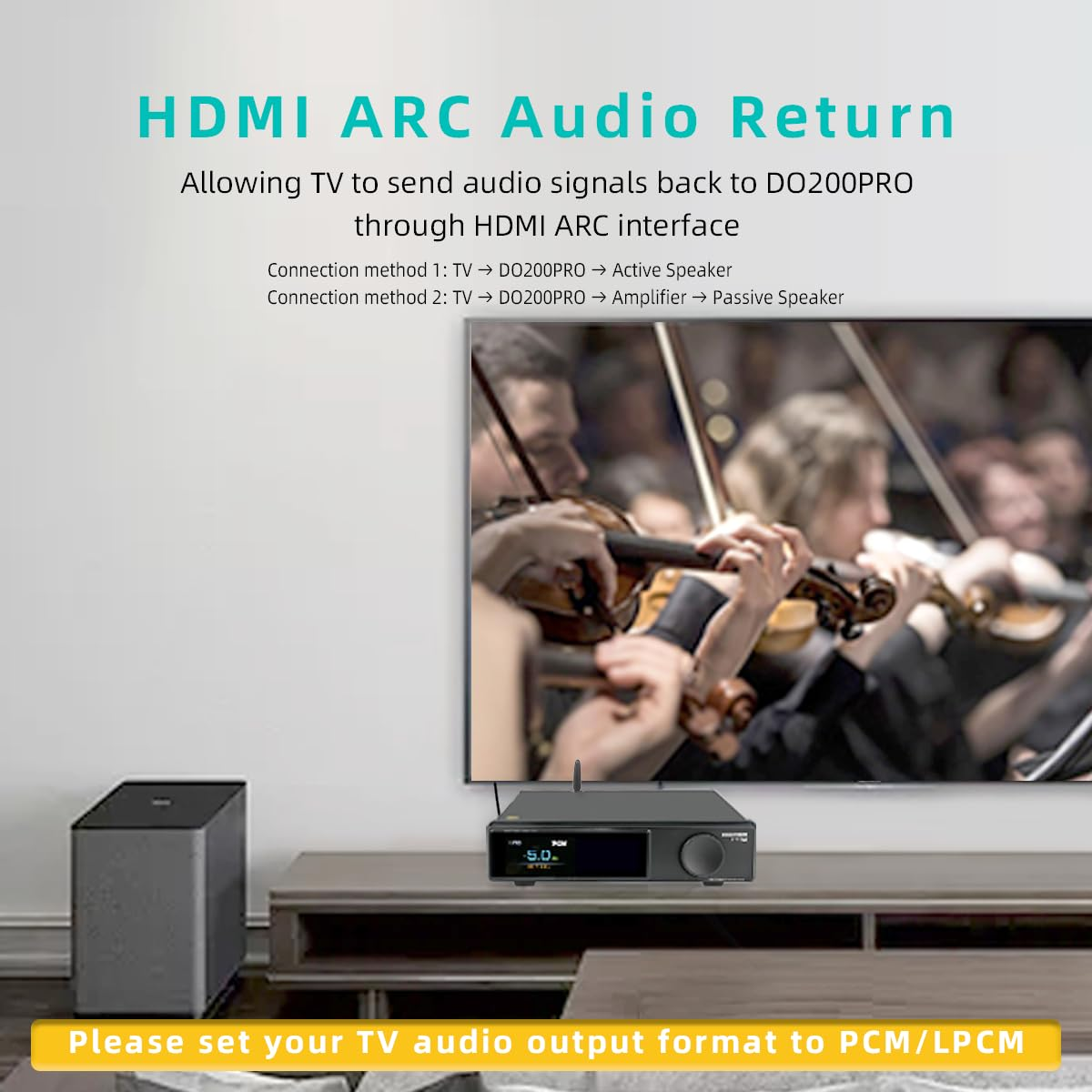

  • 【HDMI(ARC) Audio Return for TV】Allowing TV to send audio signals back to DO200 PRO via HDMI line through the ARC interface for audio and visual synchronization, providing a richer sound experience. (The TV must be compatible with ARC.)
  • 【Gaming DAC】DO200PRO has two USB modes. The USB1.1 mode is drive free and suitable for gaming console connectivity, such as PS5 or Switch; USB2.0 mode for PC, tablets, etc. (After switching between the two modes, a restart is required to take effect.)

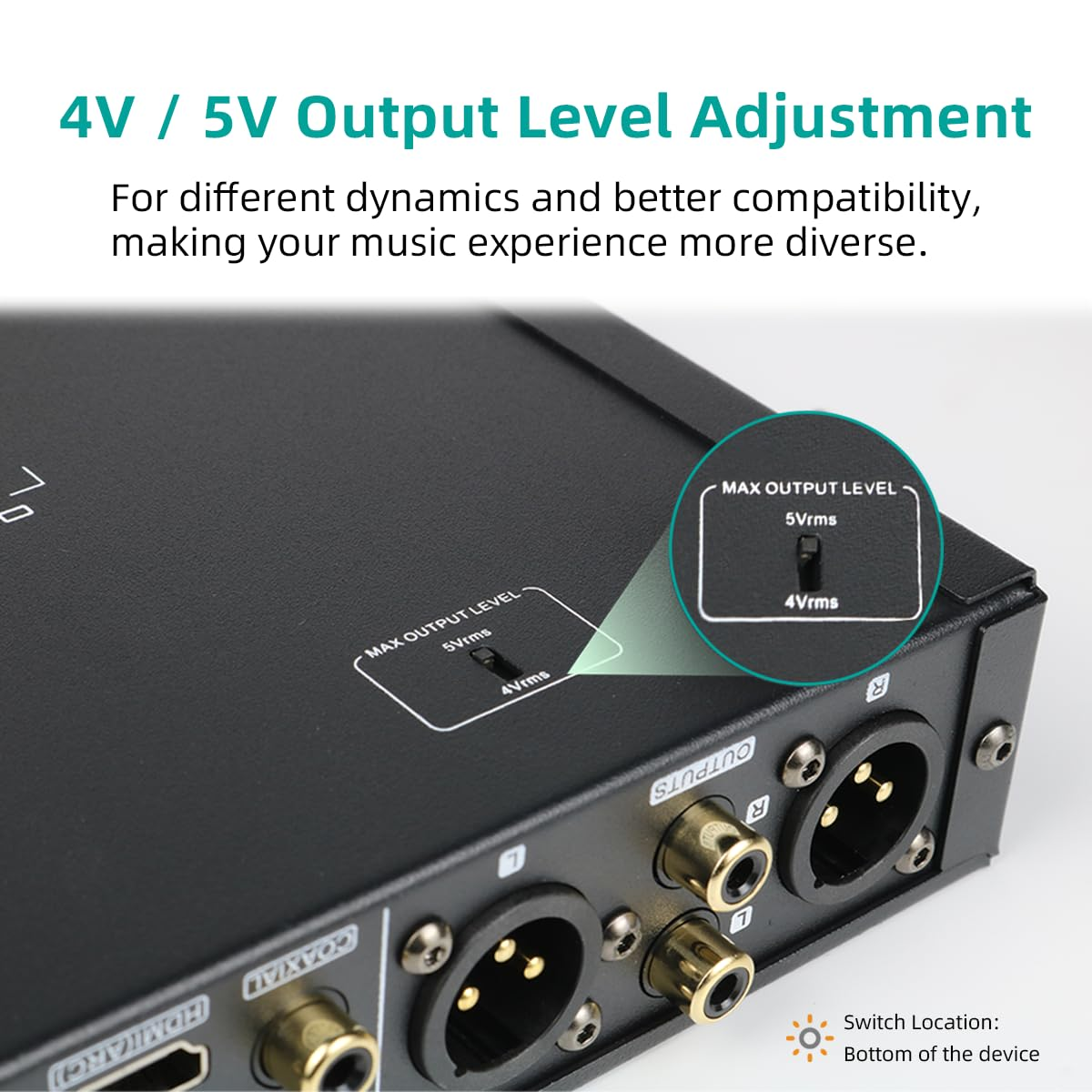

  • 【4V/5V Output Level Adjustment】With different levels of output having different dynamics and better compatibility, making your music experience more diverse. (Note: The 4V/5V switch is located at the bottom of the machine).
  • 【QCC5125 Bluetooth 5.1 & External Antenna】Longer transmission distances and stability of audio signals. It supports LDAC, APTX/HD, SBC and AAC audio format and suitable for smartphones, tablets, TV, desktops, or other Bluetooth devices.
  • 【Low Noise Power Supply】Built in self-developed low-noise switching power supply and multiple analog circuit low-noise power supplies. It brings you clearer audio and saves your desktop space.
  • After receiving the product, upgrading the firmware will make the sound better, we can provide the firmware file. Or you have any problems during uses, we support 24-hours online service.

Product Description

(1) HDMI(ARC) input could work with HDTV.

(2) Supports MQA decoding and MQA-CD.

(3) Fully balanced design with truly balanced output. It has Pre-amp functionality, bringing you multiple ways to use it.

(4) The display screen brightness can be adjusted to levels 1-8.

  1. Powerful 12 core driver configuration that provides processing power and audio resolution.

  2. Support audio formats up to DSD256 and PCM768kHz.

  3. Supports LDAC, Aptx, aptX-HD, SBC, AAC. Multiple Bluetooth formats can meet your various needs.

  4. Utilizes 5 pieces op-amps OPA1612 and numerous audio-grade components.

  5. Built in self-developed low-noise switching and multiple analog circuit low-noise power supplies.

  1. Floating display screen

  2. Retro style knob

  3. Audio Ports

  4. 4V/5V Output Adjustment

  1. Perfect for Gaming PS5 or Switch

    The USB1.1 mode is drive free and suitable for gaming console connectivity for PS5 or Switch;

    USB2.0 mode for PC, tablets, etc.

  2. Bluetooth 5.1 Input

    Supports LDAC, APTX/HD, SBC and AAC audio format and suitable for smartphones, tablets, TV, desktops, or other Bluetooth devices.

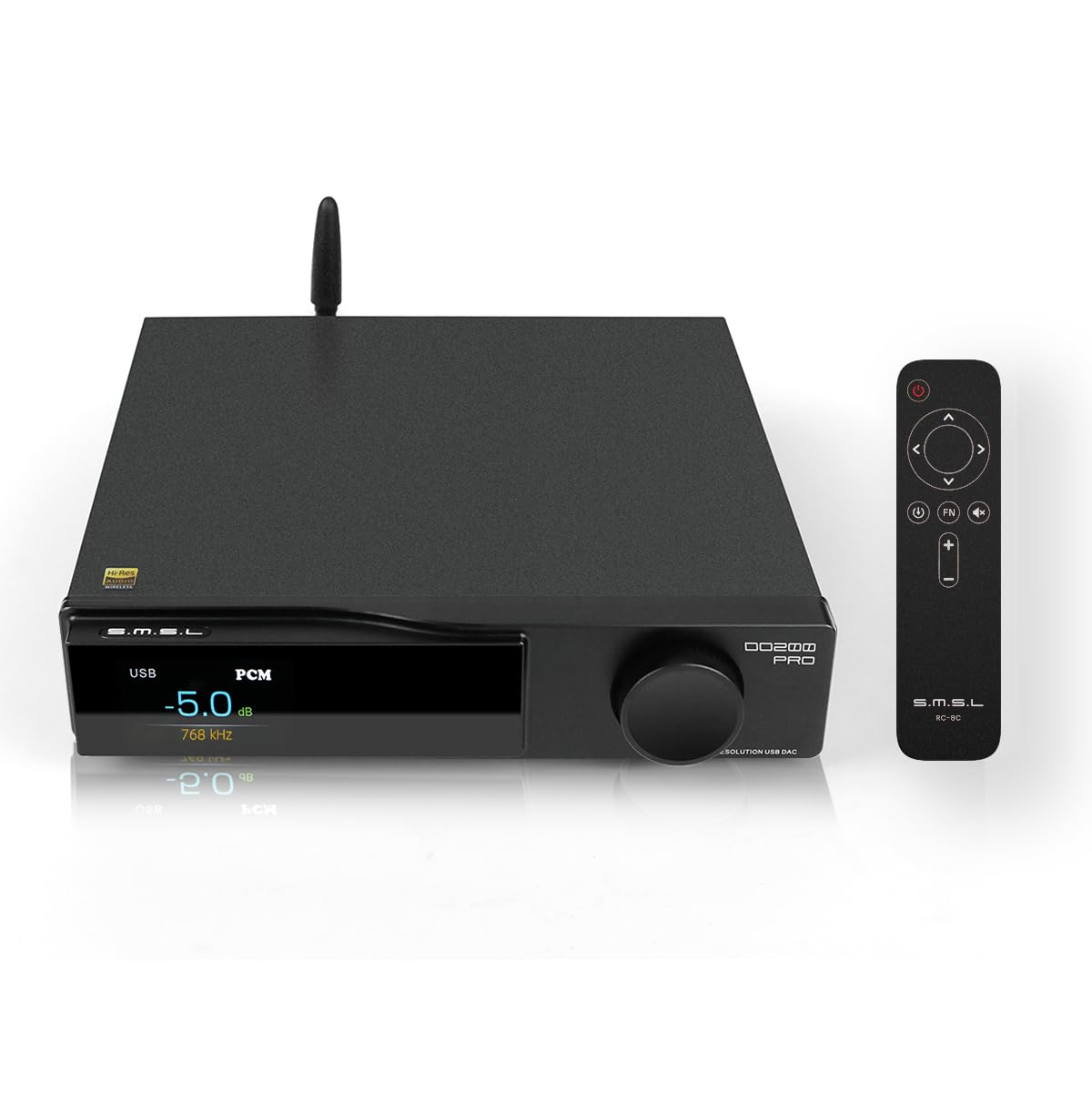

  3. Remote Control

    Comes with SMSL RC-8C remote control. Long distance adjustment.

    Please do not use it as a partition, please align it with the main panel of the machine.

  • Connect to an HDMI IN port labeled "ARC" or "eARC/ARC" on the TV. If connected to a port that does not support ARC, DO200PRO‘s ’ARC input function cannot be used.
  • Please use an HDMI cable (19 pin) with the HDMI logo indicating compatibility with ARC.
  • This product cannot output videos.

Comparison of parameters: SMSL DO200 PRO HiFi Balanced DAC and other models

Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.6 out of 5 stars 20
4.5 out of 5 stars 169
4.2 out of 5 stars 125
4.1 out of 5 stars 206
Price
$599.00$599.00 $309.00$309.00 $324.72$324.72 —
Type
Fully Balanced DAC Fully Balanced DAC 2.1 Channel Amplifier DAC Headphone Amplifier
Input
USB/Opt/Coax/BT5.1/HDMI ARC USB/Opt/Coax/BT5.1/HDMI ARC USB/Bluetooth/RCA/XLR USB/Bluetooth/Opt/Coax
Output
RCA/XLR RCA/XLR Speaker/Sub-out TRS/RCA 4.4mm/6.35mm Headphone
Chips
12*CS43131,XU-316,QCC5125 2*ES9039Q2M,XU-316,QCC5125 MA5332MS,OPA1678 ,NJW1194 ES9038Q2M,OPA1612,QCC5125
Support
MQA decoding, MQA-CD MQA decoding, MQA-CD 160Wx2 Power Output USB for Switch XBOX, PS4, PS5
THD+N
0.00006%(-123dB) 0.00005% ( -124.5dB) 0.004% LO: 0.0001%; HP Out: 0.00013%
SNR
XLR 134dB; RCA 128dB XLR: 131dB; RCA: 127dB 106dB TRS 126dB; RCA 124dB; HP 123dB
DSD/PCM
DSD256; PCM32bit/768kHz DSD512; PCM32bit/768kHz / DSD512; PCM32bit/768kHz
  • Product parameters: ● Amplitude: XLR 5.2Vrms; RCA 2.5Vrms; Dynamic Range: XLR 134dB; RCA 128dB ●USB Transmission: Asynchronization USB Compatibility: Windows 7/8/8.1/10/11(Needs Driver); MAC system don’t need driver. ● MQA decoding: USB/Optical/Coaxial input; Bite Depth: USB 1bit, 16-32bit; Optical/Coaxial: 1bit, 16-24bit ● Power Consumption: <10W Standby Power: <0.5W; Sampling rate: USB: PCM 44.1~768kHz; DSD 2.8224~11.2896MHz Opt/Coax: PCM 44.1~ 192kHz; DSD64(DoP) Bluetooth specification(5.1): LDAC 24bit/96kHz, APTX-HD, APTX, SBC, AAC ● Machine Size: 189x45x186mm (WxHxD) Machine Weight: 1.15kg
  • Q1: The ARC input of DO200 PRO is connected to the TV, but the TV does not recognize the device/no sound ?

A1: The ARC input of DO200 PRO needs to be connected to the HDMI ARC interface of the TV, and the output mode of the TV is "ARC/ARC+TV speakers".

  • Q2: When using USB input, the computer doesn't recognize the DO200 PRO driver ?

A2: If you use a Windows system, you need to install the driver on your computer (Windows 7 requires a special driver). MAC and Linux systems do not require a driver. (All systems in USB1.1 mode are driver-free)

  • Q3: How to solve the problem of no sound output when connecting to a computer via USB input?

A3: DO200PRO has two USB modes, USB1.1 and USB2.0. The USB 1.1 mode is drive free and particularly suitable for gaming console connectivity. Whether it’s the PS5 or Switch, it can be easily compatible.

* After switching from U2.0 mode to U1.1 mode or from U1.1mode to U2.0 mode,a restart is required to take effect. * USB1.1 only supports 16bit/96kHz max.

  • If you have any suggestions or problems during the use of the product, AOSHIDA store will provide you with solutions online.
  • Item Model Number: DO200PRO
  • Product dimensions: 18.9 x 18.6 x 4.5 cm; 1.15 kg
  • Country of origin: China
  • Manufacturer: SMSL
