[Product Features]

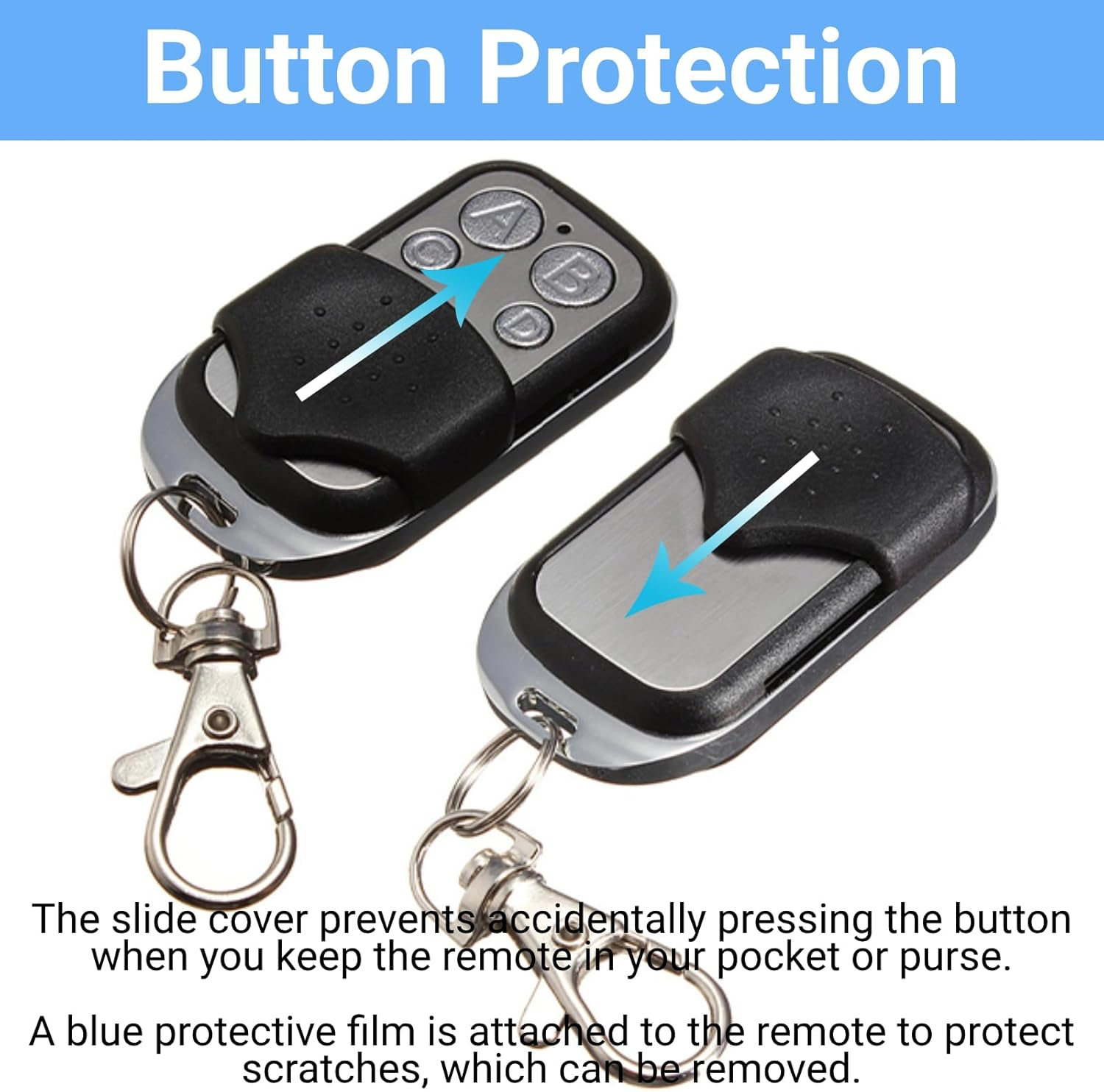

Button protection
Blue LED indicator
433.92MHz frequency
Controls up to 4 doors
Built-in 27A 12V alkaline battery
Comes with a keychain for easy carrying
[Compatibility] Compatible with BOSS motors using 433.92MHz frequency:
Only works for the following motor models using the 433.92 MHz frequency and installed after July 2013.
BOL4 (motor colour must be grey)
BOL6
OL4 (motor colour must be grey)
OL6
RD11
Works for Guardian DCS2
*Please note:
Not compatible with other brands, frequencies or models remotes.
[How to Match Code on the Receiver]
1. Press and release the required channel corresponding switches (SW1/SW2), and the corresponding LED will long bright. (SW1 corresponds to LED1, SW2 corresponds to LED2)
2. Press the required button on the remote control within 30 seconds, and the receiver corresponding LED will turn off.
3. Then, each time you press the learned remote button, the receiver corresponding LED will flash 2 times with a relay sound, indicating that the match code operation was successful.
*Please close the garage door before operation for safety. Learn Button = SW Button = RADIO SET Button
[How to Match Code on the Opener]
1. Locate the RADIO SET button on the motor (the RADIO SET button is normally yellow, but the colour may vary depending on the motor model).
2. Press the RADIO SET button on your motor once and release (the indicator light on the motor will illuminate).
3. Press any button on your new remote that you wish to operate the door once and release (the indicator light on the motor flashes to indicate that the code has been learnt).
4. Press the coded remote button to test.
