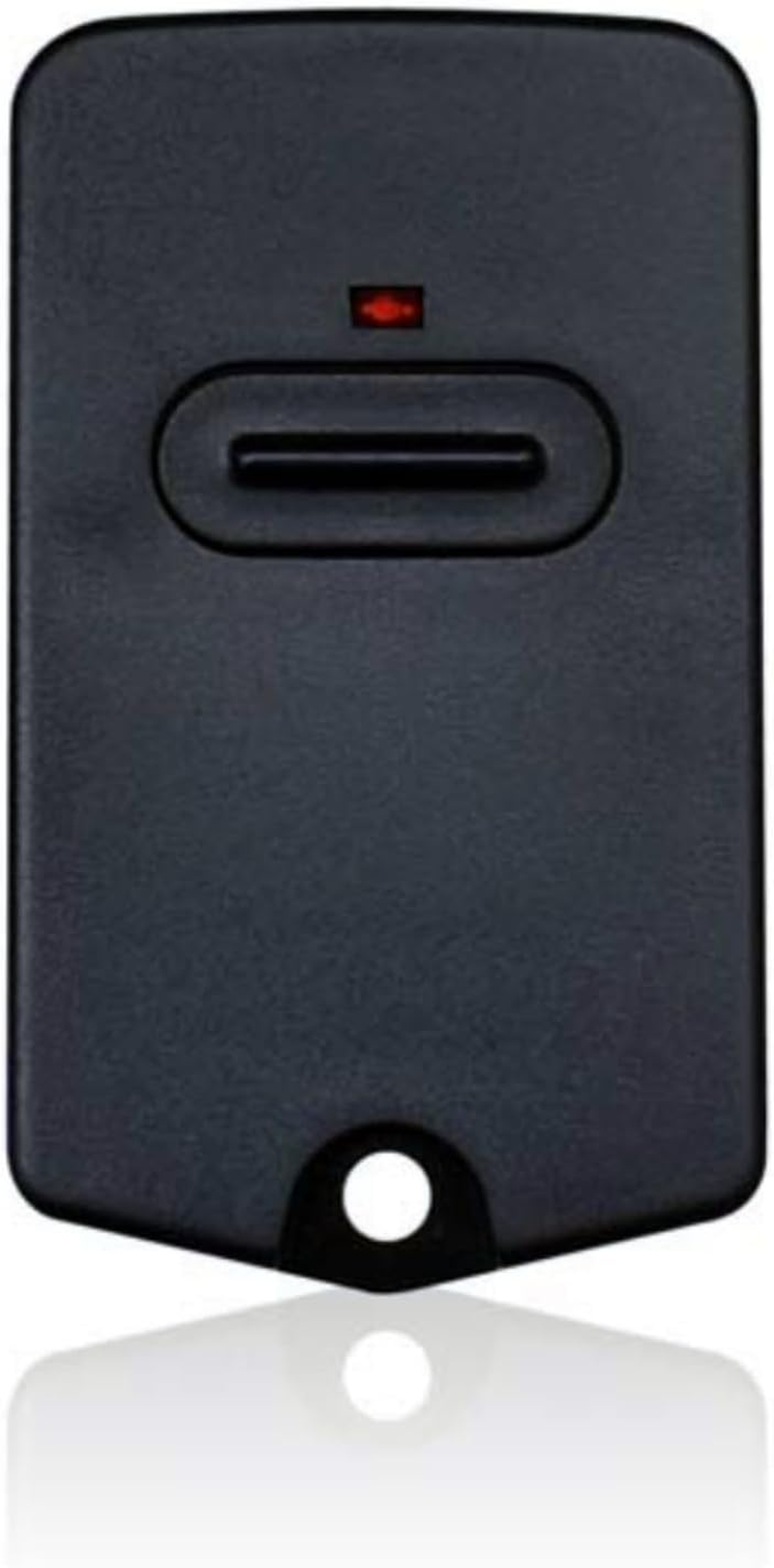

QSDIYRF Garage/Gate Remote Replacement for MPC2 TX318 318MHz 3-Position 9 Dip Switches Garage Door Remote (Red LED Indicator, No Paper Instruction Manual)
[Product Features]
9 dip switches
318MHz frequency
Controls up to 1 door
Built-in 23A 12V alkaline battery
Comes with a clip for attaching to the sun visor
[Programming Instructions---Method 1: Matching to Your Existing Remote]
(1) Open the new remote by removing the two screws at the rear.
(2) Open the battery cover of your existing remote to expose the dip switches. (If there is no existing remote, you must find the dip switches on the motor which usually located under the side panel).
(3) Copy the switches code sequence from your old remote to the new one.
(4) Close both remotes and test.
[Programming Instructions---Method 2: Coding into the Wall Control Panel]
(1) Open the new remote by removing the two screws at the rear.
(2) Set the switches to a random code sequence.
(3) Press and immediately release the CODE SET button on your wall control panel once. The indicator light will illuminate.
(4) Press the button on the new remote. The CODE SET light will go out.
(5) Press the button on the new remote control to ensure that it has been correctly programmed.
