QX510-AUW2 Industrial 4G LTE Wifi Router with 5 Ethernet Ports, Cellular VPN Client Routers for Wireless Internet Backup, M2M Gateway RS232 Modem for Cameras Manufacturing Retail POS Charging Station

QX510-AUW2 Industrial 4G LTE Wifi Router with 5 Ethernet Ports, Cellular VPN Client Routers for Wireless Internet Backup, M2M Gateway RS232 Modem for Cameras Manufacturing Retail POS Charging Station

Brand: CHEECENT
5.0
A$282.45
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【Convert 4G Cellular to Retail POS CCTV Camera Project Wi-Fi & Ethernet Network】: Insert SIM card, plug and play (some SIM card may need to follow the manual to set APN). QX510 4G LTE router can share the 4G network with your electronic devices in places without broadband coverage anytime/anywhere. Its LTE CAT4 module supports B1/3/5/7/8/28/40, covering all frequency bands of cellular carriers in Australia and New Zealand, It is unlocked, please check your local carrier's coverage before purchasing.
  • 【Industrial Design & High-Reliability】: This VPN Client router is a 4g router with sim card slot. Rugged metal casing, 5.98×4.09×0.98in compact size for mass deployment. Working Temperature -22 ℉ to 158 ℉ (-30 to 70℃), Working Voltage DC 7.5V to 32V. ESD and lightning protection, Watchdog, multi-layer link detection mechanisms, automatic redial and recovery. It has a record that stays online for more than 425 days without breakdown in our clients' project environment.
  • 【Powerful Networking & Functions】: QX510 SIM card router provides Internet Access via Wired Ethernet, WiFi (802.11b/g/n, AP and Client), and Cellular (4G/3G), it is ideal to work as a main or backup internet. Support VPN client modes (GRE, PPTP, L2TP, IPSec, EOIP, N2N, OpenVPN), Qos, DMZ, Firewall, Port Forwards, NAT, Load Balancing, DDNS, SNMP, Serial RS232 DTU, Modbus RTU/TCP protocol. It is ideal for IoT M2M scenarios and offers a high-quality networking solution for unattended sites.
  • 【Wide Applications & 5 Ethernet Ports】: This LTE modem is easy to deploy, cost & time saving, reliable works day and night 24/7 for internet access. It has 5 Ethernet Ports support multiple devices, making it widely used for Video Surveillance, Manufacturing, IT Facilities, Vehicle, Charging Station, Smart Grid, Construction Sites, and any other places that require a network. It can also be used as a reliable failover and backup network for the wired network in retail stores, warehouses, etc.
  • 【Easy To Use】: QX510 LTE router with SIM card slot is an all-in-one solution that includes a router, ethernet cable, antenna, power adapter, user manual, and SIM card holder. 5 Ethernet ports provide wired network for multiple devices. It is easy to place on a desktop or mount on the wall. SIM card holders allow you to insert the different sizes of SIM cards. Follow the English user manual to configure the powerful router. We offer free technical support. Just feel free to contact me.

Product Description

QX510 Router Applicable Scenarios

This is a robust LTE/4G router (modem) that is designed to provide a flexible internet network for IoT/M2M devices, its key advantages are: provides a mobile network to help clients avoid building high cost wired network, super reliable network connection (keep always connected with internet, auto reboot when internet breakdown), security data transmission (RS232 data transmission, VPN Client Modes, DDNS...).

It adopts CAT4 cellular module, the speed is lower than cell phone speed, but it is well meets camera and most machines' transmission requests, also it is more flexible to provide 7/24 hours internet for machines than cell phone hot spot. Here are the Applicable Scenarios and Inapplicable Scenarios for your reference:

APPLICABLE SCENARIOS: Smart Grid, Electrical Substation, Manufacturing, IT Facilities, Charging Station, Industrial Automation Devices, Video Surveillance, CCTV, Remote Camera, Access Control, ATM, Smart Package Locker, Energy (Power Substation, Solar PV System, Wind Power Station), RVs, Backup Internet, Vending Machine, Digital Signage, Kiosk, Auto Gate, Bus, Fleet Management, Environmental Monitoring Equipments, Smart Agriculture, Smart Cities, Smart Metering, ... and so on.

INAPPLICABLE SCENARIOS: Request faster speed than the cell phone, Very Low Cellular Signal Strength Area.

NOT SUPPORT SSH ACCESS

Convert 4G Cellular To Remote Business Industrial Wi-Fi Ethernet Internet Network

1. Unlocked and Wide 4G/3G Bands Compatible with Canadian Cellular Carriers

- 4G/LTE supports bands: B1/3/5/7/8/28/40

- 3G supports bands: B1/5/8

- It is unlocked and covers most frequency bands of cellular carriers in Canada.

2. Multiple Internet Access

This modem router has two Ethernet ports (RJ45), Wi-Fi (2.4Ghz, 802.11b/g/n, AP and Client mode), and Serial Port (RS232), which enable your devices easy to find a way to connect it to get internet via 4G LTE network.

Industrial Grade Design, Security and Powerful functions for Professional Applications

1. Industrial Grade Design

- Rugged metal casing, handles extreme heat and cold well.

- Wide working voltage DC 7.5V to 32V. ESD and lightning protection.

- Both hardware and software watchdog, multi-layer link detection mechanisms

2. Security Data

- VPN client mode (NOT SERVER MODE): GRE, PPTP, L2TP, IPSec, EOIP, N2N, OpenVPN. Qos, DMZ, Firewall (Domain Filter, Keyword Filter, Blacklist, Whitelist).

3. Serial DTU (Smartlink)

- RS232 DTU function, MQTT. Serial passthrough, Modbus RTU/TCP protocols. Serial Master/Client modes.

4. Powerful Functions for Professional Application

- Port Forwards, Static NAT, DDNS, SNMP.

- 5 Ethernet Ports.

- Load Balancing, enables network failover between Wired/Wi-Fi and Cellular.

- Timing/Auto reboot function.

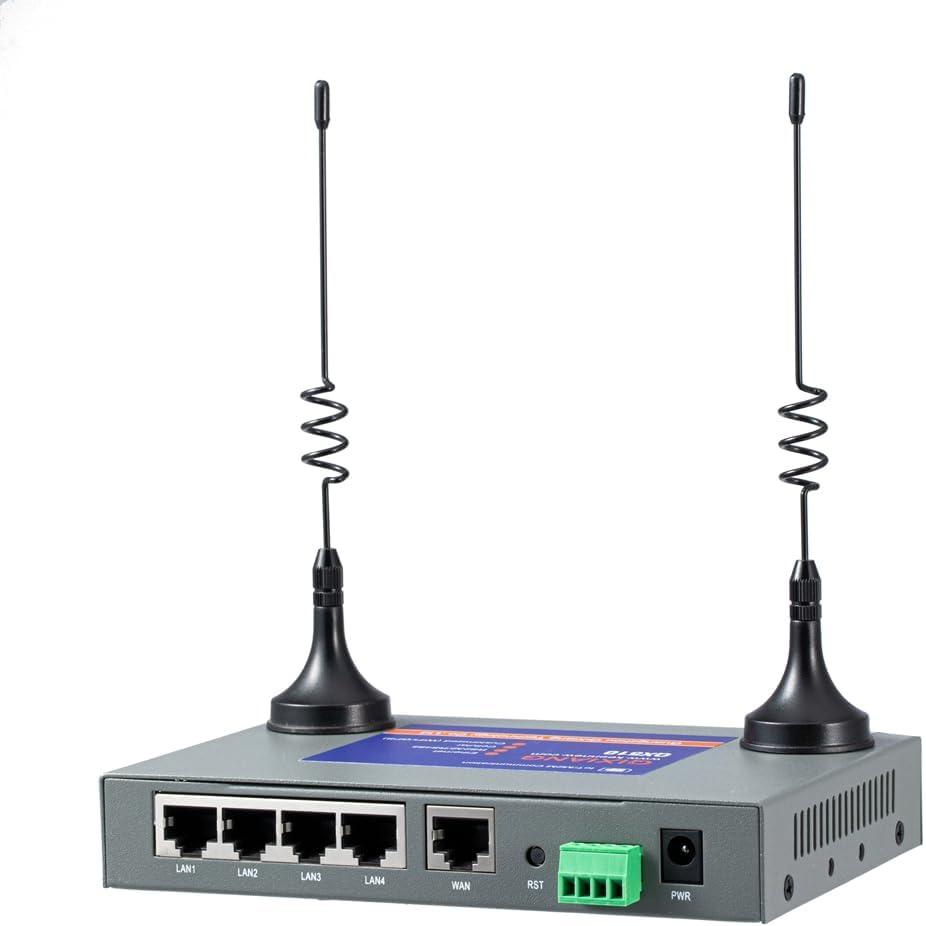

QX510 Industrial 4G Router Datasheet

Cellular 4G (LTE) – Cat 4 up to 150 Mbps (CAT4 theory at 150Mbps, actual at around 10M in most country's sim card carrier) , 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
Wi-Fi IEEE 802.11b/g/n, Access Point (AP), Station (STA, Client)
LAN 4×Ethernet interface(RJ45), Auto MDI/MDIX, built-in ESD
WAN 1×Ethernet interface(RJ45), Auto MDI/MDIX, built-in ESD, WAN can be converted to LAN
Serial Port 1 x RS232, 3 pin industrial socket
Antenna Interface 3 standard SMA antenna interface (WIFI and 3G/4G），50ΩSMA
SIM/UIM slot SIM/UIM card mounting plate to protect falling. 1.8V/3V automatic detection
Power Supply 7.5V-32V(standard DC12V/1A), built-in power transient overvoltage protection
CPU 560MHz
Flash/RAM 16MB/128MB
Shell metal plate shell
Dimension 152×102×25mm
Weigh About 410g
Operating Temperature -30 to 70°C
  • Item Model Number: QX510-AUW2
  • Data Transfer Rate: 150 Megabytes Per Second
  • Operating System: RouterOS
  • Number of items: 10
  • Mounting Hardware: SIM card adapter and Installation Quick Guide, antenna, ethernet cable, power supply adapter, router
  • Batteries Required: No
  • Brand: CHEECENT
  • Ram Memory Installed Size: 16 MB
  • Special Features: Access Point Mode, Internet Security, LED Indicator, QoS
  • Compatible Devices: Personal Computer, Security Camera
  • Wireless Type: 802.11b, 802.11g, 802.11n
  • Item Weight: 700 g
  • Number of Ports: 5
  • Connector Type: CDMA, Ethernet, LTE, UMTS, Wi-Fi
  • Voltage: 12 Volts
  • Model Name: QX510-AUW2
  • Model: QX510-AUW2
  • Product dimensions: 15.2 x 10.2 x 2.5 cm; 700 Grams
  • Country/Region of origin: China
  • Manufacturer: Qixiang
