Overview

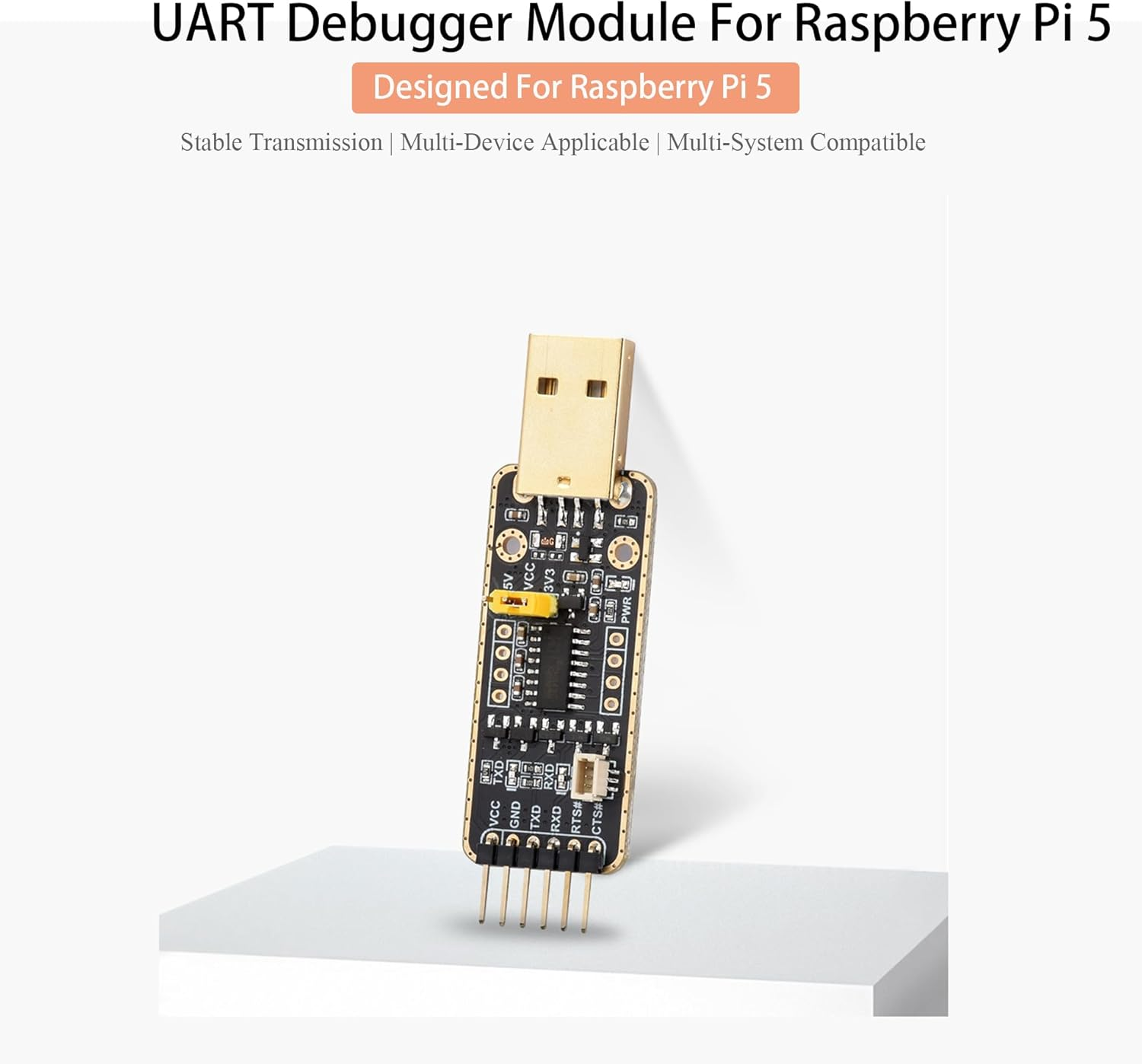

USB To UART Debugger Module for Raspberry Pi 5 , s suitable for Raspberry Pi 5 communication debugging, Type-A Port, Onboard UART Connector, High Baud Rate Transmission. Supports multiple wiring methods, and is compatible with various systems, With features of anti-surge, ESD protection, and immersion gold design.

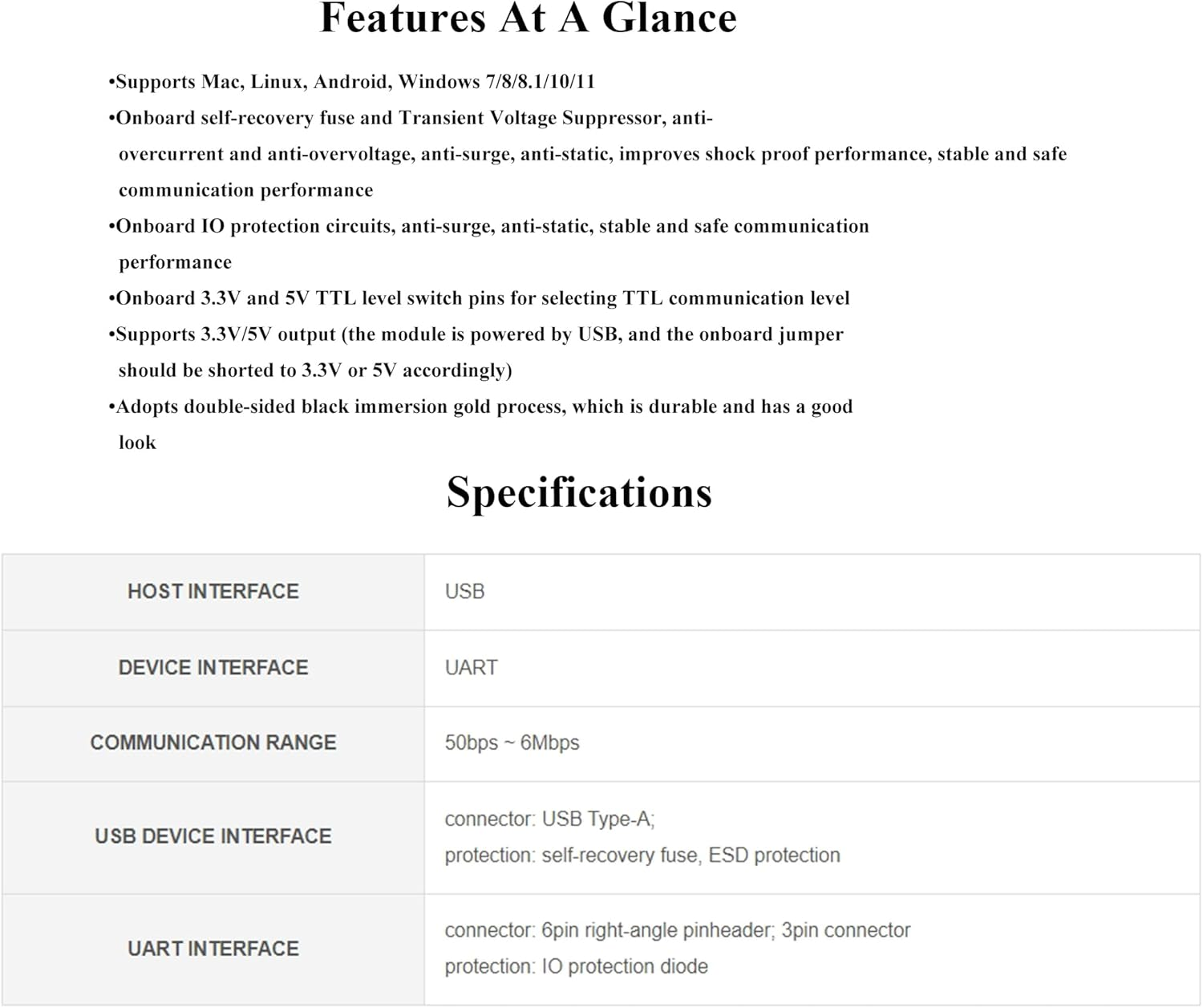

Features
Supports Mac, Linux, Android, Windows 7/8/8.1/10/11
Onboard self-recovery fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improves shock proof performance, stable and safe communication performance
Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance

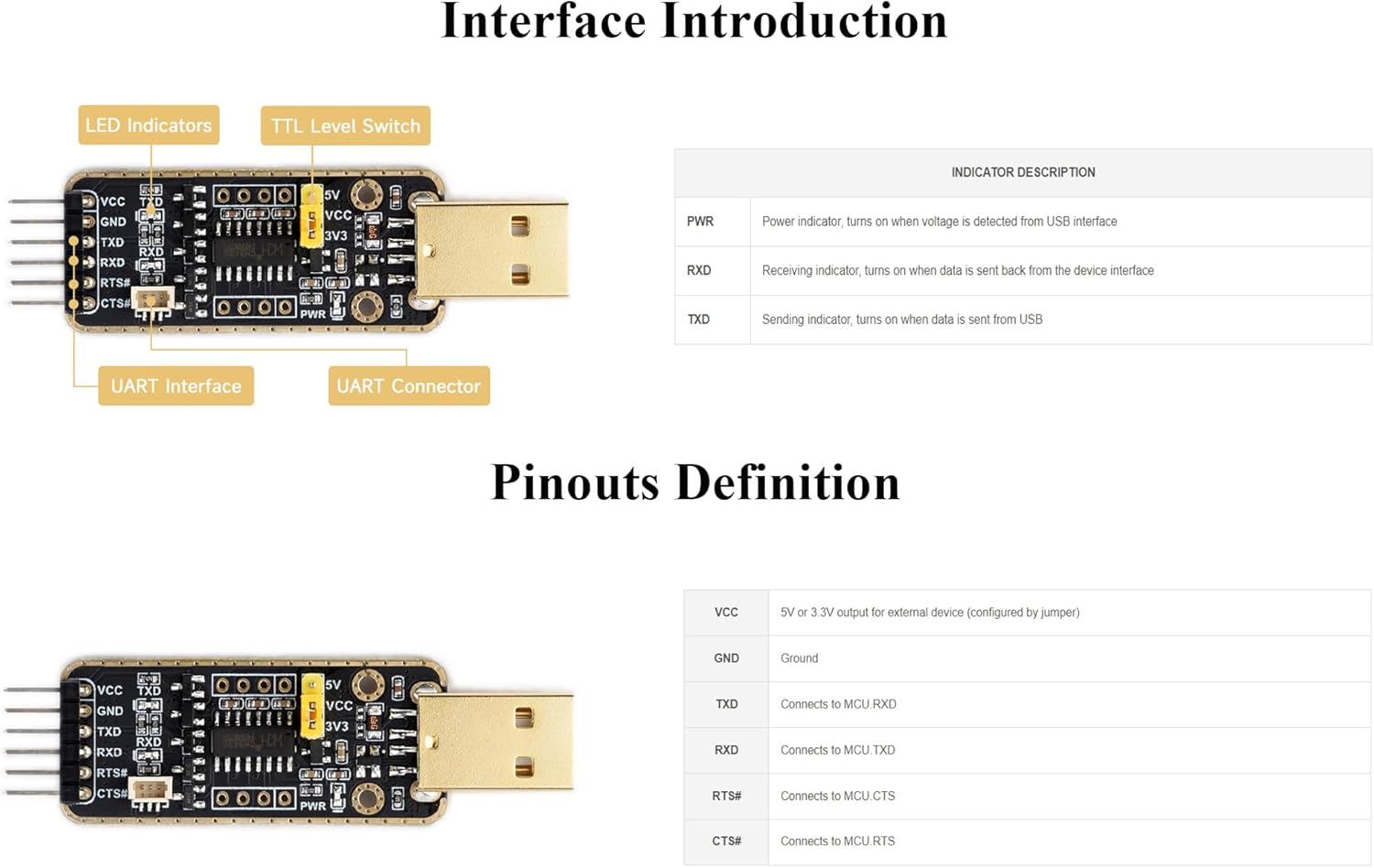

Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
Supports 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly)

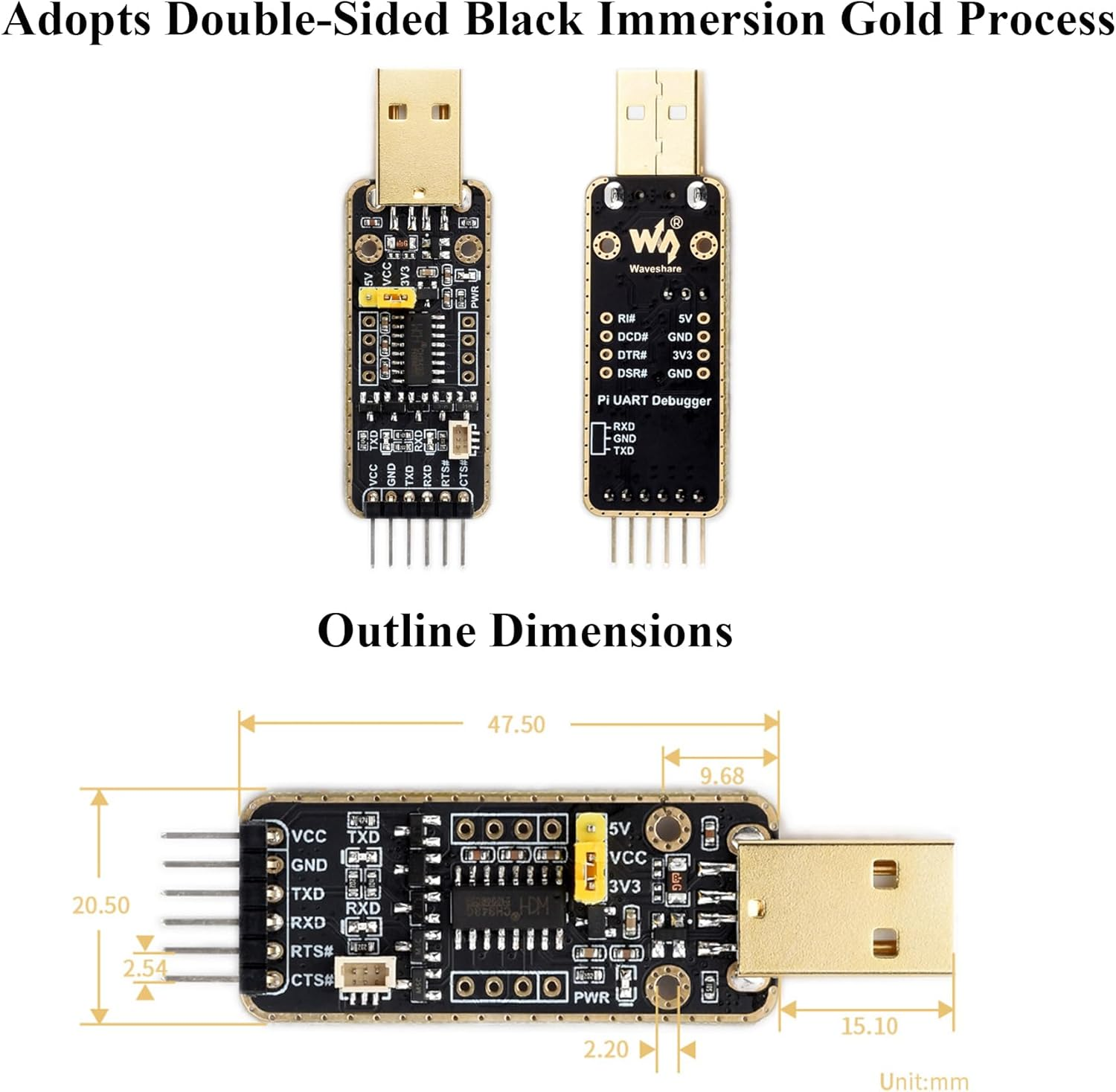

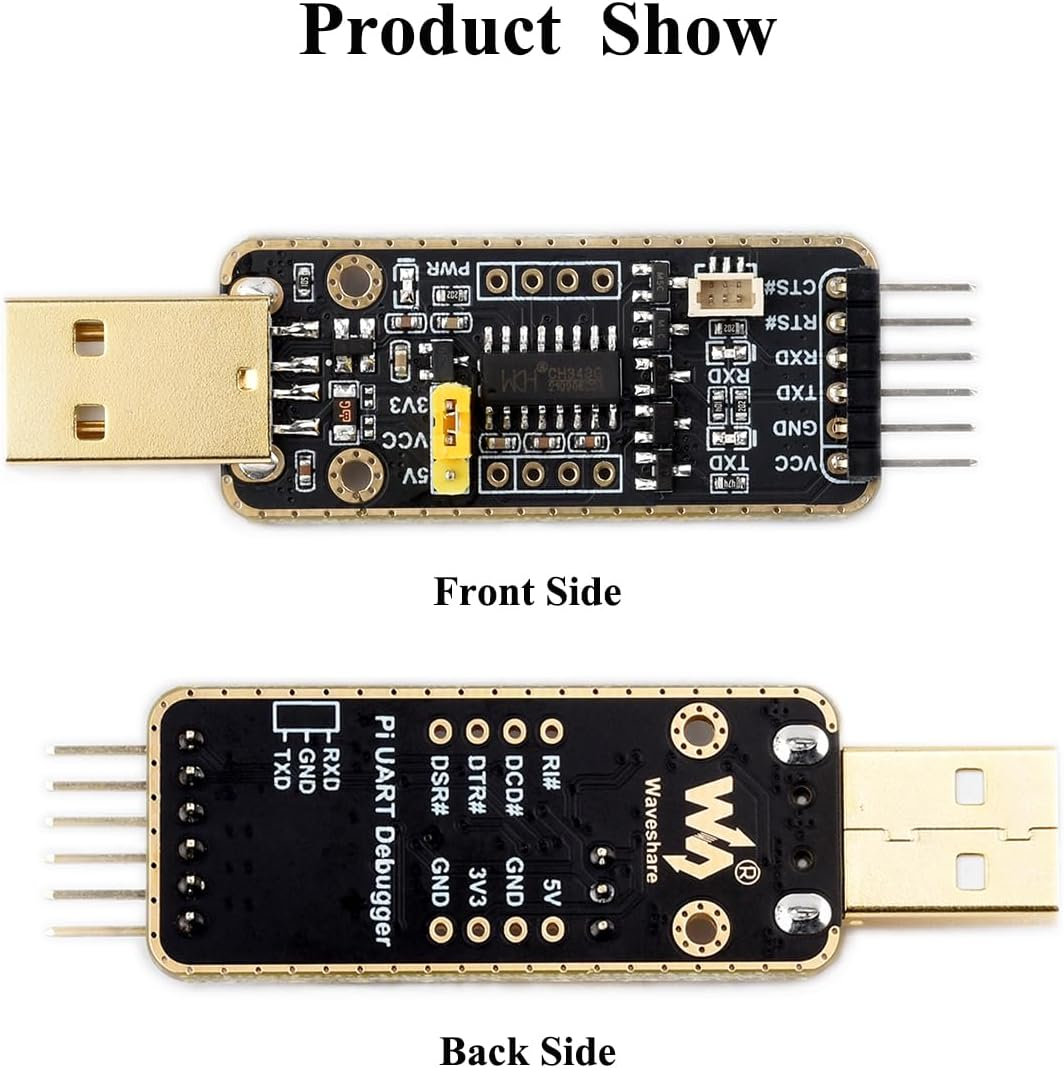

Adopts double-sided black immersion gold process, which is durable and has a good look
Provide Online Development Resources /User Manual: bit.ly/3IYW7ar
Pi5 UART debugging suitable for Pi 5, Supports Multiple Connection Methods:
1. Connect to PI5 UART Debug Connector via SH1.0 3PIN cable.
2. Connect onboard 6PIN header to PI5 GPIO UART Interface via 6PIN cable.
3. Connect onboard 6PIN header to PI5 UART Debug Connector via SH1.0 to 3PIN cable.
Specifications
HOST INTERFACE: USB
DEVICE INTERFACE: UART
COMMUNICATION RANGE: 50bps ~ 6Mbps
Power Supply: 5V
USB DEVICE INTERFACE
connector: USB Type-A;
protection: self-recovery fuse, ESD protection
UART INTERFACE
connector: 6pin right-angle pinheader; 3pin connector
protection: IO protection diode

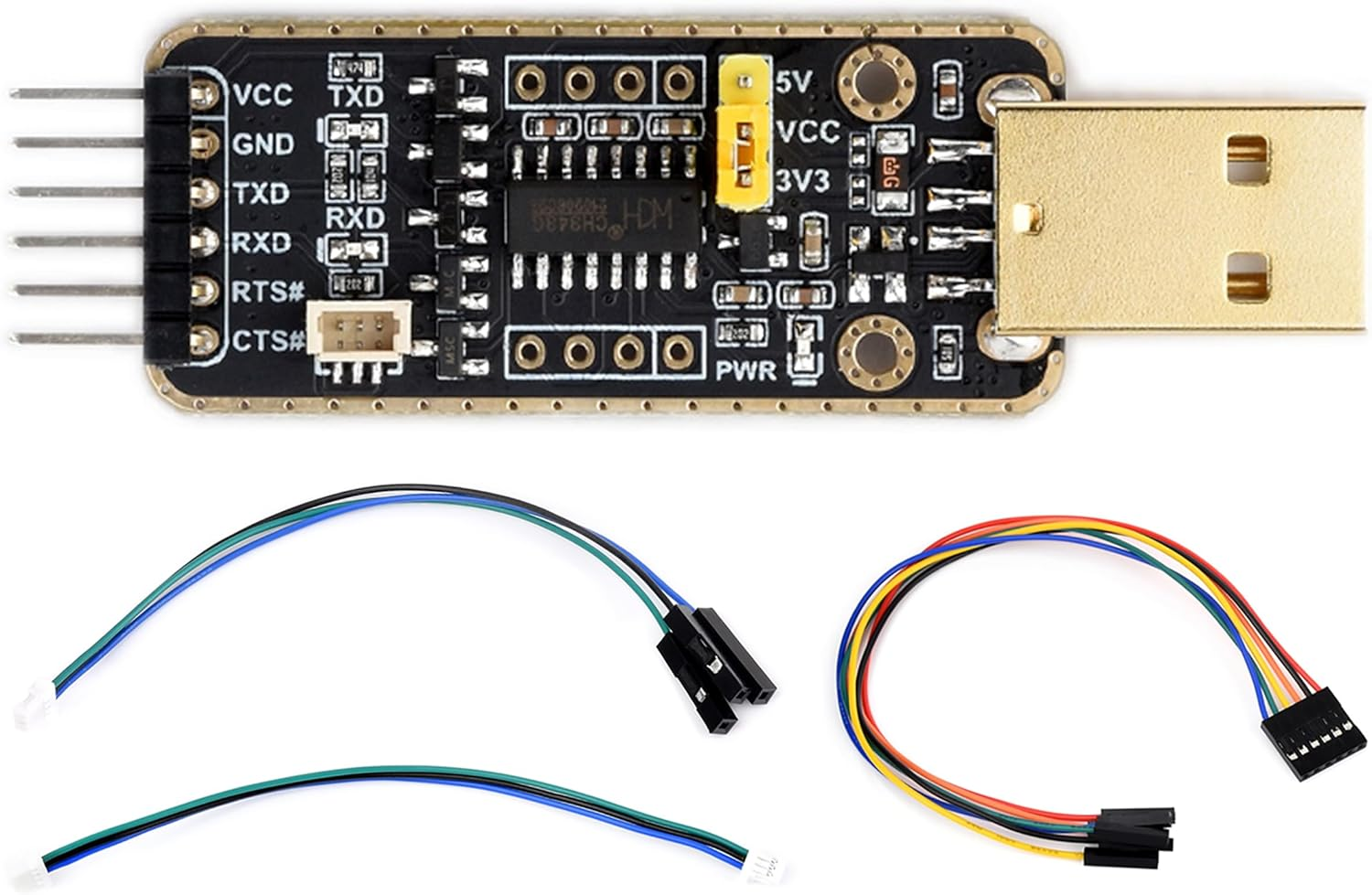

Package Content
Pi UART Debugger x1
6-pin squid cable x1
SH1.0 connector to 3PIN cable ~100mm x1
Dual SH1.0 connector 3PIN cable ~100mm x1
