Ecsing 5Pcs Lithium Battery Protection Board 18650 BMS PCM Battery Protection Board Battery Overcharging Protection Board for Lithium Ion Battery Packs
Ecsing 5Pcs Lithium Battery Protection Board 18650 BMS PCM Battery Protection Board Battery Overcharging Protection Board for Lithium Ion Battery Packs
Brand: ECSiNG
A$16.10
- Lithium battery protection board, 2S 7.4V 8.4V 18650 BMS PCM battery protection board, used for overcharging protection of lithium-ion battery packs.
- Current: 5A, overcharge voltage: 4.25-4.35v 0.05v; Overvoltage: 2.3-3.0v 0.05v, maximum continuous current: 5A; Maximum peak current: 7A.

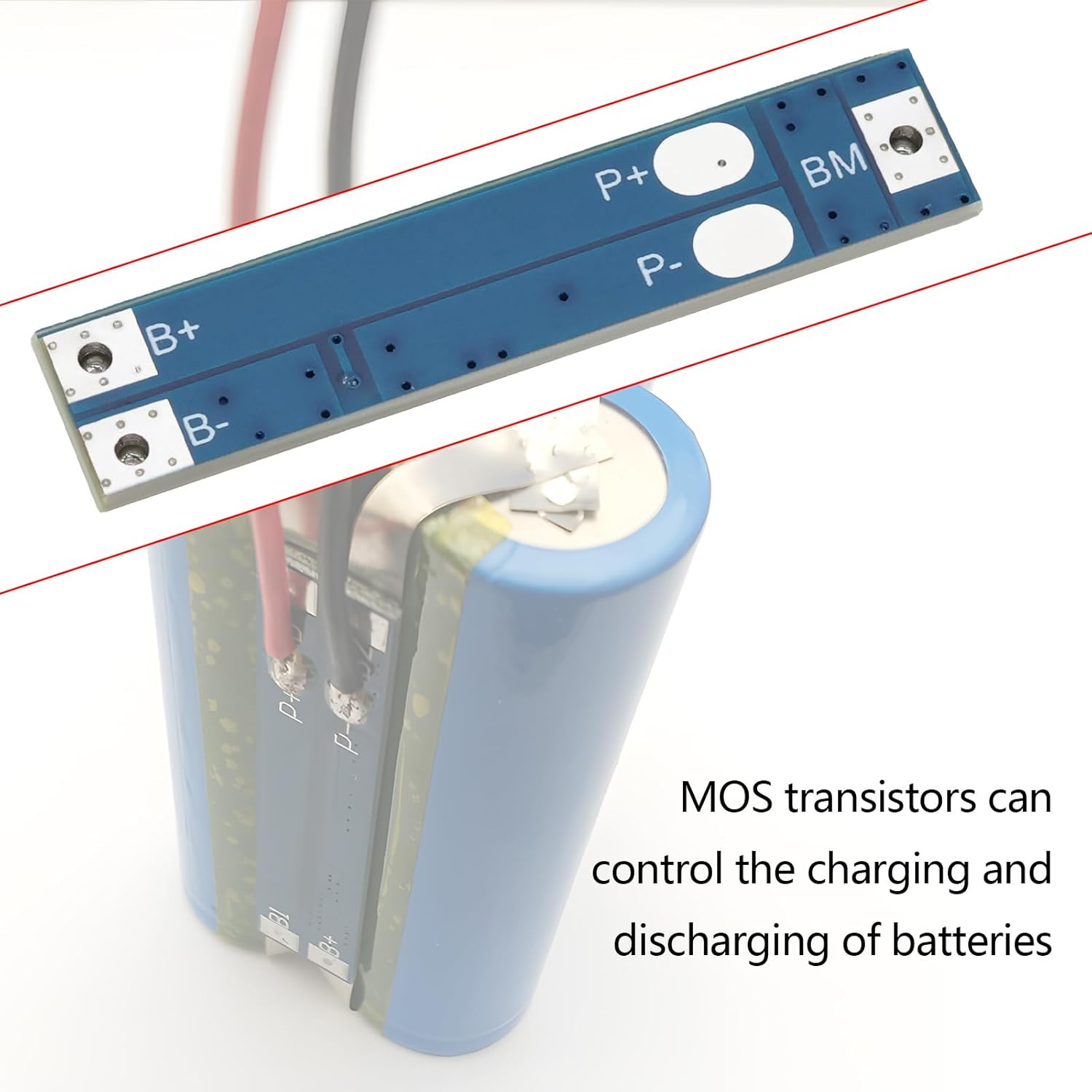

- Diagram wiring: B+: Connect the positive pole of the battery, B -: Connect the negative pole of the battery, BM: Before connecting battery 1 and battery 2, P+: Battery output input positive pole, P -: Battery output input negative pole.
- Performance of lithium battery protection board, high-precision voltage detection circuit, terminals of charger using high-voltage device, built-in three-level overcurrent detection circuit, MOS transistor can control battery charging and discharging, low standby current consumption.
Product Description
Item Specifications

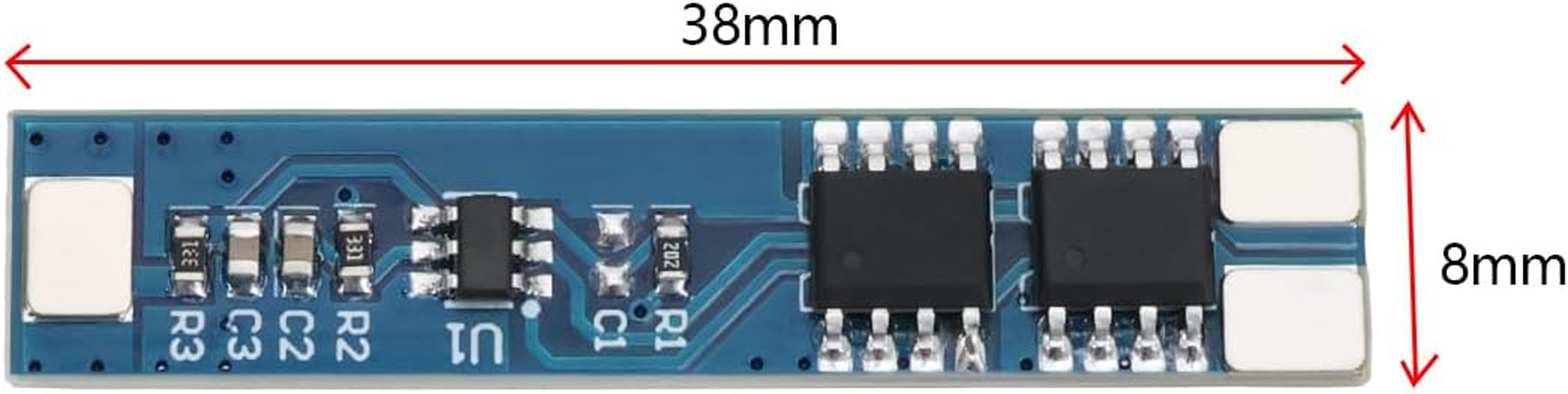

Size:38x8mm
Working current:5A
Temperature range:-40 °C to +80 °C
Overcharge voltage:4.25-4.35v ± 0.05v
Charging voltage:8.4V
Quantity:5 pieces
Package
5 x Lithium battery protection board
- Batteries Required: No
- Item Weight: 20 g
- Brand: ECSiNG
- Package Dimensions: 10 x 8 x 1 cm; 20 Grams
- Manufacturer: ECSiNG
