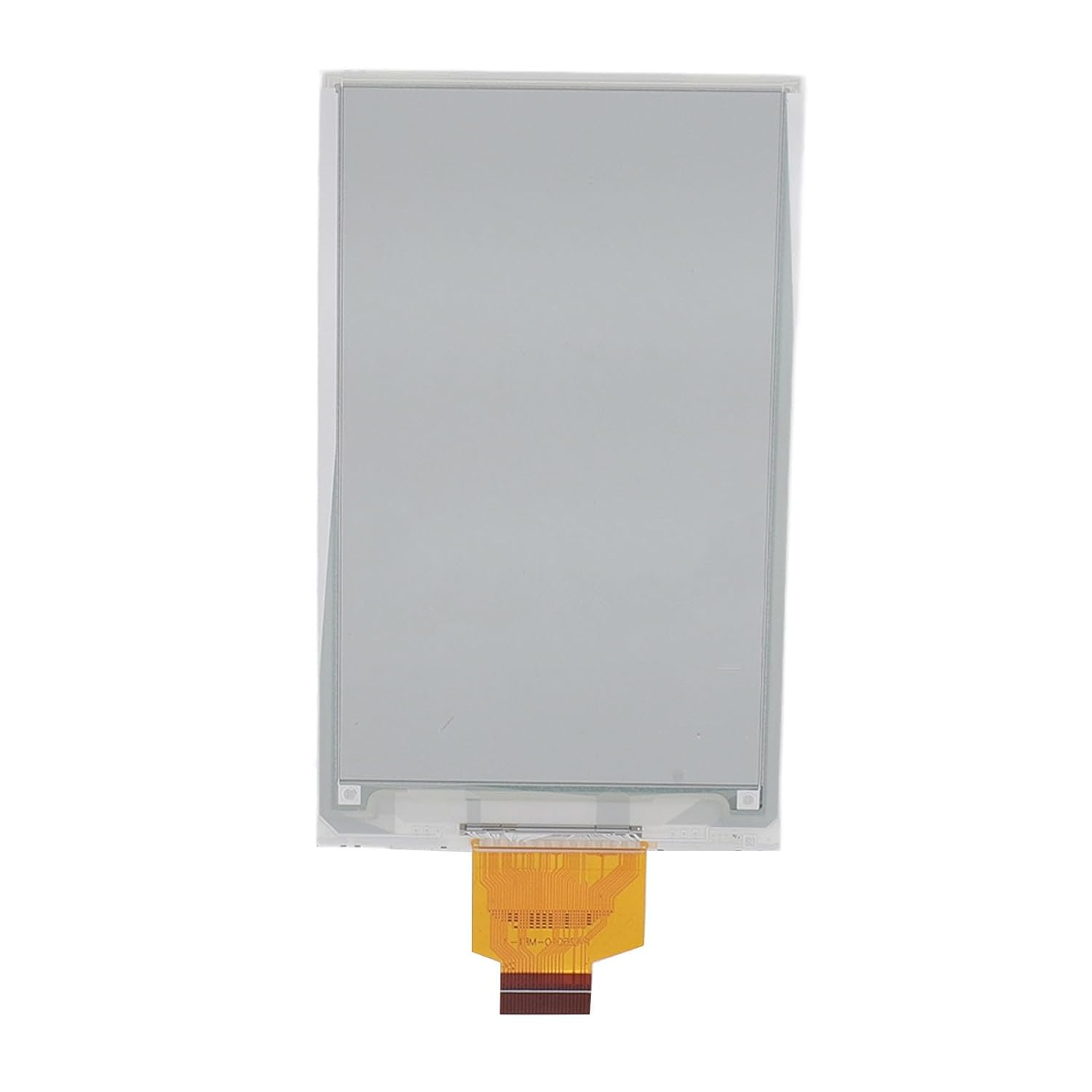

4.26 Inch Display Module, 800X480 Pixels Communicate Black White E Paper Screen Module, No Backlight, SPI Interface, Low Power Consumption Energy Saving
4.26 Inch Display Module, 800X480 Pixels Communicate Black White E Paper Screen Module, No Backlight, SPI Interface, Low Power Consumption Energy Saving
Brand: Generic
A$62.70
- Long Lasting Display: Display module has no backlight, so it can display the last content for a long time even if the power is cut off.
- Energy Saving: This e paper display module has very low power consumption and basically only needs power supply for refreshing.
- Compatible With For RPi Series: The e paper display board has standard for RPi 40PIN GPIO expansion connector to support for RPi series boards.
- SPI Interface: This display board is designed with SPI interface for connecting to other controller boards such as for RPi, for STM32, etc.
- High Resolution: E paper screen module has a resolution of 800 x 480 pixels, which provides a clear and detailed image quality and enhances the user experience.
Product Description
4.26 Inch Display Module, 800x480 Pixels Communicate Black White E Paper Screen Module, No Backlight, SPI Interface, Low Power Consumption Energy Saving
Compatible With For RPi Series: The e paper display board has standard for RPi 40PIN GPIO expansion connector to support for RPi series boards.
High Resolution: E paper screen module has a resolution of 800 x 480 pixels, which provides a clear and detailed image quality and enhances the user experience.
Energy Saving: This e paper display module has very low power consumption and basically only needs power supply for refreshing.

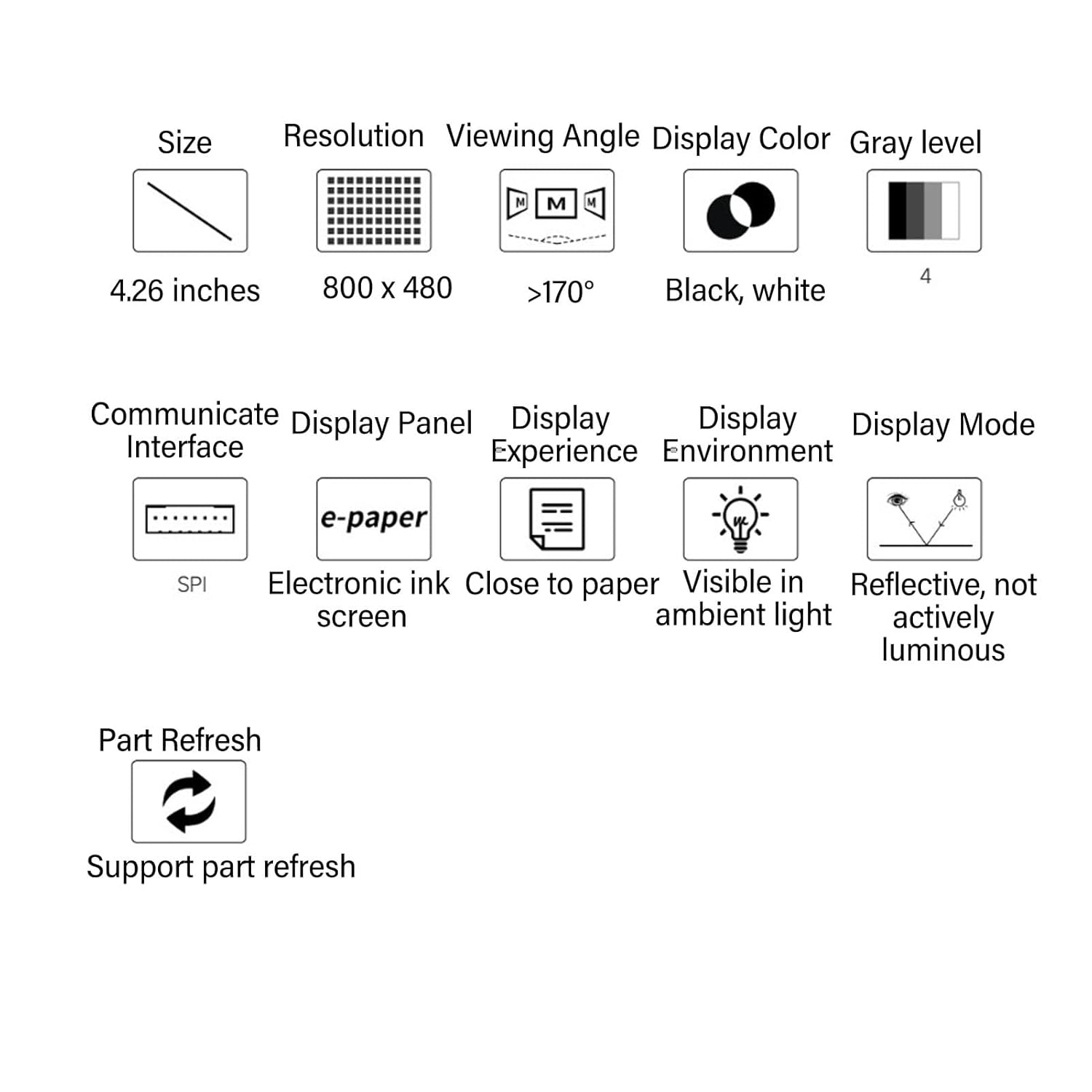

Spec:
Item Type: Display Module
Material: Electronic Ink
Size: 4.26 Inch
Driver Board Size: Approx. 107 x 64mm / 4.21 x 2.52in
Display Size: Approx. 92.8 x 55.68mm / 3.65 x 2.19in
Screen Size: Approx. 129.33 x 62.37 x 0.926mm / 5.09 x 2.45 x 0.04in
Operating Voltage: 3.3V, 5V (IO voltage level must be consistent with power supply voltage)
Communicate Interface: SPI
Dot Pitch: Approx. 0.116 x 0.116mm / 0.005 x 0.005in
Resolution: 800 x 480
Display Color: Black, White
Gray Level: 4
Refresh Time: 4s
Refresh Power Consumption: < 35mw (Typ.)
Sleep Current: < 0.01uA (Near 0)
Operating Temperature: 0-50℃
Storage Temperature: -25-60℃
Packing List:
1 x Display Module
Notice:
Manual measurement, please allow some errors.
- Item Model Number: Genericy7hk2m59zg
- Country of origin: China
- Package Dimensions: 16 x 11 x 5 cm; 65 Grams
- Manufacturer: Generic
