DC40C-2460 Micro Brushless DC Water Pump

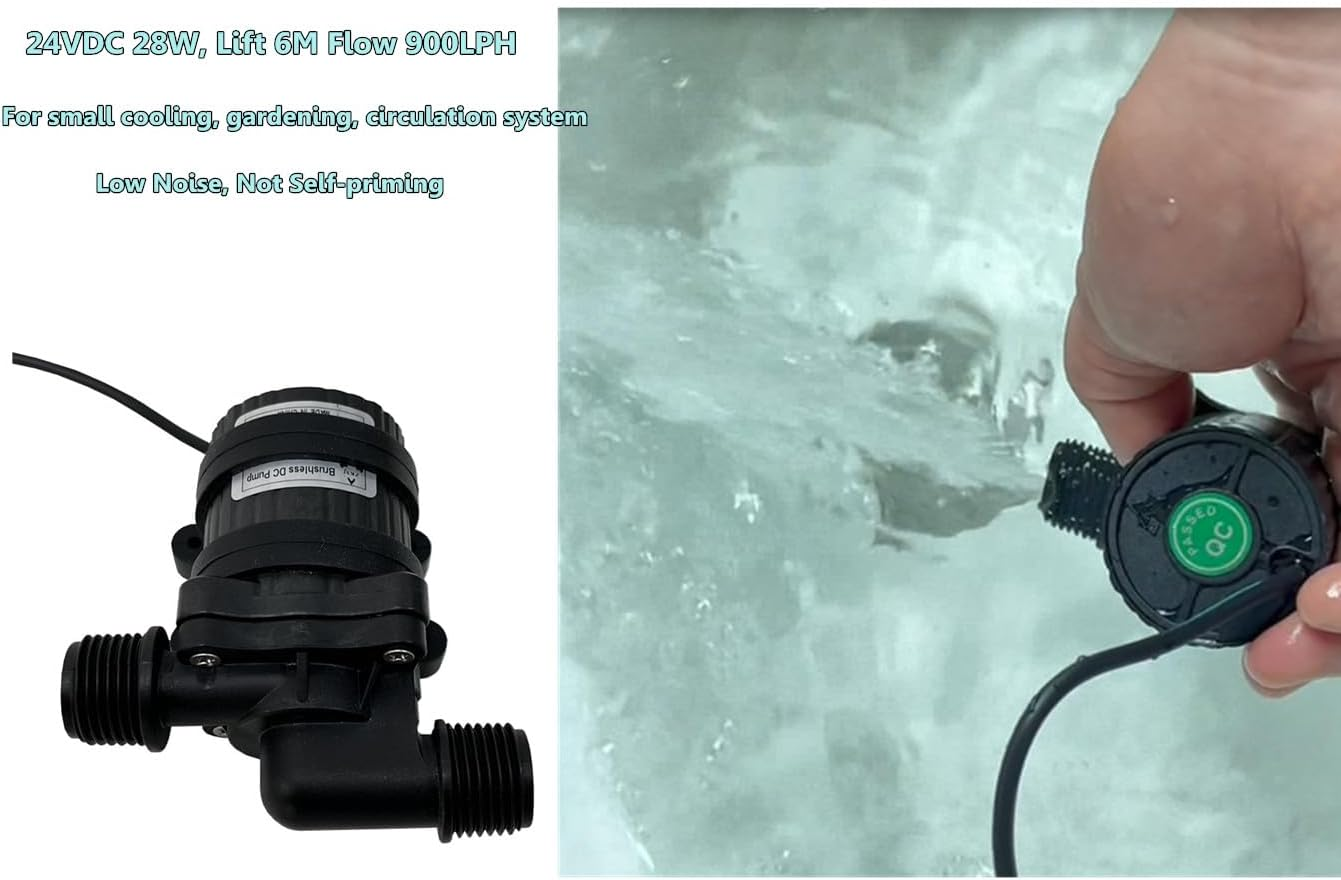

DC40F-2460 model, rated voltage 24VDC, 28.8W, Brushless DC design. Max. Static lift appr. 6m 24VDC (~19 ft) and Max. Horizontal flow rate appr. 960LPH 24VDC. Both ports are 1/2’’ threaded (with external diameter of appr. 20mm). Pump weighs appr. 235 grams (~0.52 lbs) as a whole. In brief, it is a power-efficient micro water pump product among our series.

• Brushless DC Design, waterproof, cannot be self-priming, cannot dry run.
• DC 24V power supply. No direct AC power powering or over-voltage powering.If it is AC/DC Power adapter, make sure that it can offer sufficient power: output capacity be 24VDC >=1.5A. Note that Power supply cannot be placed in water or moisty location.
• Pump supports continuous long time work with relatively low noise at normal working environment. Land use or submersible installation can be either OK, yet pump cannot be self-priming. Make sure that fluid can actively flow passing through inlet/outlet because pump works via centrifugal force of high-speed rotation of impeller inside (to push/throw in-flow out). No long-time dry work without in-flow, or it may damage the pump.

Package includes: 1 x DC40F-2460 Micro Brushless DC Water Pump (No power supply is included)

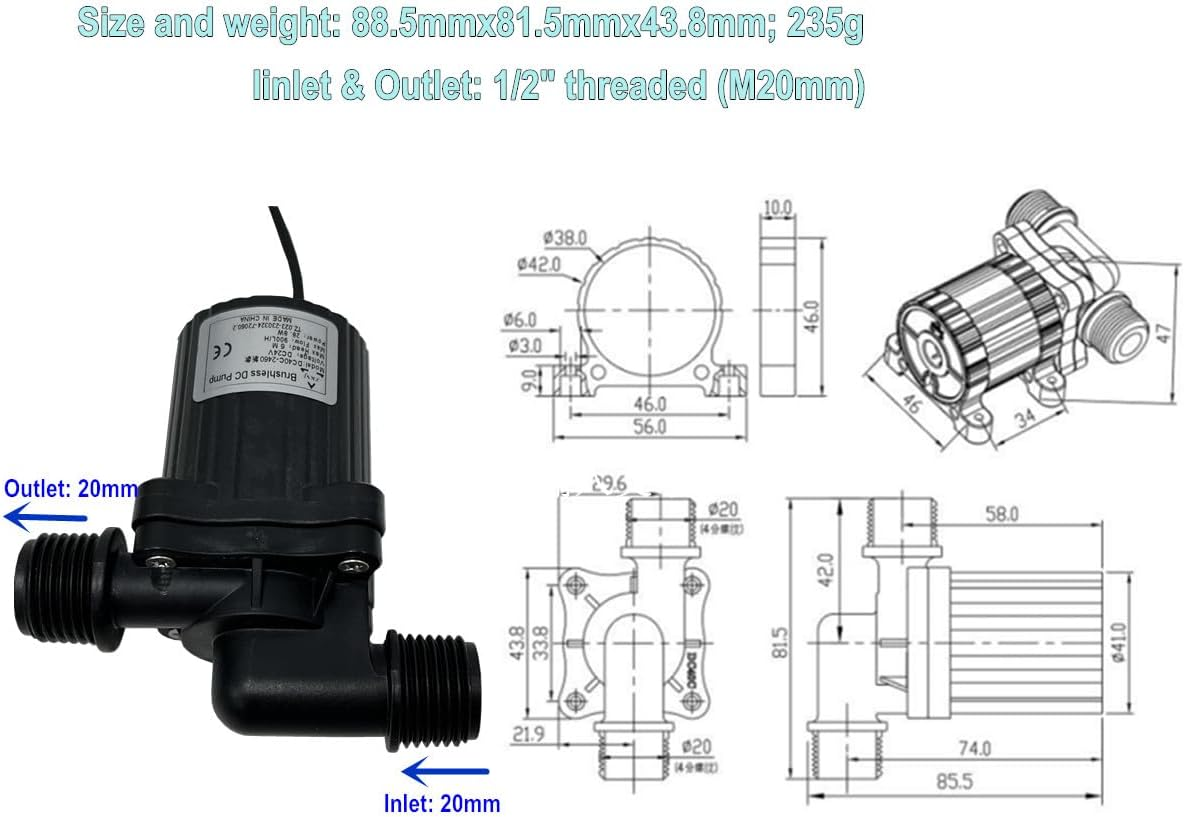

Dimension

Important Notes about Pump’s use & installation

• Do NOT throw the pump or install it violently, as it could damage the pump body. Do NOT throw the pump directly through the cable, to avoid damage of cable.
• FIX the pump somewhere when at work, avoiding its own moving-around due to reaction force when at work, which will result in factual pump's DRYRUN even under water. Also, if it is a circulation system and water will drop back to the tank, avoid the pump installation directly below the water dripping down, to avoid a lot of air bubbles that flow into.
• Do not place the pump upside down (outlet downwards, or inlet downwards). Do place the pump normally upwards, or at least sideways, when for long term work in system.
• Avoid Impurities to cause impeller blockade. Avoid crystallization if for sea/salt water.

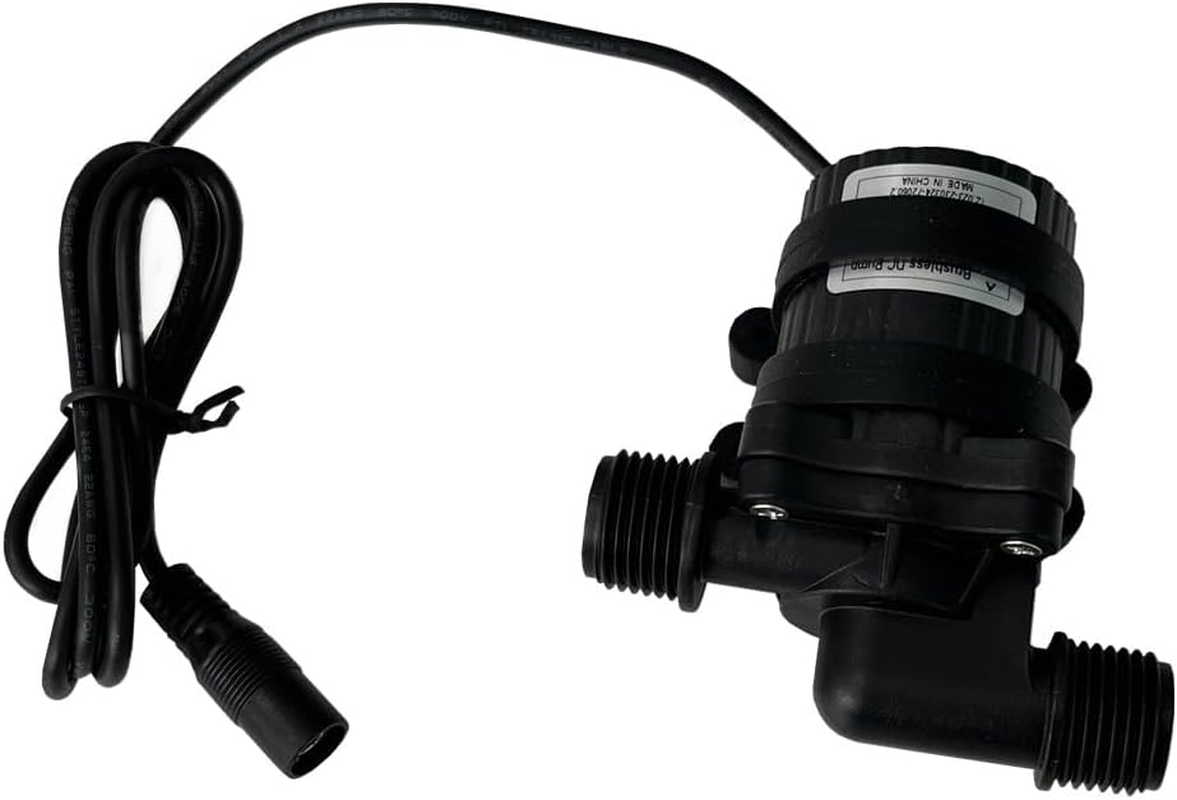

• It is DC head (Female) connector: DC5.5*2.1 (compatible with DC5.5*2.5), INNER PIN + OUTER -. Two sub-cables inside, RED/BORWN +, BLACK/BLUE -. DC 24V.
• Note that parameters of pump itself at open ports status is significantly different from parameters measured after being connected in a circulation system.
