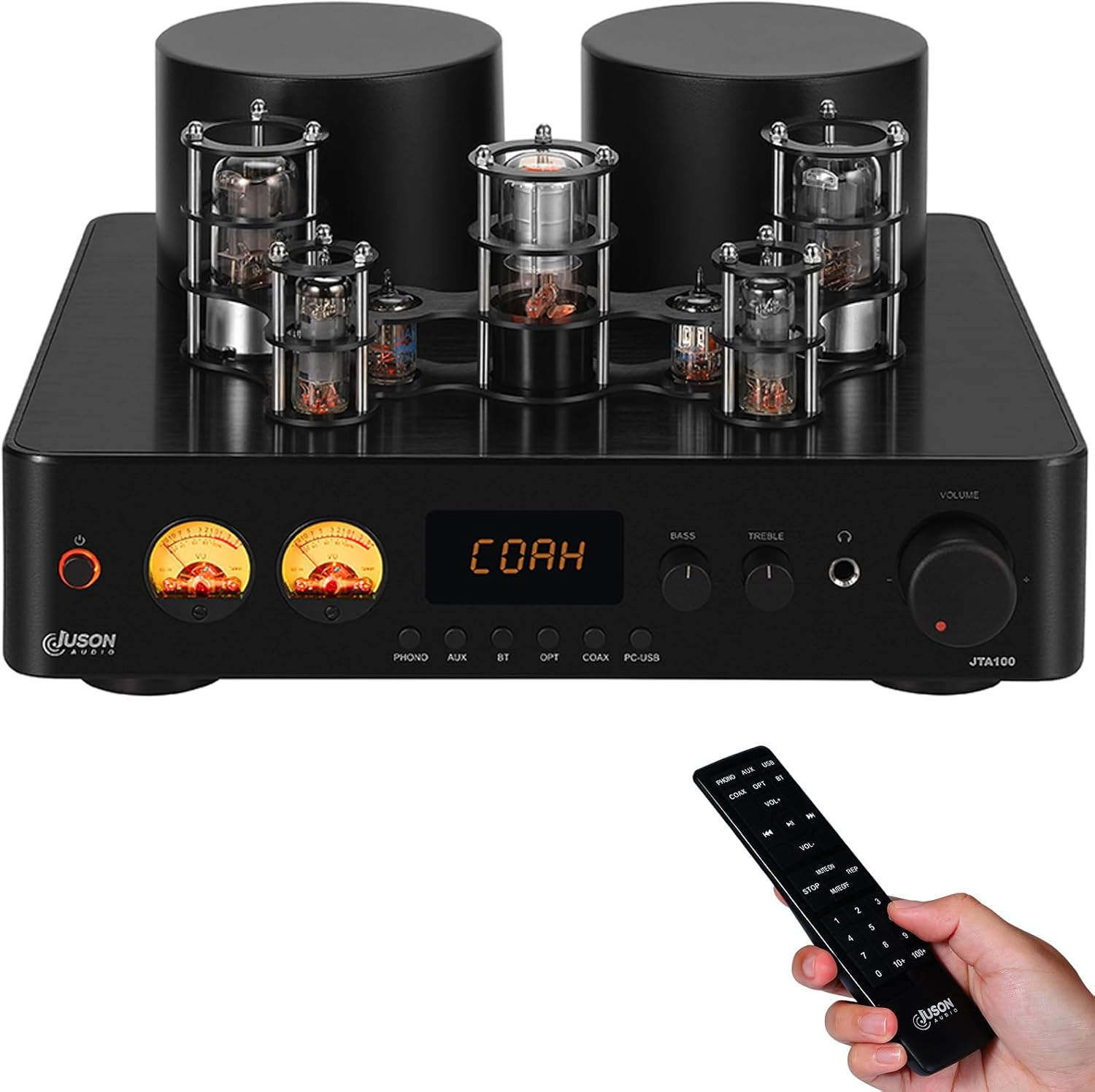

Juson Audio JTA100 200W Vacuum Tube Amplifier Integrated Hybrid with BT 5.0 Optical AUX RCA Phono Input and Headphone Output 2.1CH Class AB Hifi Home Audio for Turntable

Juson Audio JTA100 200W Vacuum Tube Amplifier Integrated Hybrid with BT 5.0 Optical AUX RCA Phono Input and Headphone Output 2.1CH Class AB Hifi Home Audio for Turntable

Brand: DIFIIFOL
5.0
A$565.95
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Powerful Output: With an impressive 200Watts RMS output, the Juson Audio tube amplifier provides a vibrant and captivating auditory experience, fulfilling your need for warmth and great sounds.
  • Versatile Inputs & Outputs: This entry-level HiFi amplifier supports multiple inputs including AUX, COAX, PHONO, OPT, and BT 5.0. It has a headphone output and a subwoofer output, enhancing its versatility and adaptability for various audio setups. A Remote provides controlling from a distance.
  • Vacuum Tubes Preamp & Transistor Power Amplify: Leveraging the richness of vacuum tubes preamp and the robustness of transistor power amplify, this tube amplifier brings you great sound reproduction, well balancing warmth and clarity.
  • Independent Treble and Bass Knobs: With separate treble and bass knobs, the Juson Audio tube amplifier allows you to fine-tune your audio experience, making it your personalized audio companion.
  • LED Display & VU Meter: The amplifier features a stylish LED display and a VU meter, offering real-time audio level data and enhancing the modern aesthetics of your audio equipment setup.

Product Description

Vacuum Tubes Preamp Class A/B Amplifier With Versatile Inputs

  • Class A/B vacuum tube amplifier perfect matching with most of home audio systems
  • Impressive 200Watts RMS output provides a vibrant and captivating high-grade sounds
  • Profession tune turning for a great,cheerful and warmth sound
  • Supports multiple inputs including MM/MC phono,Coax, Optical, AUX, BT 5.0, and PC-USB drive
  • Subwoofer,passive speaker and headphone outputs efficiency provide much warmth and natural sound.The tubes will be a little bit high temperature when they work,please don't touch them.
  • Built-in phono port,it can connect MM/MC phono directly for modern turntable.
  • Modern blue tooth connectivity can stream your favorite music into amplifier easily.
  • An IR remote is provided,you can control the amplifier from a distance.The remote does not include battery,if you found the remote unworkable,please check if you have put the battery in.
  • The stylish LED display and VU meter contribute to an elegant, modern aesthetic.The VU meter would not move when the headphone plug in or volume is down.
  • Note:The VU meter would not move unless the volume is less than half and the headphone plug in.
  • Note:We might upgrade the tubes without notice according to sales market.If you care about it,please check it with Juson Audio.

Valuable 2.1CH Surrounding Audio Experience

  • RCA inputs and subwoofer output combine a 2.1CH surrounding environment
  • A headphone output for immersing listening experience
  • The vu meter would not move when the headphone plug in or volume is down
  • Independent bass and treble button for private favourite matching listening
  • Enjoy a rich and natural sound music
  • With a remote,easily to control this tube amplifier

How to Connect with Your Units

  • There are 6 types of input sources.If you like to stream your musics into amplifier,Please set correct input signal firstly by remote or physical button.The wrong setting will make amplifier unwork.For example,if you like to stream your music into amplifier by BT,you need to press BT button in front panel or choose BT signal by Remote.
  • If you cannot connect amplifier by BT,please check if there is another BT devices which have been connected.Please make sure there is only one BT device connect in amplifier.It cannot be used with 2 or more BT devices in the same time.
  • If you would like to listen music through your USB or computer,please prepare PC-USB cable with/has female to female USB connector firstly. And then connect your USB disk or computer by correct port,select PC-USB signal by remote or physical button,therefore you can enjoy your delightful music.
  • If you use PC-USB port to connect your Macbook,Please set Audio output through amplifier,Otherwise it cannot work.
  • If you would like to connect your iPad into Amplifier,you need a OTG cable firstly.With OTG cable, you can connect it easily and enjoy musics from your iPad.

Connevient Connection

Control your music wirelessly with the included remote or stream your favorite tracks directly from your smartphone or tablet via Blue tooth 5.0. Enjoy the freedom of wireless connectivity without compromising on sound quality.

  • Stream your favourite music through Phones,tablets or other BT devices
  • Control the amplifier by a IR remote

Phono/Subwoofer/Headphone Tube Amplifier

Built-in phono preamplifier to easily connect record players

Connecting directly to most turntables without extra an external phono preamplifier.

1. Ensure that your turntable is set to phono output signal. Many modern turntables have output ablity either a line level signal or a phono signal. If your turntable is set to output a line level signal please connect it to the AUX input.

2. Remove the covers from the PHONO RCA plugs and connect the turntable to the phono input.

3. Connect the ground wire of the turntable to the GND on the rear of amplifier.

  • 65 RMS(root mean square) Per Channel
  • Phono input and Subwoofer/Headphone output
  • Deliver a natural and warmth sound

Independent bass and treble button

  • Turn the knob to get your favorite listening experience.
  • The VU meter would not move when the headphone plug in or volume is down.

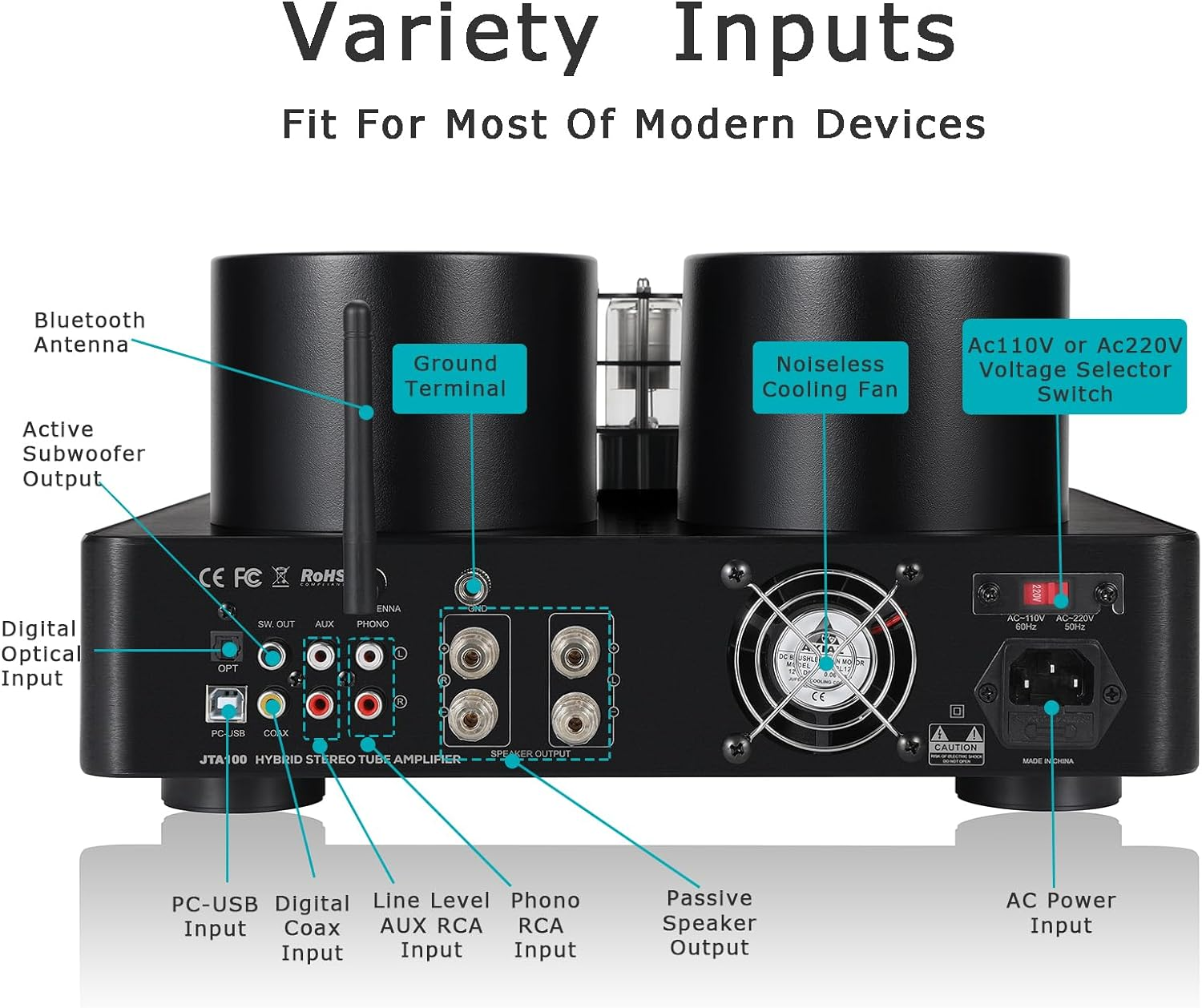

Variety Inputs

Rear-mounted analog and digital inputs allow more permanent connections to larger input sources.

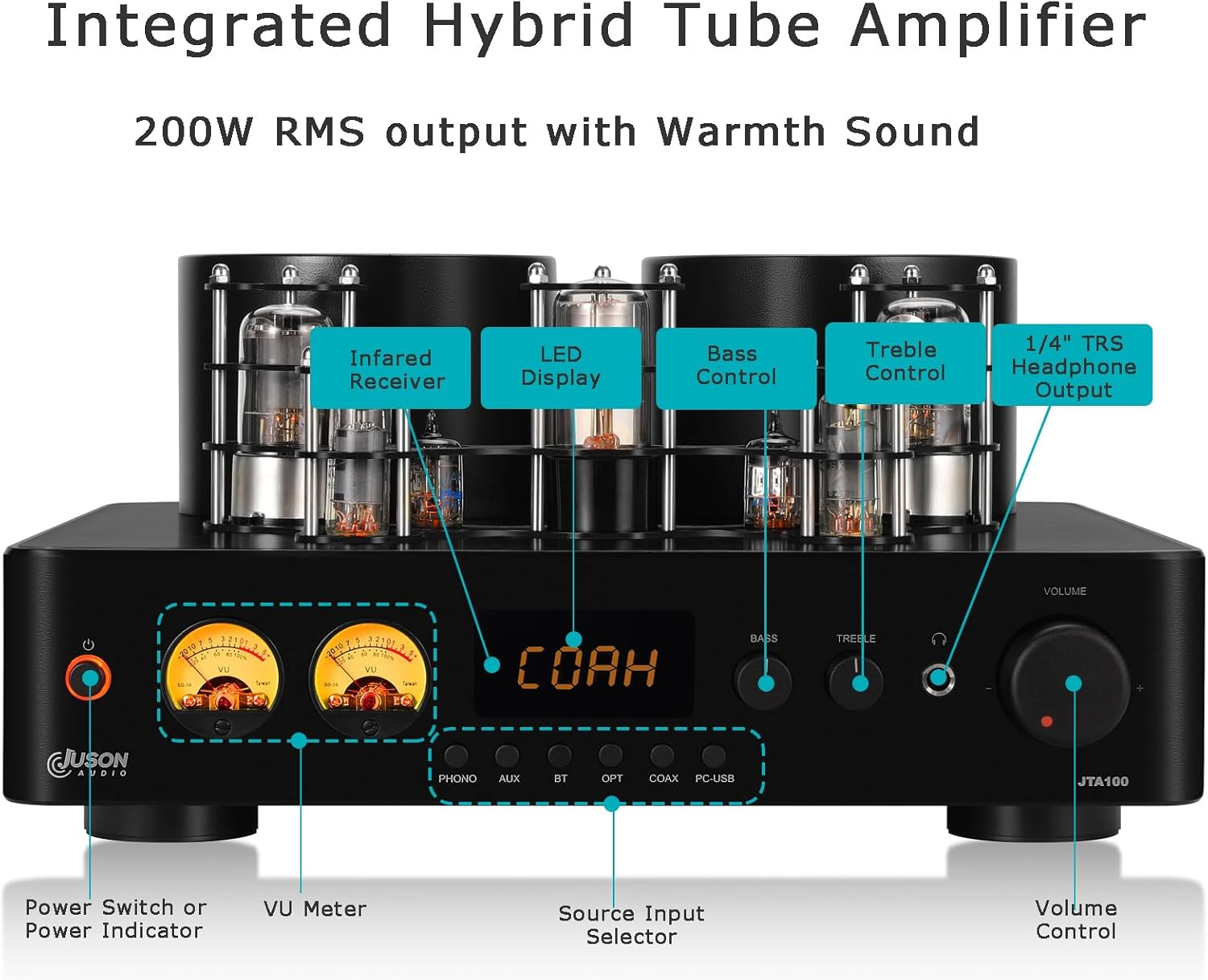

Stylish LED and VU meter

Stylish LED display shows what it is playing

VU meter tells the right and left channel datas

Preamp Tubes

  • 2pcs 6N7P tubes act as a shunt requlator and help maintain a constant voltage output with an increased temperature coefficient and less noise compared to its solid-state equivalent.
  • 2pcs 5786 tubes act as a full-bridge rectifier and are used to control the flow of electrical current,ensuring that the output is always in one direction.Tube rectifiers have a more gradual voltage response to changes in current,which can result in a smoother output and a more natural-sounding and warm tone from the pre-amp tubes.
  • 2pcs 6K4 tubes amplify the voltage of input signals and imprint their warm tonal quality on the signal before they are fed into the power amplifier stage,which boosts the signal even further to drive speakers or other output devices.
  • WY-3P tube provides a stable and precise output voltage,which is used as a reference point and is designed to maintain a constant output voltage regardless of changes in input voltage,temperature,or load conditions increasingperformance stability.

Technical Specification

Maximum Power Output(peak) 260W x2 @4 Ohm.130W x 2@8 Ohm
RMS Power Output 100W x2 @4 Ohm.800W x 2@8 Ohm
Total gain 29 dB
THD+N <1.5% @ Maximum Rated Output
Headphone output 5mW(32 ohm)
Input Sensitivity 35mW @ 32 Ohm
Signal to Noise Ratio 80 dB
Frequency Response 15HZ-20,000HZ(1dB)
Channel Separation 53 dB
Minimum Speaker Impedance 4 Ohm
Preamplfiier tubes 6N7P x 2,5726 X2,6K4 x 2;We might upgrade the tubes without notice according to sales market.If you care about it,please check it with Juson Audio.
Stabilivolt Tube WY-3P
Transistors Toshiba A1941 x 4, Toshiba C5198 x 4
Tone Controls-Bass/Treble 6 dB/oct @ 200Hz and 4,000Hz
Digital Inputs SPDIF LPCM(up to 48 kHz 16 Bit)
PC-USB sample rate: up to 48 kHz 16Bit
  • Item Weight: 10 kg
  • Product dimensions: 33.3 x 31.8 x 16.5 cm; 10 kg
  • Country of origin: China
  • Manufacturer reference: JTA100
  • Manufacturer: Shenzhen Juson Technology Co.,Limited
