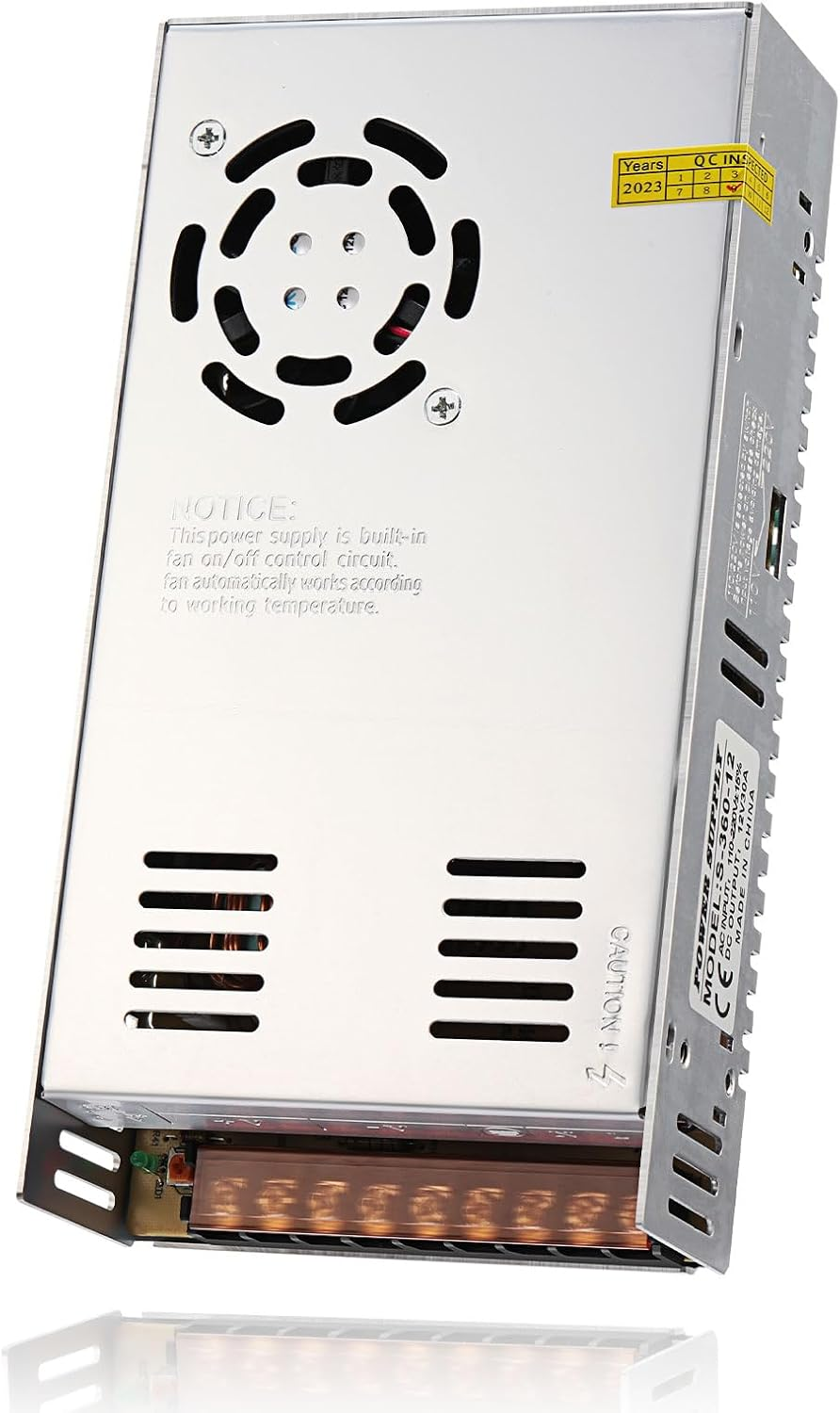

ISINMOTOR DC 12V 30A 360W Power Supply Transformer Switch AC 110V / 220V to DC 12V Switching Adapter Converter LED Driver for Diesel Heater LED Strip Light CCTV Camera Security System

ISINMOTOR DC 12V 30A 360W Power Supply Transformer Switch AC 110V / 220V to DC 12V Switching Adapter Converter LED Driver for Diesel Heater LED Strip Light CCTV Camera Security System

Brand: ISINMOTOR
4.2
A$37.30
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【Wide Application】DC 12V 30A 360W Power Supply Transformer is Widely Compatible With Diesel Heater, LED Strips, 3D Printer, ham radio transceiver, CCTV cameras, car subwoofer amp, audio amplifier, wireless router, ADSL Cats, HUB, audio/ video power supply. Indoor use only!
  • 【Stable Power Supply 】Just set the voltage you need for specific items and leave it at that voltage. AC To DC 12V 30A Switch Adapter will be steady at the volts Preset and Keep Stable Performance
  • 【Safety Protection】Short circuit protection, overload protection, and overvoltage protection are features that help guard against damage to your device. Note: Before using, please change the input voltage to 110V or 220V in accordance with your local voltage. The default input voltage is 220V.
  • 【Work Anywhere】Lightweight and Portable Design. The size is fairly compact so it works in smaller spaces. Dimension: 8.7 Inch*4.7 Inch*2.1 Inch (L x W x H）
  • 【Easy Operation】 This Power Supply Converter doesn't require installation; instead, it can be used to change output after the wires have been connected. The supply has a potentiometer included within it. The output parameter can only be changed by rotating the potentiometer.

Product Description

Wide Application

  • Diesel Heater
  • LED Strip Light
  • 3D Printer
  • LED Driver
  • CCTV Security System
  • LCD Monitor
  • ADSL Cats
  • Webcam Router

IISNMOTOR 12V 30A 360W Power Supply Adapter

What does a 12v AC-DC adapter do?

AC/DC adapters are commonly used external power supply units for electrical equipment which cannot directly draw power from the mains network. They convert alternating current (AC) into the required direct current (DC).

Switching Mode Power Supply

Input: AC 110V / 220V, 50 / 60Hz ; Output: DC 12V, Max 30A, 360W. The default output voltage is 12V DC, but it can be regulated by 15%, from 10.2V to 13.8V. Three sets of output channels available.

Smart Temperature control

It has a built-in cooling fan and temperature sensor. When the internal temperature hits 113°F (45°C), the cooling fan turns on automatically, making heat dissipation more efficient and silent.

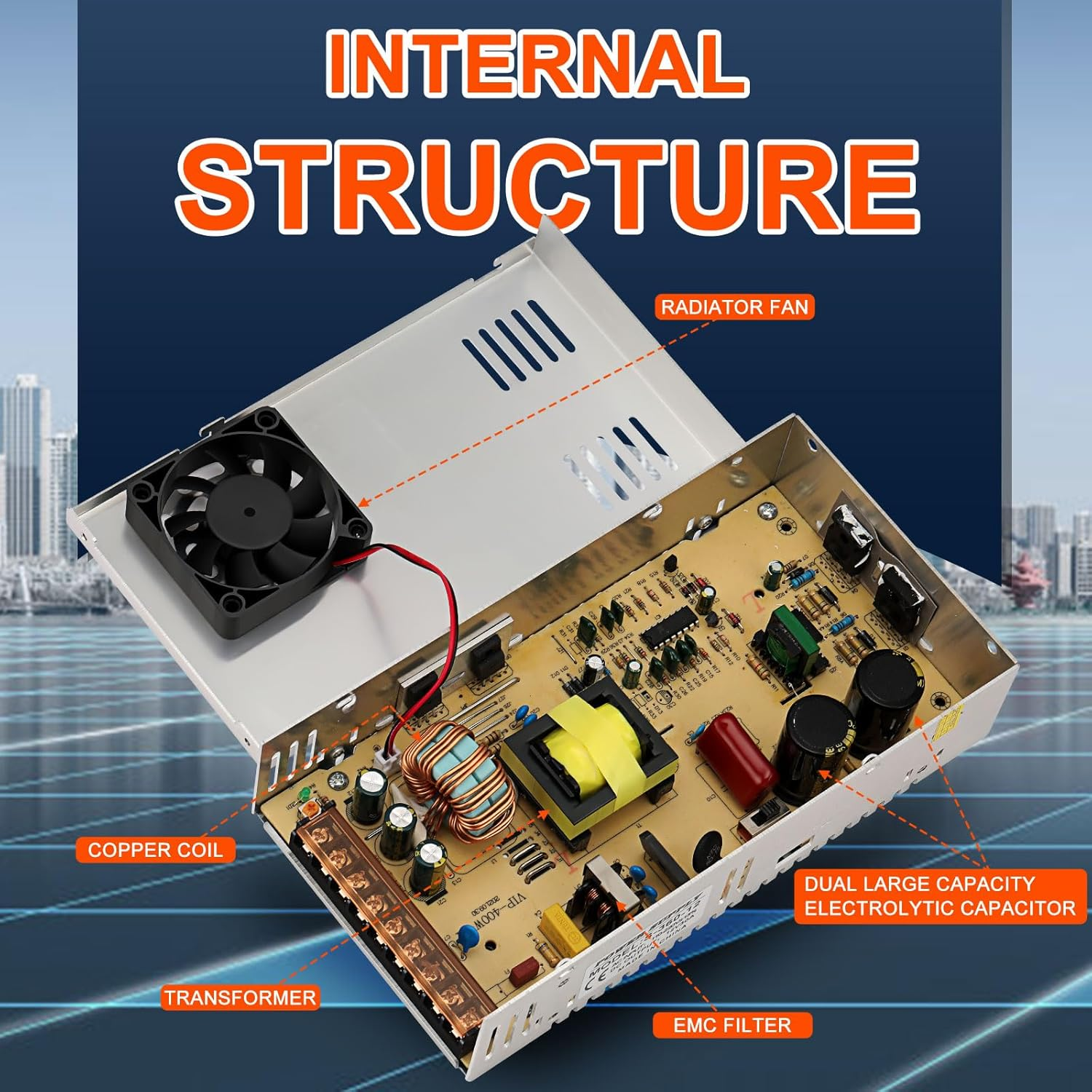

Quality Copper Coil

Built with a high-quality inner ring, this product supports inductance sense stability, high efficiency, and durability.

Transformer Electrolytic Capacitor

Stable switching power supply are ensured by high-quality transformers and dual electrolytic capacitors. With many protection functions, including over-voltage protection, overload protection, overheating protection, and short-circuit prevention.

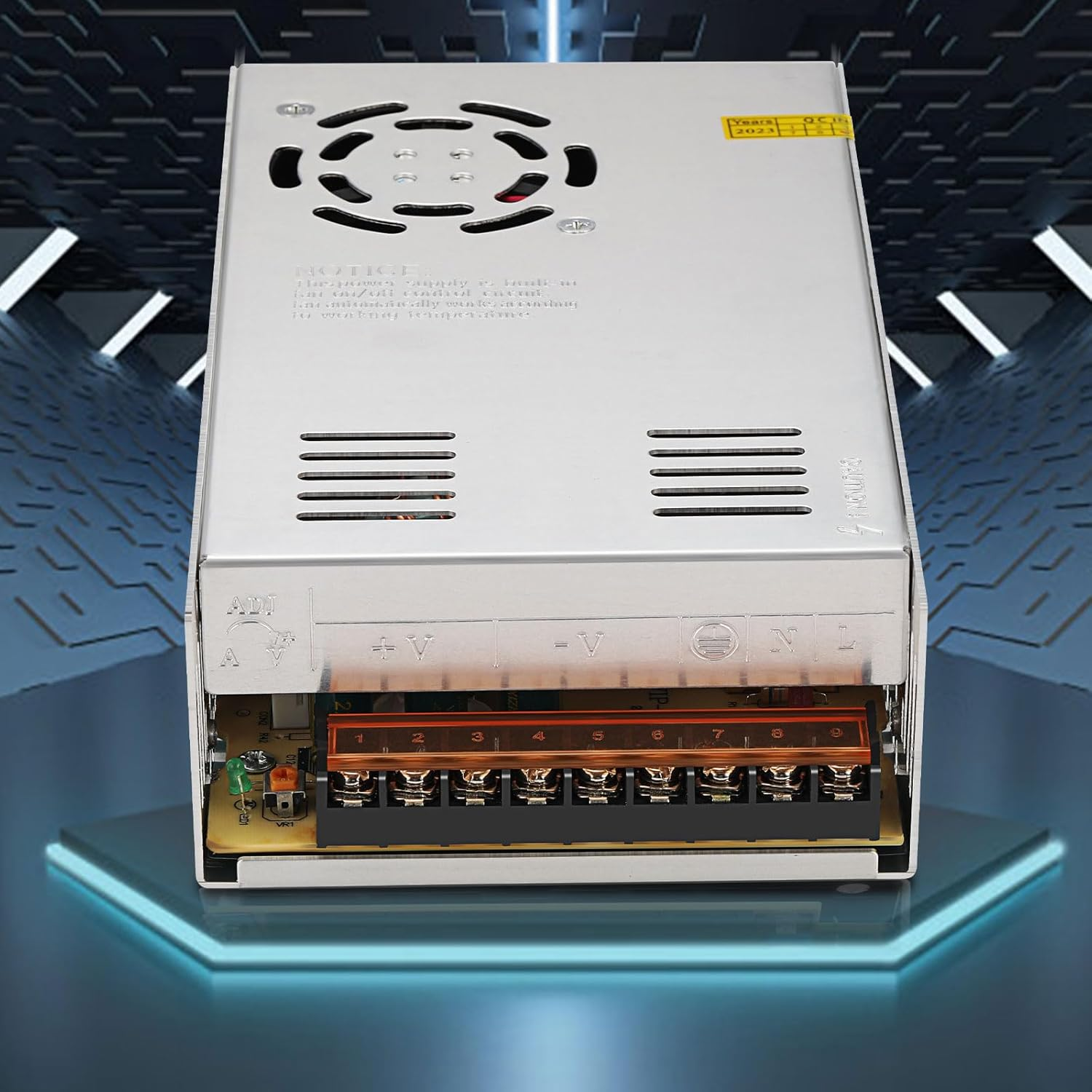

Three Output Channels

It is able to power more devices thanks to three separate output channels. Each channel may produce a maximum of 30A 360W. The three channels' combined output power is 30A 360W.

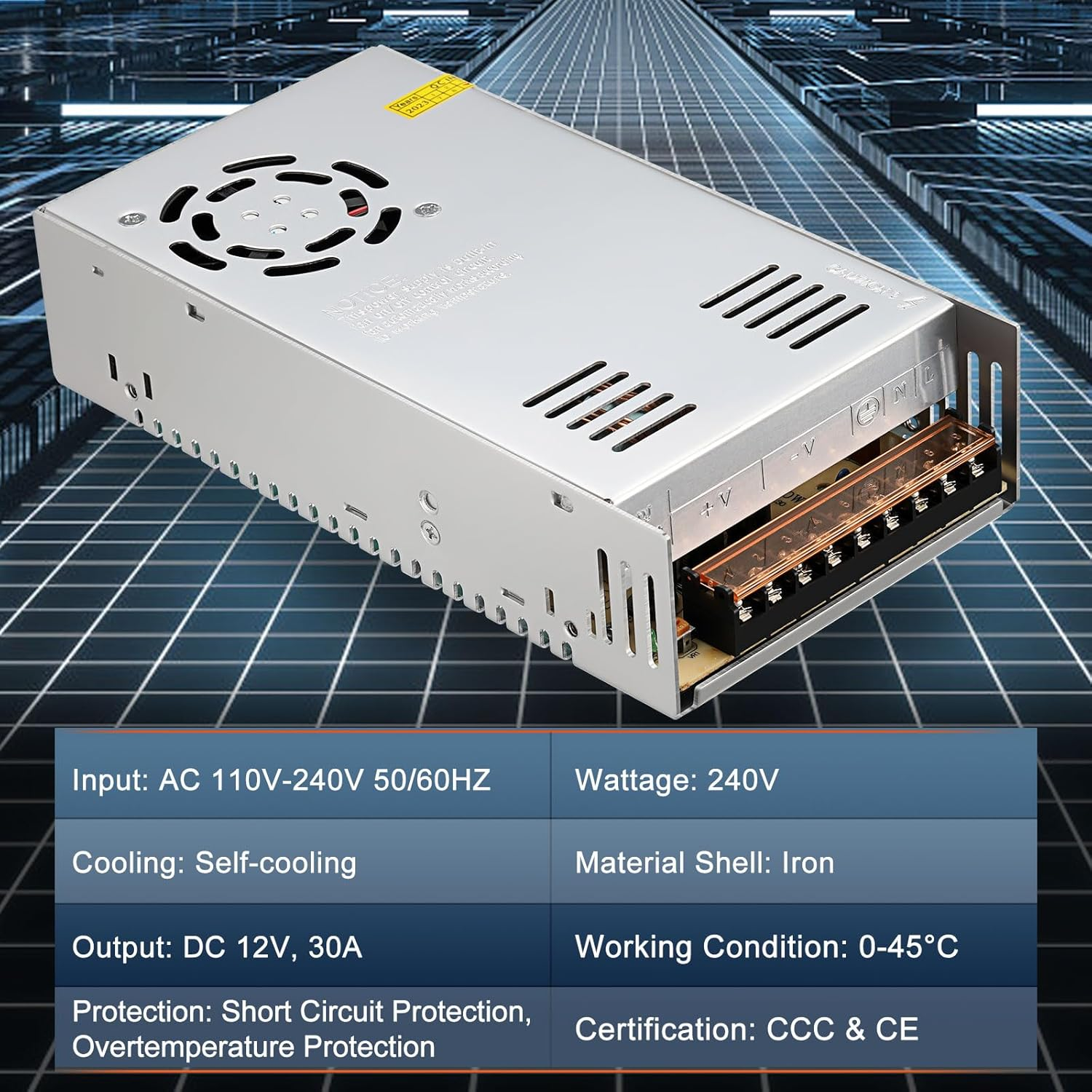

KEY SPECIFICATIONS

Output: 12V DC 30A
Nominal power: 360W
Input: AC 110V/220V ± 20%

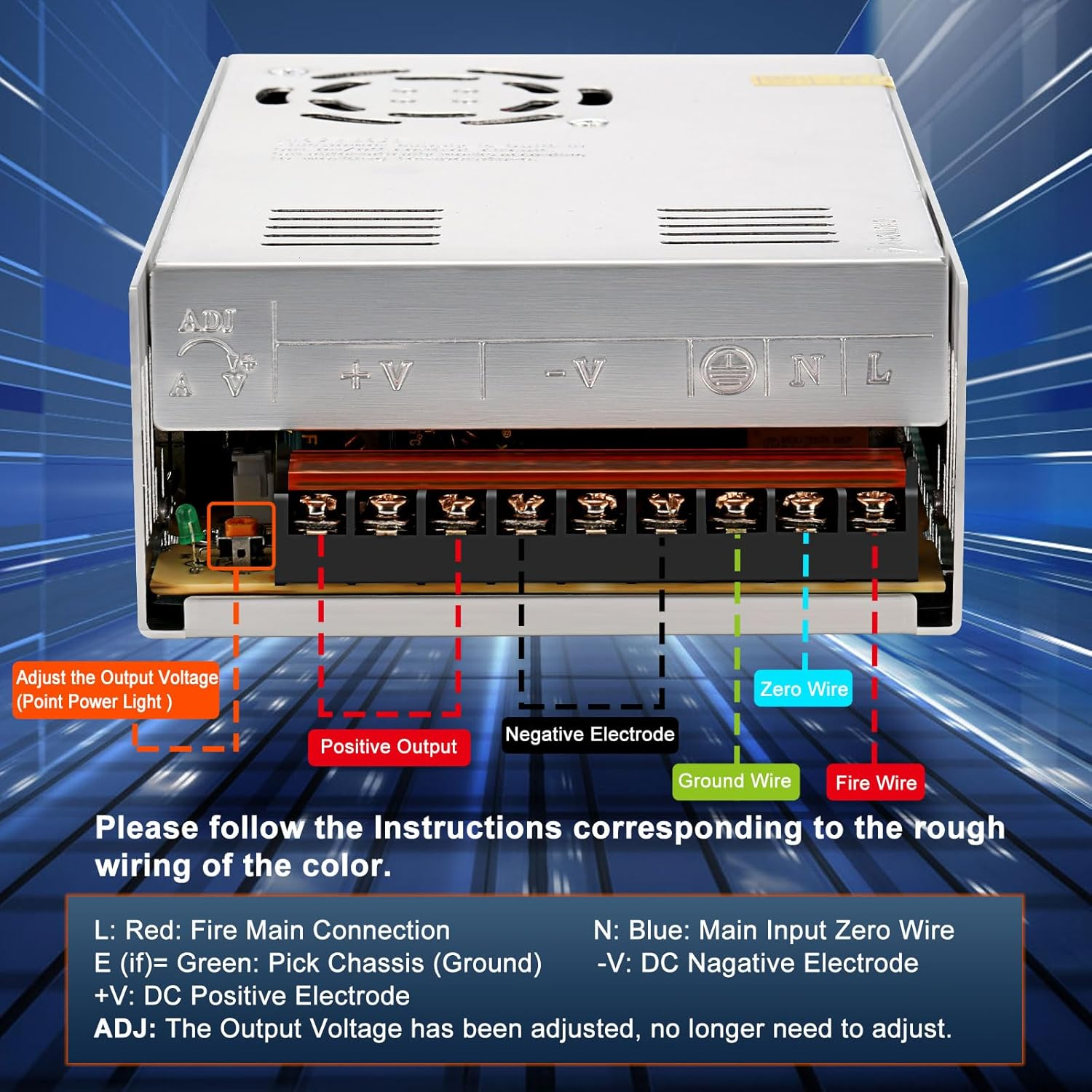

L/N: AC power input
GND: DC power output
V: DC power output "+"
+V / ADJ: Adjust the output voltage
Working Temperature: 0~40℃
Storage Temperature: -20~60℃
Ambient Humidity: 0~95% Non-Condensation
output voltage adjustable: The output direct voltage adjustable range: ±10%
output voltage tolerance: ±1%
Material: Metal
Dimension: 22 x 12 x 5.5cm（L x W x H）
  • Item Model Number: ACP001530_A00001
  • Part Number: ACP001530_A00001
  • Number of items: 1
  • Country/Region of origin: China
  • Batteries Required: No
  • Brand: ISINMOTOR
  • Material Type: Aluminium
  • Item Weight: 610 g
  • Output Wattage: 360 Watts
  • Model: ACP001530_A00001
  • Form Factor: rectangular
  • Package Dimensions: 21.9 x 11.9 x 5.4 cm; 610 Grams
  • Manufacturer: ISINMOTOR
