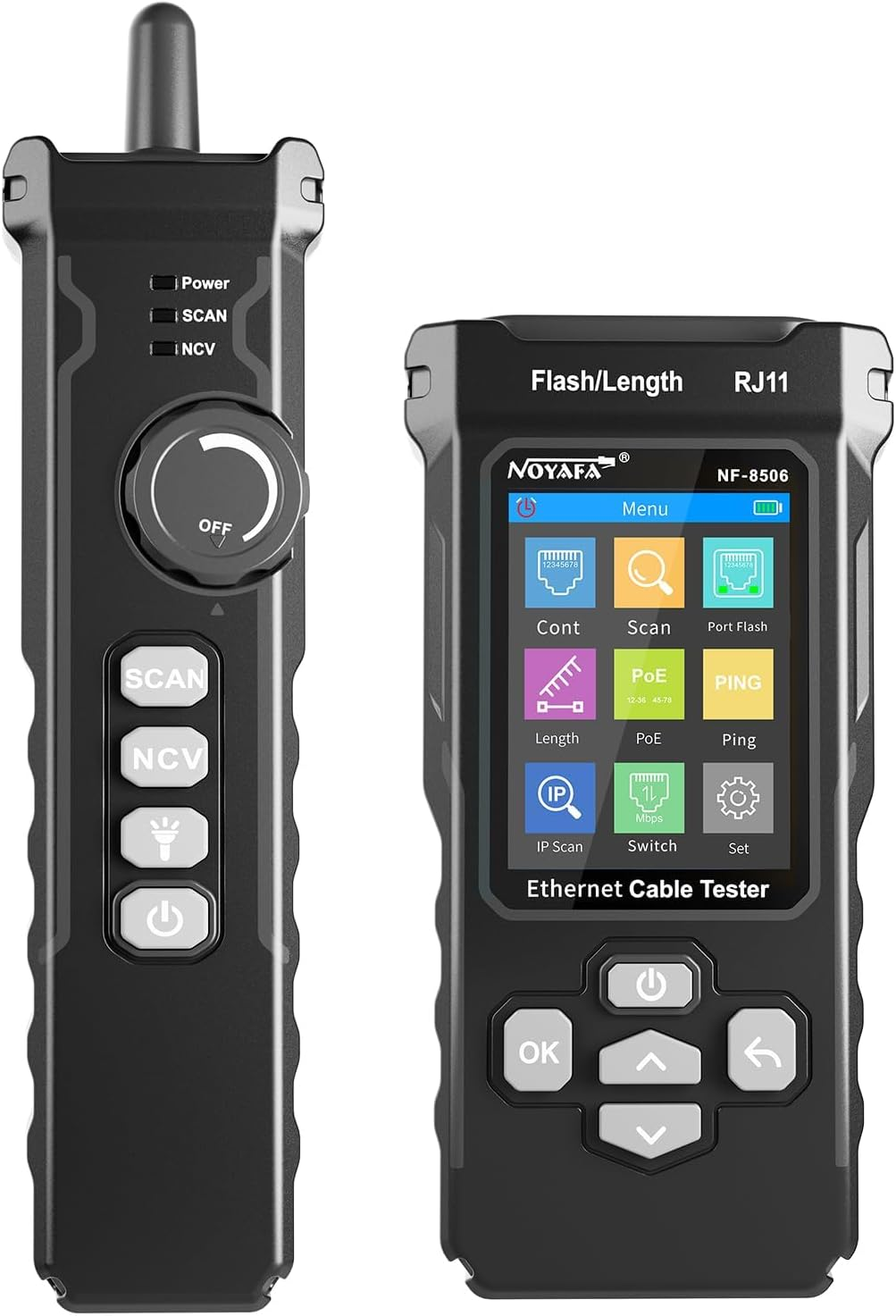

Network Cable Tester with IP Scan, NF-8506 TDR CAT5 CAT6 Ethernet Cable Tester, Poe Ping Test, Network Rate Test, Port Flashing, Network Tester Cable Toner for RJ11 RJ45 Ethernet LAN

Network Cable Tester with IP Scan, NF-8506 TDR CAT5 CAT6 Ethernet Cable Tester, Poe Ping Test, Network Rate Test, Port Flashing, Network Tester Cable Toner for RJ11 RJ45 Ethernet LAN

Brand: Hulumus
3.3
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

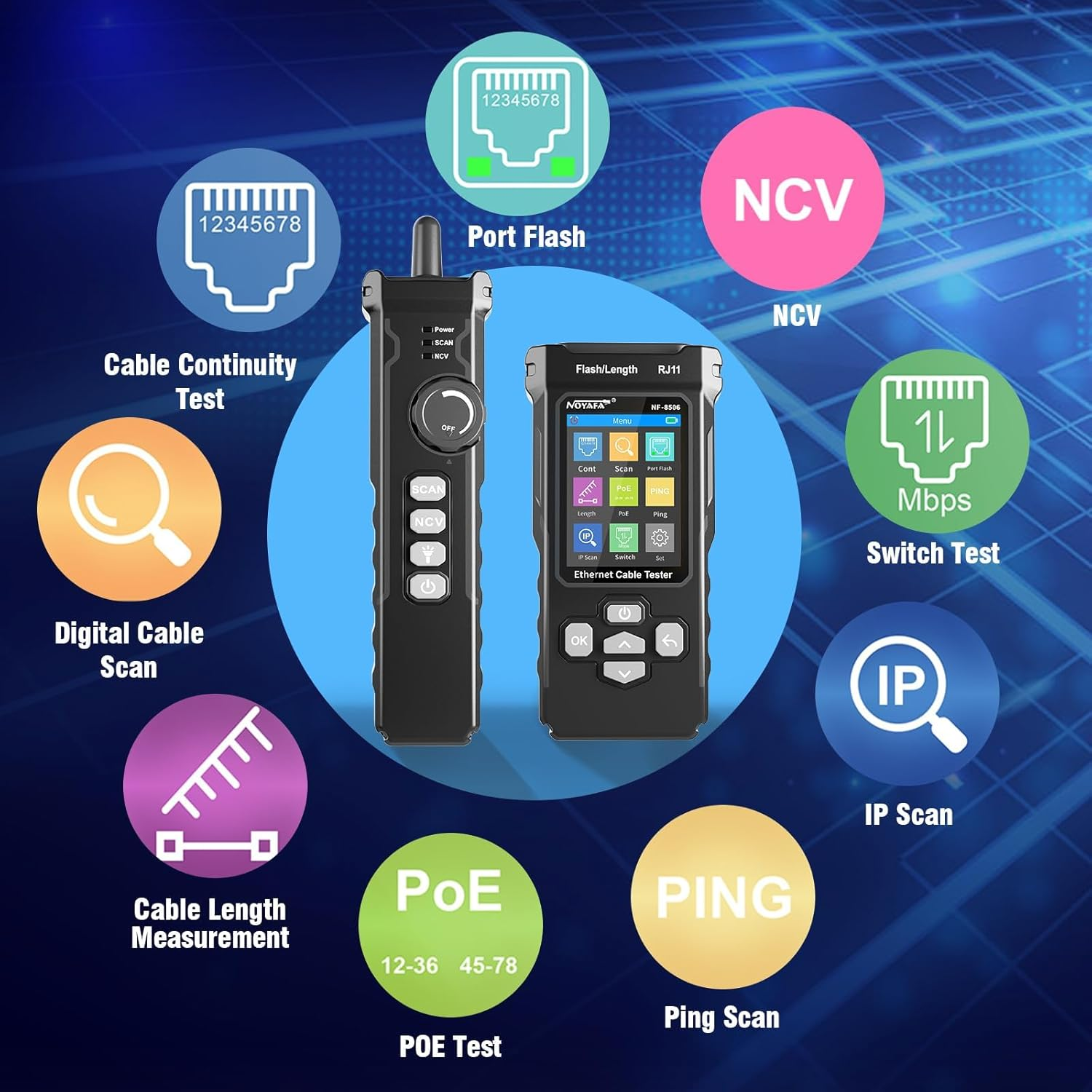

  • New Upgraded Multi-function Network Cable Tester: NF-8506 TDR network tester has IP scanning, POE test, anti-interference RJ11 RJ45 CAT5 CAT6 cable test, continuity test, Ping network Rate test, port flashing, sensitivity adjustment, cable Function of length test and LED flashlight

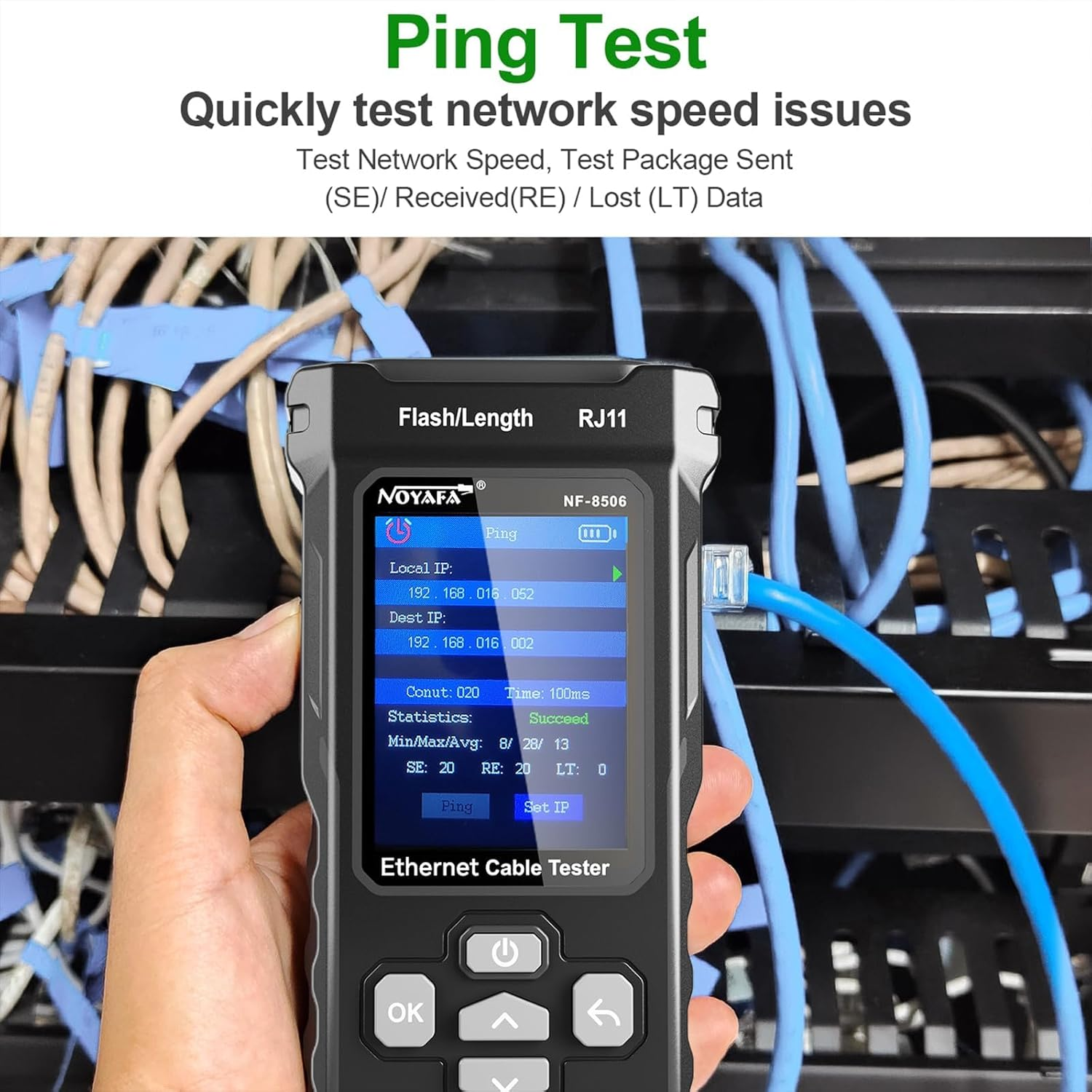

  • PING Tester+IP Scanner: This handheld Ping cable toner can be used to diagnose and maintain local area networks (Lans) running TCP/IP protocols. Powerful PING capabilities can verify connections, check the integrity of transmitted and received data, indicate network traffic load by measuring round-trip times and provide IP addresses

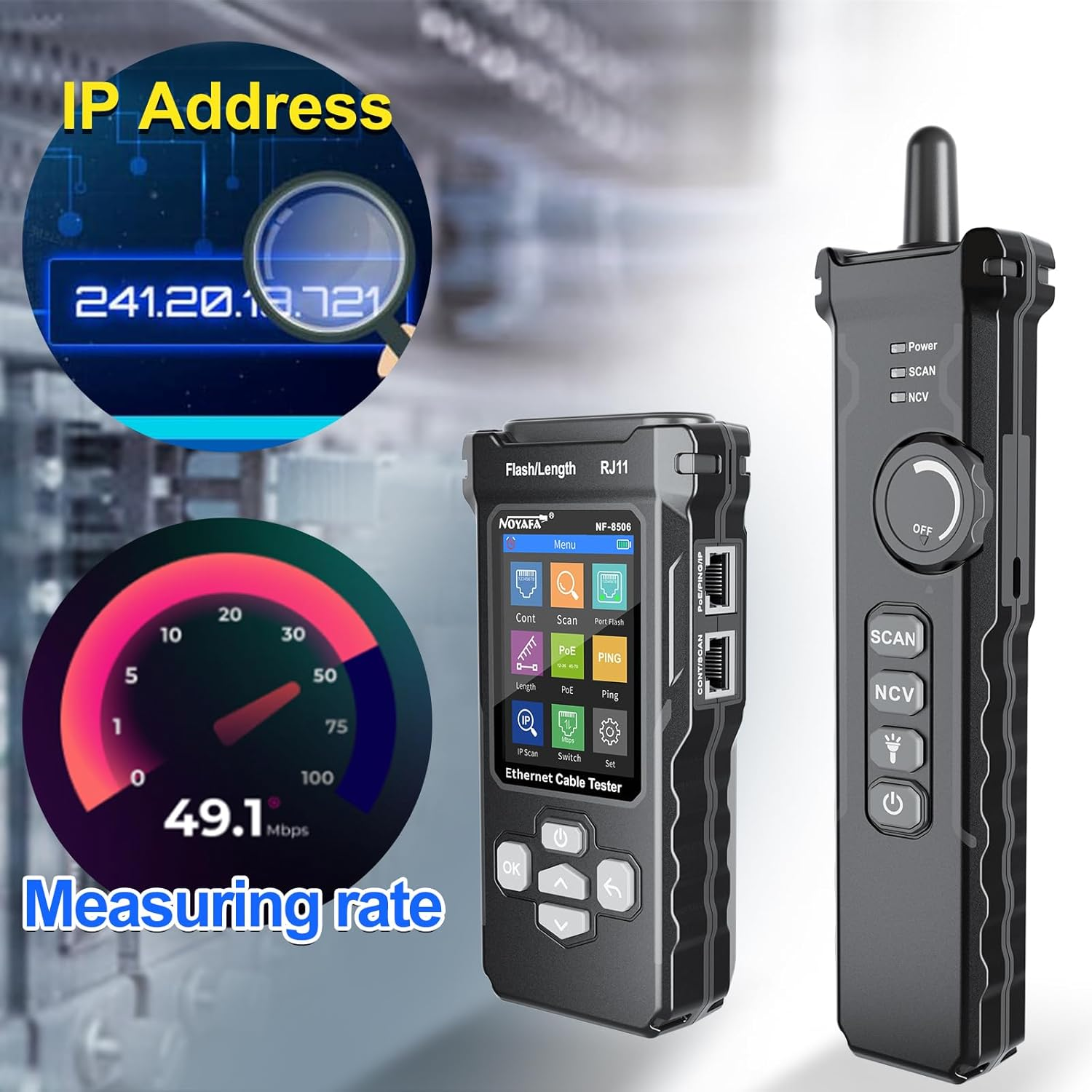

  • Network speed test + Cable Continuity test: Ethernet tester can quickly assess network speed issues. Conducts PING tests from multiple locations to gauge server and website response speeds. Allows users to ensure the integrity and connectivity of network cables by identifying any breaks, openings, or short circuits along the cable length.
  • TDR network tester: The NF-8506 Cable Tester is a portable Time Domain Reflectometry (TDR) cable length tester. It measures cable length, calibrates Velocity of Propagation (VoP) values, finds the distance to faults in cables, convenient real-time on-site measurement

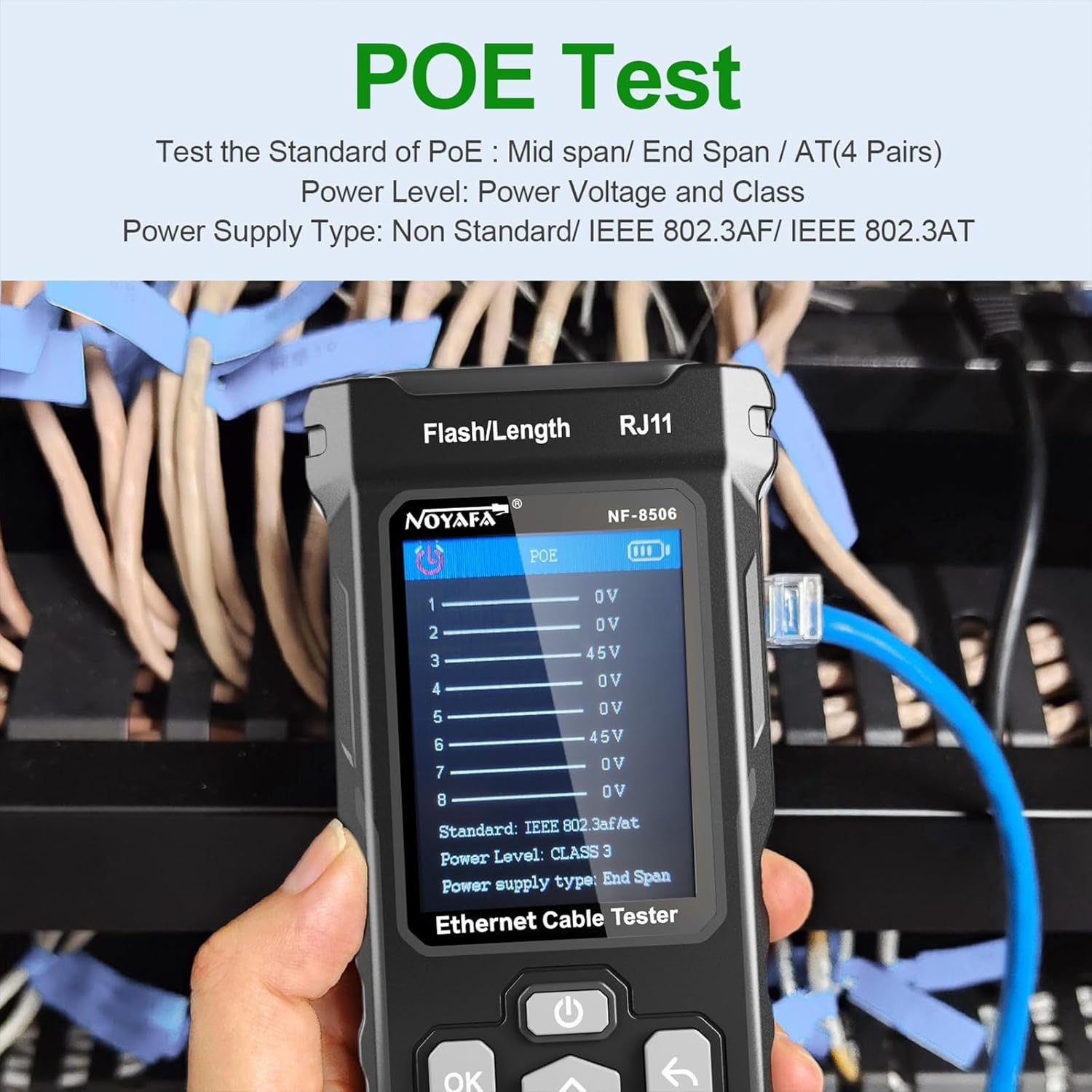

  • POE Tester: Identifies PoE devices efficiently. Detects crossover methods (unknown/end-span/mid-span/8-core power supply) and polarity. Comprehensive PoE detection, including non-standard, IEEE 802.3AF, and IEEE 802.3AT.

Product Description

  • Cable Tracking: Easily track shielded and unshielded network cables for engineering, data center maintenance, and equipment upgrades. It offers standard and interference-resistant line tracking methods.
  • Wire Mapping: Quickly identify CAT5/CAT6 and validate cable wiring sequences, enabling the detection and resolution of issues like open/short circuits and crossings.
  • Length Test: Automatic cable length detection simplifies accurate cable length measurement, ranging from 8.2ft/2.5m to 656ft/200m.

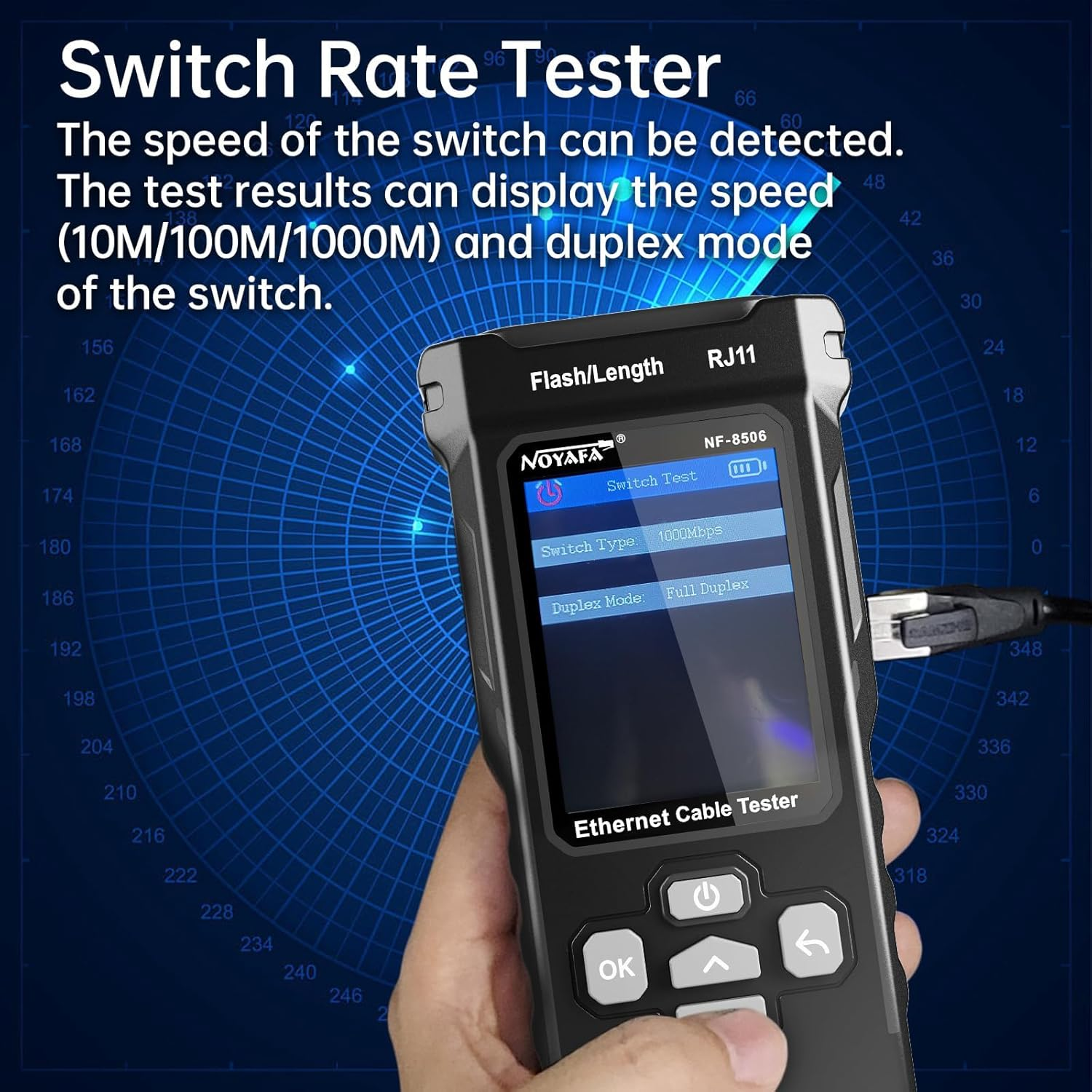

  • Port Flashing: Easily identify connected ports on switches or routers with flashing indicator lights. It provides additional information on port operating rates and duplex modes.
  • PoE Testing: Efficiently detect PoE devices, including non-standard and IEEE 802.3AF/IEEE 802.3AT standards, ensuring comprehensive PoE detection.
  • PING Testing: Assess network speed issues rapidly by conducting PING tests from multiple locations to gauge server and website response speeds.
  • Non-Contact Voltage Tester Pen: Enhance safety during electrical work by identifying live equipment and detecting live wires and sockets, preventing potential hazards.
  • High-intensity LED Lighting: Built-in LED lighting with an electroplated spotlight reflector improves visibility in dark or low-light environments.
  • Long-lasting Battery Life: Powered by a 3.7V 1,500mAh polymer lithium battery, it ensures extended usage periods, with convenient Type-C charging for easy recharging.
  • Item Model Number: NF-8506
  • Part Number: Hulumus
  • Style: Modern
  • Power Source: Battery Powered
  • Included Components: 1xNF-8506 Network cable tester
  • Colour: NF-8506
  • Batteries Required?: Yes
  • Item Weight: 500 g
  • Batteries: 1 Lithium Ion batteries required. (included)
  • Batteries Included?: Yes
  • Battery Cell Type: Lithium
  • Manufacturer: Hulumus
  • Package Dimensions: 27.8 x 24.2 x 5.8 cm; 500 Grams
  • Size: NF-8506
