1. [Power Consumption Monitoring] Power consumption data (accurate to hours) can be saved for up to 6 months and can be exported to Excel on the phone.
2. [Overload ] You can set power, current, and voltage thresholds. Once any conditions are met, the circuit breaker will shut down to guard your equipment.
3. [Fully Functional] This smart circuit breaker has all the most basic functions, such as APP control, voice control, local area network control, timing, jog settings, startup status.
4. [Safe Use] Equipped with color indicator light, the operating status is clear at a glance. Support short circuit , overload , etc., safe and to use.
5. [Smart Home Life] This smart circuit breaker can monitor the usage of all home devices and can be remotely controlled and timed to make life more intelligent.
Specification:

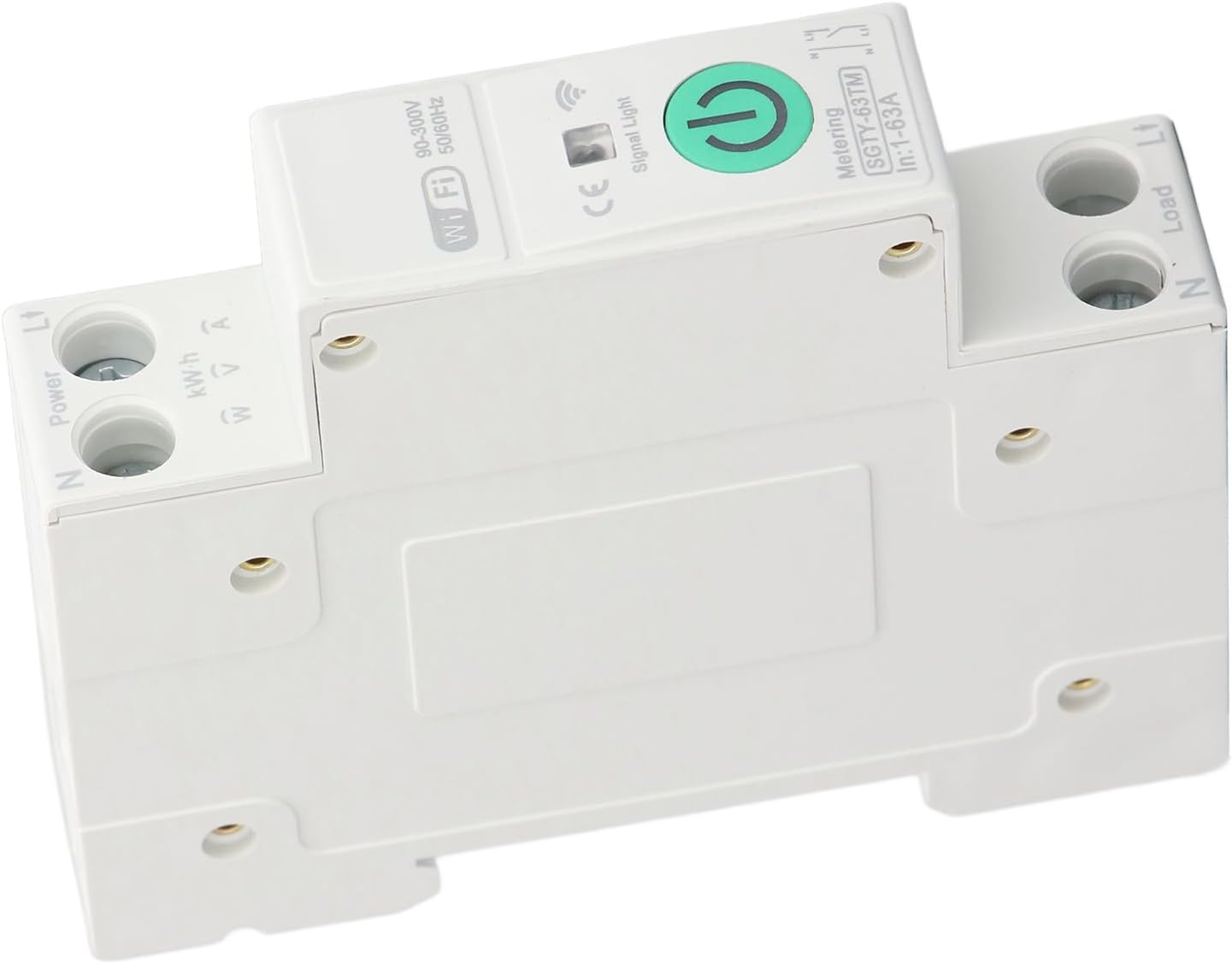

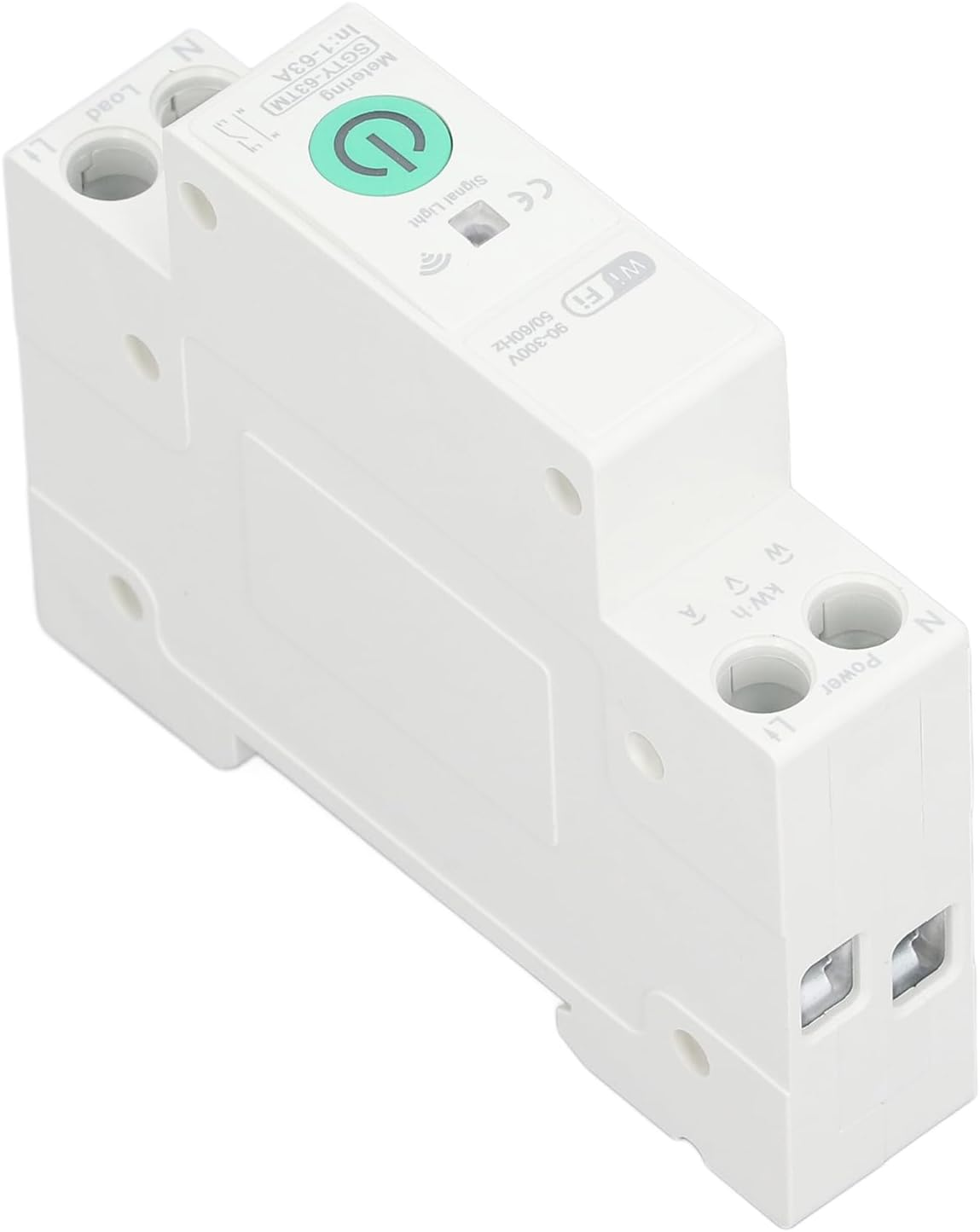

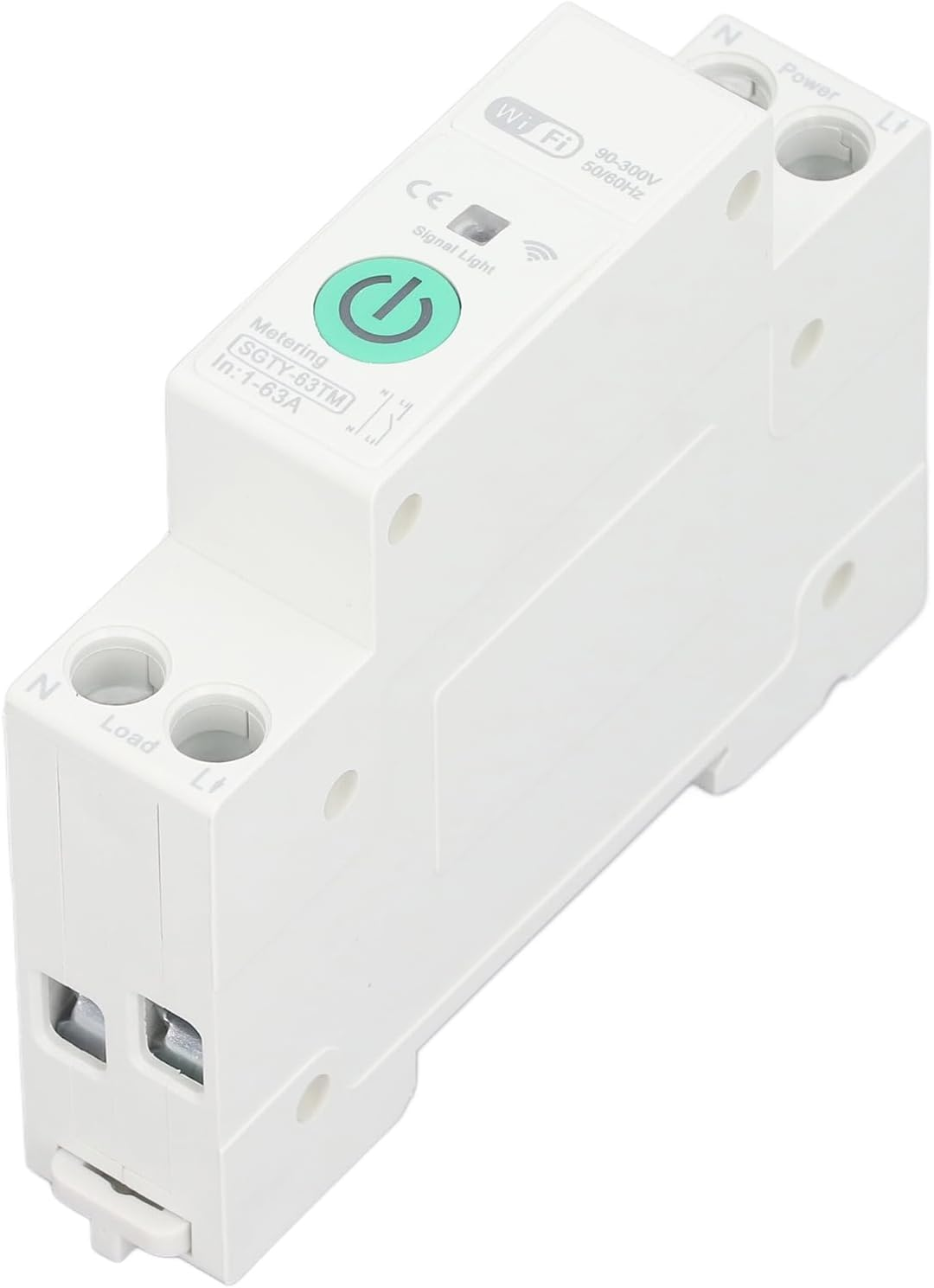

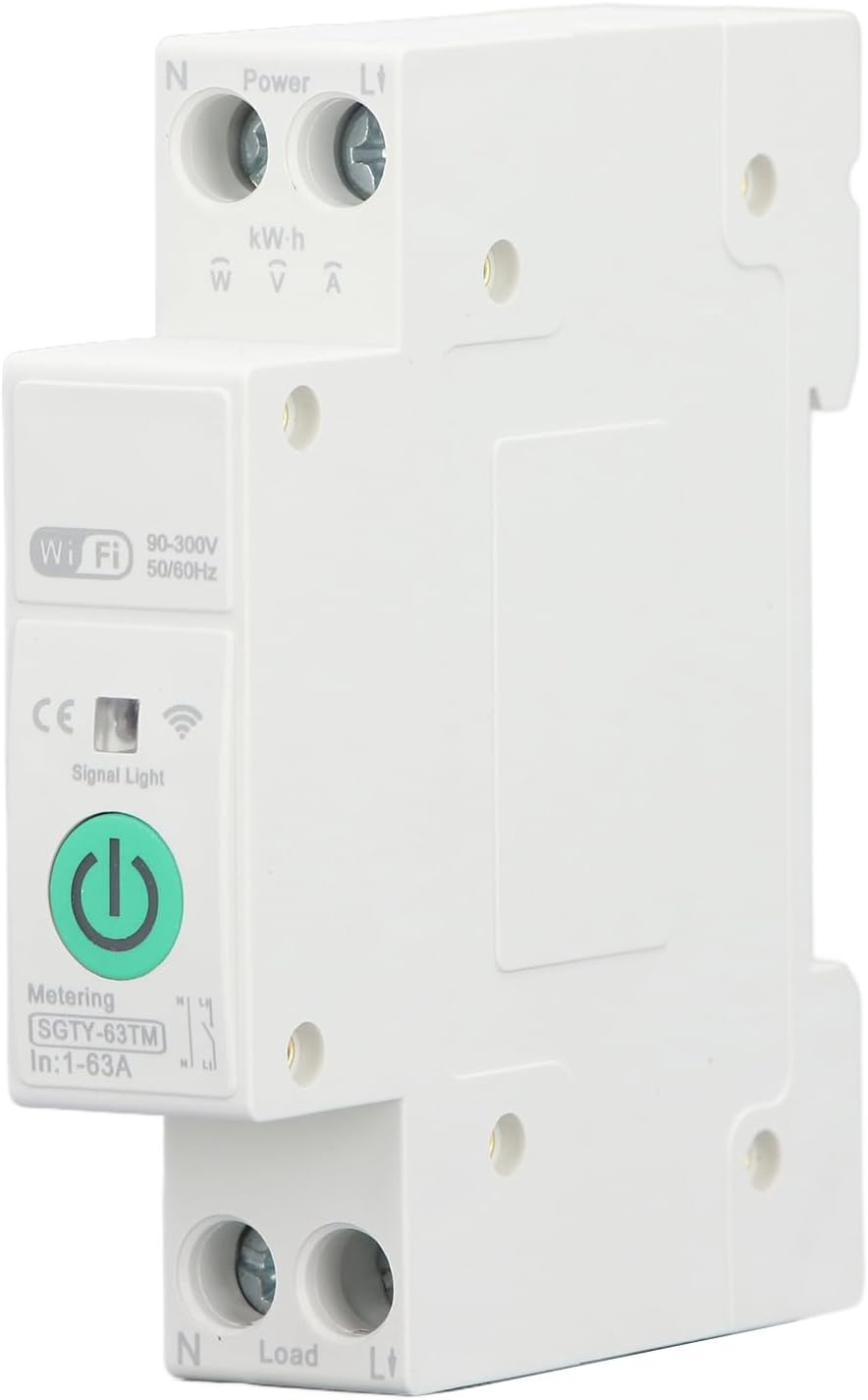

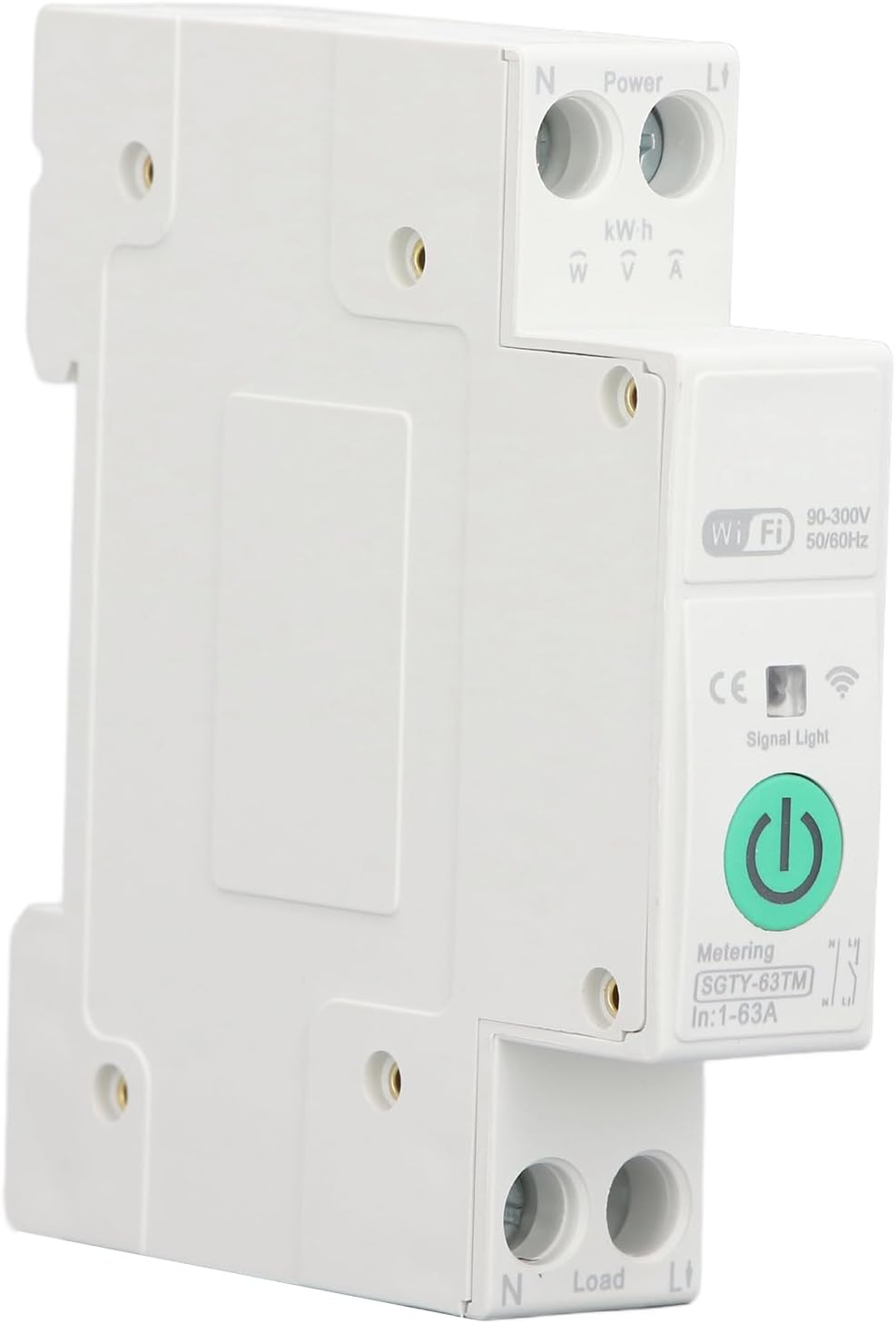

Item Type: WIFI Metering Circuit Breaker
Material: PA66
Rated Voltage: AC90-300V
Rated Frequency: 50Hz 60Hz
Number of Poles: 2 (Width: 18mm Internal Neutral Wire Pass, Only Disconnects Live Wire)
Grade: IP20
Installation Category: II
Working Temperature: -25℃ to +65℃
Leakage Current Monitoring Range: 10mA to 100mA
Mechanical Life: Over 100,000 Times
Electrical Life: Over 10,000 Times
Salt Spray : GB/T 2423.17 48 Hours
Dust : GB 4208 8 Hours
Maximum Wiring Capacity: 16mm²
Tightening Torsion: 1.2-1.8Nm
Collection Accuracy: Class 1
How to Use:
Take out the product and follow the instructions in the user manual for operation.
packing list:
1 x WIFI Metering Circuit Breaker
1 x User Manual
